EXPERT High Pressure Laminate Circular Saw Blade
For corded handheld circular saws, For plunge saws
Designed for cutting high pressure laminate
- Long Life cutting high pressure laminate
- Exceptional durability is built in with Bosch Carbide Technology
- Extra coating for increased performance and durability
- Bore works with or without reduction rings to fit different sizes
Materials
Select options
Outer diameter mm
Select one option from the listed items below
Number of teeth
Select one option from the listed items below
Width of cut (b1) mm
Select one option from the listed items below
Choose a pack size
Select one option from the listed items below
Select options
Outer diameter mm 4 options
Number of teeth 3 options
Width of cut (b1) mm 3 options
Choose a pack size 1 Pcs

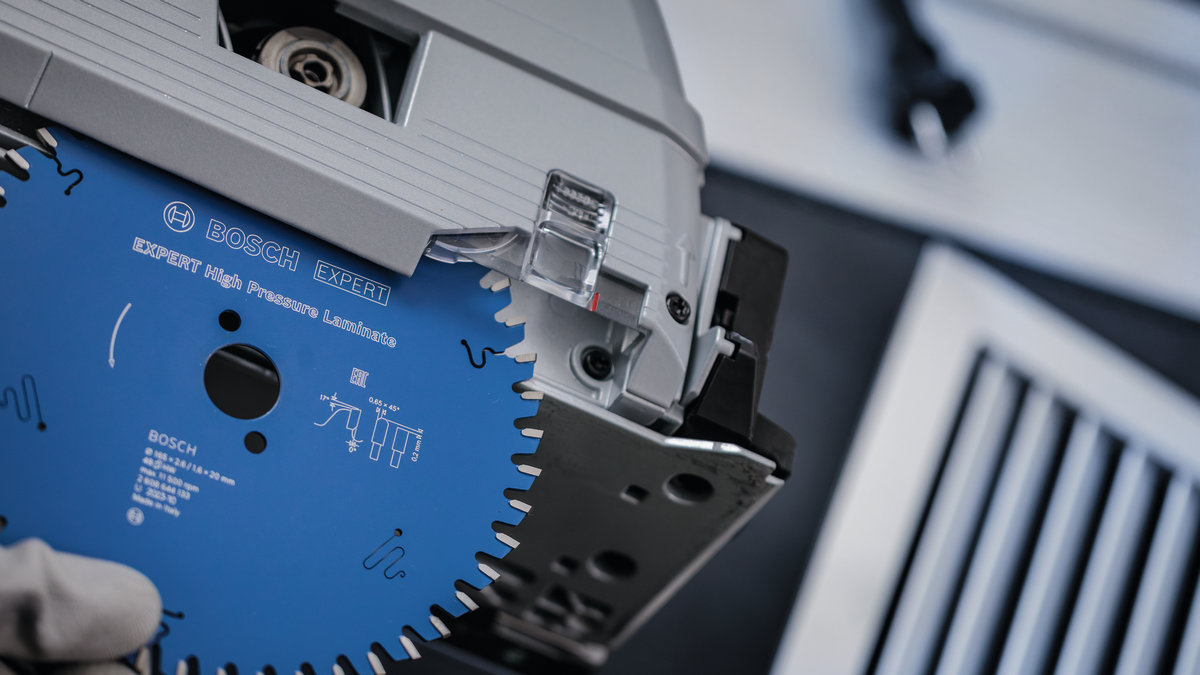

EXPERT High Pressure Laminate Circular Saw Blade
-
1
Exceptional durability is built in with Bosch Carbide Technology
-
2
Extra coating for increased performance and durability
EXPERT
Advantage
EXPERT High Pressure Laminate for Long Life cutting high pressure laminate

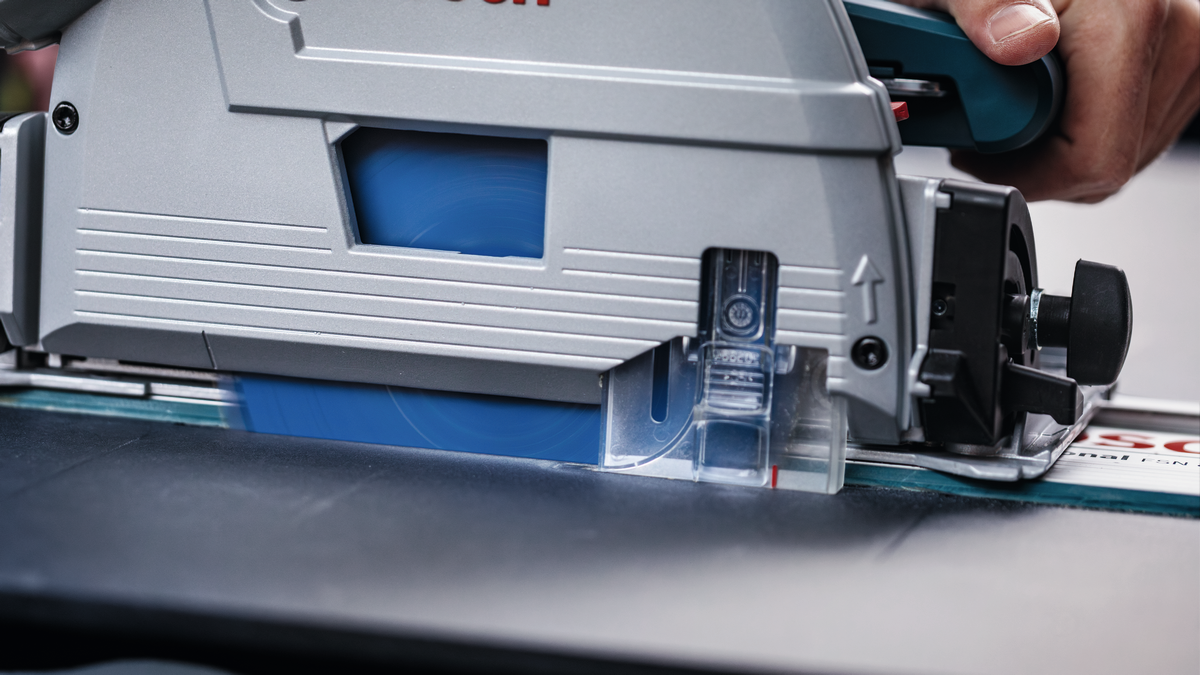

Because it’s so durable, high pressure laminate is used in construction and cabinet making. But this surface material can be very hard on your circular saw blades. We designed the EXPERT High Pressure Laminate to make sure you can cut high pressure laminate boards and panels – effectively, time and again.
View more
Product Options
Available product options: 5
Expand
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
Availability
|
|---|---|---|---|---|---|---|---|
| 2 608 644 131 | 140 | 20 | 1.8/1.3 | 42 | 1 Pcs | Find a local dealer | |
| 2 608 644 132 | 160 | 20 | 2.2/1.6 | 48 | 1 Pcs | Find a local dealer | |
| 2 608 644 133 | 165 | 20 | 2.6/1.6 | 48 | 1 Pcs | Find a local dealer | |
| 2 608 644 134 | 190 | 20 | 2.6/1.6 | 56 | 1 Pcs | Find a local dealer | |
| 2 608 644 135 | 190 | 30 | 2.6/1.6 | 56 | 1 Pcs | Find a local dealer |
out of products

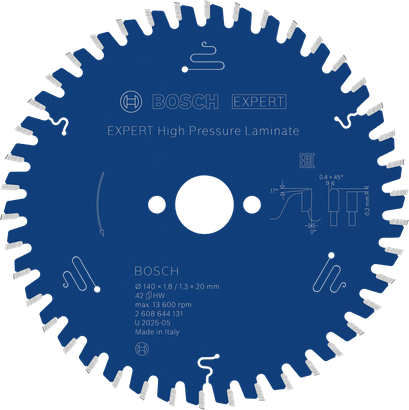

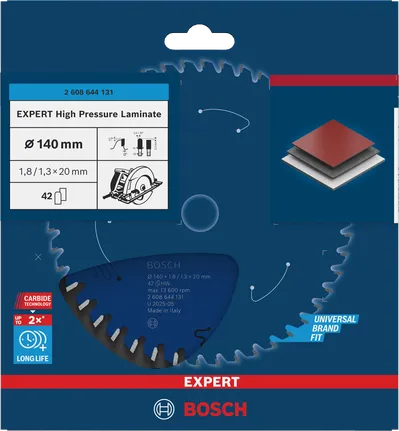

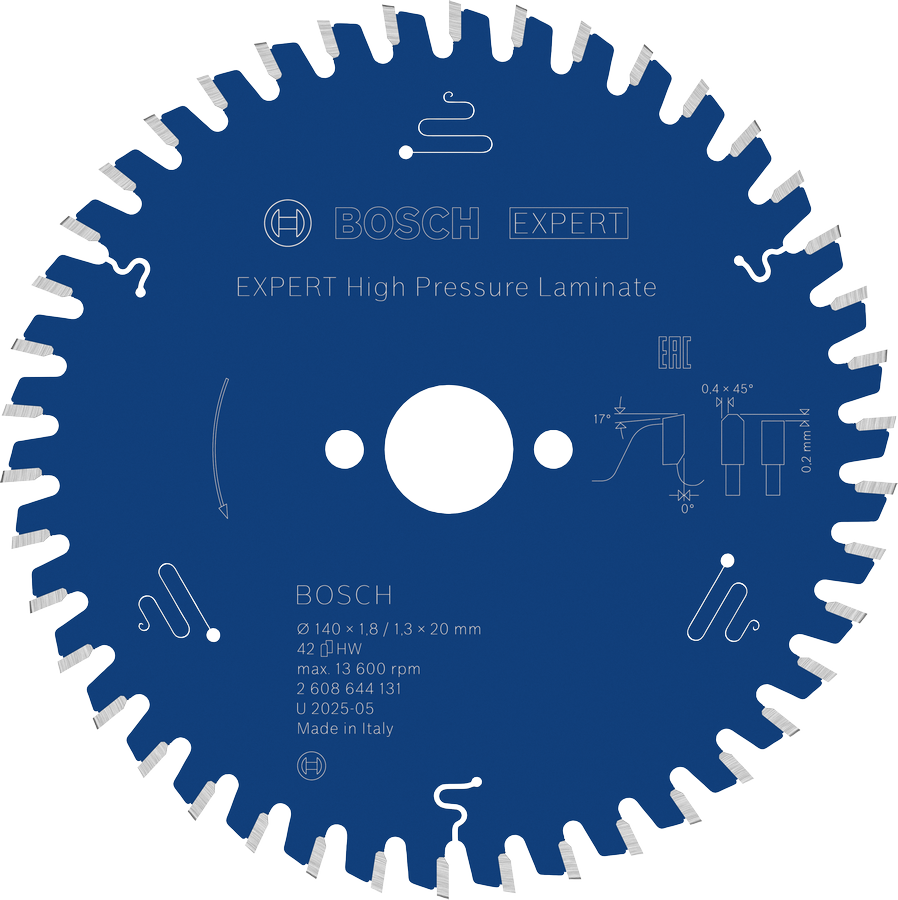

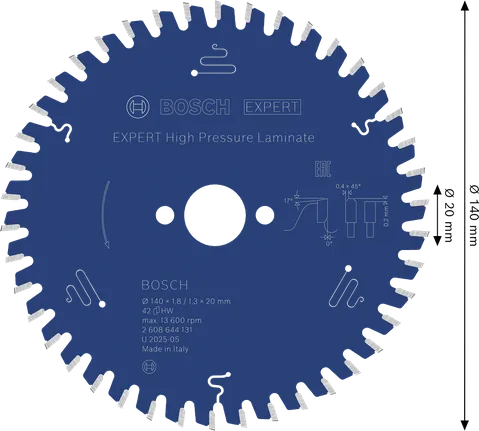

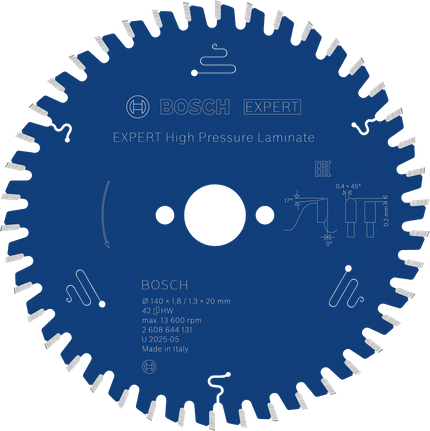

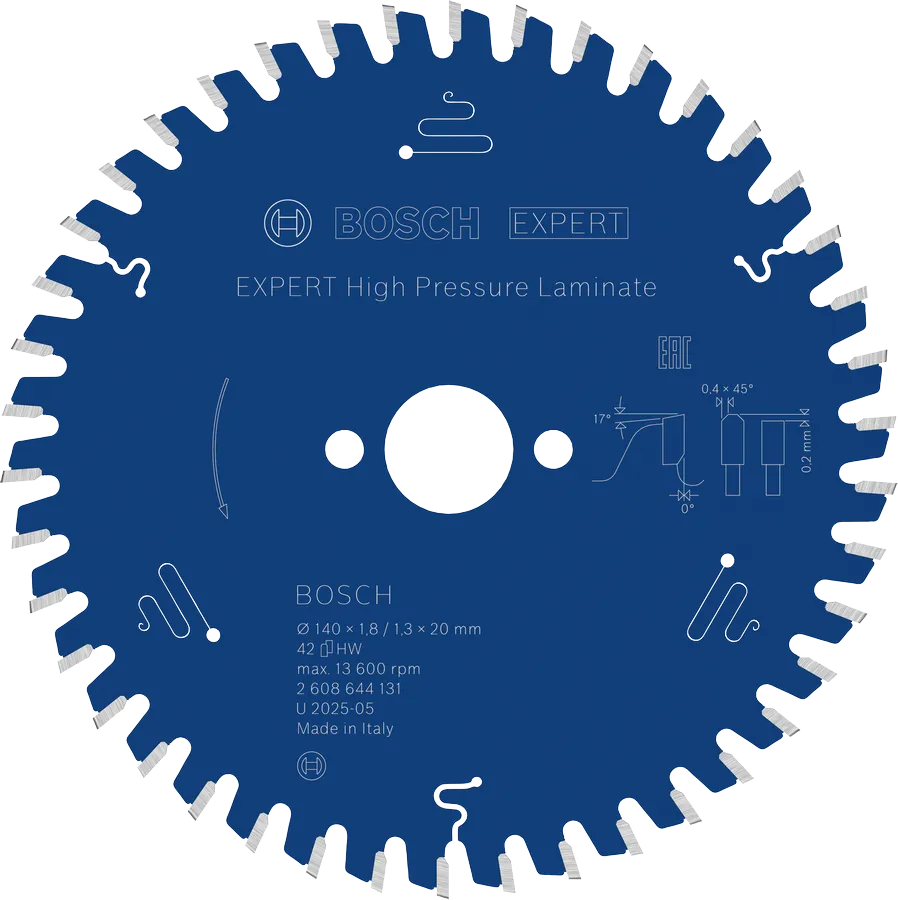

EXPERT High Pressure Laminate Circular Saw Blade, 140 x 1.8/1.3 x 20 mm, T42
Part number 2608644131
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
140
Bore size mm
20
Width of cut (b1) mm / Base bl. thickness (b2) mm
1.8/1.3
Number of teeth
42
Tooth shape
HLTCG
Max. rotation speed (RPM)
13600
Pin hole/Pitch circle diameter
2/6/32.5
Hook angle ° α
0
Relief angle ° β
17

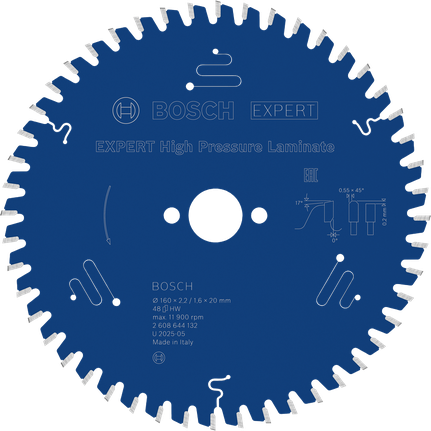

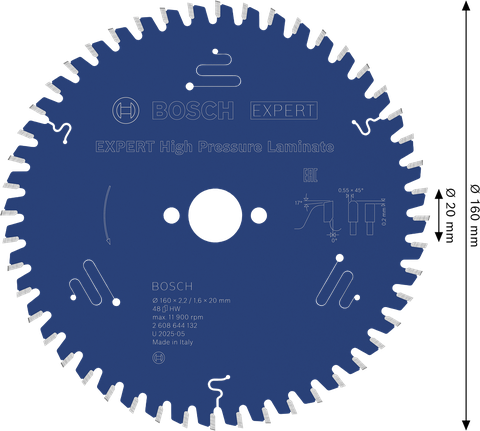

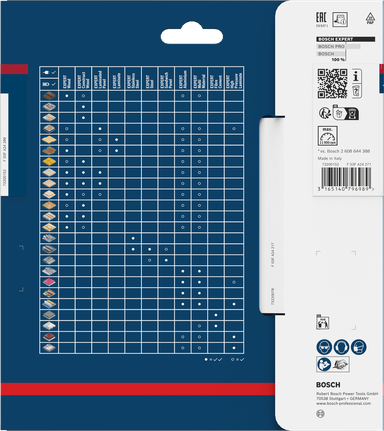

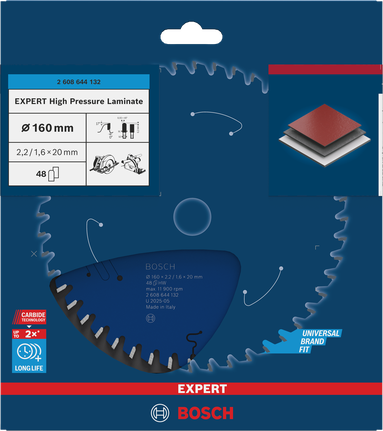

EXPERT High Pressure Laminate Circular Saw Blade, 160 x 2.2/1.6 x 20 mm, T48
Part number 2608644132
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
160
Bore size mm
20
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.2/1.6
Number of teeth
48
Tooth shape
HLTCG
Max. rotation speed (RPM)
11900
Pin hole/Pitch circle diameter
2/6/32.5
Hook angle ° α
0
Relief angle ° β
17

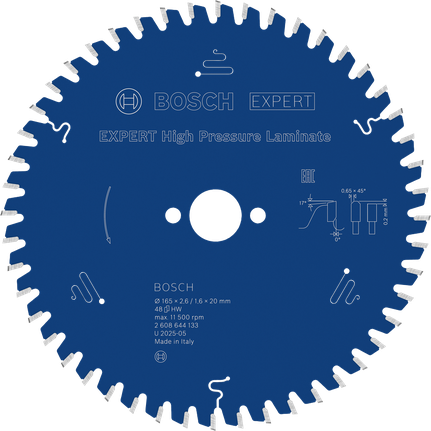

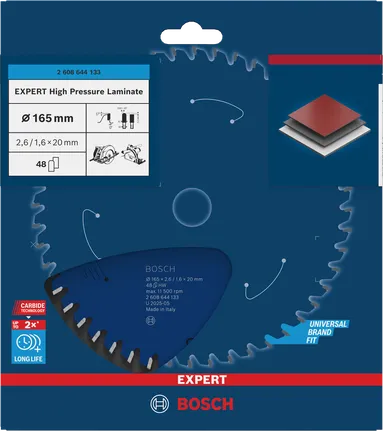

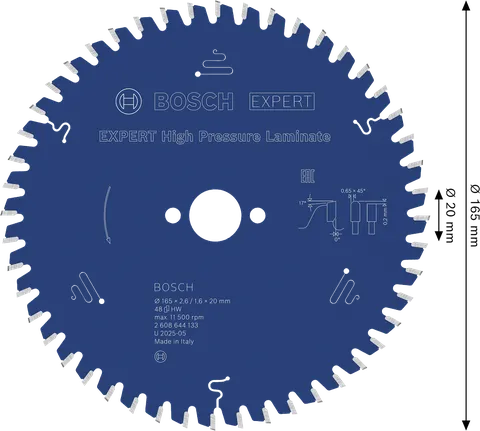

EXPERT High Pressure Laminate Circular Saw Blade, 165 x 2.6/1.6 x 20 mm, T48
Part number 2608644133
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
165
Bore size mm
20
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.6/1.6
Number of teeth
48
Tooth shape
HLTCG
Max. rotation speed (RPM)
11500
Pin hole/Pitch circle diameter
2/6/32.5
Hook angle ° α
0
Relief angle ° β
17

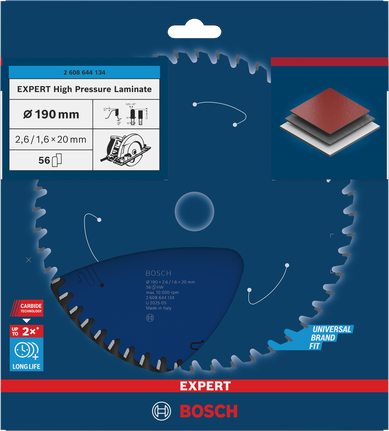

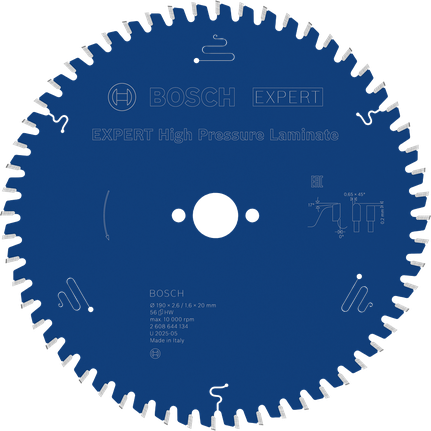

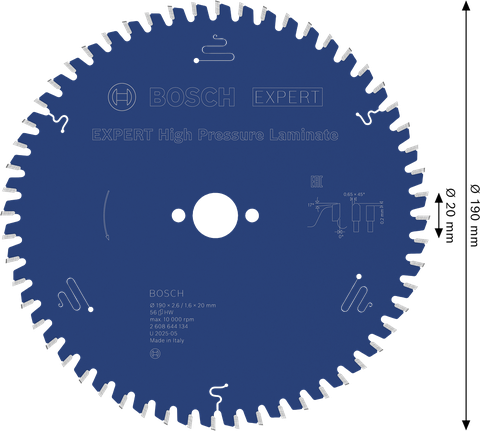

EXPERT High Pressure Laminate Circular Saw Blade, 190 x 2.6/1.6 x 20 mm, T56
Part number 2608644134
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
190
Bore size mm
20
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.6/1.6
Number of teeth
56
Tooth shape
HLTCG
Max. rotation speed (RPM)
10000
Pin hole/Pitch circle diameter
2/6/32.5
Hook angle ° α
0
Relief angle ° β
17

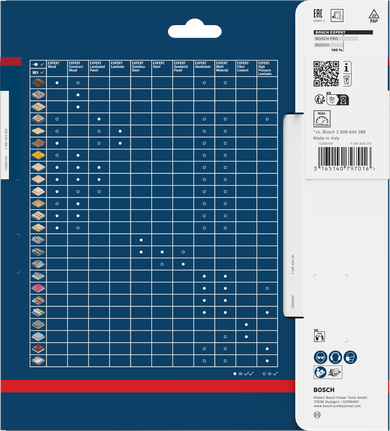

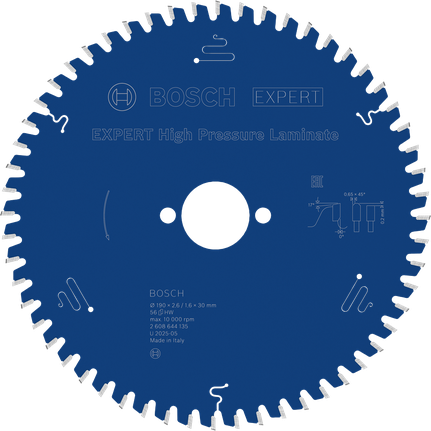

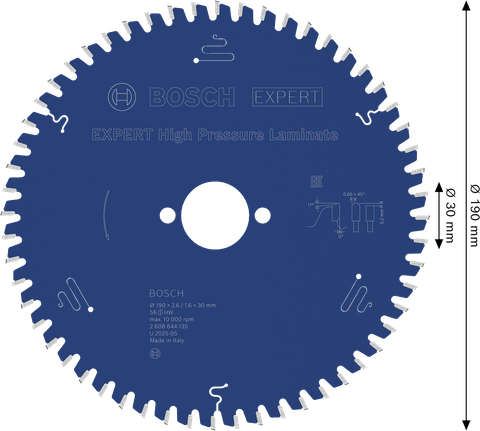

EXPERT High Pressure Laminate Circular Saw Blade, 190 x 2.6/1.6 x 30 mm, T56
Part number 2608644135
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
190
Bore size mm
30
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.6/1.6
Number of teeth
56
Tooth shape
HLTCG
Max. rotation speed (RPM)
10000
Pin hole/Pitch circle diameter
2/7/42
Hook angle ° α
0
Relief angle ° β
17
