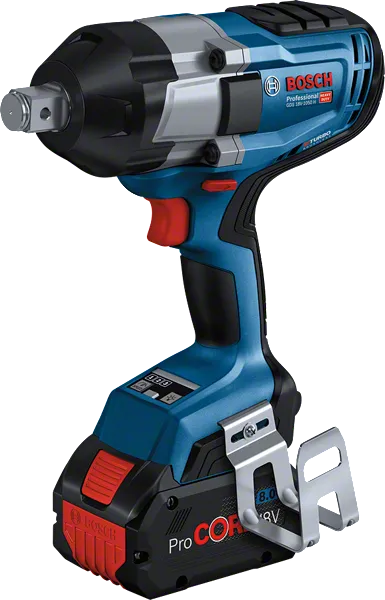

Cordless Impact Wrench GDS 18V-1050 H Professional

Full power at its best: 3/4" high torque impact wrench with BITURBO Brushless technology

Technical data
Additional data
Battery voltage 18   V
Weight excl. battery 2.9   kg
Torque, max. 1,050   Nm
No-load speed 0 – 1,750   rpm
Tool holder 3/4'' Square
Breakaway torque, max. 1,700   Nm
Torque adjustment range, min./max., 1st level 0/350   Nm
Torque adjustment range, min./max., 2nd level 0/750   Nm
Torque adjustment range, min./max., 3rd level 0/1050   Nm
No-load speed (1st level) 0-800   rpm
No-load speed (2nd level) 0-1,200   rpm
No-load speed (3rd level) 0-1,750   rpm
Impact rate 0-2,600   bpm
Impact rate (1st level) 0-1,600   bpm
Impact rate (2nd level) 0-2,400   bpm
Impact rate (3rd level) 0-2,600   bpm
Torque settings 3
Screw diameter
Screw diameter M 10 - M 24
Total vibration values (Tightening screws and nuts of maximum permitted size)
Vibration emission value ah 13.5   m/s²
Uncertainty K 1.5   m/s²

Advantages

Full power at its best: 3/4" high torque impact wrench with BITURBO Brushless technology

  • Impressive power with cordless freedom thanks to ProCORE 18V batteries and brushless motor
  • High performance motor with a tightening torque of 1,050 Nm and a breakaway torque of up to 1,700 Nm
  • Ideal versatility and controlled power due to 3-speed/torque settings

Functions

 Compatible since 2008: all of our batteries are compatible with new and existing Bosch Professional tools in the same voltage class.
Icon
Icon
Icon
 Impact rate at rated speed 0 - 2600
Icon
Direct tool feedback and setting adjustments thanks to the integrated user interface and connectivity features.
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
 Bit insertion square, bit holder, external square
 Square-Drive Thru-Hole allows for secure retention of sockets to help prevent drops.

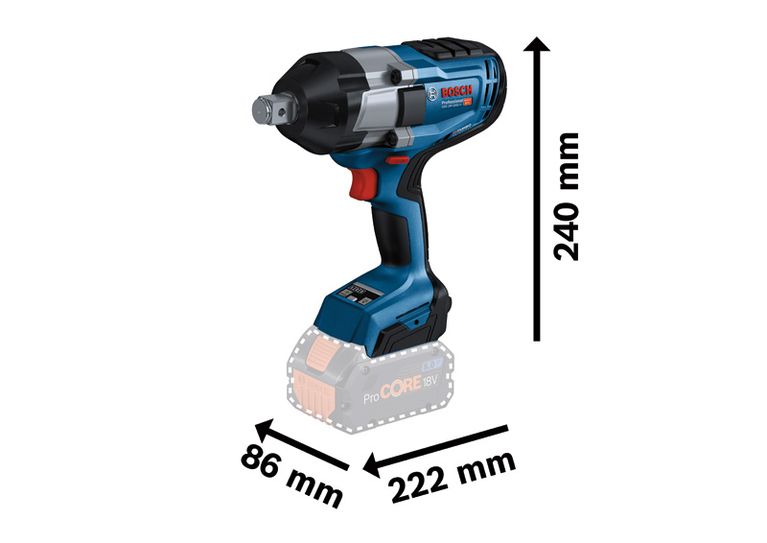

 Head Length 222
Longer motor life - more runtime - more power thanks to brushless motor
 Illuminating of the work area
What’s Included in this Package
GDS 18V-1050 H Professional
GDS 18V-1050 H Professional
Order number: 0 601 9J8 522
  • 2 x battery GBA 18V 5.0Ah 1 600 A00 1Z6
  • Quick charger GAL 18V-40 Professional 1 600 A01 9RJ
  • L-BOXX 136 1 600 A01 2G0

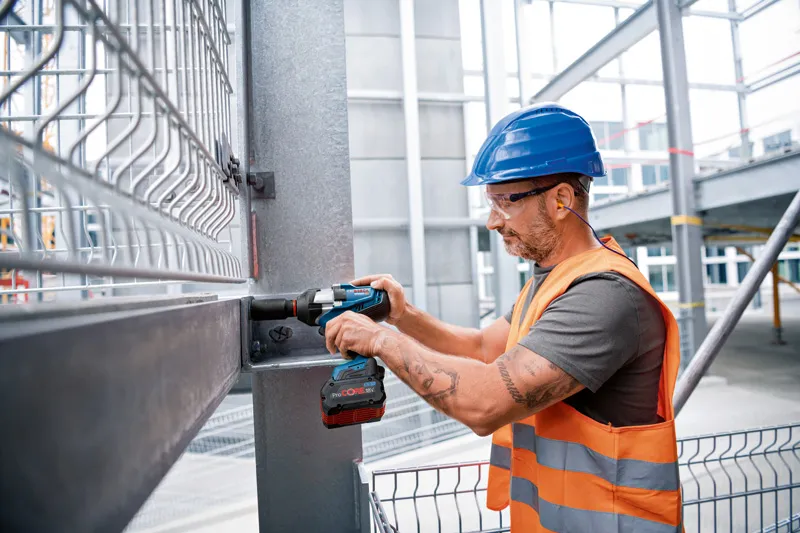

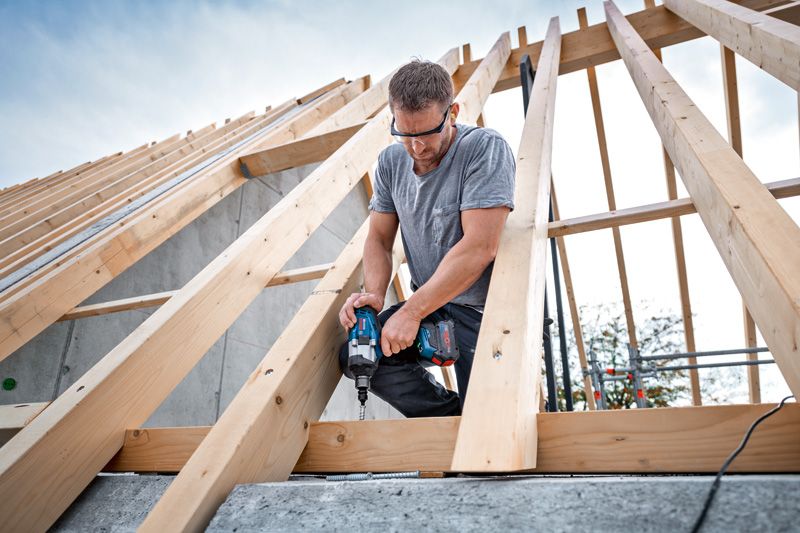

The GDS 18V-1050 H in action!
