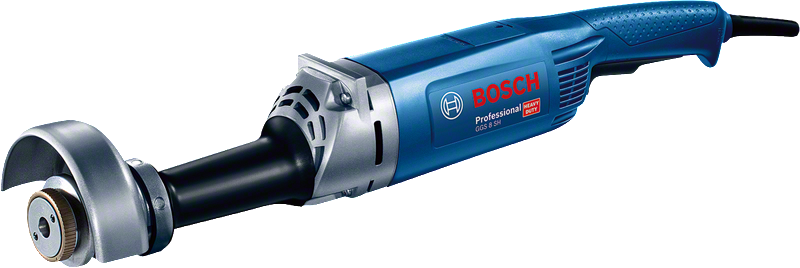

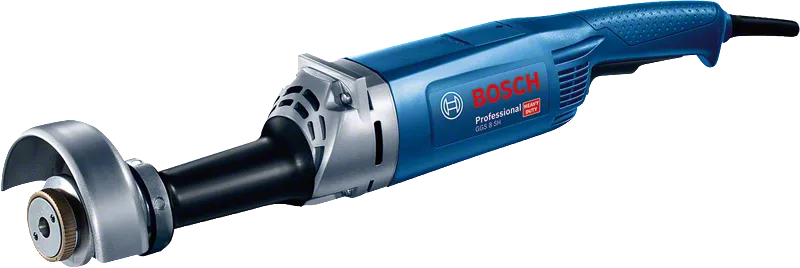

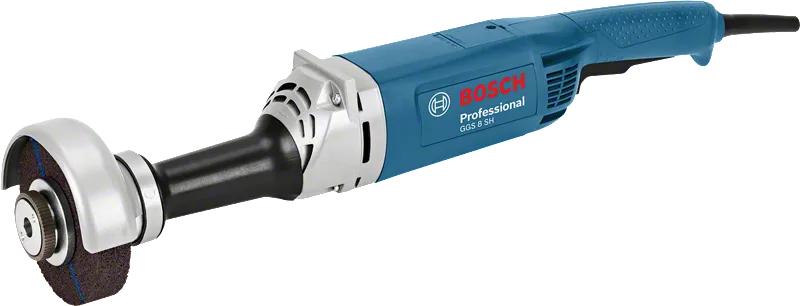

Straight Grinder

GGS 8 SH Professional

The most powerful model from Bosch with quick-locking nut
GGS 8 SH Professional
Technical data
Additional data
No-load speed* 8,000 rpm
Rated input power* 1,200 W
Tool holder* Diameter 20 mm / Spindle M 14
Tools Resin-bonded conical grinding discs for min. 45 m/s up to 125 mm diameter x 32/26 knotted round brushes up to 125 mm diameter
Power output 700 W
Weight 4.4 kg
Max. collet diameter 20 mm/spindle M14
Max. grinding tool diameter 125 mm
Switch Tri-Control
Total vibration values (Surface grinding up to diameter of 50)
Vibration emission value ah 3 m/s²
Uncertainty K 1.5 m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 87 dB(A); Sound power level 98 dB(A). Uncertainty K= 3 dB.

Advantages

The most powerful model from Bosch with quick-locking nut

  • Powerful 1200 watt motor for high material removal rate
  • With SDS quick-locking nut for rapid disc changes without tools
  • Restart protection prevents automatic start-up after a power outage

Functions

Direct cooling For high overload capability and a long service life.
Prevents autonomous restart of the tool after power blackout. Only through new, conscious activation will the tool be ready to use
 Soft start as the load and torque of the motor are temporarily reduced during start-up.
What’s Included in this Package
with accessory set
with accessory set
Order number: 0 601 214 300
  • Allen key WAF 6 (spare part number 1 907 950 007)

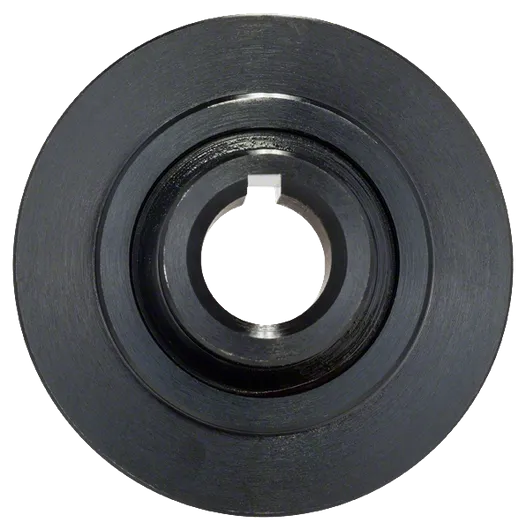

  • Clamping flange, diameter 65 mm 1 605 703 065
  • Holding pin 1 603 101 017
  • Protective guard (spare part number 3 605 510 014)

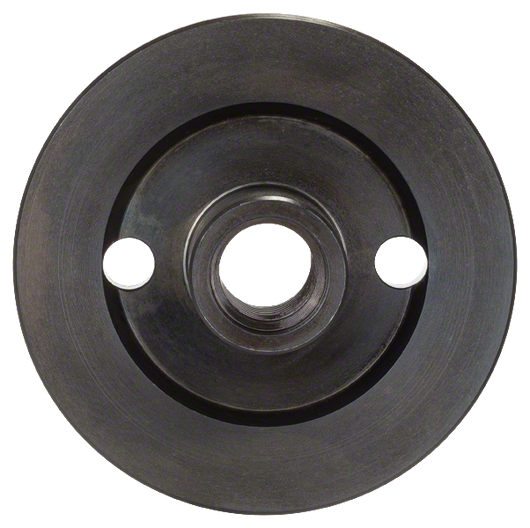

  • Round nut 3 603 345 014
  • SDS quick-locking nut for conical discs 3 603 301 011
  • Two-hole spanner 1 607 950 061
