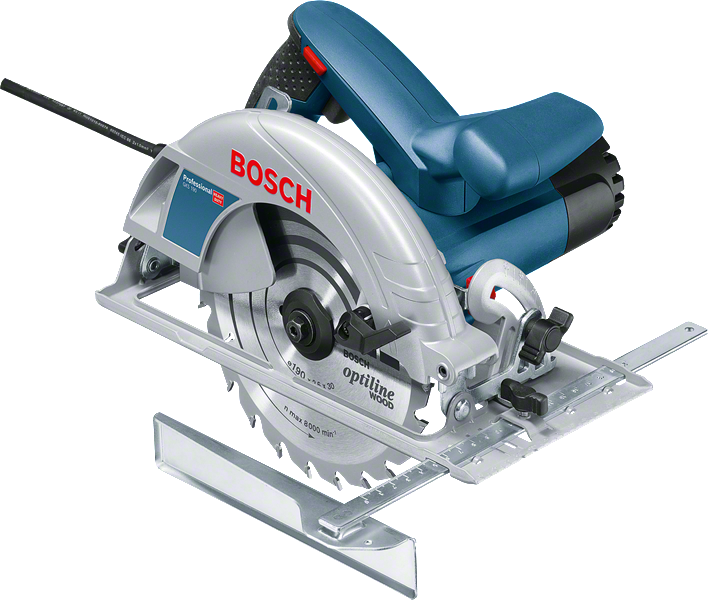

Technical data
| Additional data | |
|---|---|
| Rated input power* | 1,400 W |
| Saw blade diameter* | 190 mm |
| Saw blade bore diameter | 30 mm |
| No-load speed | 5,500 rpm |
| Weight | 4.2 kg |
| Cutting depth | |
|---|---|
| Max. cutting capacity in wood (90°)* | 70 mm |
| Max. cutting capacity in wood (45°) | 50 mm |
| Total vibration values (Wood sawing) | |
|---|---|
| Vibration emission value ah | 2.5 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 96 dB(A); Sound power level 107 dB(A). Uncertainty K= 3 dB.
Advantages

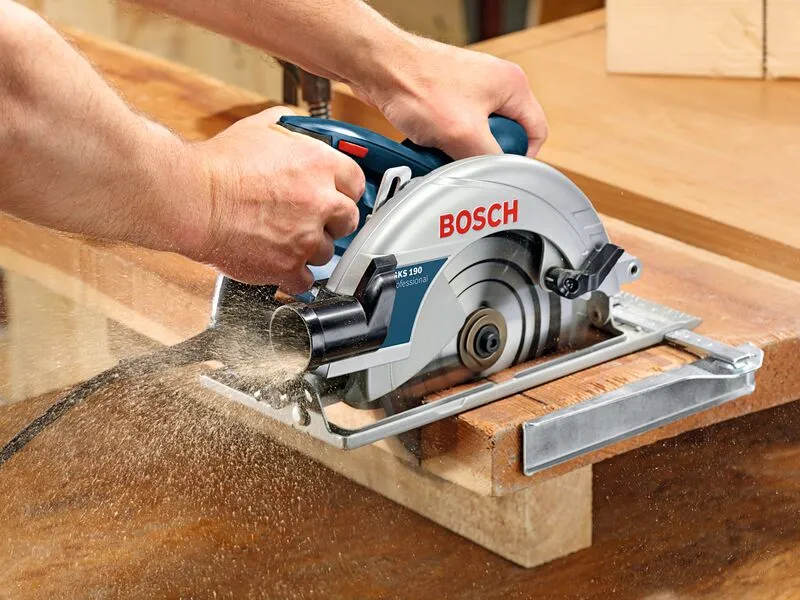

The powerful and robust tool
- Handy machine for circular saw work of all kinds in industry and in the trades
- Compact and lightweight

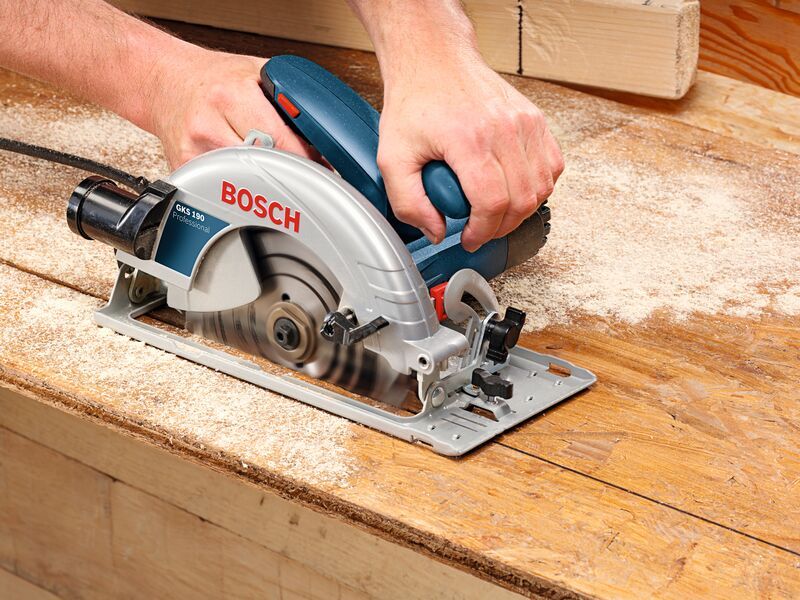

- For rip, cross and mitre cuts in wood and similar materials, mainly in free handling
Functions
What’s Included in this Package
in cardboard box with accessory set
Order number:
0 601 623 000
- 1 x circular saw blade, Optiline Wood, 190 x 30 x 2.0 mm, 16 2 608 641 184
- Cardboard box
- Allen key WAF 5 (spare part number 1 907 950 006)

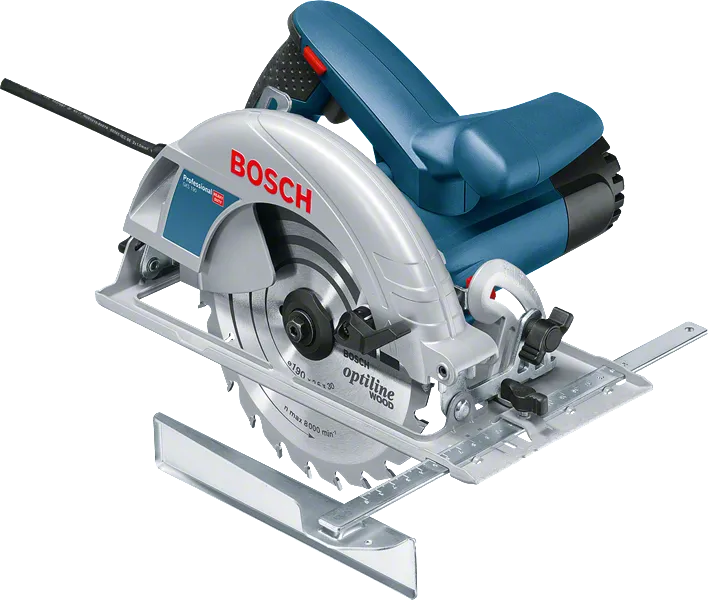

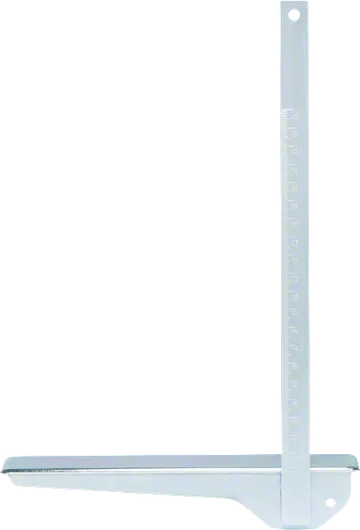

- Parallel guide 1 608 190 007

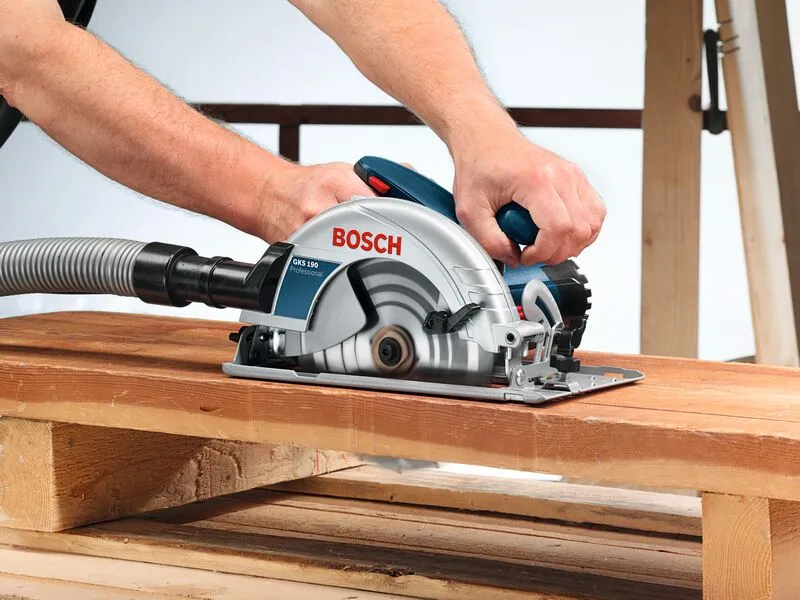

- Dust extraction adapter (spare part number 1 619 P06 204)
