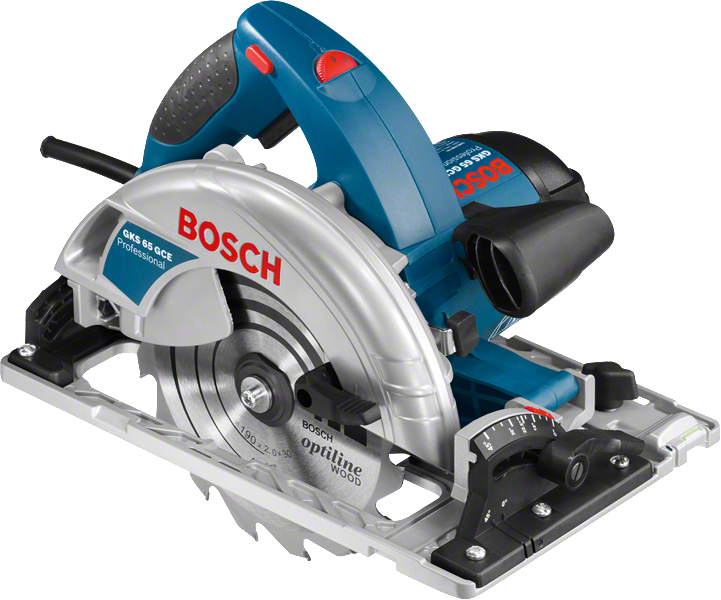

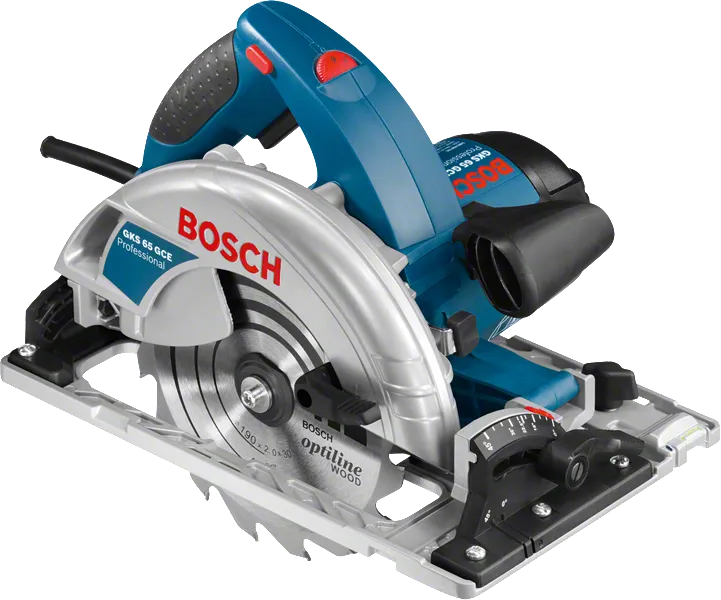

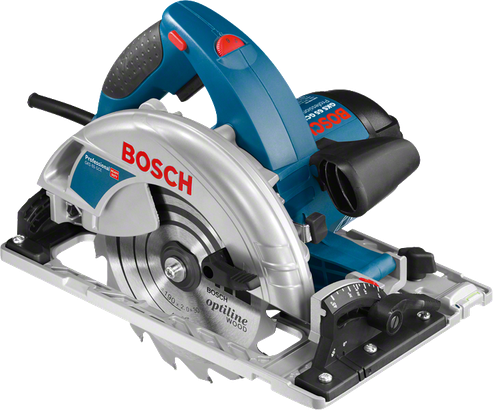

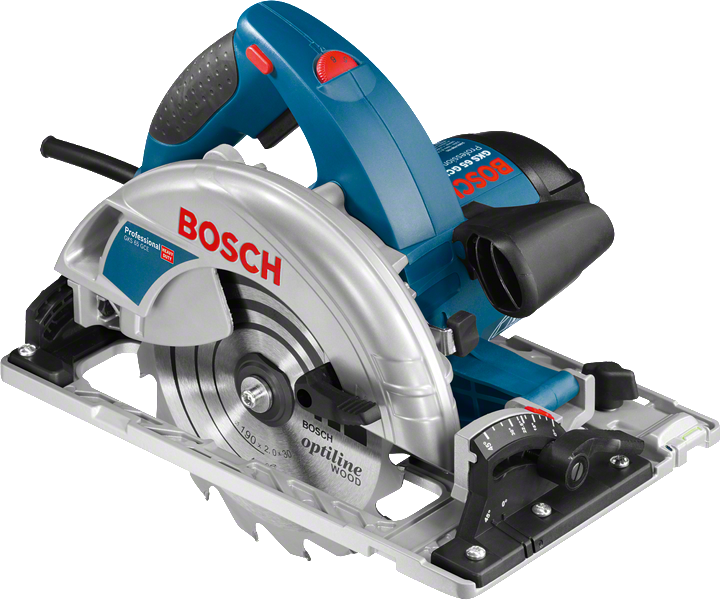

Technical data
| Additional data | |
|---|---|
| Rated input power* | 1,800 W |
| Saw blade diameter* | 190 mm |
| No-load speed | 2,300 – 5,000 rpm |
| Weight | 5.2 kg |
| Saw blade bore diameter | 30 mm |
| Cutting depth | |
|---|---|
| Max. cutting capacity in wood (90°)* | 65 mm |
| Max. cutting capacity in wood (45°) | 48 mm |
| Total vibration values (Wood sawing) | |
|---|---|
| Vibration emission value ah | 3 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 88 dB(A); Sound power level 99 dB(A). Uncertainty K= 3 dB.
Advantages

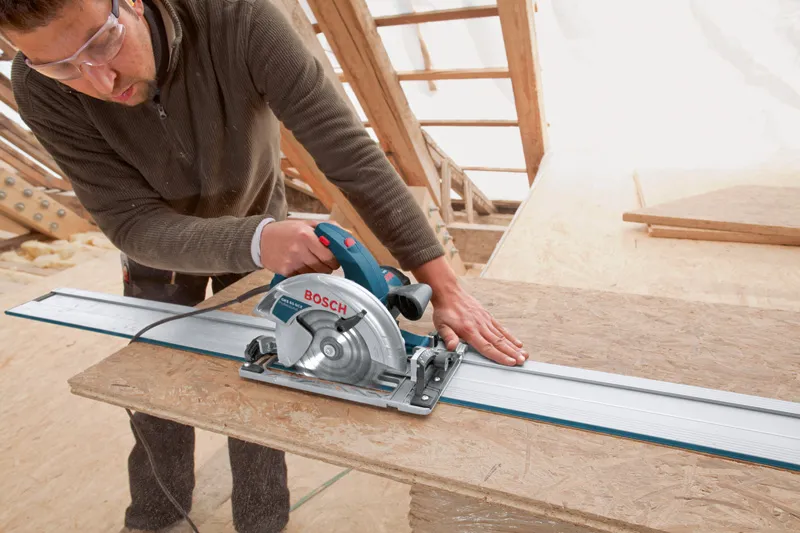

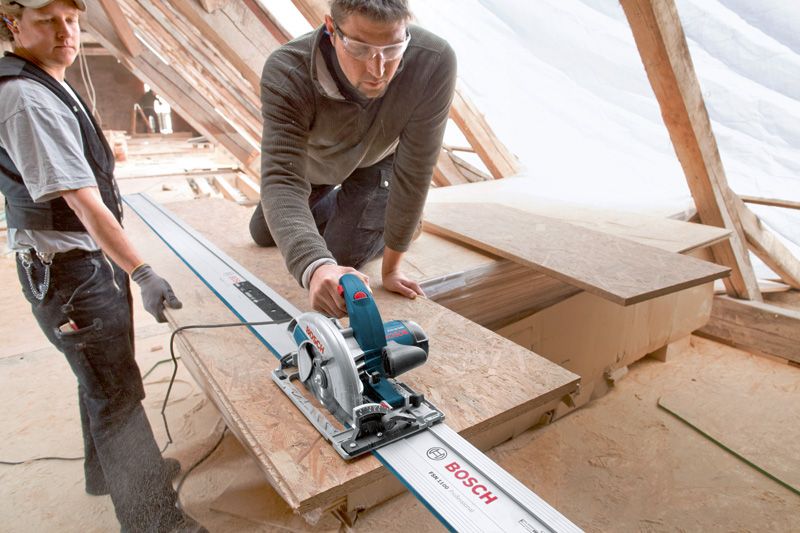

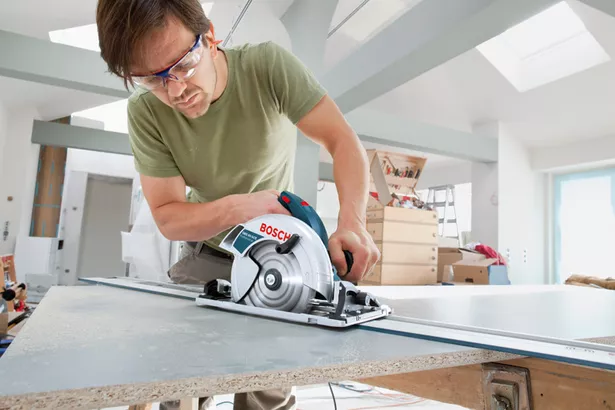

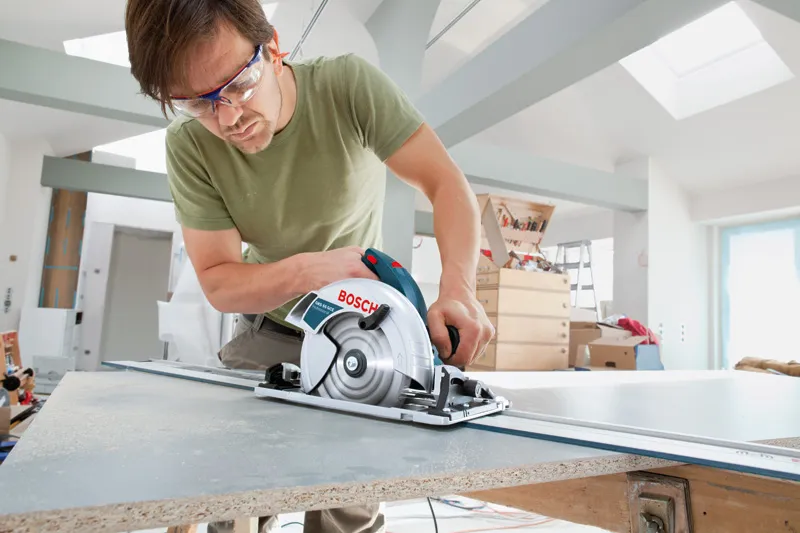

The high-power tool – optimised for guide rails

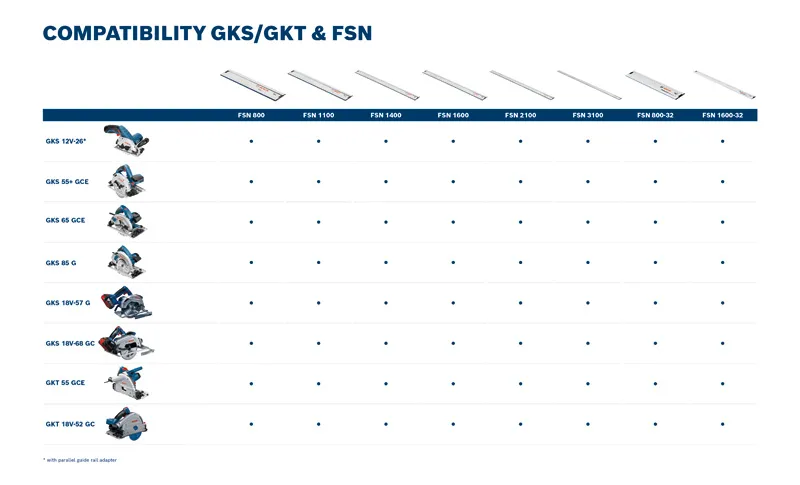

- Exact interplay with the new Bosch FSN guide rail system and with rails from other suppliers
- Mitre cuts with the guide rail are possible without an adapter
- Fast sawing due to 1800 watts of motor power and Constant Electronic
Functions
What’s Included in this Package
with accessory set
Order number:
0 601 668 900
- Allen key WAF 5 (spare part number 1 907 950 006)
- Dust extraction adapter (spare part number 2 610 925 244)
- 1 x circular saw blade, Optiline Wood, 190 x 30 x 2.0 mm, 16 2 608 641 184
