Technical data
| Additional data | |
|---|---|
| Cutting capacity in steel (400 N/mm²), max.* | 1.6 mm |
| No-load stroke rate* | 2,600 spm |
| Material that can be processed | Steel up to 400 N/mm² at 1.6 mm |
| Cutting track width | 5 mm |
| Pre-drilling for interior cut-outs | 21 mm |
| Smallest radius | 40 mm |
| Stroke rate under load | 2,100 spm |
| Weight | 1.8 kg |

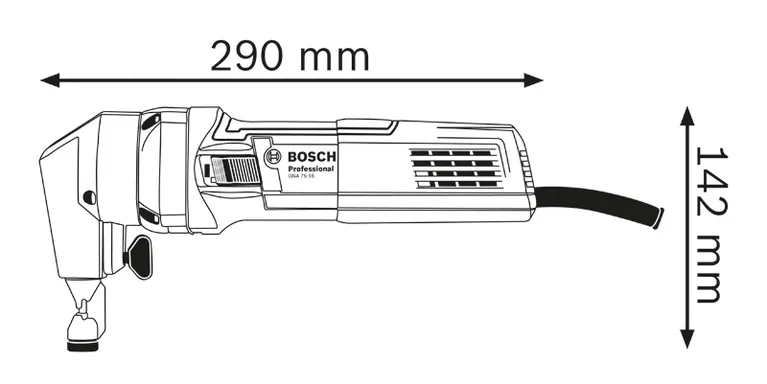

| Tool dimensions (length) | 290 mm |
| Tool dimensions (height) | 142 mm |
| Cutting capacity in steel (600 N/mm²), max. | 1 mm |
| Cutting capacity in steel (800 N/mm²), max. | 0.7 mm |
| Cutting capacity in aluminium (200 N/mm²), max. | 2 mm |
| Electric specifications | |
|---|---|
| Rated input power* | 750 W |
| Power output | 400 W |
| Total vibration values (Cutting sheet metal) | |
|---|---|
| Vibration emission value ah | 10 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 86 dB(A); Sound power level 97 dB(A). Uncertainty K= 3 dB.
Advantages
The powerful and handy tool for cutouts of all kinds
- Slim, narrow design for optimum handling
- The powerful and handy tool for cutouts of all kinds
- Working to scribe mark and template easily possible
Functions
What’s Included in this Package
with accessory set
Order number:
0 601 529 400
- Die plate 2 608 639 028
- Punch 2 608 639 027
