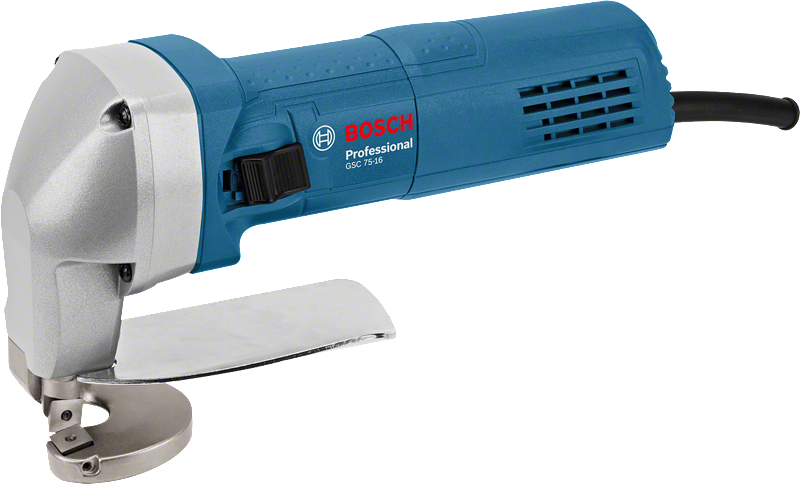

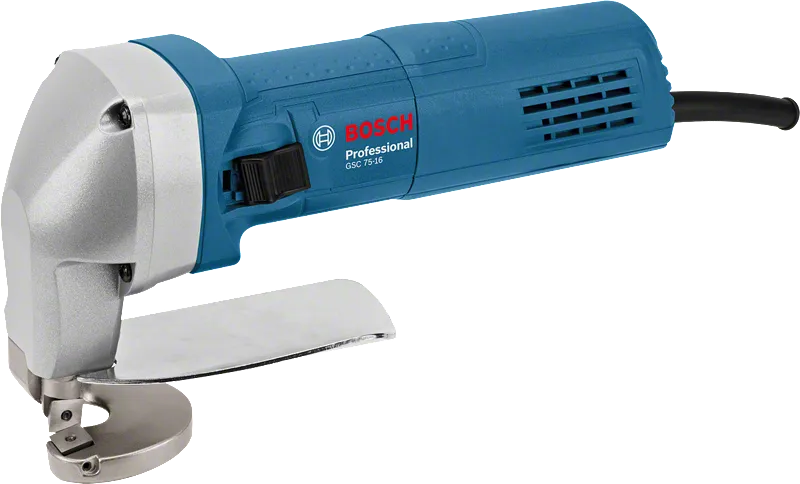

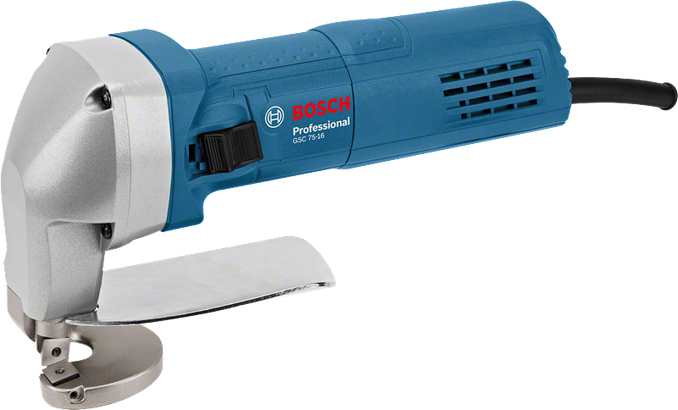

Shear GSC 75-16 Professional

Powerful and handy for fast and comfortable cutting

Technical data
Additional data
Cutting capacity in steel (400 N/mm²), max.* 1.6 mm
No-load stroke rate* 5,200 spm
Material that can be processed Steel up to 400 N/mm² at 1.6 mm
Smallest radius 35 mm
Stroke rate under load 4,000 spm
Weight 1.7 kg

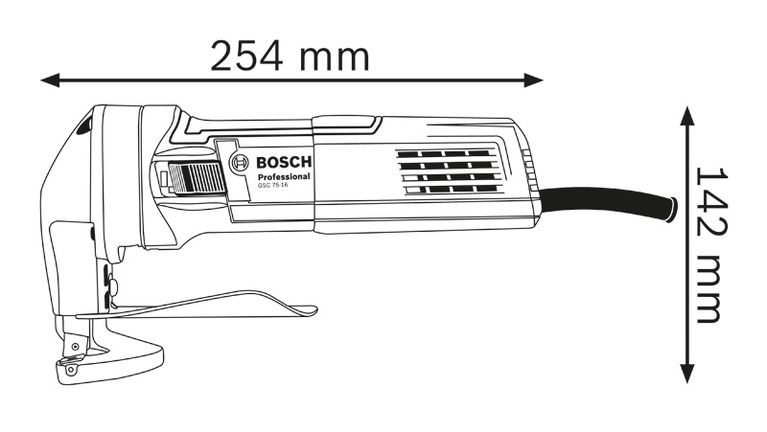

Tool dimensions (length) 254 mm
Tool dimensions (height) 142 mm
Cutting capacity in steel (600 N/mm²), max. 1.2 mm
Cutting capacity in steel (800 N/mm²), max. 0.7 mm
Cutting capacity in aluminium (200 N/mm²), max. 2.2 mm
Electric specifications
Rated input power* 750 W
Power output 400 W
Total vibration values (Cutting sheet metal)
Vibration emission value ah 6 m/s²
Uncertainty K 1.5 m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 87 dB(A); Sound power level 98 dB(A). Uncertainty K= 3 dB.

Advantages

Powerful and handy for fast and comfortable cutting

  • Optimal tool guidance with a small grip circumference
  • High cutting speed with low exertion of force
  • Excellent manoeuvrability in curves

Functions

Metalworking The professional power tools for metalworking from Bosch.
What’s Included in this Package
with accessory set
with accessory set
Order number: 0 601 500 500
  • Allen key WAF 3 (spare part number 1 907 950 004)
  • 1 x upper and lower blade for metal shear 2 608 635 243

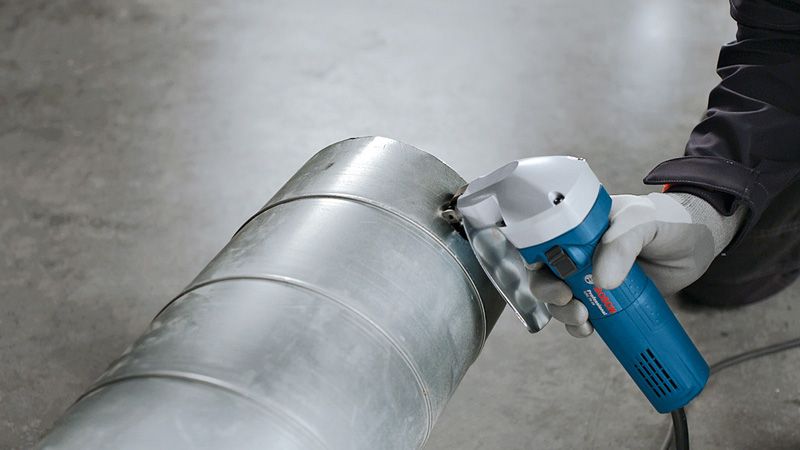

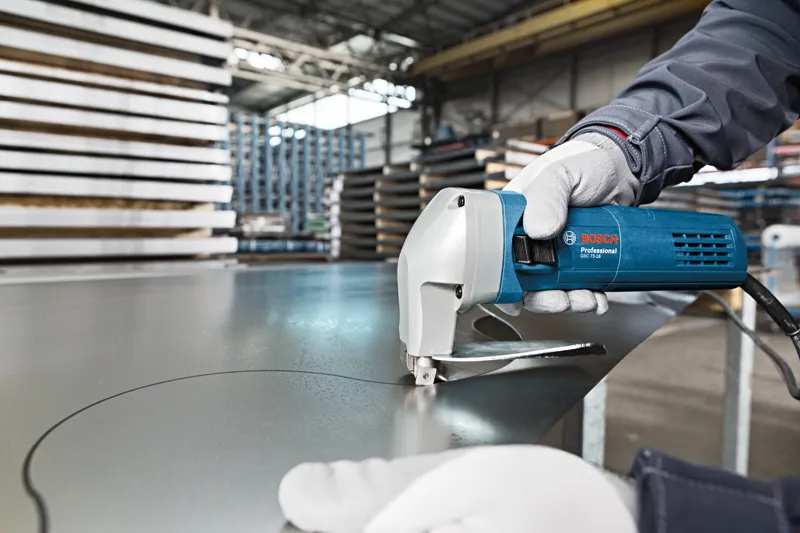

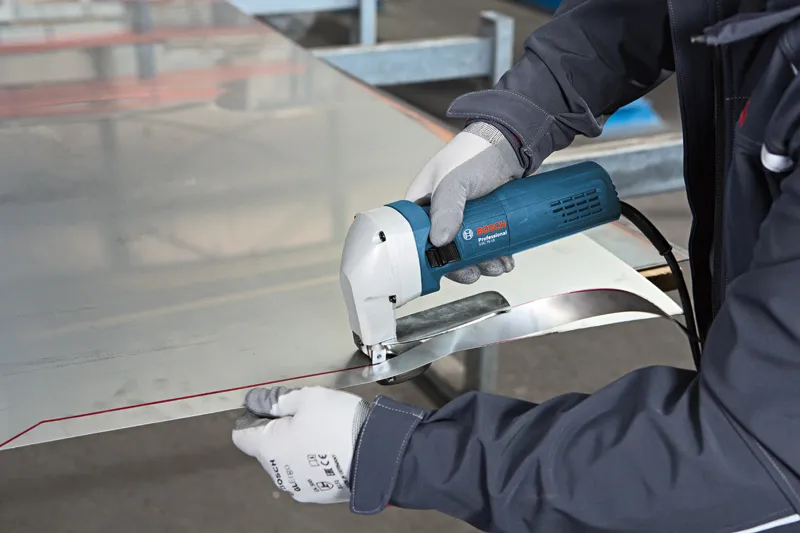

The GSC 75-16 in action!
