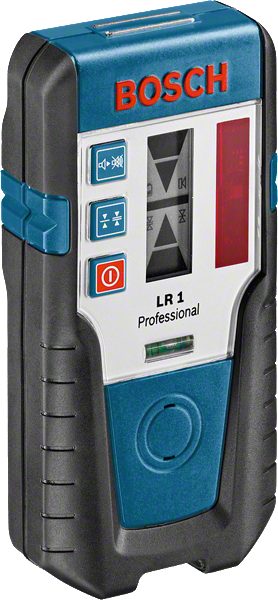

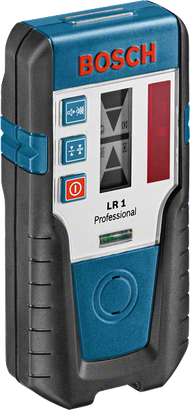

LR 1 Professional

Laser Receiver

More benefit thanks to accessories

  • Handy receiver for indoor and outdoor use for ranges of up to 200 m in combination with GRL 400 H Professional and GRL 300 HV Professional Rotation Lasers
  • Visual and audible alignment of the laser beam plane
  • Dust and splash protection (IP65)
See technical details

Functions & key features

Measuring accuracy ± 1.0/3.0 mm
Two sided display for convenient laser detection
Easy attachment due to magnets on the top of the receiver
Battery indicator shows the level of remaining battery charge
IP65 dust tight and water jets protection

Your Selection

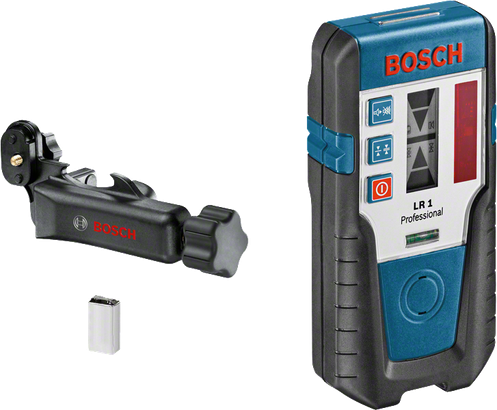

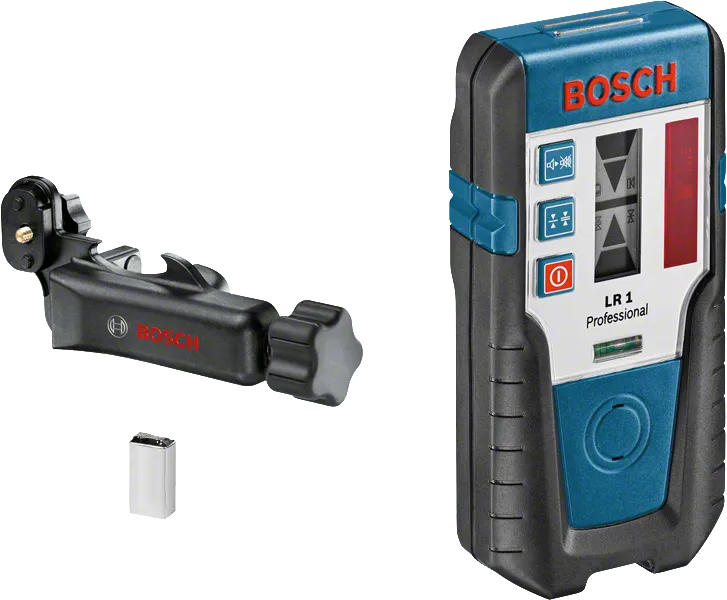

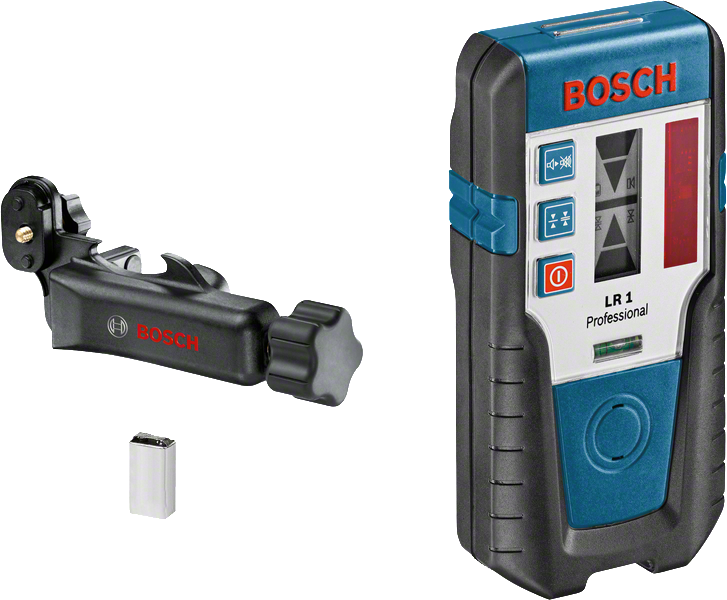

  • with Accessory, Bracket (1 608 M00 70F)
Show variant Find a local dealer

with Accessory, Bracket (1 608 M00 70F) 0 601 015 400

LR 1 Professional

Your Selection

with Accessory, Bracket (1 608 M00 70F)

Order number: 0 601 015 400

Find a local dealer

Technical data

Additional data

Range of 0 – 200 m
Power supply 1 x 9 V 6LR61 Block
Dust and splash protection IP 65
Remote control
Weight, approx. 250 g
Tool dimensions (width) 75 mm
Tool dimensions (length) 145 mm
Tool dimensions (height) 30 mm
Measuring accuracy (fine/rough) ± 1 mm/± 3 mm
Type of receiver Rotation lasers
