Masonry & Concrete Drill Bits

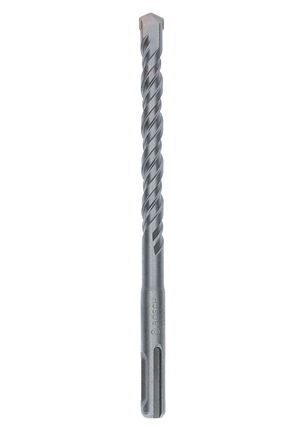

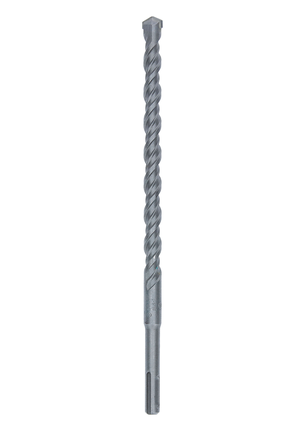

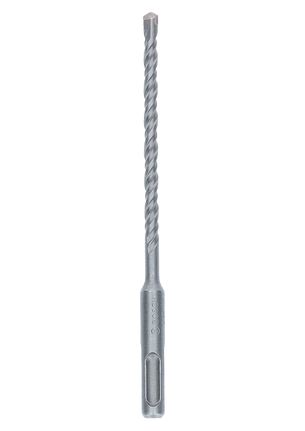

SDS plus-1 Drill Bit

For rotary hammer drills

SDS plus-1 Drill Bit is optimised for drilling in concrete

  • 2-cutter Tungsten Carbide plate makes the bit extra tough
  • 2-flute U-shape flute design provides effective dust removal and standard lifetime
  • Fits all SDS plus rotary hammer drills.

Materials

Concrete
Lime and sand bricks
Solid brick
Concrete building block
Hard stone
Choose your specification

Diameter (D) mm 15 options

Working length (L1) mm 6 options

Total length (L2) mm 6 options

Choose a pack size 1 Unid.

Variants overview (34)
Find a local dealer

SDS plus-1 Drill Bit
For rotary hammer drills

Fits tools of most brands

imageAlt
imageAlt
imageAlt

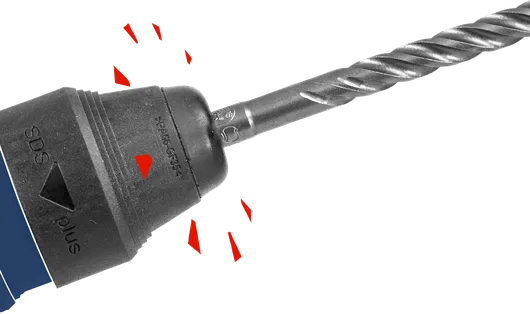

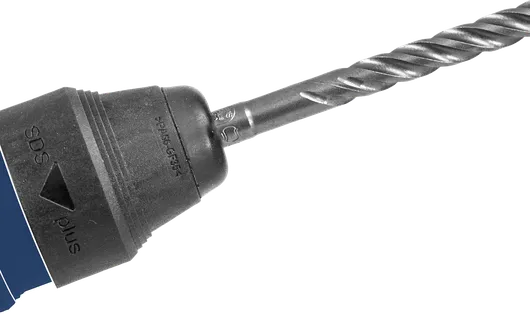

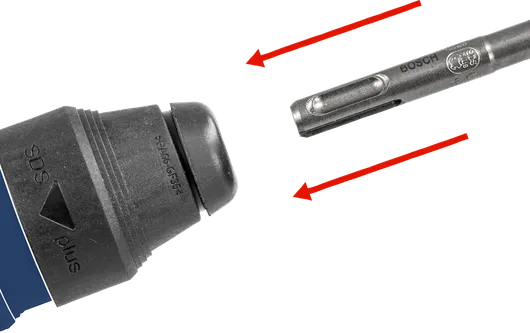

Fits all SDS plus rotary hammer drills.

for Drilling Concrete

SDS plus-1 Drill Bit is optimised for drilling in concrete

  • 2-flute U-shape flute design provides effective dust removal and standard lifetime

Variant Overview

Available product variations: 34

Part number Diâmetro (D) mm Comprimento de trabalho (L1) mm Comprimento total (L2) mm Pack quantity
2 608 680 257 4.00 50 110 1 Unid. Find a local dealer

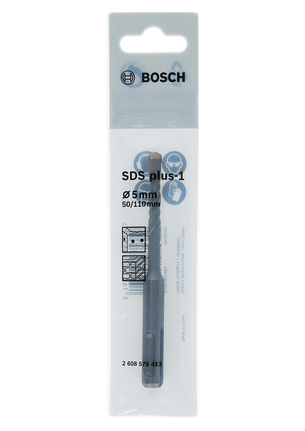

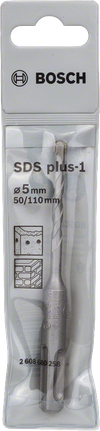

2 608 680 258 5.00 50 110 1 Unid. Find a local dealer

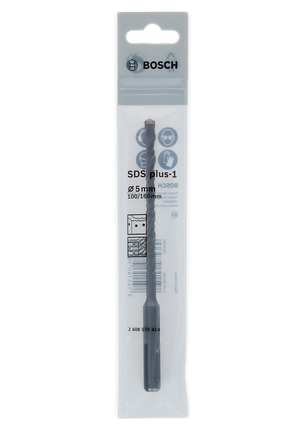

2 608 680 259 5.00 100 160 1 Unid. Find a local dealer
2 608 680 260 5.50 50 110 1 Unid. Find a local dealer

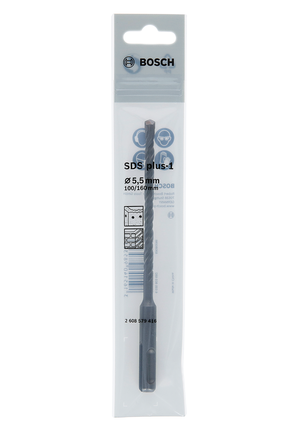

2 608 680 261 5.50 100 160 1 Unid. Find a local dealer

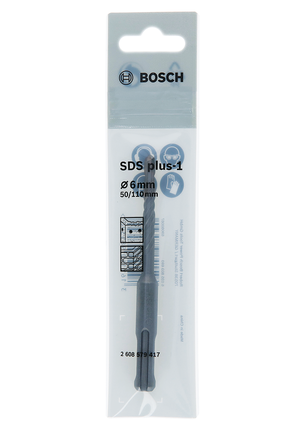

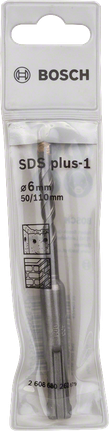

2 608 680 262 6.00 50 110 1 Unid. Find a local dealer

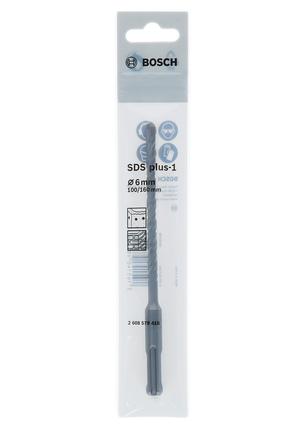

2 608 680 263 6.00 100 160 1 Unid. Find a local dealer
2 608 680 264 6.00 150 210 1 Unid. Find a local dealer
2 608 680 265 6.50 50 110 1 Unid. Find a local dealer

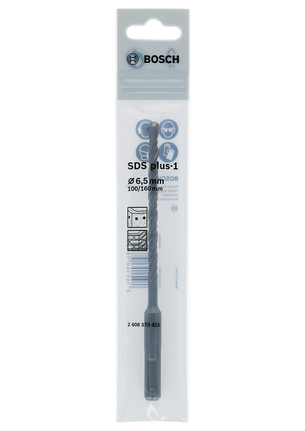

2 608 680 266 6.50 100 160 1 Unid. Find a local dealer
2 608 680 267 7.00 50 110 1 Unid. Find a local dealer

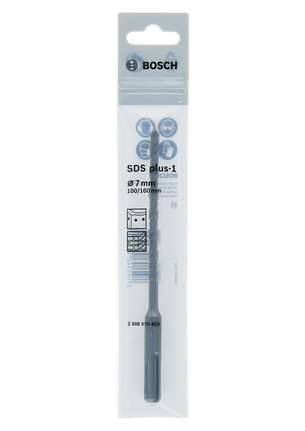

2 608 680 268 7.00 100 160 1 Unid. Find a local dealer
2 608 680 269 8.00 50 110 1 Unid. Find a local dealer
2 608 680 270 8.00 100 160 1 Unid. Find a local dealer

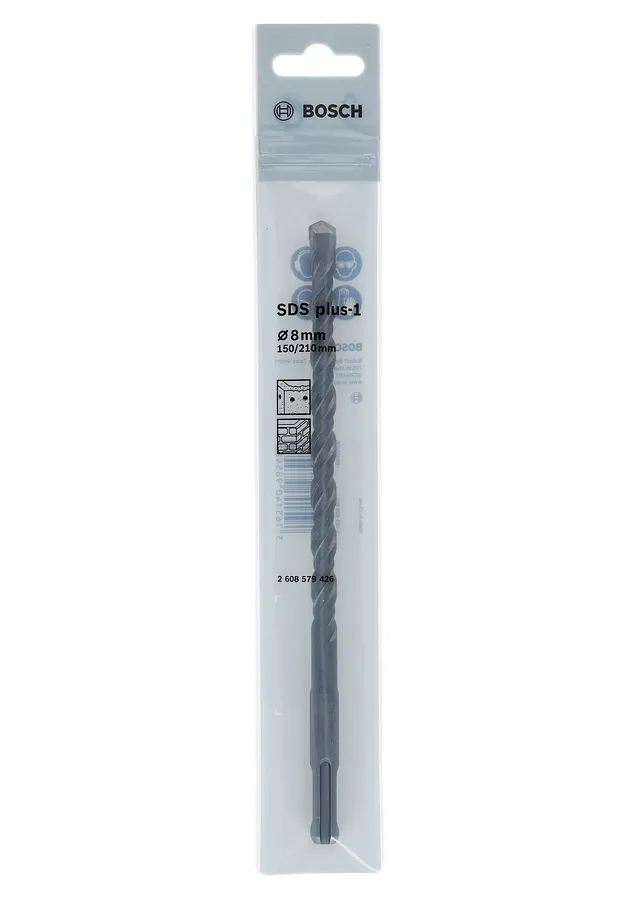

2 608 680 271 8.00 150 210 1 Unid. Find a local dealer
2 608 680 272 8.00 200 260 1 Unid. Find a local dealer
2 608 680 273 10.00 100 160 1 Unid. Find a local dealer
2 608 680 276 10.00 400 460 1 Unid. Find a local dealer
2 608 680 277 12.00 100 160 1 Unid. Find a local dealer

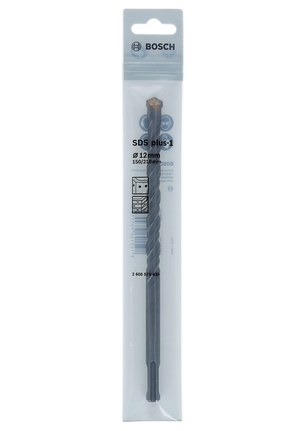

2 608 680 278 12.00 150 210 1 Unid. Find a local dealer

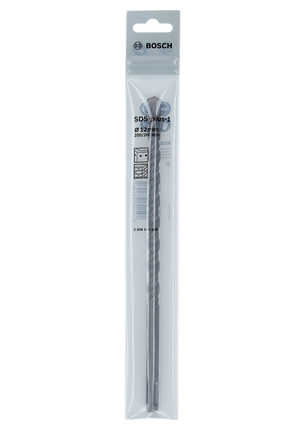

2 608 680 279 12.00 200 260 1 Unid. Find a local dealer

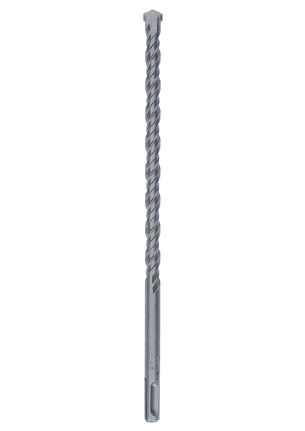

2 608 680 280 12.00 400 460 1 Unid. Find a local dealer
2 608 680 281 14.00 100 160 1 Unid. Find a local dealer
2 608 680 282 14.00 150 210 1 Unid. Find a local dealer
2 608 680 284 14.00 400 460 1 Unid. Find a local dealer
2 608 680 285 16.00 150 210 1 Unid. Find a local dealer
2 608 680 286 16.00 250 310 1 Unid. Find a local dealer

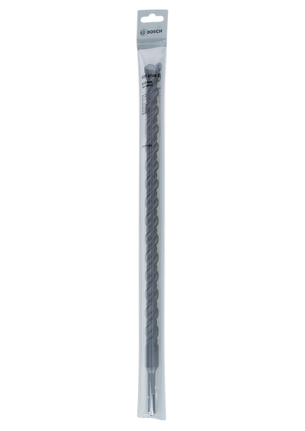

2 608 680 287 16.00 400 460 1 Unid. Find a local dealer

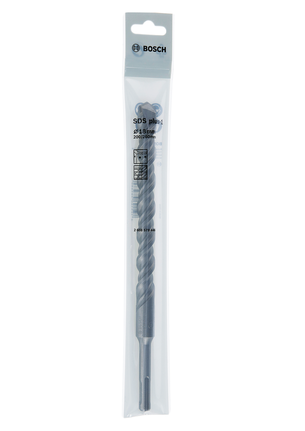

2 608 680 288 18.00 200 260 1 Unid. Find a local dealer
2 608 680 289 18.00 400 460 1 Unid. Find a local dealer

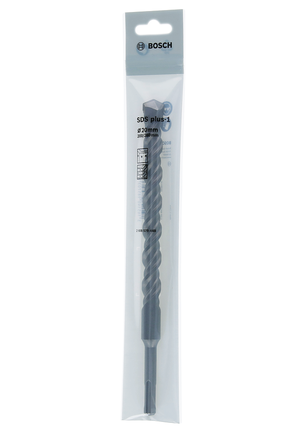

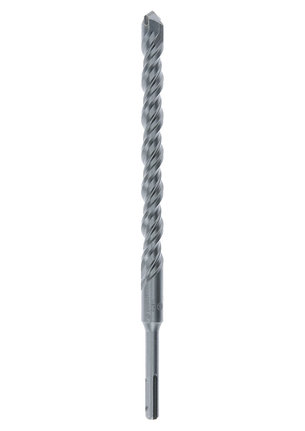

2 608 680 290 20.00 200 260 1 Unid. Find a local dealer
2 608 680 292 22.00 200 260 1 Unid. Find a local dealer

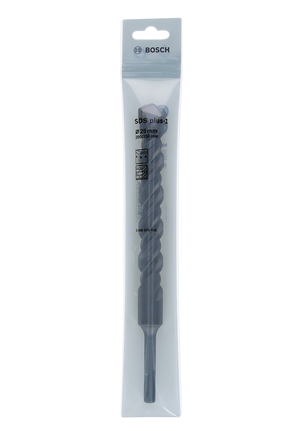

2 608 680 294 25.00 200 260 1 Unid. Find a local dealer
2 608 680 295 25.00 400 460 1 Unid. Find a local dealer
