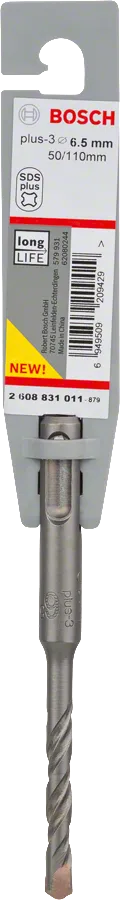

SDS plus-3 Drill Bit

For rotary hammer drills

SDS plus-3 Drill Bit offers durability while drilling concrete

  • 4-flute dura design provides effective dust removal for increased endurance
  • High-alloy steel produced with optimised hardening technology to withstand wear
  • Fits all SDS plus rotary hammer drills

Materials

Concrete
Lime and sand bricks
Solid brick
Concrete building block
Hard stone

Select options

Diameter (D) mm

Working length mm

Total length mm

Choose a pack size

Select options

Diameter (D) mm 20 options

Working length mm 7 options

Total length mm 12 options

Choose a pack size 1 Pcs

Available product options (56)
SDS plus-3 Drill Bit
from
For rotary hammer drills

Fits tools of most brands

imageAlt
imageAlt
imageAlt

Fits all SDS plus rotary hammer drills

for Drilling Concrete

SDS plus-3 Drill Bit offers durability while drilling concrete

  • High-alloy steel produced with optimised hardening technology to withstand wear
  • Indented cutting edges made from a Bosch-controlled carbide blend provide additional resistance
  • PGM guarantee in compliance with tight tolerances, exactly drilled holes and firm hold of fixings
View more

Product Options

Available product options: 56

Part number Diameter (D) mm Working length mm Total length mm Pack quantity
2 608 831 000 4.00 50 110 1 Pcs Find a local dealer
2 608 831 001 4.00 100 160 1 Pcs Find a local dealer
2 608 831 002 5.00 50 110 1 Pcs Find a local dealer
2 608 831 003 5.00 100 160 1 Pcs Find a local dealer
2 608 831 004 5.00 150 210 1 Pcs Find a local dealer
2 608 831 005 5.50 50 110 1 Pcs Find a local dealer
2 608 831 006 5.50 100 160 1 Pcs Find a local dealer
2 608 831 007 6.00 50 110 1 Pcs Find a local dealer
2 608 831 008 6.00 100 160 1 Pcs Find a local dealer
2 608 831 009 6.00 150 210 1 Pcs Find a local dealer
2 608 831 010 6.00 200 260 1 Pcs Find a local dealer
2 608 831 012 6.50 100 160 1 Pcs Find a local dealer
2 608 831 015 7.00 50 110 1 Pcs Find a local dealer
2 608 831 017 7.00 150 210 1 Pcs Find a local dealer
2 608 831 018 8.00 50 110 1 Pcs Find a local dealer
2 608 831 019 8.00 100 160 1 Pcs Find a local dealer
2 608 831 020 8.00 150 210 1 Pcs Find a local dealer
2 608 831 021 8.00 200 260 1 Pcs Find a local dealer
2 608 831 022 8.00 400 460 1 Pcs Find a local dealer
2 608 831 023 9.00 100 160 1 Pcs Find a local dealer
2 608 831 024 10.00 50 110 1 Pcs Find a local dealer
2 608 831 025 10.00 100 160 1 Pcs Find a local dealer
2 608 831 026 10.00 150 210 1 Pcs Find a local dealer
2 608 831 027 10.00 200 260 1 Pcs Find a local dealer
2 608 831 028 10.00 250 310 1 Pcs Find a local dealer
2 608 831 030 10.00 400 460 1 Pcs Find a local dealer
2 608 831 031 11.00 100 160 1 Pcs Find a local dealer
2 608 831 032 12.00 100 160 1 Pcs Find a local dealer
2 608 831 033 12.00 150 210 1 Pcs Find a local dealer
2 608 831 034 12.00 200 260 1 Pcs Find a local dealer
2 608 831 035 12.00 300 360 1 Pcs Find a local dealer
2 608 831 036 12.00 400 460 1 Pcs Find a local dealer
2 608 831 037 13.00 100 160 1 Pcs Find a local dealer
2 608 831 038 14.00 100 160 1 Pcs Find a local dealer
2 608 831 040 14.00 200 260 1 Pcs Find a local dealer
2 608 831 041 14.00 300 360 1 Pcs Find a local dealer
2 608 831 042 14.00 400 460 1 Pcs Find a local dealer
2 608 831 043 15.00 100 160 1 Pcs Find a local dealer
2 608 831 044 16.00 150 210 1 Pcs Find a local dealer
2 608 831 045 16.00 250 310 1 Pcs Find a local dealer
2 608 831 046 16.00 300 360 1 Pcs Find a local dealer
2 608 831 047 16.00 400 460 1 Pcs Find a local dealer
2 608 831 048 18.00 150 200 1 Pcs Find a local dealer
2 608 831 049 18.00 250 300 1 Pcs Find a local dealer
2 608 831 050 18.00 300 350 1 Pcs Find a local dealer
2 608 831 051 18.00 400 450 1 Pcs Find a local dealer
2 608 831 052 20.00 150 200 1 Pcs Find a local dealer
2 608 831 053 20.00 250 300 1 Pcs Find a local dealer
2 608 831 055 20.00 400 450 1 Pcs Find a local dealer
2 608 831 056 22.00 200 250 1 Pcs Find a local dealer
2 608 831 057 22.00 300 350 1 Pcs Find a local dealer
2 608 831 058 22.00 400 450 1 Pcs Find a local dealer
2 608 831 059 24.00 200 250 1 Pcs Find a local dealer
2 608 831 060 24.00 400 450 1 Pcs Find a local dealer
2 608 831 061 25.00 200 250 1 Pcs Find a local dealer
2 608 831 063 25.00 400 450 1 Pcs Find a local dealer
