Masonry & Concrete Drill Bits

CYL-5 Drill Bit

For rotary drills/drivers, For impact drill/drivers

CYL-5 Drill Bit guarantees extra-long durability when drilling holes for fixings in concrete and stone

  • Bosch's carbide blend and diamond-ground cutting edges make the bit wear-resistant
  • Reduced friction from 2-flute vario design providing dust removal and wear reduction
  • Cylindrical shank compatible with three-jaw drill chucks.

Materials

Concrete
Solid brick
Choose your specification

Diameter (D) mm 7 options

Working length (L1) mm 4 options

Total length (L2) mm 4 options

Choose a pack size 1 Pcs

Variants overview (10)
Find a local dealer

CYL-5 Drill Bit
For rotary drills/drivers, For impact drill/drivers

Fits tools of most brands

imageAlt
imageAlt
imageAlt

Cylindrical shank compatible with three-jaw drill chucks.

Long Life for Concrete and Stone

CYL-5 Drill Bit guarantees extra-long durability when drilling holes for fixings in concrete and stone

  • Reduced friction from 2-flute vario design providing dust removal and wear reduction
  • Bosch Power Grip Shank System enables direct use of power
  • PGM guarantee in compliance with tight tolerances, exactly drilled holes and firm hold of fixings
View more

Variant Overview

Available product variations: 10

Part number Diameter (D) mm Working length (L1) mm Total length (L2) mm Pack quantity Price

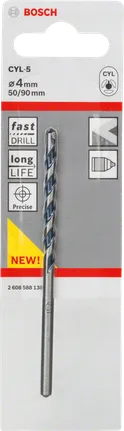

2 608 588 138 4.00 50 90 1 Pcs Find a local dealer

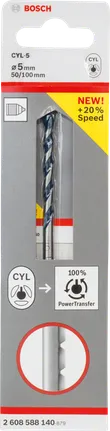

2 608 588 140 5.00 50 100 1 Pcs Find a local dealer

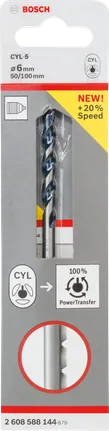

2 608 588 144 6.00 50 100 1 Pcs Find a local dealer
2 608 588 145 6.00 100 150 1 Pcs Find a local dealer

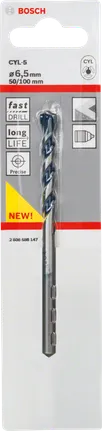

2 608 588 147 6.50 50 100 1 Pcs Find a local dealer

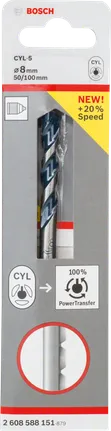

2 608 588 151 8.00 50 100 1 Pcs Find a local dealer
2 608 588 152 8.00 100 150 1 Pcs Find a local dealer
2 608 588 153 8.00 200 250 1 Pcs Find a local dealer
2 608 588 155 10.00 100 150 1 Pcs Find a local dealer
2 608 588 157 12.00 90 150 1 Pcs Find a local dealer

out of products

Frequently asked questions

The HEX shank has several benefits over the CYL shank. While both shank types fit into three-jaw chucks of a standard drill, the HEX shank offers a more secure connection: due to its geometry it won’t slip in the chuck. The HEX shank ensures maximum power transfer from your machine to the drill bit. The HEX shank also gives you more flexibility when choosing your tool: you can use it with standard drills with three-jaw chucks as well as impact drivers with ¼” internal hexagon tool holders. The 3-wing shank of our CYL-5 drill bits only fits three-jaw chucks, but otherwise it offers benefits similar to those of the HEX shank: it fits in the chuck securely, it doesn’t slip and ensures maximum power transfer from your machine to the drill bit.

CYL-1: Suitable for brick and limestone. CYL-3: Suitable for concrete, soft stone, brick and limestone. CYL-5 / HEX-5: Suitable for concrete, soft stone, brick and limestone. The 3-wing shank of our CYL-5 drill bits only fits three-jaw chucks, but otherwise it offers benefits similar to those of the HEX shank: it fits in the chuck securely, it doesn’t slip and ensures maximum power transfer from your machine to the drill bit. The HEX shank gives you more flexibility when choosing your tool: you can use it with standard drills with three-jaw chucks as well as impact drivers with ¼” internal hexagon tool holders. CYL-9 / HEX-9 MultiConstruction: Suitable for a large variety of materials, including concrete, brick, soft ceramic tiles, wood, plastics, sheet metals, aluminium and multi-layered (sandwich) materials. The HEX shank fits in the chuck securely, it doesn’t slip and ensures maximum power transfer from your machine to the drill bit. It also gives you more flexibility in your choice of tools: you can use it with standard drills with three-jaw chucks as well as impact drivers with ¼” internal hexagon tool holders. Impact and Rotary drill bits come in diameters of up to (and including) 16 mm and total lengths of up to (and including) 400 mm. For larger diameters and length, use SDS plus and SDS max drill bits.

Choose gear 2 for the fastest results in all materials except for ceramic tiles. If your power tool doesn’t have gear settings, keep the speed at a high rpm, using the trigger. When drilling in ceramic tiles, the power tool should be set to gear 1 to prevent the drill bit from overheating. If you’re using a corded tool, in addition to setting it to gear 1, you also need to control the speed by pushing the trigger halfway only in order not to go over 500 rpm (as, otherwise, it will go up to 1000 rpm). If you’re using a cordless tool, you don’t need to control the speed through the trigger once the tool is set to gear 1, due to cordless tools’ lower rpm limit. If your tool doesn’t have gears, keep the speed at low rpm (max. 500 rpm), using the trigger.

Use the impact mode when drilling in concrete, stone and full brick. Apply the rotary mode when drilling in brittle materials, such as hollow brick.

Cooling can help extend the lifetime of your drill bit if applied in the right way, but you don’t need to apply it. When drilling in hard stone, we recommend letting the drill bit cool down each time you drilled a hole.
