For vertical panel sizing saws, For table saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 2 options
Number of teeth 3 options
Width of cut (b1) mm 2 options
Choose a pack size 1 Pcs
Perfect Reliable Cuts in Wood
Available product options: 3
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 2 608 642 506 | 250 | 30 | 3.2/2.2 | 60 | 1 Pcs | Find a local dealer | ||
| 2 608 642 507 | 250 | 30 | 3.2/2.2 | 80 | 1 Pcs | Find a local dealer | ||
| 2 608 642 513 | 350 | 30 | 3.5/2.5 | 72 | 1 Pcs | Find a local dealer |
out of products

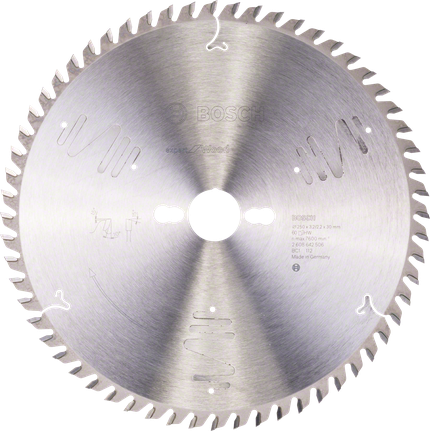

| Part number 2608642506 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 250 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.2/2.2 |
| Number of teeth | 60 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 7600 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 / 2/9/46.4 / 2/10/60 |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |

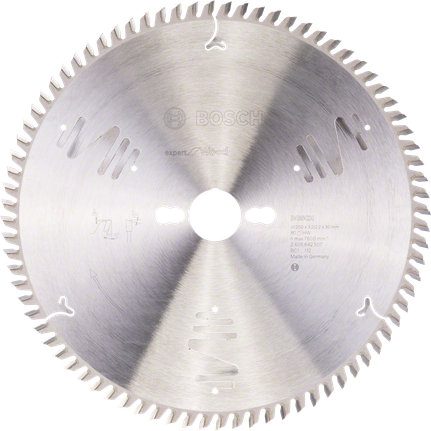

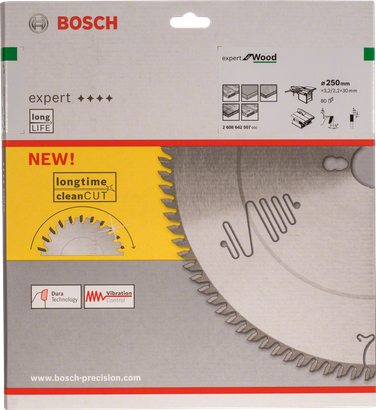

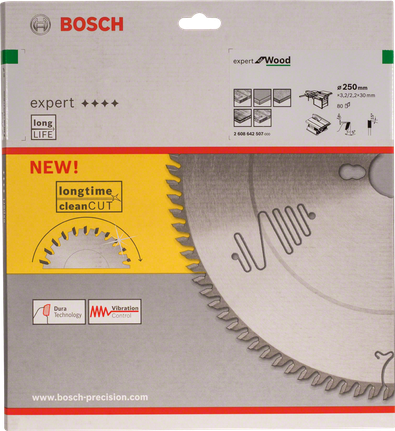

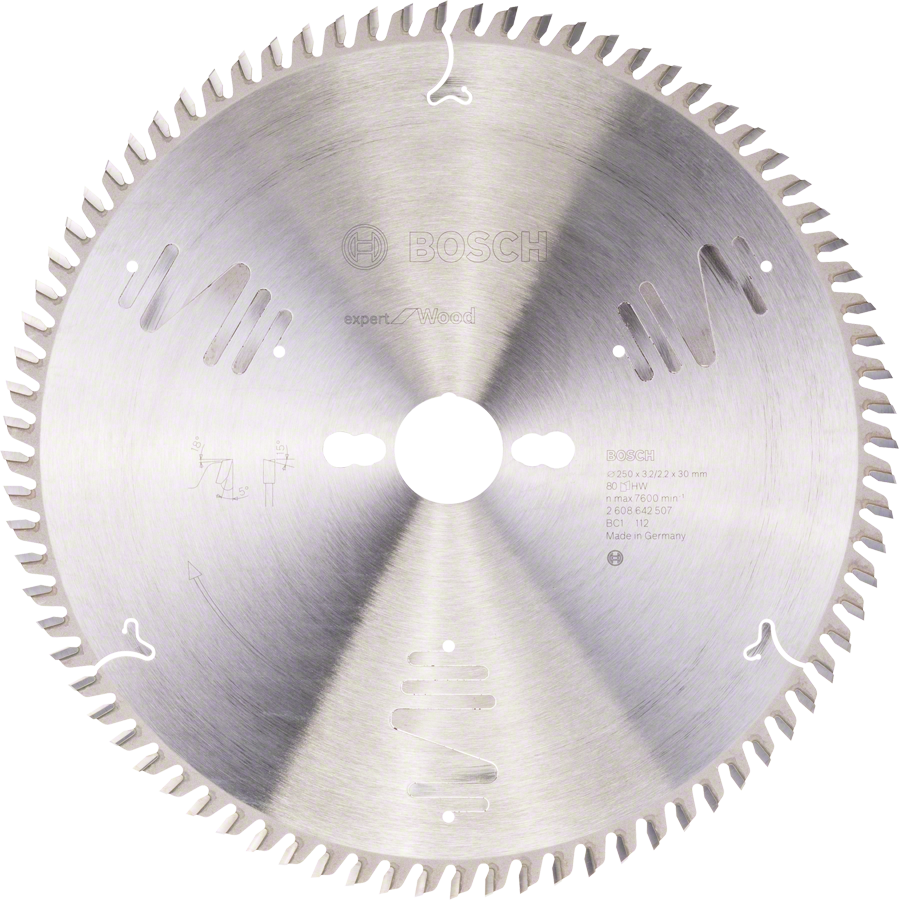

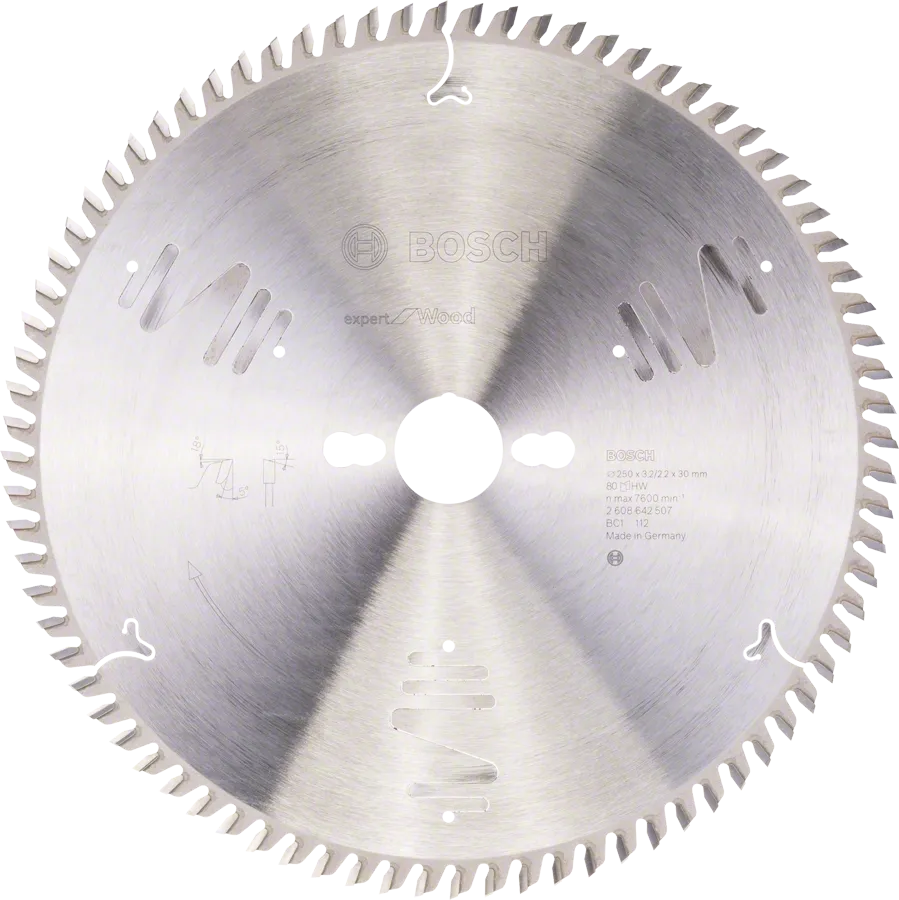

| Part number 2608642507 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 250 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.2/2.2 |
| Number of teeth | 80 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 7600 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 / 2/9/46.4 / 2/10/60 |
| Hook angle ° α | 5 |
| Relief angle ° β | 18 |

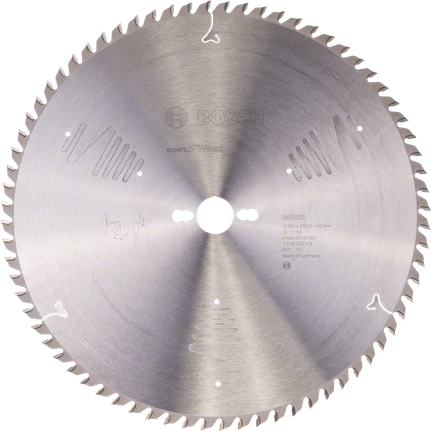

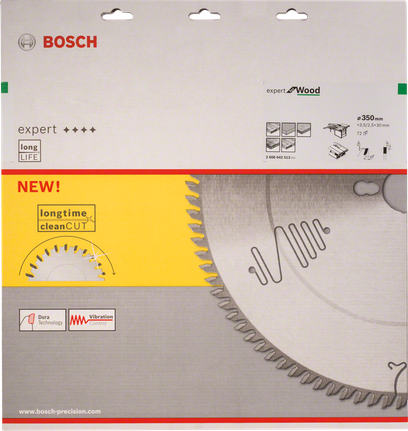

| Part number 2608642513 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 350 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.5/2.5 |
| Number of teeth | 72 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 5400 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 / 2/9/46.4 / 2/10/60 |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
