Technical data
| Additional data | |
|---|---|
| Weight | 12.4 kg |
| Container volume, net | 23 l |
| Dust class of wet/dry extractor | M |
| Rated input power | 1,200 W |
| Container volume, gross | 35 l |
| Container volume, net, water | 19.2 l |
| Dust class | M |

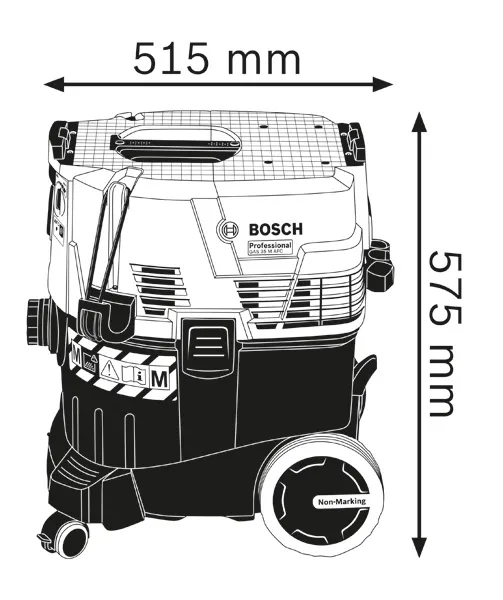

| Tool dimensions (width) | 375 mm |
| Tool dimensions (length) | 515 mm |
| Tool dimensions (height) | 575 mm |
| Filter surface area | 6,150 cm² |
| Max. airflow rate (turbine) | 74 l/s |
| Max. vacuum pressure (turbine) | 254 mbar |
Advantages

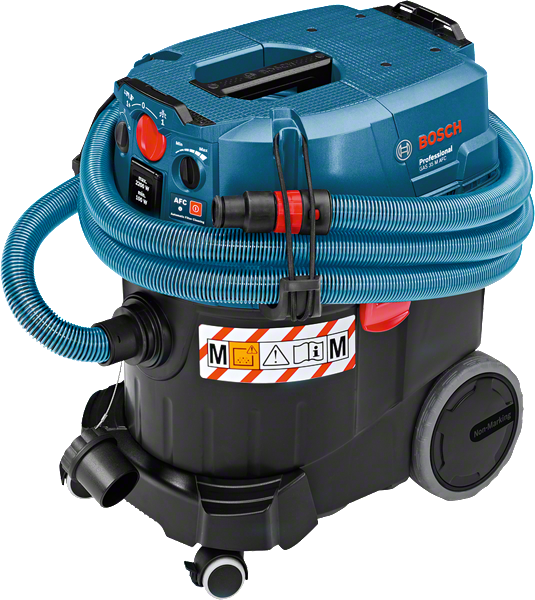

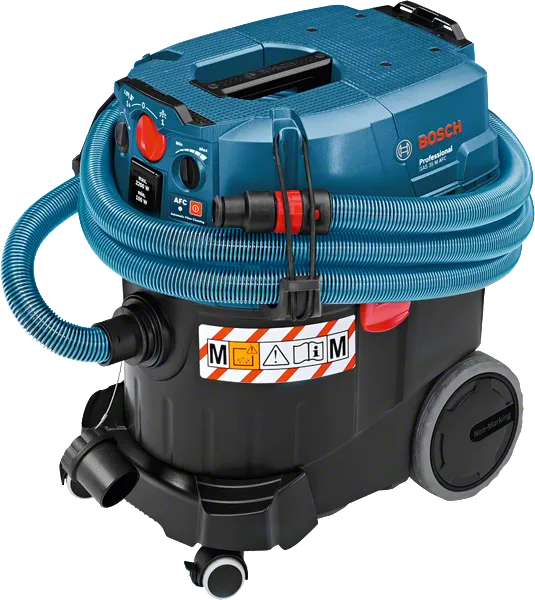

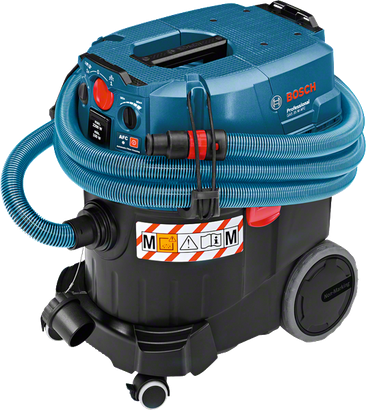

The versatile wet/dry dust extractor with automatic filter cleaning
- L-BOXX can be clicked onto it to provide a practical transport and storage solution for mobile use
- Sustained suction power for continuous work progress due to automatic filter cleaning (AFC)
- Certified safety dust extractor that meets dust class M in accordance with the EU standard, covering the majority of types of dust to provide a high level of user protection
Functions

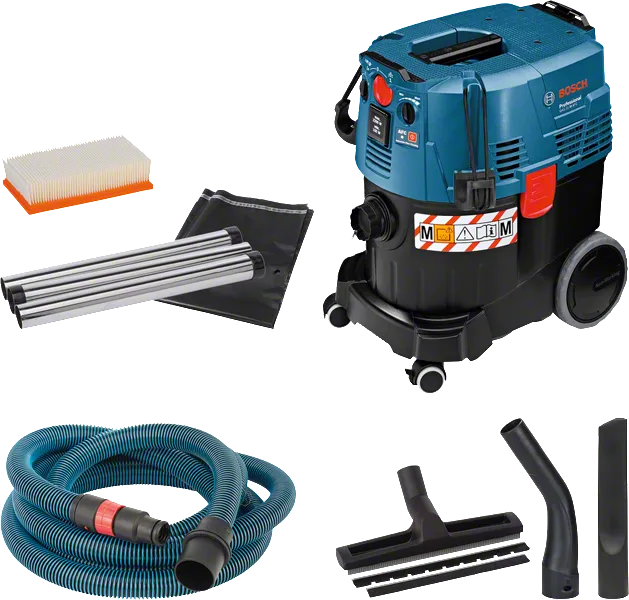

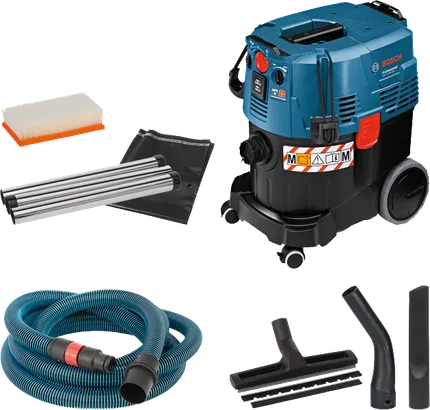

What’s Included in this Package
with nozzle
Order number:
0 601 9C3 100
- Crevice nozzle, 35 mm diameter 2 607 000 165
- Disposal bag 2 607 432 043
- Elbow 2 608 000 573
- Floor nozzle set, 35 mm diameter 1 609 390 478
- 1 x PES flat-pleated filter 2 607 432 034
- 3 x 0.35 m chrome-plated suction tube, 35 mm diameter 2 608 000 575
- 5 m hose, 35 mm diameter, antistatic, with power tool adapter 2 608 000 566
