Cordless impact drivers/wrenches

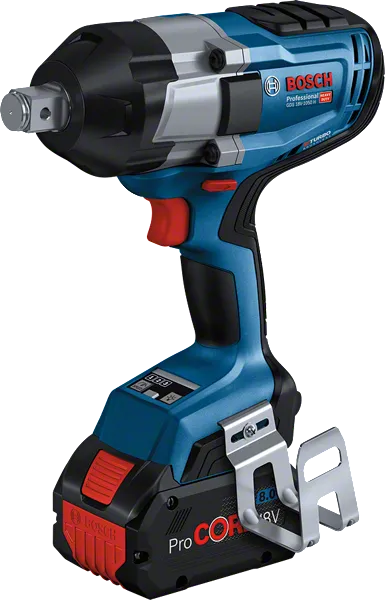

GDS 18V-1050 H Professional

Cordless Impact Wrench

GDS 18V-1050 H
GDS 18V-1050 H
GDS 18V-1050 H

Full power at its best: 3/4" high torque impact wrench with BITURBO Brushless technology

  • Impressive power with cordless freedom thanks to ProCORE 18V batteries and brushless motor
  • High performance motor with a tightening torque of 1,050 Nm and a breakaway torque of up to 1,700 Nm
  • Ideal versatility and controlled power due to 3-speed/torque settings

Functions & key features

Bit insertion square, bit holder, external square
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Longer motor life - more runtime - more power thanks to brushless motor

Your Selection

  • in L-BOXX 136 with 2 x battery GBA 18V 5.0Ah, quick charger
Show variant
558,810.00 NGN Recommended retail price including VAT

Currently not available online

Check availability on location
Find a local dealer
in L-BOXX 136 with 2 x battery GBA 18V 5.0Ah, quick charger 0 601 9J8 522
558,810.00 NGN Recommended retail price including VAT
Find a local dealer

GDS 18V-1050 H Professional

Your Selection

in L-BOXX 136 with 2 x battery GBA 18V 5.0Ah, quick charger

Order number: 0 601 9J8 522

558,810.00 NGN

Recommended retail price including VAT

Find a local dealer

Included in this variant

  • L-BOXX 136
    Order number: 1 600 A01 2G0
  • 2 x battery GBA 18V 5.0Ah
    Order number: 1 600 A00 1Z6
  • Quick charger GAL 18V-40 Professional
    Order number: 1 600 A01 9RJ
Your selection

Technical data

Additional data
Battery voltage 18.0 V
Torque, max. 1,050 Nm
No-load speed 0-800 rpm
Battery capacity 5 Ah
Torque, max. (hard screwdriving applications) 1,050 Nm
Tool holder 3/4'' Square
Breakaway torque, max. 1,700 Nm
Torque adjustment range, min./max., 1st level 0/350 Nm
Torque adjustment range, min./max., 2nd level 0/750 Nm
Torque adjustment range, min./max., 3rd level 0/1050 Nm
No-load speed (1st level) 0-800 rpm
No-load speed (2nd level) 0-1,200 rpm
No-load speed (3rd level) 0-1,750 rpm
Torque settings 3
Weight excl. battery 2.9 kg
Impact rate 0-2,600 bpm
Impact rate (1st level) 0-1,600 bpm
Impact rate (2nd level) 0-2,400 bpm
Impact rate (3rd level) 0-2,600 bpm
Show more

GDS 18V-1050 H Professional: Further information

Product Highlights

The GDS 18V-1050 H Professional is the outstanding 3/4" impact wrench with brushless motor for the most diverse fields of application. Its BITURBO Brushless technology combines corded power with cordless freedom fully maximised for ProCORE 18V batteries. Whenever heavy-duty performance is needed, the new impact mechanism provides a tightening Torque of 1,050 Nm and breakaway torque of 1,700 m for particularly challenging working environments. The high versatility in power controlling is ensured by the 3-speed/torque settings that allow adjustments to the respective work requirements.

Equipment & Application

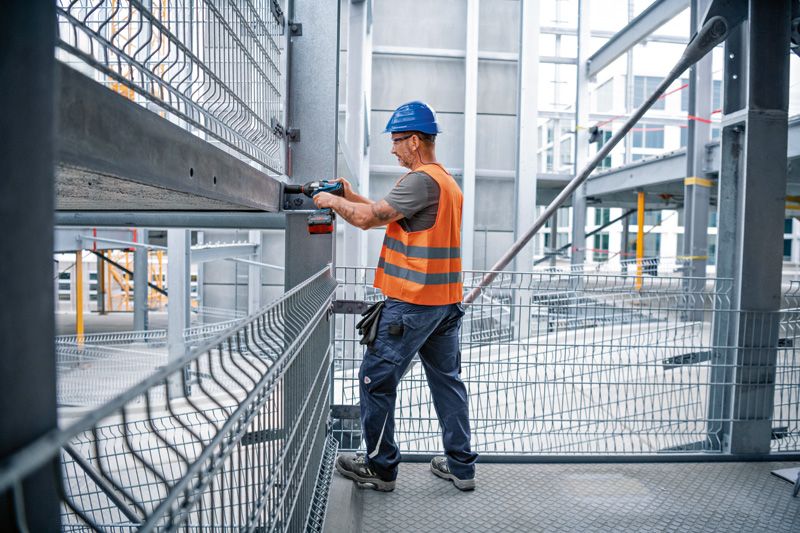

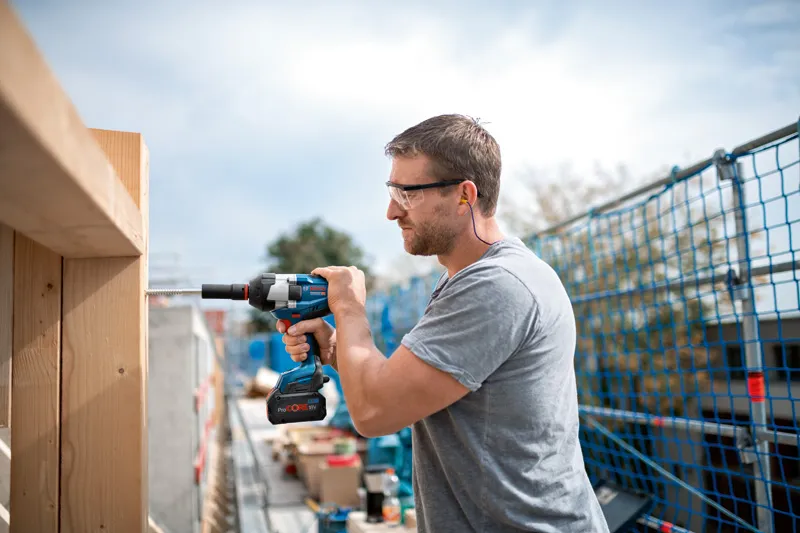

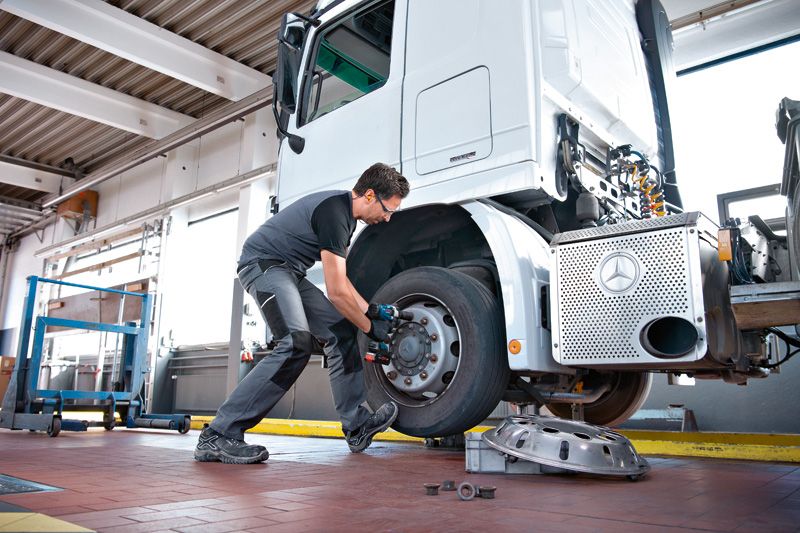

The main areas of GDS 18V-1050 H Professional are meal applications (M10-M24) like structural steel construction, metal assembly, pipe fitting, truck maintenance, and wood construction. It is compatible with all Bosch Professional 18 V batteries and chargers (Professional 18V system).
