Angle measurers and inclinometers
![GIM 120]( "GIM 120")
![GIM 120]( "GIM 120")
![GIM 120]( "GIM 120")
Find a local dealer

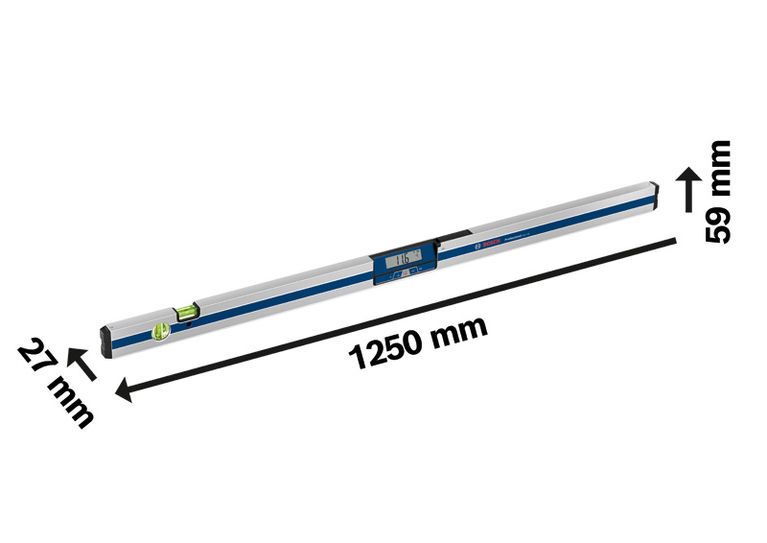

GIM 120 Professional
Digital Inclinometer
Longer for maximum precision
- Measures precise tilts in degrees, percent or millimetres/metres
- Direction arrows and audible signals at 0° and 90° for easy alignment
- Measured values automatically turn on the display when working overhead
Functions & key features
Your Selection
- with 4 x battery (AA), Protective Bag
208,707.00 NGN
Recommended retail price including VAT
with 4 x battery (AA), Protective Bag
0 601 076 800
GIM 120 Professional
Your Selection
with 4 x battery (AA), Protective Bag
Order number: 0 601 076 800
208,707.00 NGN
Recommended retail price including VAT
Included in this variant
-
Protective Bag
-
4 x 1.5 V LR6 battery (AA)
Technical data
Additional data
Length
120 cm
Measurement range
0 – 360° (4 x 90°)
Electronics measurement accuracy 0°/90°
± 0.05°
Electronics measuring accuracy at 1– 89°
± 0.2°
Measurement accuracy, vials
± 0.057° = ± 1 mm/m
Power supply, inclination measurement
1 x 9 V 6LR61
Operating duration, inclination measurem., approx.
200 h
Weight approx.
1.3 kg
Units of measurement
°, %, mm/m
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
