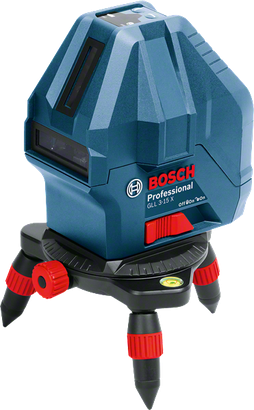

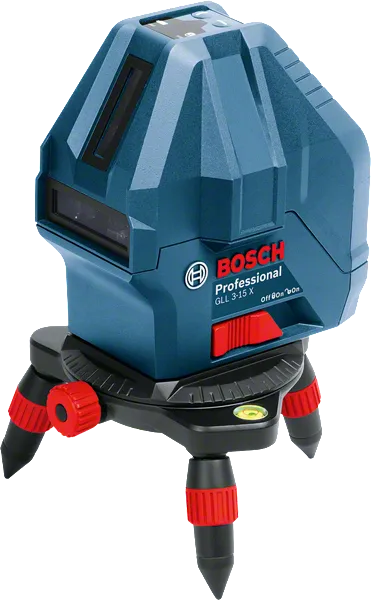

Line Laser GLL 3-15 X Professional

For easy decorative interior fitting applications

Technical data
Additional data
Accuracy ± 0.2 mm/m
Projection 3 lines + 1 plumb point
Working range 15   m
Operating temperature -10 – 45   °C
Storage temperature -20 – 70   °C
Laser diode 635 – 650 nm
Laser class 2
Working range of laser points, max. 5 m (bottom)
Self-levelling range ± 3°
Levelling time 4   s
Dust and splash protection IP 54
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 24 h
Tripod thread 5/8"

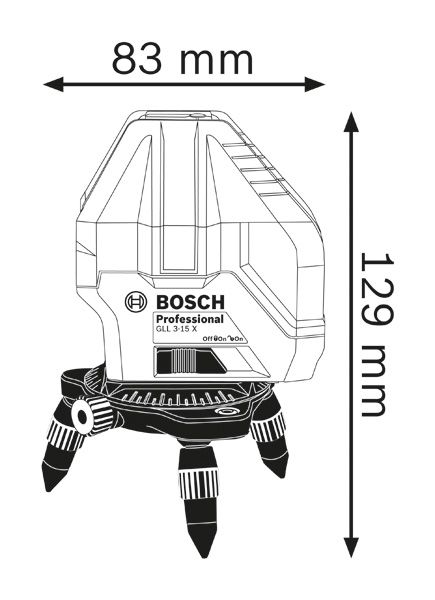

Weight, approx. 0.72   kg
Colour of laser line red
Working range, value 15   m


For easy decorative interior fitting applications

  • Maximum precision thanks to the Bosch Pendulum Precision System
  • Projection of a vertical and a horizontal line
  • Detachable, 360° rotating platform with bubble vial and fine adjustment


Working range Range of up to 15 m
Self Levelling 3° Self-levelling ± 3°
Levelling accuracy 0.2 mm Levelling accuracy ± 0.2 mm/m
IP protection 54 Dust and splash protection IP54
Pendulum Prec. System Precision pendulum system consists of high-precision, hardened shaped parts and optics with shock absorber
Intell. Current Management Intelligent current management helps to monitor the laser diode temperature and to maximise laser visibility without overheating
Detach. Rotating Platform Rotating mini tripod makes fine positioning easier
Laser scheme packaging Accurate alignment due to one horizontal and two vertical laser lines
What’s Included in this Package
with 4 x battery (AA), protective ac
with 4 x battery (AA), protective ac
Order number: 0 601 063 M00
  • Protective Bag
  • Tripod adapter
  • 4 x 1.5 V LR6 battery (AA)

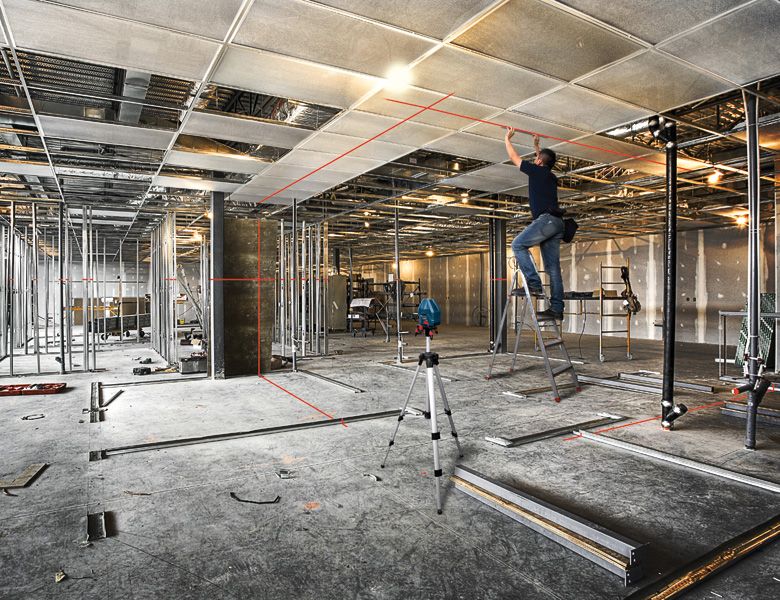

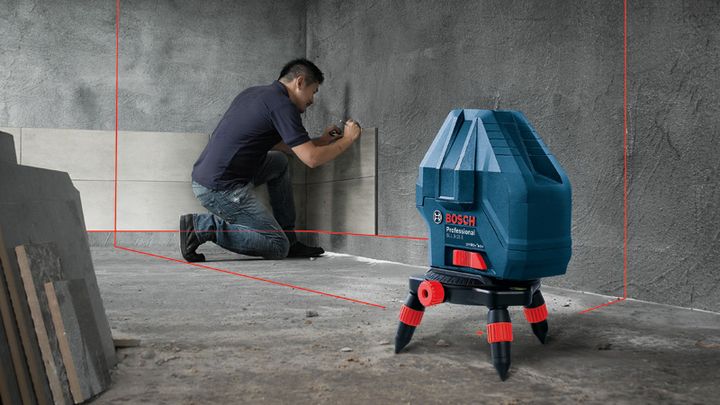

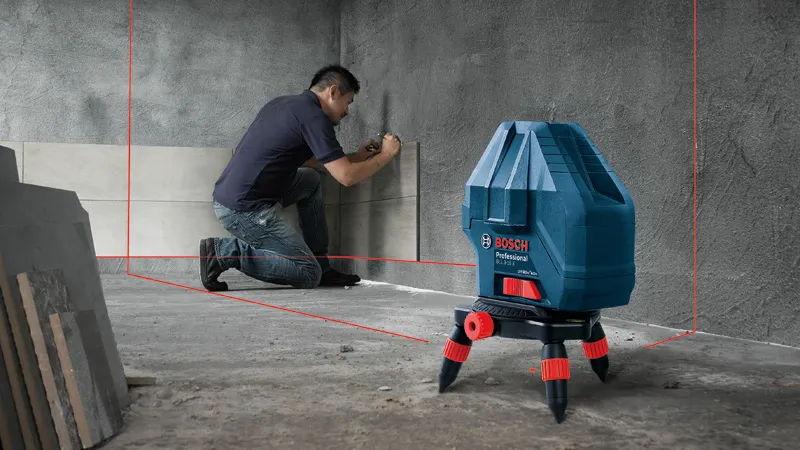

The GLL 3-15 X in action!
