Line lasers

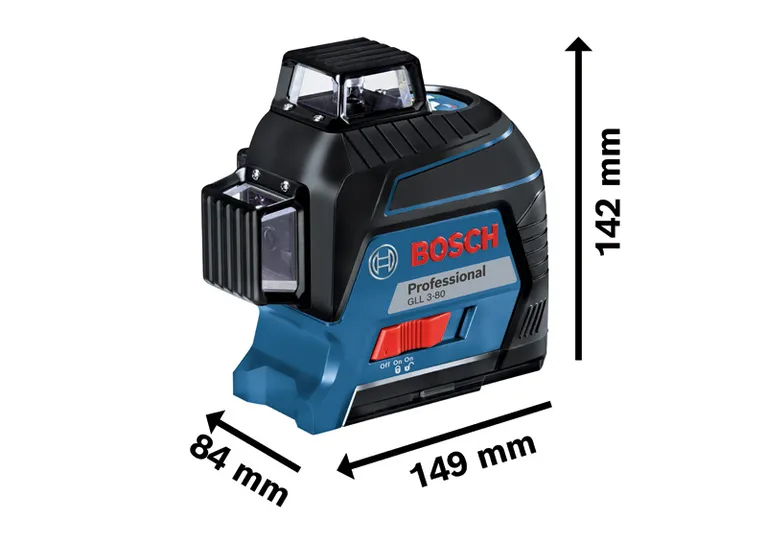

GLL 3-80 Professional

Line Laser

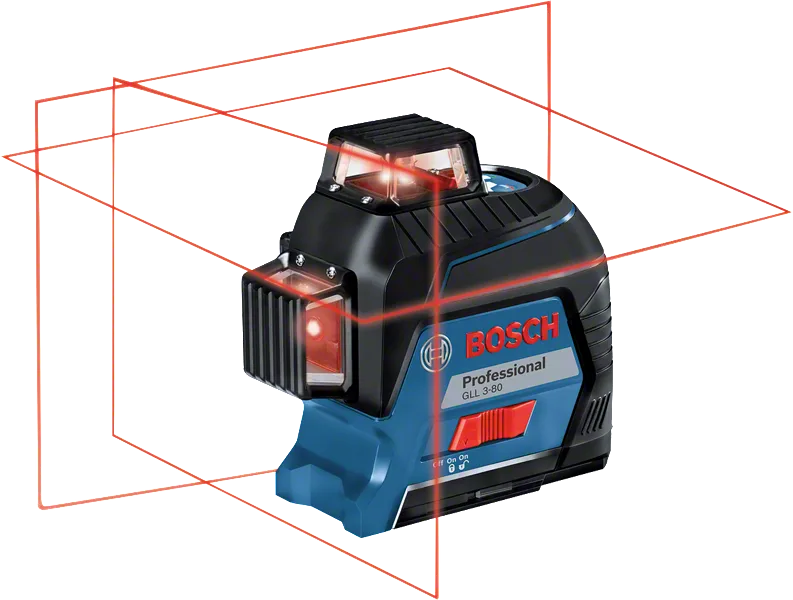

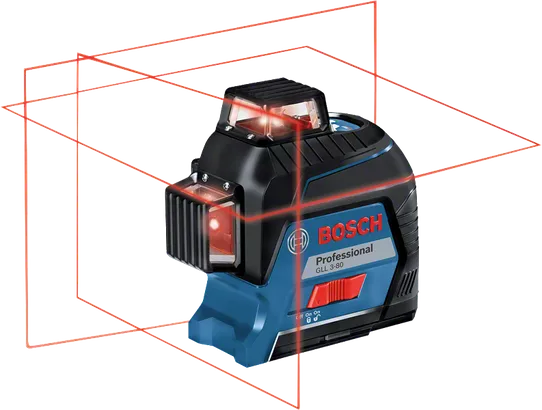

3 x 360° for visibility on a new level

High visual clarity is provided by high-powered diodes
3 x 360° lines allow for simultaneous horizontal and vertical levelling applications for highly efficient work
Intuitive user interface offers easy operation

Functions & key features

Your Selection

in carrying case with 4 x battery (AA), laser target plate

Show variant

245,740.00 NGN Recommended retail price including VAT

Currently not available online

Check availability on location

Find a local dealer

Your Selected Variant

in carrying case with 4 x battery (AA), laser target plate 0 601 063 S00

245,740.00 NGN Recommended retail price including VAT

Find a local dealer

GLL 3-80 Professional

Your Selection

in carrying case with 4 x battery (AA), laser target plate

Order number: 0 601 063 S00

245,740.00 NGN

Recommended retail price including VAT

Find a local dealer

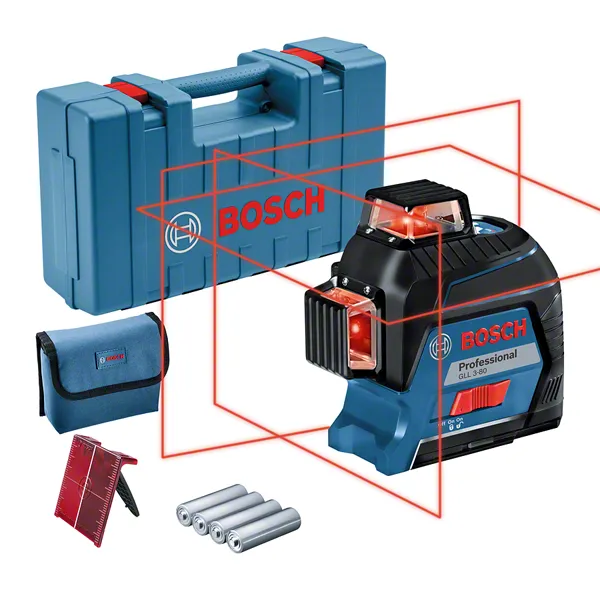

Included in this variant

4 x 1.5 V LR6 battery (AA)
Pouch
Laser target plate
Carrying case

Your selection

Technical data

Additional data
Working range with receiver, value	120 m
Dust and splash protection	IP 54
Working range, value	30 m
Laser diode	Line: 630 - 650 nm, < 10mW
Operating temperature	-10 – 40 °C
Storage temperature	-20 – 70 °C
Laser class	2
Working range	up to 30 m
Working range with receiver	up to 120 m
Accuracy	± 0.3 mm/m/* (for the four horizontal intersection points; *plus use-dependent deviation)
Self-levelling range	± 4°
Levelling time	4 s
Power supply	4 x 1.5 V LR6 (AA)
Operating time (max.)	4 h in 3-line mode
Tripod thread	1/4", 5/8"
Weight, approx.	0.82 kg
Colour of laser line	red
Projection	3 x 360° line
Compatible laser receivers	LR 6 + 7

GLL 3-80 Professional: Further information

Product Highlights

The line laser GLL 3-80 Professional projects 3 x 360° lines for next level visibility. High visual clarity is provided by high-powered diodes. This tool's 3 x 360° lines allow for simultaneous horizontal and vertical levelling applications around the entire room for highly efficient work, while the tool´s intuitive user interface offers easy operation.

Equipment & Application

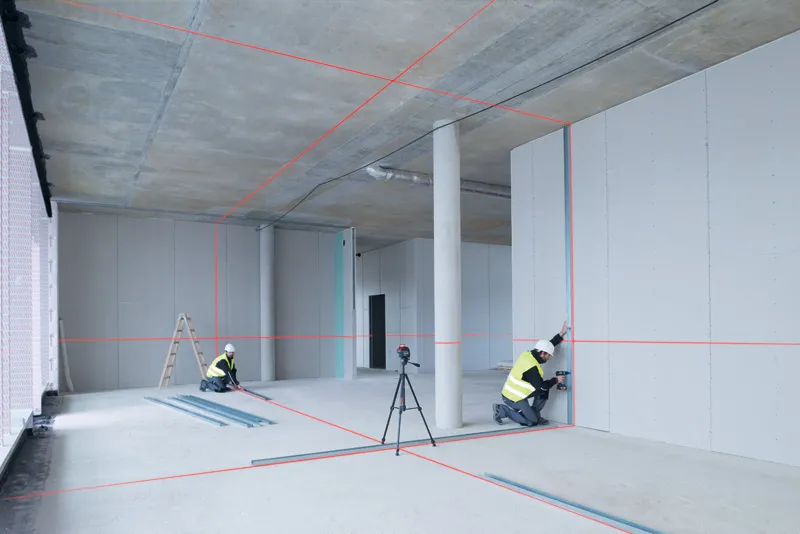

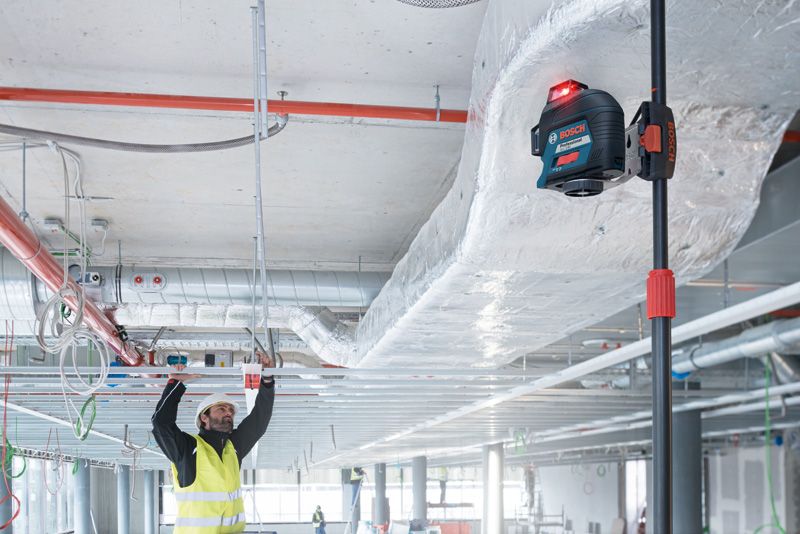

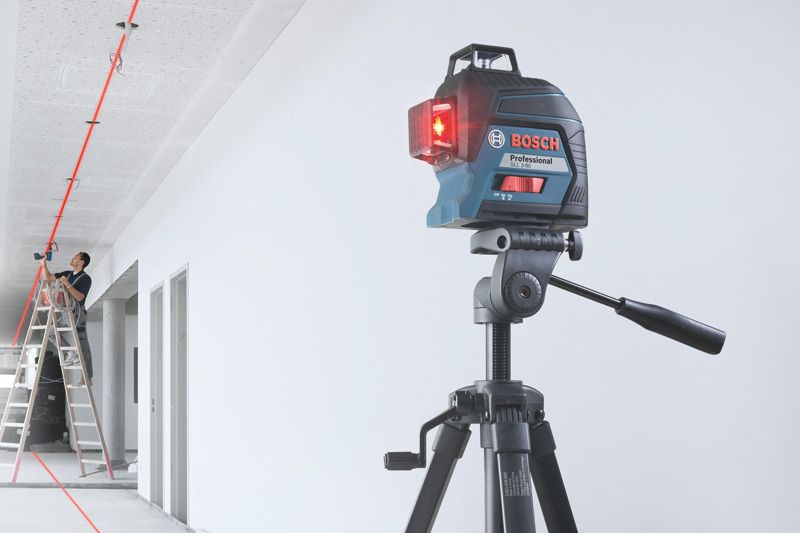

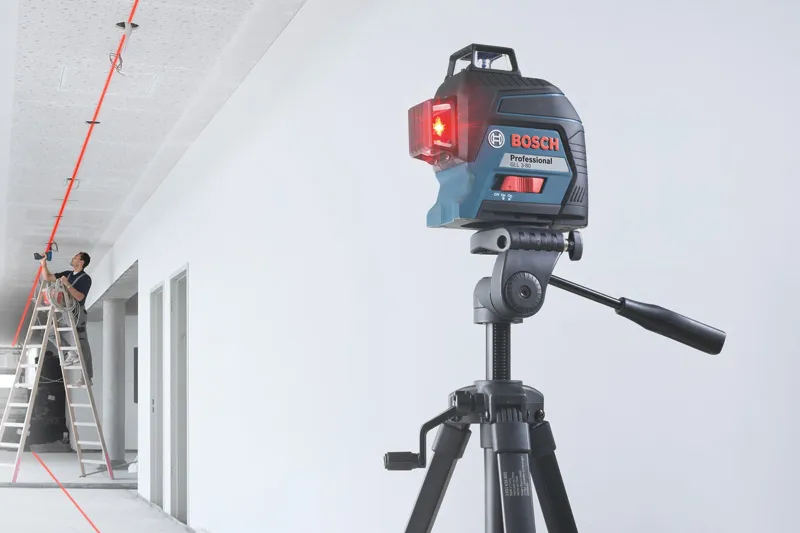

This line laser was developed for suspending drop ceilings, building floors, installing windows, mounting shelves, laying drainage pipes, building framework for drywall, and laying tiles.

Additional Information

The GLL 3-80 Professional is perfect for fast self-levelling and it is capable of self-levelling on non-level surfaces up to +/- 4° in less than 4 seconds with excellent precision of ± 0.3 mm/m*/**. It has a working range of up to 120 m when using the optional LR 6 or LR 7 Professional receiver. This line laser is compact, easy to handle, and extremely robust (IP54).
