Line lasers

GLL 3-80 C Professional

Line Laser

GLL 3-80 C
GLL 3-80 C

Visibility on a new level in 3 x 360°. Simply Connected.

  • Very precise CAL Guard monitoring and remote-control use with Bluetooth®-connected smartphone app
  • High visual clarity is provided by high-powered diodes
  • 3 x 360° lines allow simultaneous horizontal and vertical levelling applications for highly efficient work

Functions & key features

3 x 360° Laser lines
CAL Guard warns, if one of the three following cases have occurred: 1) The measuring tool suffered a severe shock (e.g. impact after a fall) 2) The measuring tool was stored outside of the storage temperature range 3) The calibration interval (every 12 months) has expired
Dual power source
Working with receiver for higher working range
Laser class 2

Your Selection

  • in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, mount
Show variant
829,585.00 NGN
Recommended retail price including VAT
Find a local dealer

in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, mount 0 601 063 R70
829,585.00 NGN
Recommended retail price including VAT

GLL 3-80 C Professional

Your Selection

GLL 3-80 C
in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, mount

Order number: 0 601 063 R70

829,585.00 NGN
Recommended retail price including VAT
Find a local dealer

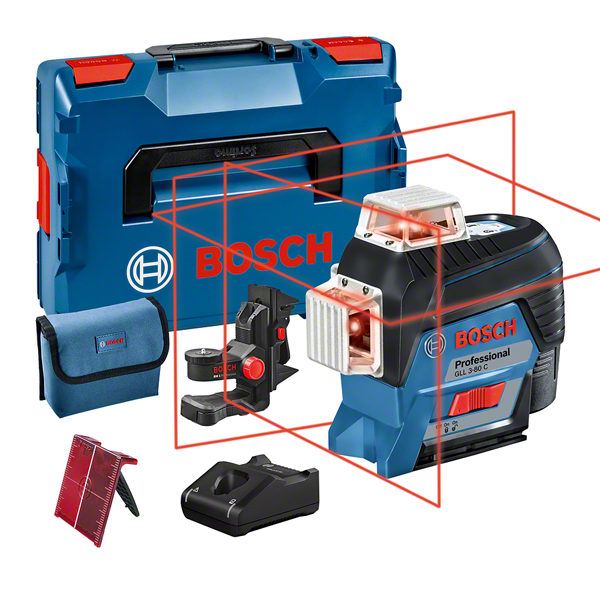

Included in this variant

  • L-BOXX 136
    Order number: 1 600 A01 2G0
  • Quick charger GAL 12V-40 Professional
    Order number: 1 600 A01 9R4
  • Pouch
  • 1 x battery GBA 12V 2.0Ah
    Order number: 1 600 Z00 02X
  • Laser target plate

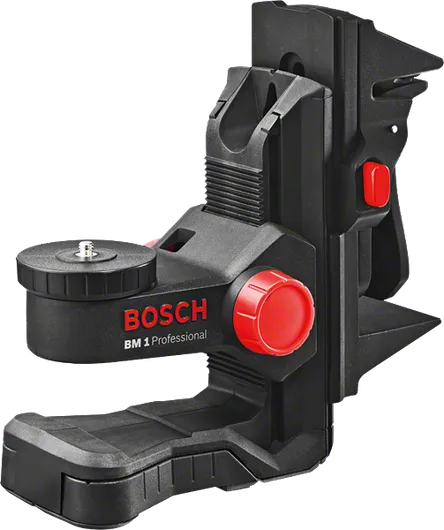

  • Universal mount BM 1 Professional
    Order number: 0 601 015 A01

Technical data

Additional data

Colour of laser line red
Battery voltage 12.0 V
Laser diode Line: 630 - 650 nm, < 10mW
Operating temperature -10 – 40 °C
Storage temperature -20 – 70 °C
Laser class 2
Working range up to 30 m
Working range with receiver up to 120 m
Accuracy ± 0.2 mm/mᵃ/**
Self-levelling range ± 4°
Levelling time 4 s
Dust and splash protection IP 54 *** (***except for the lithium-ion battery and AA1 battery adapter)
Power supply 12 V Li-Ion battery, 4 x 1.5 V LR6 (AA)
Operating time (max.) 8 h (Li-Ion) and 6 h (4 x AA) in 3-line mode
Tripod thread 1/4", 5/8"
Weight, approx. 0.9 kg
Projection 3 x 360° line

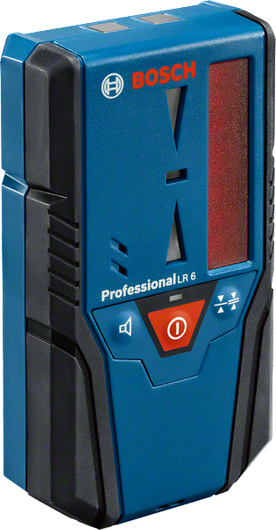

Compatible laser receivers LR 6 + 7
Working range, value 30 m
Working range with receiver, value 120 m

GLL 3-80 C

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

ᵃ Applies for the four horizontal intersection points

GLL 3-80 C Professional: Further information

Product Highlights

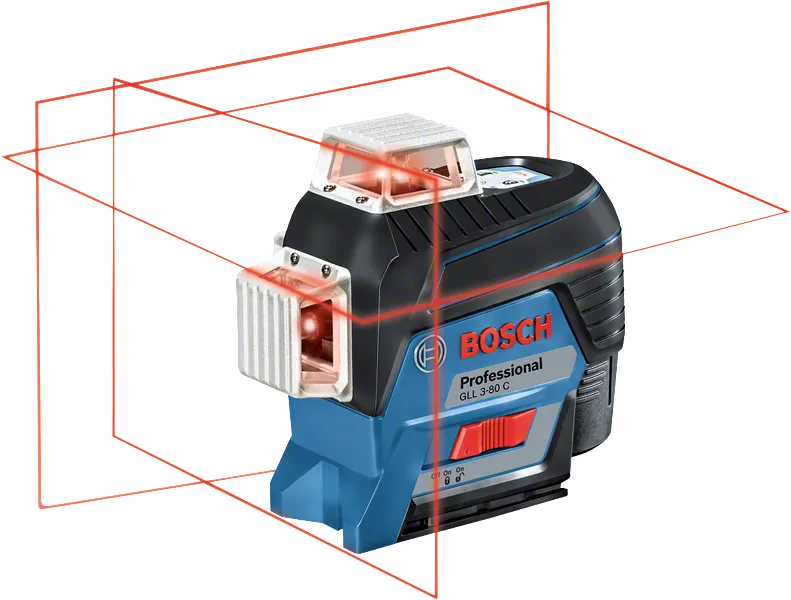

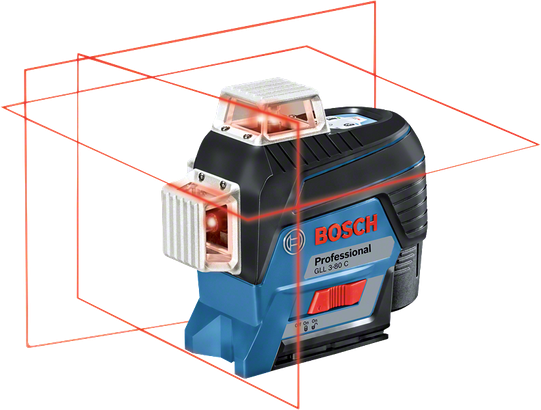

The line laser GLL 3-80 C Professional is simply connected and projects 3 x 360° lines for excellent visibility. Innovative CAL Guard monitoring and a Bluetooth®-connected smartphone app allow for remote-control use as well as contactless adjustments and high precision. High-powered diodes ensure high visual clarity while its 3 x 360° lines allow simultaneous horizontal and vertical levelling for highly efficient work.

Equipment & Application

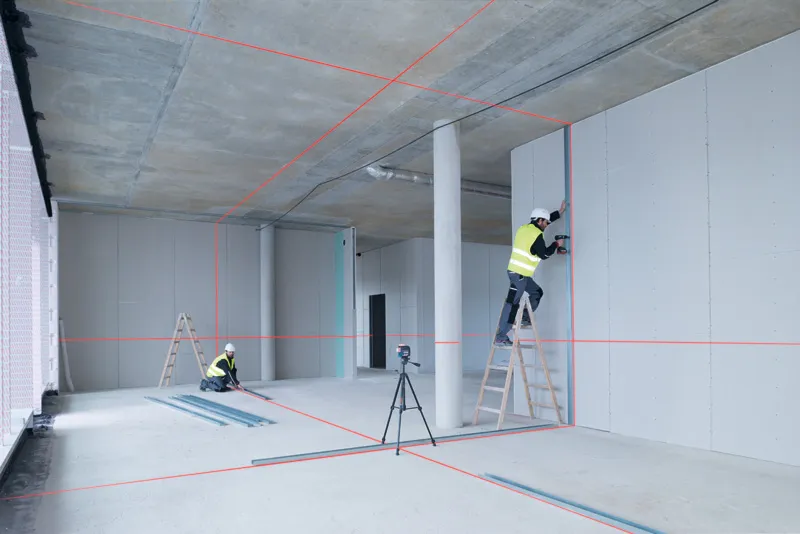

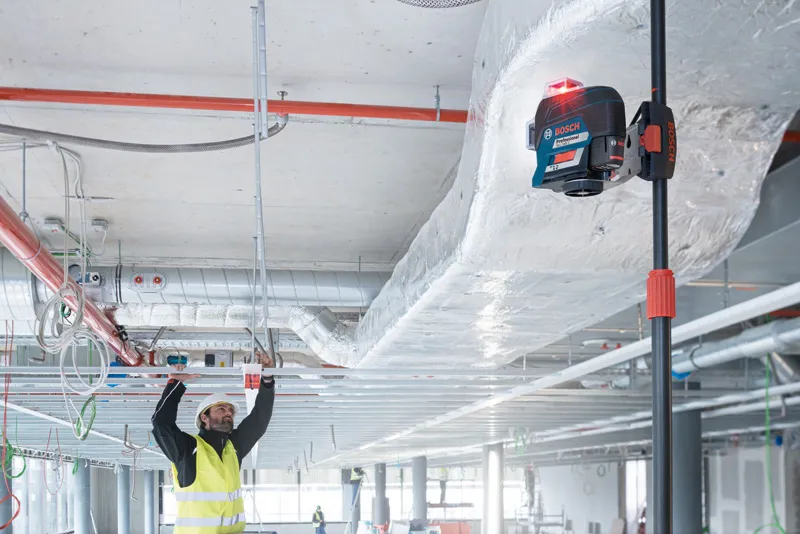

This line laser is developed for building floors, installing windows, mounting shelves,laying drainage pipes, building framework for drywall, and laying tiles.

Additional Information

Due to the GLL 3-80 C Professional's Dual Power Source, it can be operated both with 12 V Li-ion battery and with standard alkaline batteries for added flexibility. It is capable of levelling itself on non-level surfaces up to +/- 4° in less than 4 seconds with excellent precision of ± 0.2 mm/m*/** and has a working range of up to 120 m when using the optional LR 6 or LR 7 Professional receiver. This line laser is compact, easy to handle, and extremely robust.
