Line lasers

GLL 3-80 CG Professional

Line Laser

GLL 3-80 CG
GLL 3-80 CG
GLL 3-80 CG

3 x 360° bold green lines for optimal visibility. Simply connected.

  • Bright green laser lines offer up to four times better visibility than red lines
  • Very precise CAL Guard monitoring and remote-control use with Bluetooth®-connected smartphone app
  • 3 x 360° lines allow simultaneous horizontal and vertical levelling applications for highly efficient work

Functions & key features

3 x 360° Laser lines
CAL Guard warns, if one of the three following cases have occurred: 1) The measuring tool suffered a severe shock (e.g. impact after a fall) 2) The measuring tool was stored outside of the storage temperature range 3) The calibration interval (every 12 months) has expired
Dual power source
Laser class 2
Working with receiver for higher working range

Your Selection

  • in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, mount
Show variant
1,005,825.00 NGN
Recommended retail price including VAT

Currently not available online

Find a local dealer

in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, mount 0 601 063 T00
1,005,825.00 NGN
Recommended retail price including VAT

GLL 3-80 CG Professional

Your Selection

GLL 3-80 CG
in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, mount

Order number: 0 601 063 T00

1,005,825.00 NGN
Recommended retail price including VAT
Find a local dealer

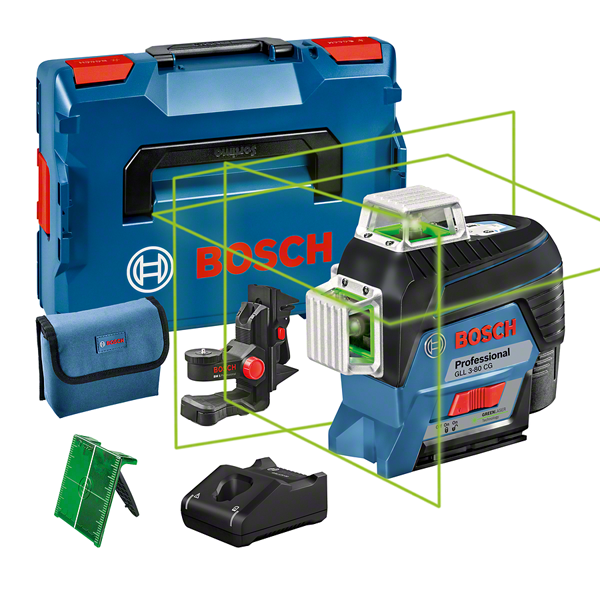

Included in this variant

  • L-BOXX 136
    Order number: 1 600 A01 2G0
  • Quick charger GAL 12V-40 Professional
    Order number: 1 600 A01 9R3
  • Pouch
  • 1 x battery GBA 12V 2.0Ah
    Order number: 1 600 Z00 02X
  • Laser target plate
  • Universal mount BM 1 Professional
    Order number: 0 601 015 A01

Technical data

Additional data

Colour of laser line green
Battery voltage 12.0 V
Laser diode 500 – 540 nm, < 10 mW
Operating temperature -10 – 40 °C
Storage temperature -20 – 70 °C
Laser class 2
Working range up to 30 m
Working range with receiver up to 120 m
Accuracy ± 0.2 mm/mᵃ/**
Self-levelling range ± 4°
Levelling time 4 s
Dust and splash protection IP 54 *** (***except for the lithium-ion battery and AA1 battery adapter)
Power supply 12 V Li-Ion battery, 4 x 1.5 V LR6 (AA)
Operating time (max.) 6 h (Li-Ion) and 4 h (4 x AA) in 3-line mode
Tripod thread 1/4", 5/8"

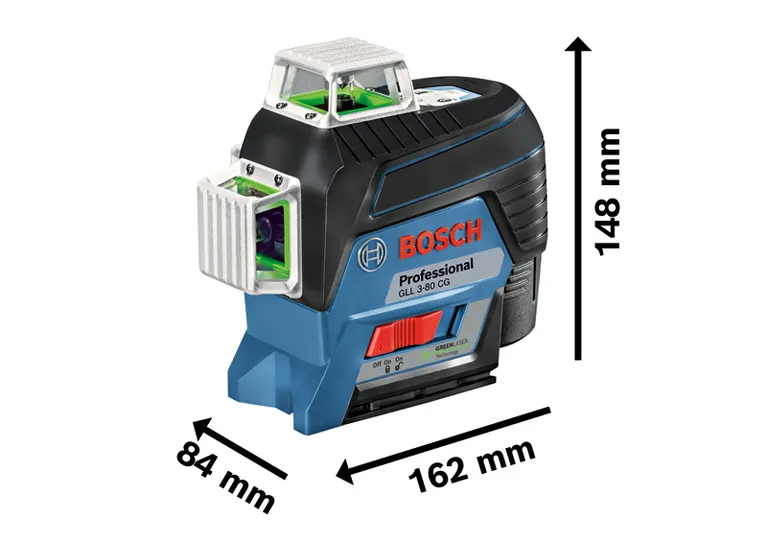

Weight, approx. 0.9 kg

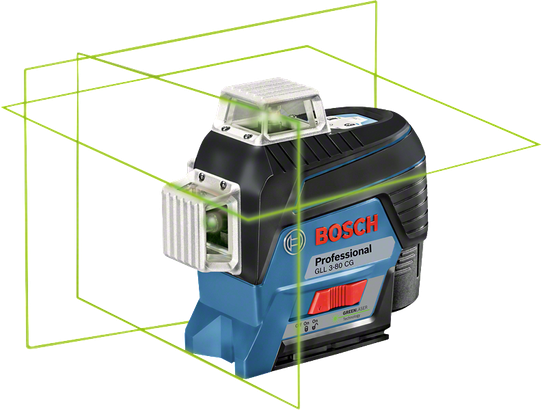

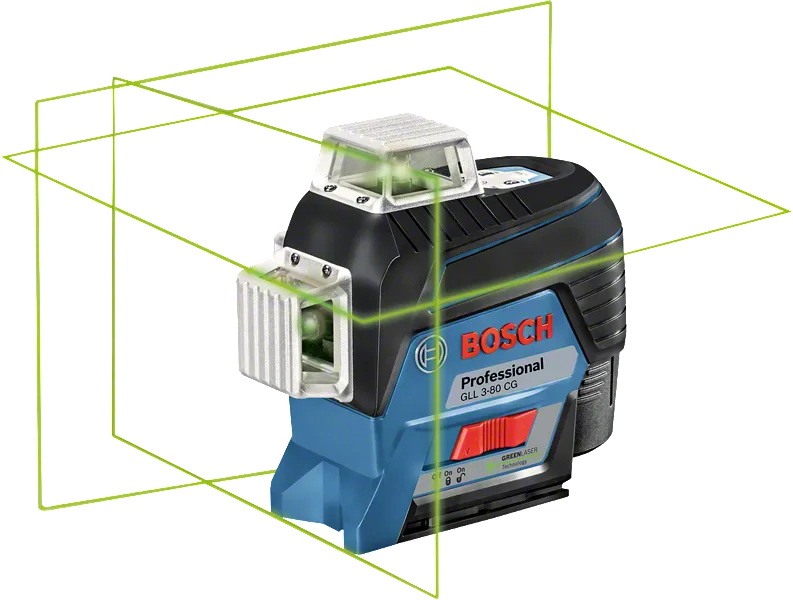

Projection 3 x 360° line
Compatible laser receivers LR 7
Working range, value 30 m
Working range with receiver, value 120 m

GLL 3-80 CG

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

ᵃ Applies for the four horizontal intersection points

GLL 3-80 CG Professional: Further information

Product Highlights

The line laser GLL 3-80 CG Professional is simply connected and projects bold 3 x 360° lines for maximum visibility. Bright green laser lines offer up to four times better visibility than red lines. Innovative CAL Guard monitoring and a Bluetooth®-connected smartphone app allow for remote-control use as well as contactless adjustments and high precision. This tool's 3 x 360° lines allow simultaneous horizontal and vertical levelling for highly efficient work.

Equipment & Application

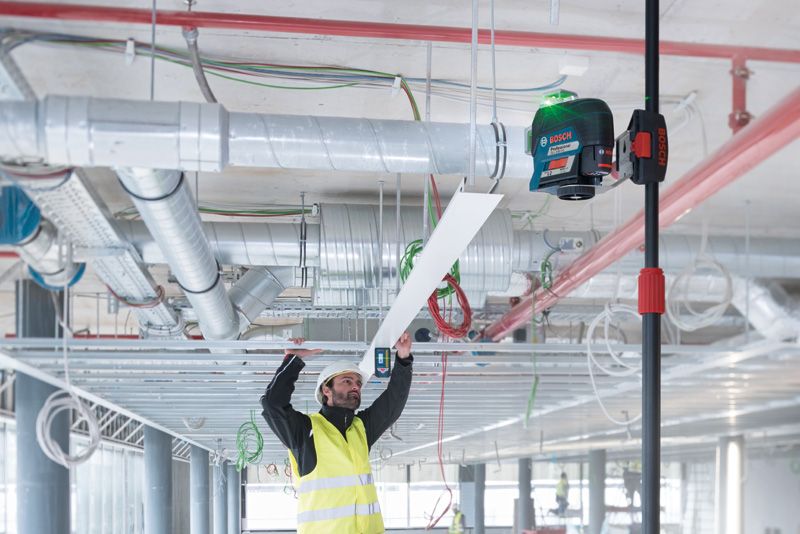

This line laser was developed for building floors, installing windows, mounting shelves, building framework for drywall, and laying tiles.

Additional Information

Due to the GLL 3-80 CG Professional's Dual Power Source, it can be operated both with 12 V Li-ion battery and with standard alkaline batteries for added flexibility. It is capable of levelling itself on non-level surfaces up to +/- 4° in less than 4 seconds with excellent precision of ± 0.2 mm/m*/** and has a working range of up to 120 m when using the optional LR 7 Professional receiver. This line laser is compact, easy to handle, and extremely robust (IP54***).
