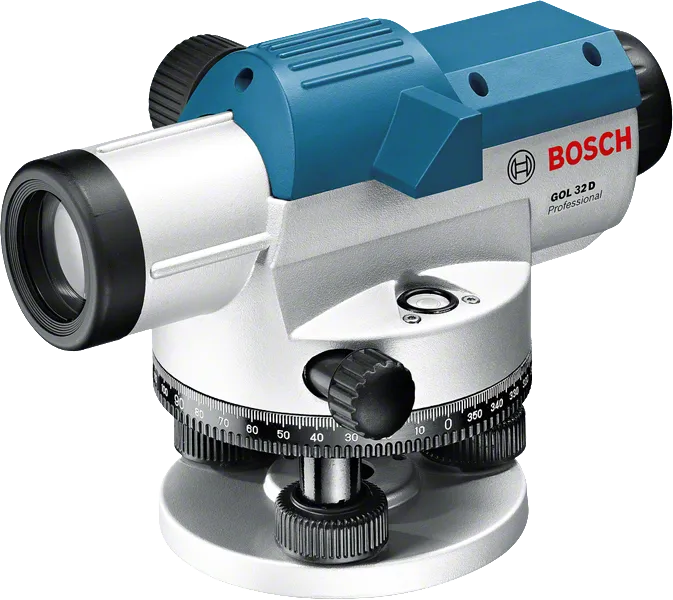

Optical Level GOL 32 D Professional

Robust and reliable – ideal for outdoor use

Technical data
Additional data
Unit of measure* 360 degrees
Magnification* 32 x
Accuracy* 1 mm at 30 m
Working range, value 120 m
Working range 120 m
Dust and splash protection IP 54
Tripod thread 5/8"
Operating temperature, from -10 °C
Operating temperature, up to 50 °C
Operating temperature -10 – 50°C °C
Storage temperature, from -20 °C
Storage temperature, up to 70 °C
Storage temperature -20 – 70°C °C
Weight, approx. 1.5 kg

* Highlighted Data

Advantages

Robust and reliable – ideal for outdoor use

  • Ideal for outdoor use due to a robust housing with dust and splash protection (IP54)
  • Fast aperture for a sharp image of the target
  • Compensator lock for safe transport

Functions

Levelling accuracy 1.6 mm - 30 m Measuring accuracy of 1.6 mm/30 m
Dual levelling element Prevent errors due to dual levelling element
Magnification 32x Magnification up to 32x
Working range 120 m Range up to max. 120 m

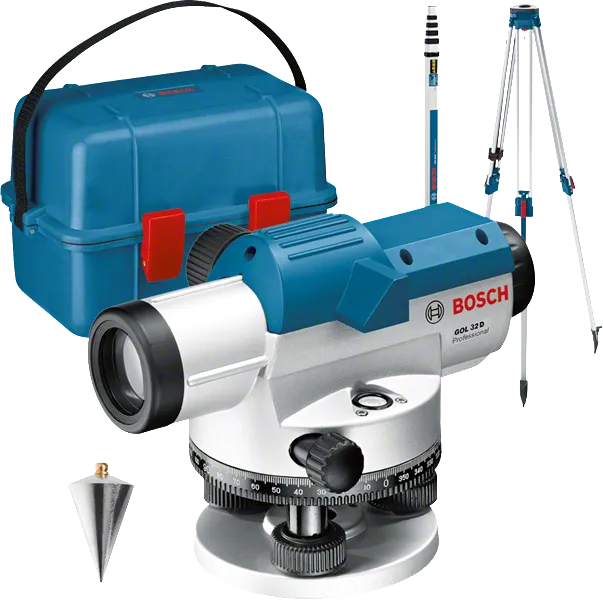

What’s Included in this Package
with accessory set
with accessory set
Order number: 0 601 068 502
  • Adjusting pin
  • Allen key
  • Building tripod BT 160 Professional 0 601 091 200
  • Measuring rod GR 500 Professional 0 601 094 300
  • Lens cover
  • Plumb bob
