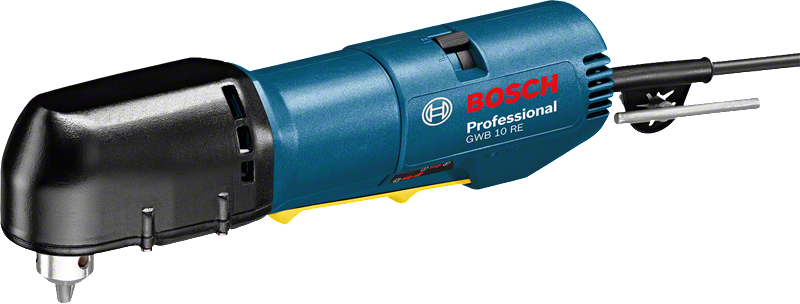

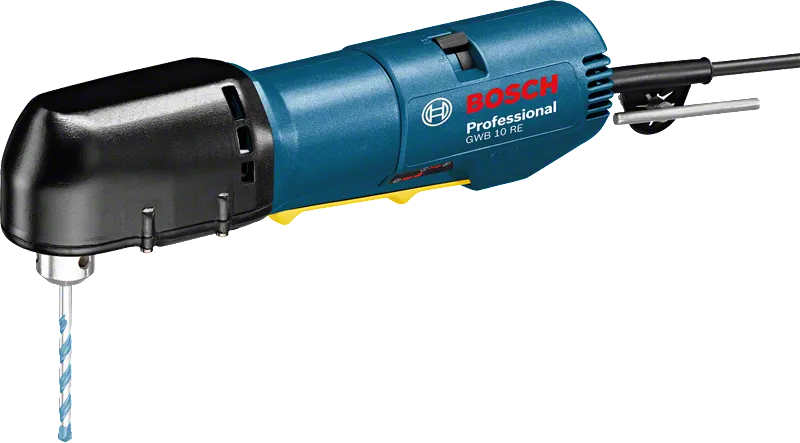

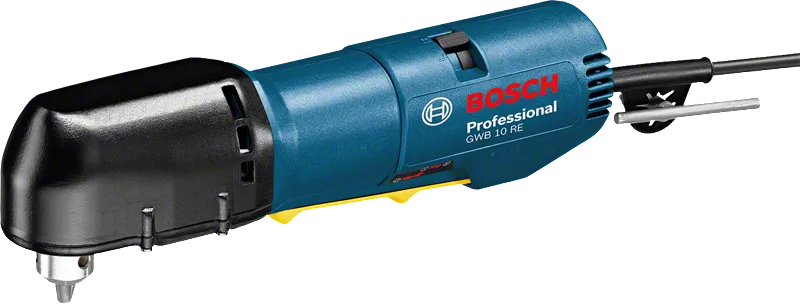

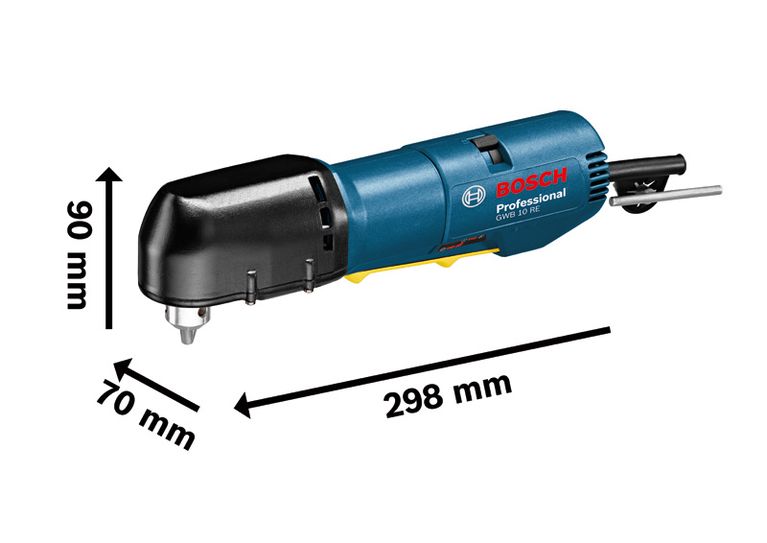

Angle Drill GWB 10 RE Professional

The slim tool for hard-to-reach areas
GWB 10 RE Professional
Technical data
Additional data
Rated input power 400   W
Weight 1.7   kg
Rated speed 750   rpm
Rated torque 2.2   Nm
Max. torque 5.5   Nm
No-load speed, 1st gear 1,300   rpm
Power output 170   W
Drilling range
Drilling diameter in aluminium 12   mm
Drilling diameter in wood 22   mm
Drilling diameter in steel 10   mm
Total vibration values (Drilling in metal)
Vibration emission value ah 2   m/s²
Uncertainty K 1.5   m/s²
Total vibration values (Screwdriving)
Vibration emission value ah 2.9   m/s²
Uncertainty K 1.5   m/s²

Advantages

The slim tool for hard-to-reach areas

  • Angle shape with slim straight motor, especially handy and easy to operate
  • Perfect for use in hard-to-reach areas
  • Accelerator electronics and speed preselection with setting wheel

Functions

Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Forward / reverse rotation for inserting and removing screws
Easy and precise control of the RPM thanks to variable speed
What’s Included in this Package
with Keyed chuck fitted, 10 mm
with Keyed chuck fitted, 10 mm
Order number: 0 601 132 703
  • Keyed chuck fitted, 10 mm
