High-performance Receiver LR 2 Professional

Increased benefit with accessories

Technical data
Additional data
Range of 5 – 50   m
Power supply 1 x 9 V 6LR61 Block
Dust and splash protection IP 54
Remote control -
Receiver -
Measuring accuracy (fine/rough) ± 1 mm/± 3 mm
Weight, approx. 270   g

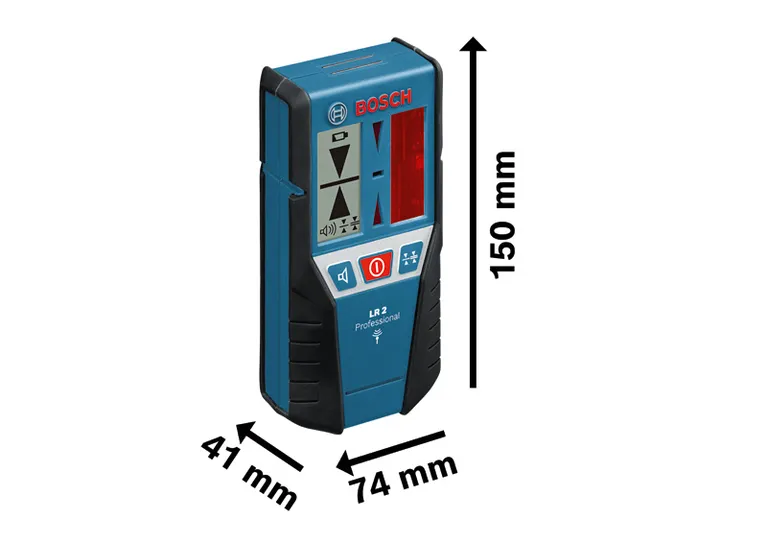

Tool dimensions (width) 41   mm
Tool dimensions (length) 74   mm
Tool dimensions (height) 150   mm
Type of receiver Combi- and line lasers


Increased benefit with accessories

  • Handy receiver for ranges of up to 50 m
  • Easily attached to a staff
  • Alignment of the laser beam plane, visual (display and LEDs) and audible signals, for working in various lighting conditions


Accuracy Measuring accuracy ± 1.0/3.0 mm
Working range of GLL 2-50 + LR2 receiver Range with receiver 50 m
Working range of GLL 2-80 P + LR2 receiver Range with receiver 40 m

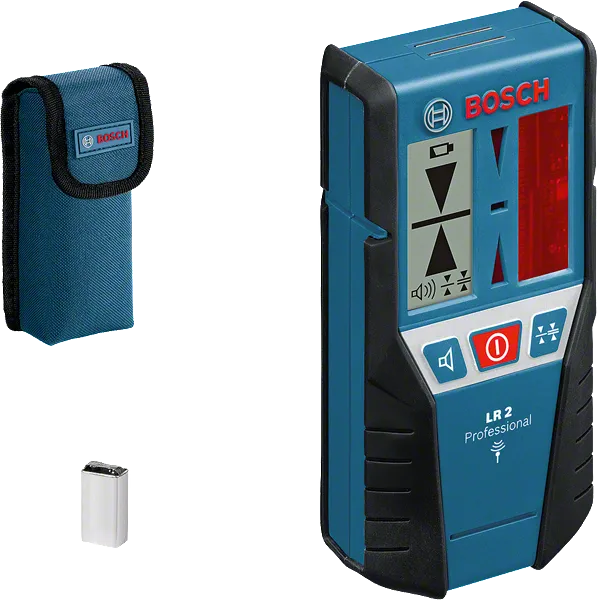

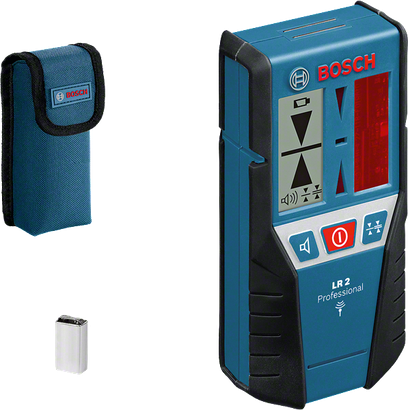

What’s Included in this Package
with Accessory
with Accessory
Order number: 0 601 069 100
  • 1 x 9 V block battery (6LR61)

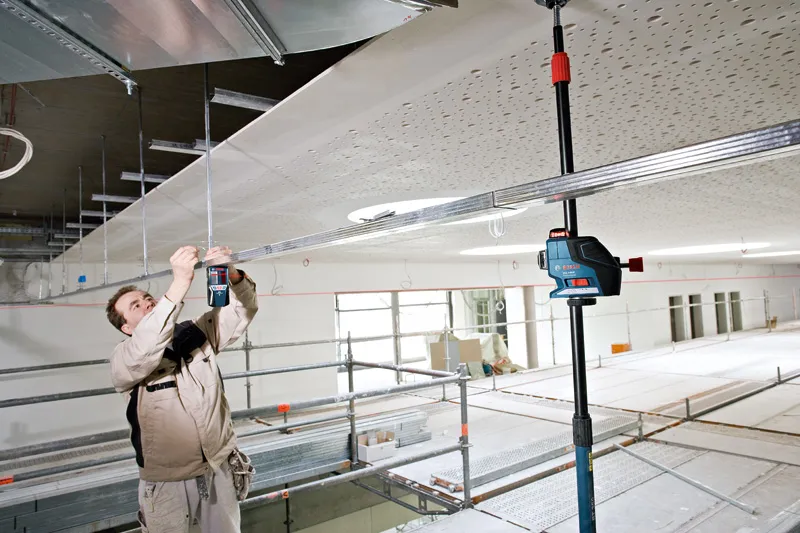

The LR 2 in action!
