SDS plus-5 Drill Bit

For rotary hammers

Effortless Drilling in Concrete
  • SDS plus-5 Drill Bit allows for effortless drilling
  • Grooved carbide plate for smooth work without jamming
  • Activeteq centring tip offers drill guidance for easy starts without jarring or wandering
  • AWB brazing and hardening technology reduces vibration and strain on the user
  • Wear mark for accurate drill hole diameter. PGM-certified quality. Made in Germany
  • Fits all SDS plus rotary hammers
View more
Materials
Concrete
Lime and sand bricks
Solid brick
Concrete building block
Hard stone

Select options

Diameter, mm

Working length, mm

Total length, mm

Choose a pack size

Selected variant

Available product options(30)

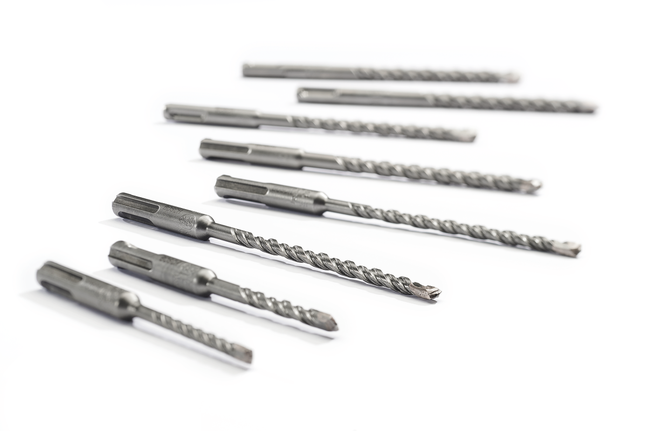

SDS plus-5 Drill Bit

Fits tools of most brands

Drill bit being aligned with a tool chuck for attachment.

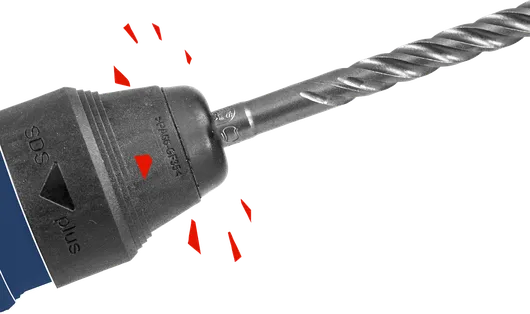

Rotary hammer drill bit inserted into a chuck.
Close-up of a drill with a spiral bit attached for heavy-duty material drilling.

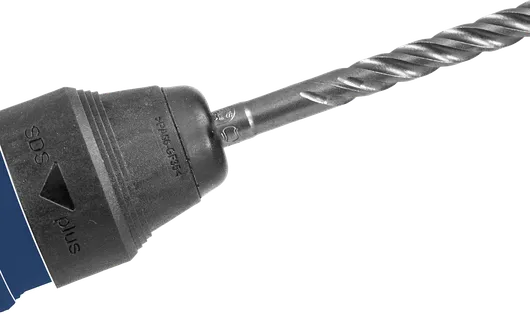

Fits all SDS plus rotary hammers

Product Options

Available product options: 30

Expand Part number Diameter, mm Total length, mm Working length, mm Pack quantity Price Availability
1 618 596 164 5.00 115 50 1 Pcs Find a local dealer
1 618 596 166 6.00 115 50 1 Pcs Find a local dealer
1 618 596 167 6.00 165 100 1 Pcs Find a local dealer
1 618 596 170 7.00 115 50 1 Pcs Find a local dealer
1 618 596 172 8.00 115 50 1 Pcs Find a local dealer
1 618 596 173 8.00 165 100 1 Pcs Find a local dealer
1 618 596 174 8.00 215 150 1 Pcs Find a local dealer
1 618 596 176 10.00 115 50 1 Pcs Find a local dealer
1 618 596 177 10.00 165 100 1 Pcs Find a local dealer
1 618 596 178 10.00 265 200 1 Pcs Find a local dealer
1 618 596 181 12.00 165 100 1 Pcs Find a local dealer
1 618 596 182 12.00 265 200 1 Pcs Find a local dealer
1 618 596 185 14.00 165 100 1 Pcs Find a local dealer
1 618 596 186 14.00 265 200 1 Pcs Find a local dealer
1 618 596 204 18.00 200 150 1 Pcs Find a local dealer
1 618 596 207 20.00 200 150 1 Pcs Find a local dealer
1 618 596 231 4.00 115 50 1 Pcs Find a local dealer
1 618 596 232 22.00 250 200 1 Pcs Find a local dealer
1 618 596 236 24.00 250 200 1 Pcs Find a local dealer
1 618 596 238 25.00 250 200 1 Pcs Find a local dealer
1 618 596 262 20.00 300 250 1 Pcs Find a local dealer
1 618 596 265 10.00 215 150 1 Pcs Find a local dealer
1 618 596 268 12.00 215 150 1 Pcs Find a local dealer
1 618 596 269 12.00 465 400 1 Pcs Find a local dealer
1 618 596 270 14.00 215 150 1 Pcs Find a local dealer
1 618 596 315 10.00 315 250 1 Pcs Find a local dealer
1 618 596 319 18.00 300 250 1 Pcs Find a local dealer
2 608 596 115 6.00 215 150 1 Pcs Find a local dealer
2 608 596 185 16.00 215 150 1 Pcs Find a local dealer
2 608 596 186 16.00 315 250 1 Pcs Find a local dealer
