Technical data
| Additional data | |
|---|---|
| Rated input power* | 600 W |
| Weight | 1.8 kg |
| No-load speed, 1st gear | 0 – 2,800 rpm |
| Power output | 301 W |
| Rated torque | 1.8 Nm |
| Drill spindle connecting thread | 1/2" – 20 UNF |
| Chuck capacity, min./max. | 1.5 – 13 mm |
| Tool dimensions (length) | 266 mm |
| Tool dimensions (height) | 180 mm |
| Impact rate at no-load speed | 0 – 44,800 bpm |
| Drilling range | |
|---|---|
| Drilling diameter in concrete | 13 mm |
| Drilling diameter in wood* | 25 mm |
| Drilling diameter in steel | 10 mm |
| Drilling diameter in masonry* | 15 mm |
| Total vibration values (Drilling in metal) | |
|---|---|
| Vibration emission value ah | 3 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Impact drilling in concrete) | |
|---|---|
| Vibration emission value ah | 26 m/s² |
| Uncertainty K | 3 m/s² |
| Total vibration values (Screwdriving) | |
|---|---|
| Vibration emission value ah | 2.5 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
Advantages

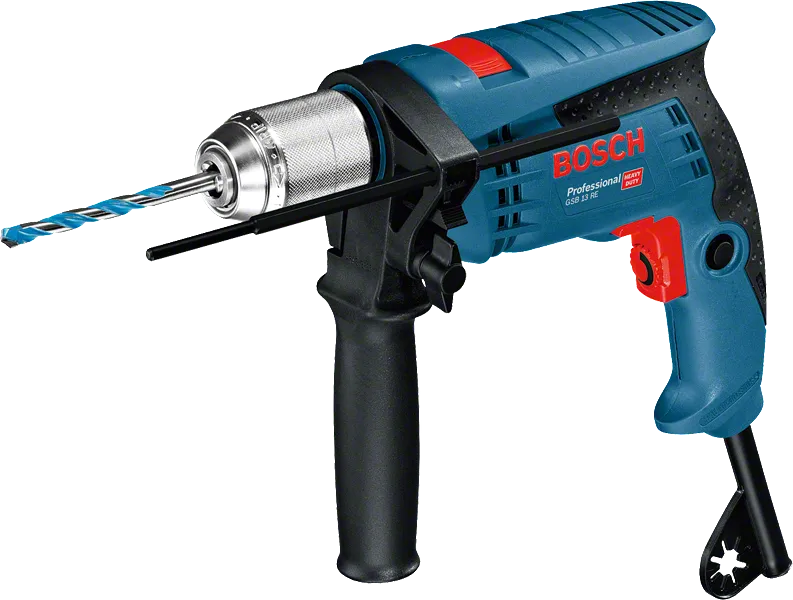

Compact power – The most compact and powerful impact drill in its class
- Robust and powerful 600 W motor
- Extremely handy: No bigger than a glove and 1.7 kg light
- Soft in line grip for a secure hold
Functions
What’s Included in this Package

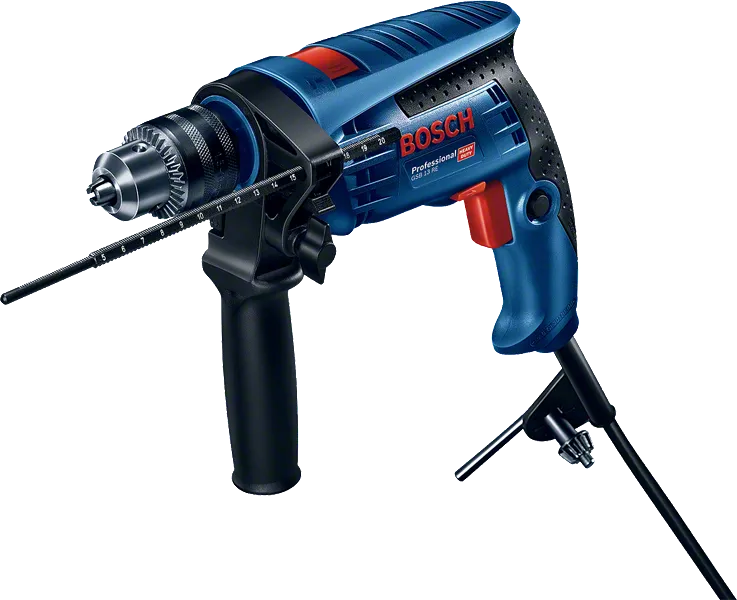

with Auxiliary handle
Order number:
0 601 217 671
- Carton box
- Auxiliary handle
- Depth gauge
29.00 OMR
Recommended retail price excluding VAT.
