Circular Saw Blades
![Object #200164628: 2608642516_bo_pro_p_f_1]( "Object #200164628: 2608642516_bo_pro_p_f_1")
![Object #200247563: CSB_LaminatedPanel8493]( "Object #200247563: CSB_LaminatedPanel8493")
![Object #200247564: CSB_LaminatedPanel8526]( "Object #200247564: CSB_LaminatedPanel8526")

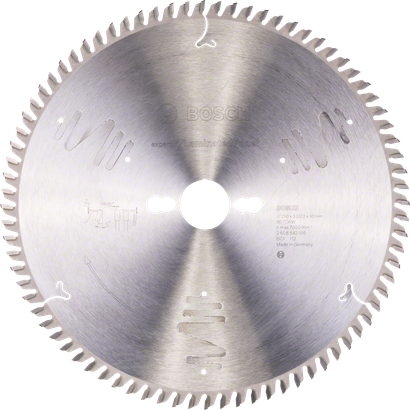

Expert for Laminated Panel Table Circular Saw Blades
For vertical panel sizing saws, For corded table saws
Perfect Reliable Cuts in Laminate Panels
- Extra Hard Dura Technology teeth are produced in-house by Bosch from highly durable carbide grains for high performance
- Anti-vibration slots for particularly smooth cutting, considerably less noise and significantly reduced vibration
- Bore works with or without reduction rings to fit different sizes
Materials
Select options
Outer diameter mm
Select one option from the listed items below
Number of teeth
Select one option from the listed items below
Width of cut (b1) mm
Select one option from the listed items below
Choose a pack size
Select one option from the listed items below
Select options
Outer diameter mm 2 options
Number of teeth 2 options
Width of cut (b1) mm 3.2
Choose a pack size 1 Pcs
Available product options
(2)
Find a local dealer
from
66.60 EUR
Recommended retail price excluding VAT
Expert for Laminated Panel Table Circular Saw Blades
Perfect Reliable Cuts in Laminate Panels
Perfect Reliable Cuts in Laminate Panels
- Anti-vibration slots for particularly smooth cutting, considerably less noise and significantly reduced vibration
- Saw blade has HLTCG teeth for robustness in abrasive materials
View more
Product Options
Available product options: 2
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
|
|---|---|---|---|---|---|---|---|
| 2 608 642 516 | 250 | 30 | 3.2/2.2 | 80 | 1 Pcs | Find a local dealer | |
| 2 608 642 517 | 300 | 30 | 3.2/2.2 | 96 | 1 Pcs | Find a local dealer |
out of products
Expert for Laminated Panel circular saw blade

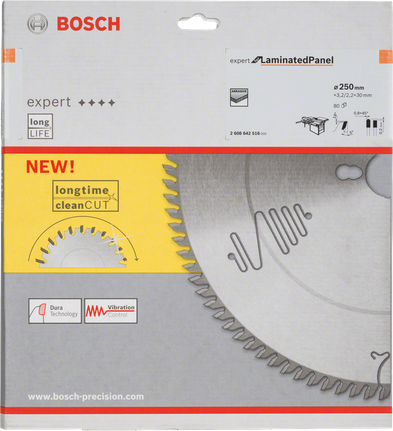

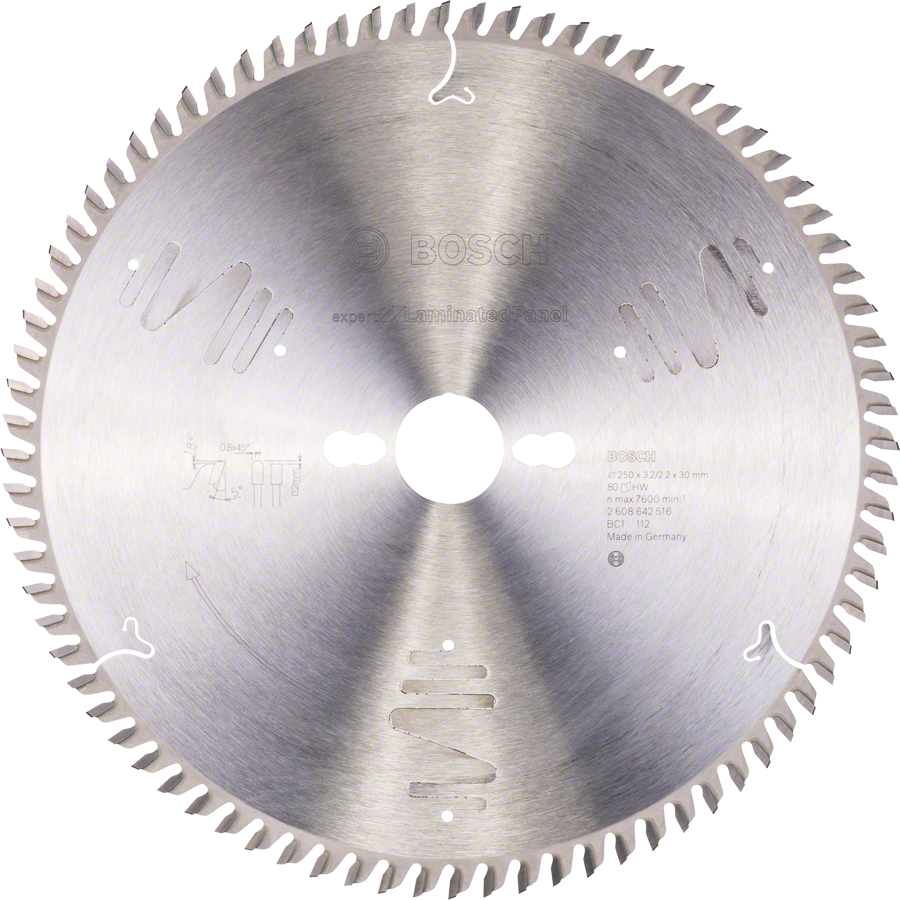

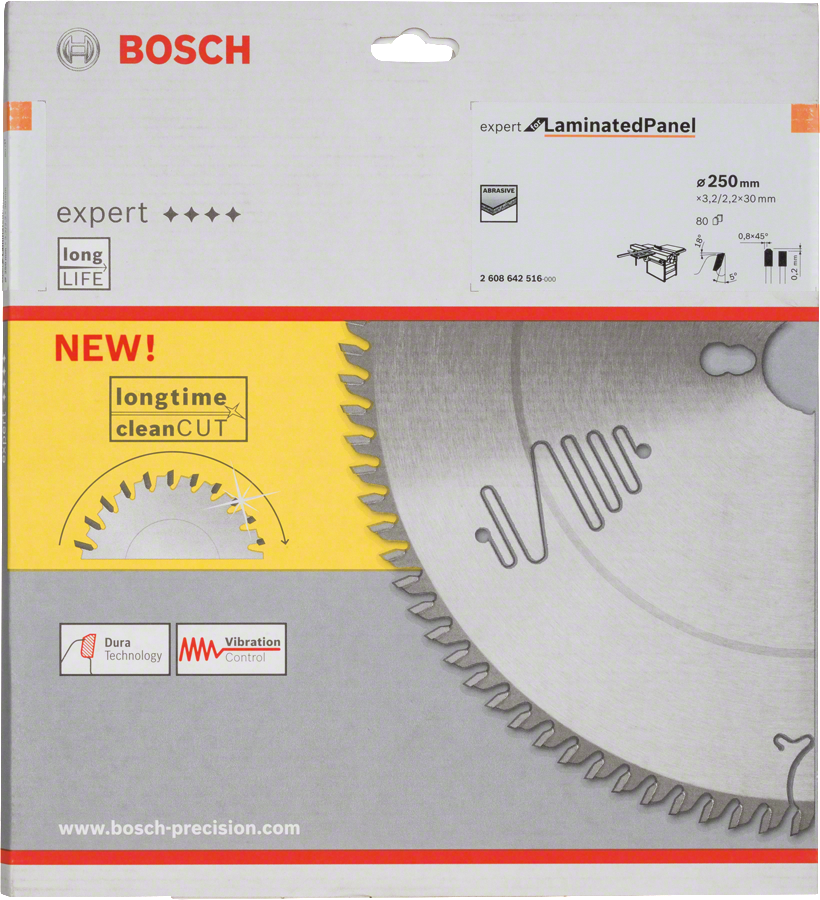

Part number 2608642516
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
250
Bore size mm
30
Width of cut (b1) mm / Base bl. thickness (b2) mm
3.2/2.2
Number of teeth
80
Tooth shape
HLTCG
Max. rotation speed (RPM)
7600
Cutting result
Fine Cut
Pin hole/Pitch circle diameter
2/7/42 / 2/9/46.4 / 2/10/60
Hook angle ° α
5
Relief angle ° β
18
66.60 EUR
Recommended retail price excluding VAT
Expert for Laminated Panel circular saw blade

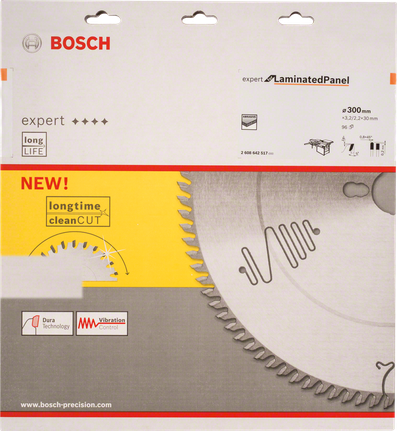

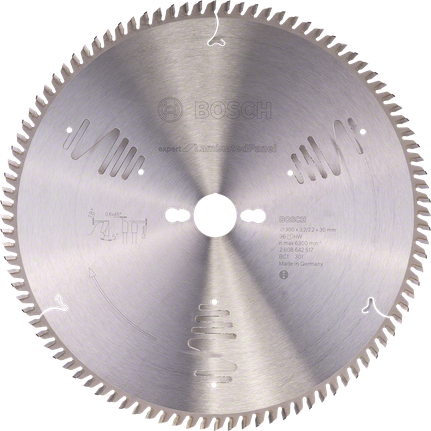

Part number 2608642517
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
300
Bore size mm
30
Width of cut (b1) mm / Base bl. thickness (b2) mm
3.2/2.2
Number of teeth
96
Tooth shape
HLTCG
Max. rotation speed (RPM)
6300
Cutting result
Fine Cut
Pin hole/Pitch circle diameter
2/7/42 / 2/9/46.4 / 2/10/60
Hook angle ° α
5
Relief angle ° β
18
88.00 EUR
Recommended retail price excluding VAT
