For rotary hammer drills
Diameter (D) mm
Working length mm
Total length mm
Choose a pack size
Diameter (D) mm 12 options
Working length mm 4 options
Total length mm 8 options
Choose a pack size 2 options

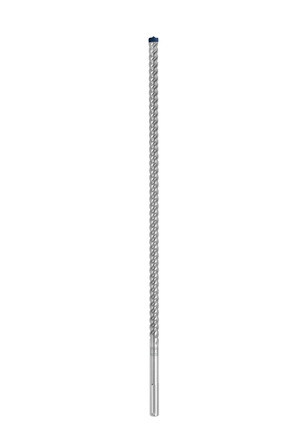

Exceptionally durable drill bit tip with Bosch Carbide Technology

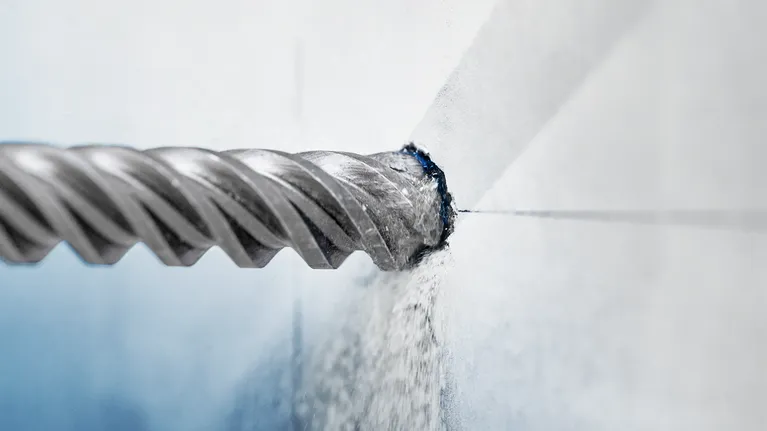

Punch through reinforced concrete with a 4-cutter full carbide head
Highly resistant drill tip connection thanks to Bosch’s special welding process

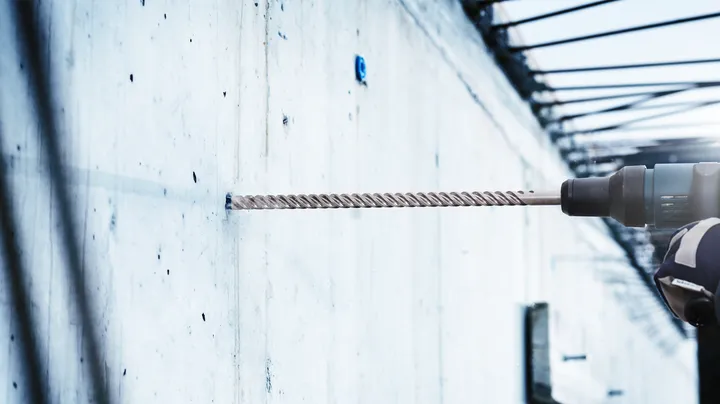

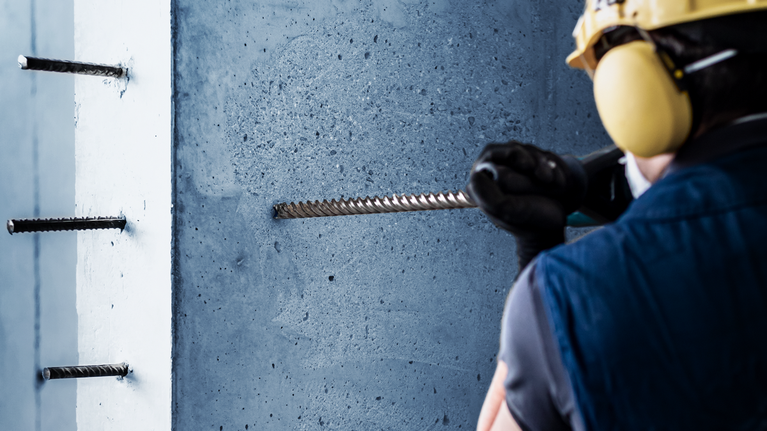

Drilling through reinforced concrete is a tough job and it has traditionally taken its toll on hammer drill bits. Even 4-cutters wear out fast, resulting in downtime changing accessories and fetching supplies. The Full Carbide Head on the EXPERT SDS max-8X is an advanced 4-cutter design made from a single piece of the toughest metal: It doesn’t jam and presents no weakness on impact.
Available product options: 53
|
Part number
|
Diameter (D) mm
|
Working length mm
|
Total length mm
|
Pack quantity
|
|
|---|---|---|---|---|---|---|
| 2 608 900 201 | 12.00 | 200 | 340 | 1 Pcs | Find a local dealer | |
| 2 608 900 202 | 12.00 | 400 | 540 | 1 Pcs | Find a local dealer | |
| 2 608 900 203 | 12.00 | 600 | 740 | 1 Pcs | Find a local dealer | |
| 2 608 900 204 | 12.00 | 800 | 940 | 1 Pcs | Find a local dealer | |
| 2 608 900 207 | 14.00 | 200 | 340 | 1 Pcs | Find a local dealer | |
| 2 608 900 208 | 14.00 | 400 | 540 | 1 Pcs | Find a local dealer | |
| 2 608 900 209 | 14.00 | 600 | 740 | 1 Pcs | Find a local dealer | |
| 2 608 900 210 | 14.00 | 800 | 940 | 1 Pcs | Find a local dealer | |
| 2 608 900 214 | 16.00 | 200 | 340 | 1 Pcs | Find a local dealer | |
| 2 608 900 215 | 16.00 | 400 | 540 | 1 Pcs | Find a local dealer | |
| 2 608 900 216 | 16.00 | 600 | 740 | 1 Pcs | Find a local dealer | |
| 2 608 900 217 | 16.00 | 800 | 940 | 1 Pcs | Find a local dealer | |
| 2 608 900 221 | 18.00 | 200 | 340 | 1 Pcs | Find a local dealer | |
| 2 608 900 222 | 18.00 | 400 | 540 | 1 Pcs | Find a local dealer | |
| 2 608 900 223 | 18.00 | 600 | 740 | 1 Pcs | Find a local dealer | |
| 2 608 900 224 | 18.00 | 800 | 940 | 1 Pcs | Find a local dealer | |
| 2 608 900 228 | 20.00 | 200 | 320 | 1 Pcs | Find a local dealer | |

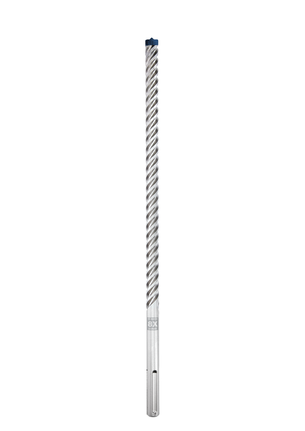

| 2 608 900 229 | 20.00 | 400 | 520 | 1 Pcs | Find a local dealer | |
| 2 608 900 230 | 20.00 | 600 | 720 | 1 Pcs | Find a local dealer | |
| 2 608 900 231 | 20.00 | 800 | 920 | 1 Pcs | Find a local dealer | |
| 2 608 900 233 | 22.00 | 200 | 320 | 1 Pcs | Find a local dealer | |
| 2 608 900 234 | 22.00 | 400 | 520 | 1 Pcs | Find a local dealer | |

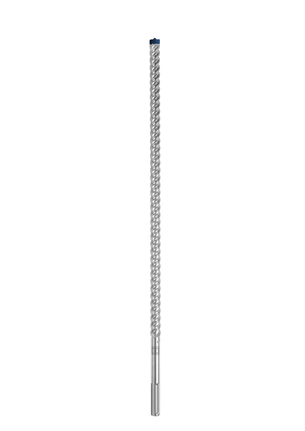

| 2 608 900 235 | 22.00 | 600 | 720 | 1 Pcs | Find a local dealer | |
| 2 608 900 236 | 22.00 | 800 | 920 | 1 Pcs | Find a local dealer | |
| 2 608 900 238 | 24.00 | 200 | 320 | 1 Pcs | Find a local dealer | |
| 2 608 900 239 | 24.00 | 400 | 520 | 1 Pcs | Find a local dealer | |

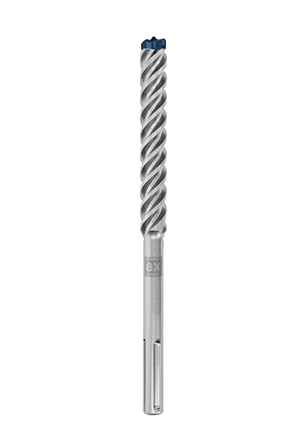

| 2 608 900 240 | 25.00 | 200 | 320 | 1 Pcs | Find a local dealer | |
| 2 608 900 241 | 25.00 | 400 | 520 | 1 Pcs | Find a local dealer | |
| 2 608 900 242 | 25.00 | 600 | 720 | 1 Pcs | Find a local dealer | |
| 2 608 900 243 | 25.00 | 800 | 920 | 1 Pcs | Find a local dealer | |

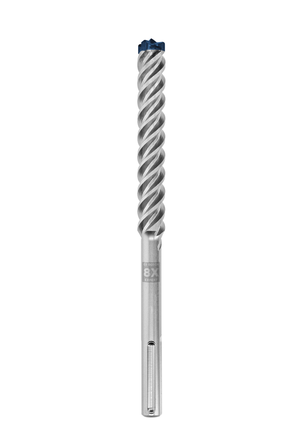

| 2 608 900 245 | 26.00 | 200 | 320 | 1 Pcs | Find a local dealer | |
| 2 608 900 246 | 26.00 | 400 | 520 | 1 Pcs | Find a local dealer | |
| 2 608 900 247 | 28.00 | 200 | 320 | 1 Pcs | Find a local dealer | |
| 2 608 900 248 | 28.00 | 400 | 520 | 1 Pcs | Find a local dealer | |
| 2 608 900 249 | 28.00 | 600 | 720 | 1 Pcs | Find a local dealer | |
| 2 608 900 250 | 28.00 | 800 | 920 | 1 Pcs | Find a local dealer | |
| 2 608 900 252 | 30.00 | 200 | 320 | 1 Pcs | Find a local dealer | |
| 2 608 900 253 | 30.00 | 400 | 520 | 1 Pcs | Find a local dealer | |
| 2 608 900 254 | 32.00 | 200 | 320 | 1 Pcs | Find a local dealer | |
| 2 608 900 255 | 32.00 | 400 | 520 | 1 Pcs | Find a local dealer | |
| 2 608 900 256 | 32.00 | 600 | 720 | 1 Pcs | Find a local dealer | |
| 2 608 900 257 | 32.00 | 800 | 920 | 1 Pcs | Find a local dealer | |
| 2 608 900 260 | 12.00 | 200 | 340 | 5 Pcs | Find a local dealer | |
| 2 608 900 261 | 16.00 | 200 | 340 | 5 Pcs | Find a local dealer | |
| 2 608 900 262 | 16.00 | 400 | 540 | 5 Pcs | Find a local dealer | |
| 2 608 900 263 | 18.00 | 200 | 340 | 5 Pcs | Find a local dealer | |
| 2 608 900 264 | 18.00 | 400 | 540 | 5 Pcs | Find a local dealer | |

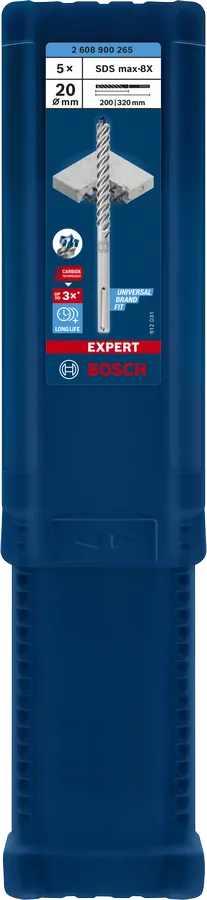

| 2 608 900 265 | 20.00 | 200 | 320 | 5 Pcs | Find a local dealer | |
| 2 608 900 266 | 20.00 | 400 | 520 | 5 Pcs | Find a local dealer | |
| 2 608 900 267 | 22.00 | 400 | 520 | 5 Pcs | Find a local dealer | |
| 2 608 900 268 | 24.00 | 400 | 520 | 5 Pcs | Find a local dealer | |
| 2 608 900 269 | 25.00 | 400 | 520 | 5 Pcs | Find a local dealer | |
| 2 608 900 270 | 32.00 | 400 | 520 | 5 Pcs | Find a local dealer |
out of products
| Part number 2608900201 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 12.00 |
| Working length mm | 200 |
| Total length mm | 340 |
| Part number 2608900202 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 12.00 |
| Working length mm | 400 |
| Total length mm | 540 |
| Part number 2608900203 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 12.00 |
| Working length mm | 600 |
| Total length mm | 740 |
| Part number 2608900204 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 12.00 |
| Working length mm | 800 |
| Total length mm | 940 |
| Part number 2608900207 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 14.00 |
| Working length mm | 200 |
| Total length mm | 340 |
| Part number 2608900208 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 14.00 |
| Working length mm | 400 |
| Total length mm | 540 |
| Part number 2608900209 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 14.00 |
| Working length mm | 600 |
| Total length mm | 740 |
| Part number 2608900210 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 14.00 |
| Working length mm | 800 |
| Total length mm | 940 |
| Part number 2608900214 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 16.00 |
| Working length mm | 200 |
| Total length mm | 340 |
| Part number 2608900215 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 16.00 |
| Working length mm | 400 |
| Total length mm | 540 |
| Part number 2608900216 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 16.00 |
| Working length mm | 600 |
| Total length mm | 740 |
| Part number 2608900217 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 16.00 |
| Working length mm | 800 |
| Total length mm | 940 |
| Part number 2608900221 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 18.00 |
| Working length mm | 200 |
| Total length mm | 340 |
| Part number 2608900222 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 18.00 |
| Working length mm | 400 |
| Total length mm | 540 |
| Part number 2608900223 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 18.00 |
| Working length mm | 600 |
| Total length mm | 740 |
| Part number 2608900224 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 18.00 |
| Working length mm | 800 |
| Total length mm | 940 |
| Part number 2608900228 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 20.00 |
| Working length mm | 200 |
| Total length mm | 320 |
| Part number 2608900229 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 20.00 |
| Working length mm | 400 |
| Total length mm | 520 |
| Part number 2608900230 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 20.00 |
| Working length mm | 600 |
| Total length mm | 720 |
| Part number 2608900231 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 20.00 |
| Working length mm | 800 |
| Total length mm | 920 |
| Part number 2608900233 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 22.00 |
| Working length mm | 200 |
| Total length mm | 320 |
| Part number 2608900234 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 22.00 |
| Working length mm | 400 |
| Total length mm | 520 |
| Part number 2608900235 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 22.00 |
| Working length mm | 600 |
| Total length mm | 720 |
| Part number 2608900236 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 22.00 |
| Working length mm | 800 |
| Total length mm | 920 |
| Part number 2608900238 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 24.00 |
| Working length mm | 200 |
| Total length mm | 320 |
| Part number 2608900239 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 24.00 |
| Working length mm | 400 |
| Total length mm | 520 |
| Part number 2608900240 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 25.00 |
| Working length mm | 200 |
| Total length mm | 320 |
| Part number 2608900241 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 25.00 |
| Working length mm | 400 |
| Total length mm | 520 |
| Part number 2608900242 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 25.00 |
| Working length mm | 600 |
| Total length mm | 720 |
| Part number 2608900243 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 25.00 |
| Working length mm | 800 |
| Total length mm | 920 |
| Part number 2608900245 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 26.00 |
| Working length mm | 200 |
| Total length mm | 320 |
| Part number 2608900246 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 26.00 |
| Working length mm | 400 |
| Total length mm | 520 |
| Part number 2608900247 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 28.00 |
| Working length mm | 200 |
| Total length mm | 320 |
| Part number 2608900248 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 28.00 |
| Working length mm | 400 |
| Total length mm | 520 |
| Part number 2608900249 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 28.00 |
| Working length mm | 600 |
| Total length mm | 720 |
| Part number 2608900250 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 28.00 |
| Working length mm | 800 |
| Total length mm | 920 |
| Part number 2608900252 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 30.00 |
| Working length mm | 200 |
| Total length mm | 320 |
| Part number 2608900253 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 30.00 |
| Working length mm | 400 |
| Total length mm | 520 |
| Part number 2608900254 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 32.00 |
| Working length mm | 200 |
| Total length mm | 320 |
| Part number 2608900255 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 32.00 |
| Working length mm | 400 |
| Total length mm | 520 |
| Part number 2608900256 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 32.00 |
| Working length mm | 600 |
| Total length mm | 720 |
| Part number 2608900257 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 32.00 |
| Working length mm | 800 |
| Total length mm | 920 |
| Part number 2608900260 | |
|---|---|
| Packaging type | Plastic packaging, tube, no Euro hole |
| Pack quantity | 5 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 12.00 |
| Working length mm | 200 |
| Total length mm | 340 |
| Part number 2608900261 | |
|---|---|
| Packaging type | Plastic packaging, tube, no Euro hole |
| Pack quantity | 5 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 16.00 |
| Working length mm | 200 |
| Total length mm | 340 |
| Part number 2608900262 | |
|---|---|
| Packaging type | Plastic packaging, tube, no Euro hole |
| Pack quantity | 5 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 16.00 |
| Working length mm | 400 |
| Total length mm | 540 |
| Part number 2608900263 | |
|---|---|
| Packaging type | Plastic packaging, tube, no Euro hole |
| Pack quantity | 5 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 18.00 |
| Working length mm | 200 |
| Total length mm | 340 |
| Part number 2608900264 | |
|---|---|
| Packaging type | Plastic packaging, tube, no Euro hole |
| Pack quantity | 5 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 18.00 |
| Working length mm | 400 |
| Total length mm | 540 |
| Part number 2608900265 | |
|---|---|
| Packaging type | Plastic packaging, tube, no Euro hole |
| Pack quantity | 5 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 20.00 |
| Working length mm | 200 |
| Total length mm | 320 |
| Part number 2608900266 | |
|---|---|
| Packaging type | Plastic packaging, tube, no Euro hole |
| Pack quantity | 5 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 20.00 |
| Working length mm | 400 |
| Total length mm | 520 |
| Part number 2608900267 | |
|---|---|
| Packaging type | Plastic packaging, tube, no Euro hole |
| Pack quantity | 5 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 22.00 |
| Working length mm | 400 |
| Total length mm | 520 |
| Part number 2608900268 | |
|---|---|
| Packaging type | Plastic packaging, tube, no Euro hole |
| Pack quantity | 5 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 24.00 |
| Working length mm | 400 |
| Total length mm | 520 |
| Part number 2608900269 | |
|---|---|
| Packaging type | Plastic packaging, tube, no Euro hole |
| Pack quantity | 5 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 25.00 |
| Working length mm | 400 |
| Total length mm | 520 |
| Part number 2608900270 | |
|---|---|
| Packaging type | Plastic packaging, tube, no Euro hole |
| Pack quantity | 5 Pcs |
| Details | |
|---|---|
| Diameter (D) mm | 32.00 |
| Working length mm | 400 |
| Total length mm | 520 |
