For rotary drills/drivers
Step diameter (range) mm
Step height mm
Shank diameter mm
Choose a pack size
Step diameter (range) mm 3 options
Step height mm 4
Shank diameter mm 3 options
Choose a pack size 1 Pcs

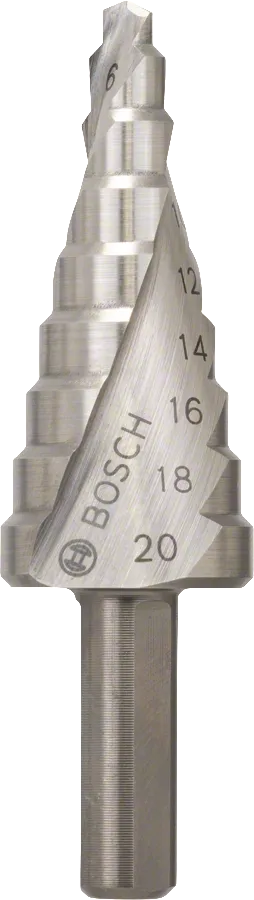

HSS Step Drill Bit performs smooth drilling in several diameters with one drill bit
Available product variations: 3
| Part number | Version | Step diameter (range) mm | Step height mm | Shank diameter mm | Pack quantity | Price | ||
|---|---|---|---|---|---|---|---|---|

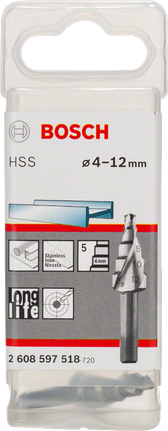

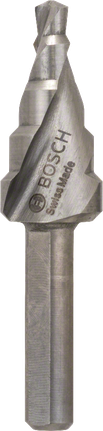

| 2 608 597 518 | HSS | 4-12 | 4 | 6.0 | 1 Pcs | 31.60 EUR | Find a local dealer | |

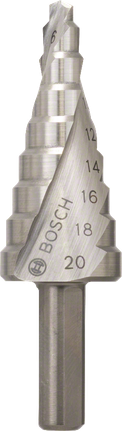

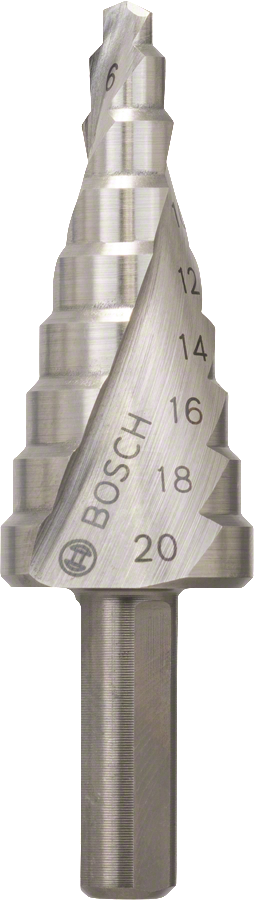

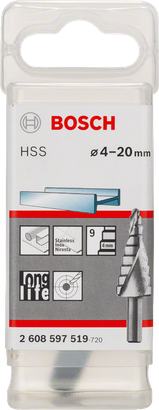

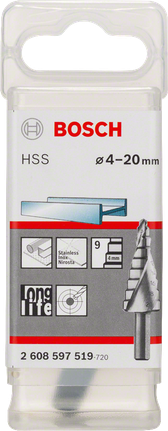

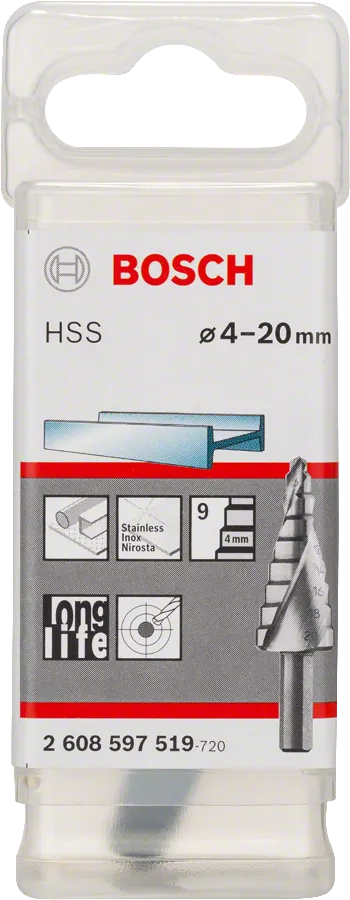

| 2 608 597 519 | HSS | 4-20 | 4 | 8.0 | 1 Pcs | 31.60 EUR | Find a local dealer | |

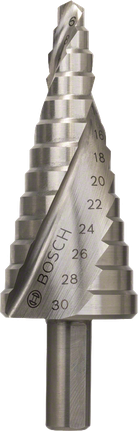

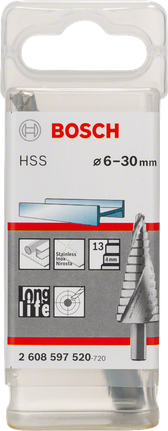

| 2 608 597 520 | HSS | 6-30 | 4 | 10.0 | 1 Pcs | 70.40 EUR | Find a local dealer |
out of products
| Part number 2608597518 | |
|---|---|
| Packaging type | Plastic packaging, box, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Version | HSS |
| Step diameter (range) mm | 4-12 |
| Step height mm | 4 |
| Shank diameter mm | 6.0 |
| Total length mm | 50.0 |
| Part number 2608597519 | |
|---|---|
| Packaging type | Plastic packaging, box, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Version | HSS |
| Step diameter (range) mm | 4-20 |
| Step height mm | 4 |
| Shank diameter mm | 8.0 |
| Total length mm | 70.5 |
| Part number 2608597520 | |
|---|---|
| Packaging type | Plastic packaging, box, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Version | HSS |
| Step diameter (range) mm | 6-30 |
| Step height mm | 4 |
| Shank diameter mm | 10.0 |
| Total length mm | 93.5 |
