PRO SDS plus-5X Hammer Drill Bit

For rotary hammer drills

PRO SDS plus-5X

Lasts up to 1.5x longer than a Bosch SDS plus-1 Drill Bit

Test results
  • Long Life drilling in reinforced concrete
  • High-quality, tough tungsten carbide ensures strength and durability

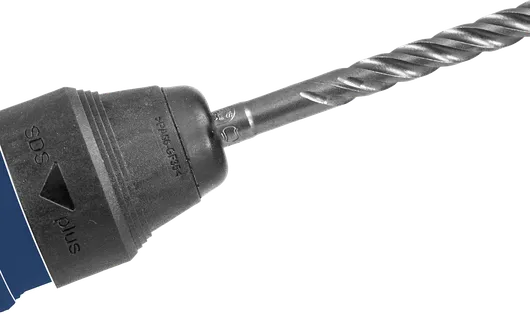

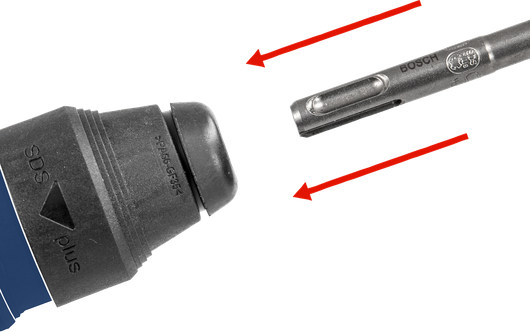

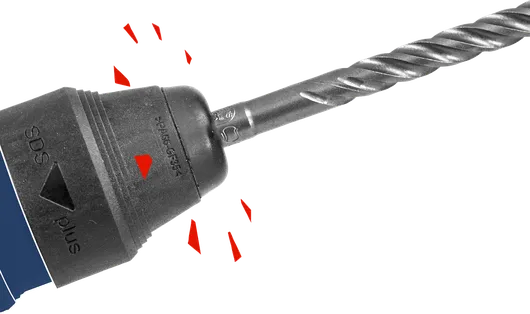

  • Fits all SDS plus rotary hammer drills
  • May come in old design

Materials

Reinforced concrete
Concrete
Lime and sand bricks
Solid brick
Hard stone

Select options

Diameter (D) mm

Working length mm

Total length mm

Choose a pack size

Select options

Diameter (D) mm 27 options

Working length mm 8 options

Total length mm 13 options

Choose a pack size 2 options

Available product options (119)
Recommended retail price excluding VAT
Find a local dealer
PRO SDS plus-5X Hammer Drill Bit
from
Recommended retail price excluding VAT
Find a local dealer

Long Life drilling in reinforced concrete

Long Life drilling in reinforced concrete
  • 1

    High-quality, tough tungsten carbide ensures strength and durability

  • 2

    4-cutter head doesn't jam or break when you hit rebar

  • 3

    4-flute design for efficient dust reduction

PRO
Advantage

PRO SDS plus-5X Hammer Drill Bit for Long Life Drilling in Reinforced Concrete

PRO SDS plus-5X Hammer Drill Bit for Long Life Drilling in Reinforced Concrete

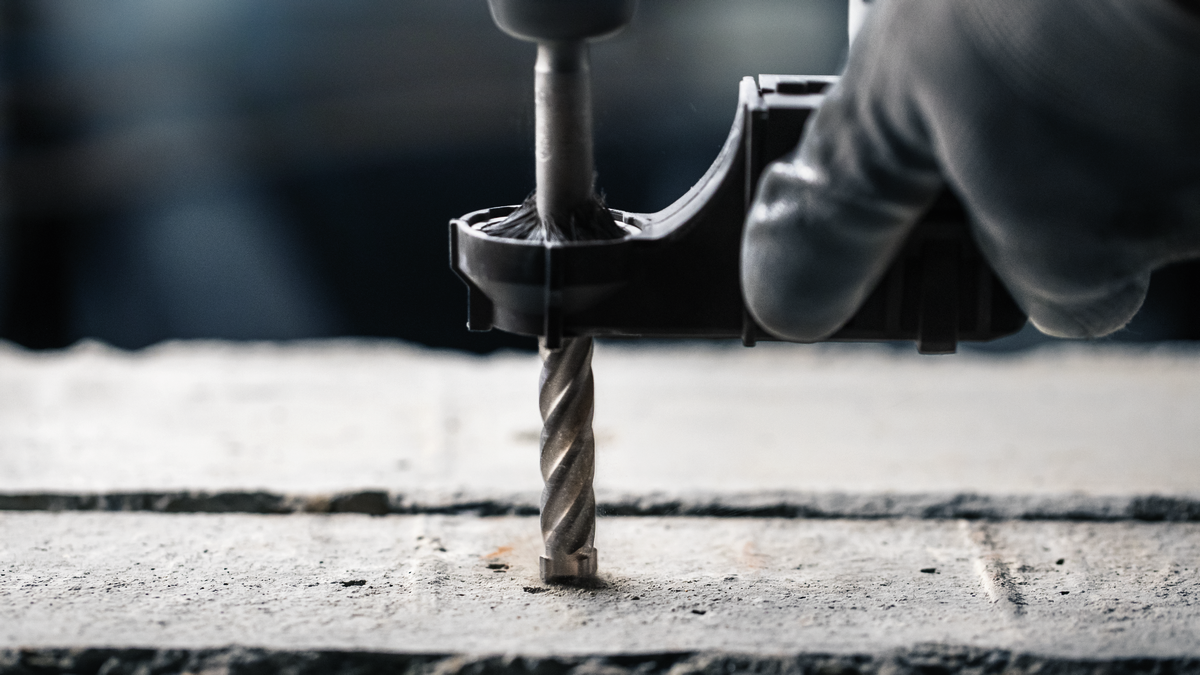

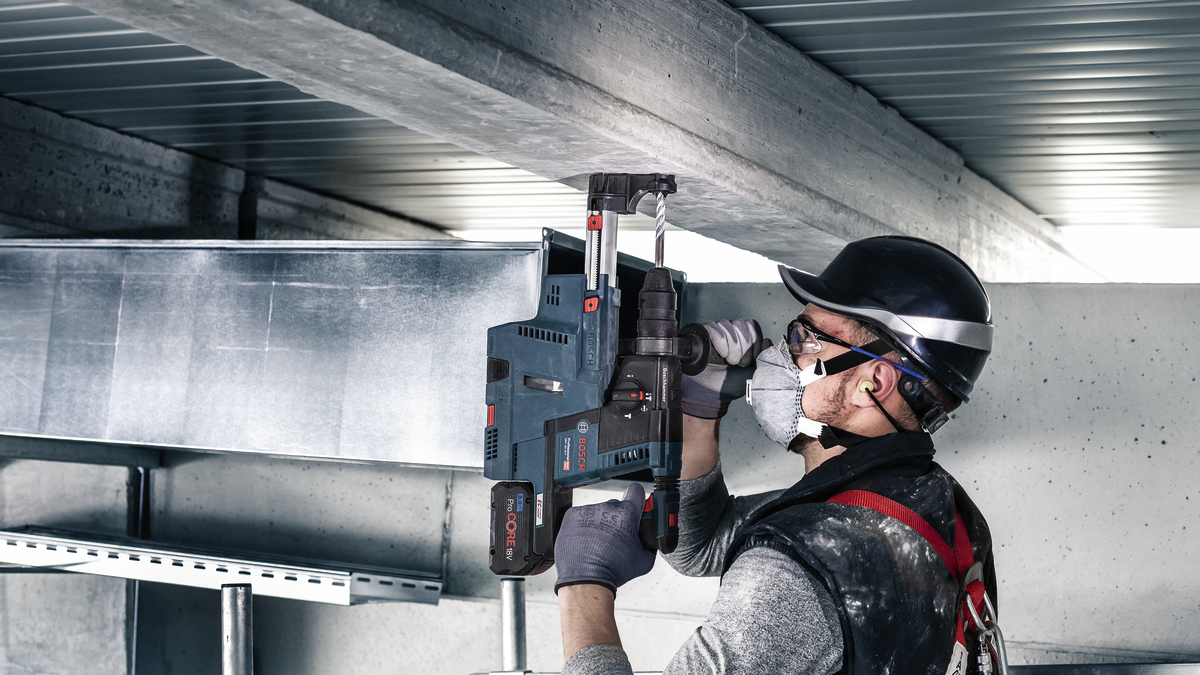

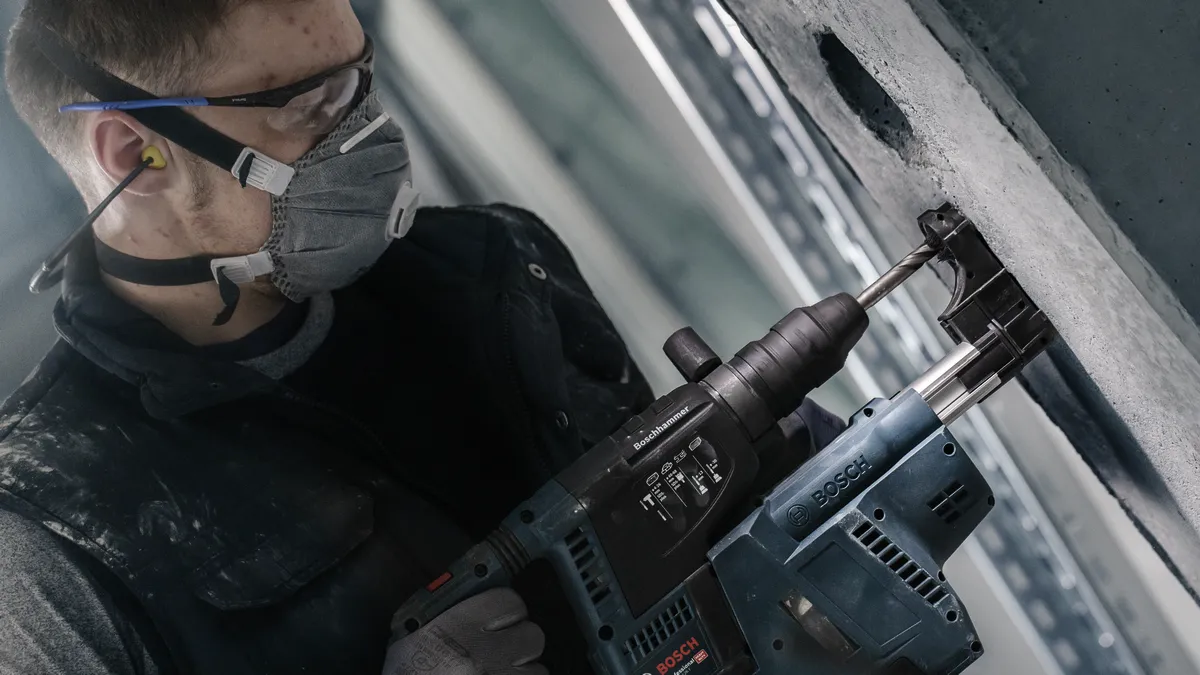

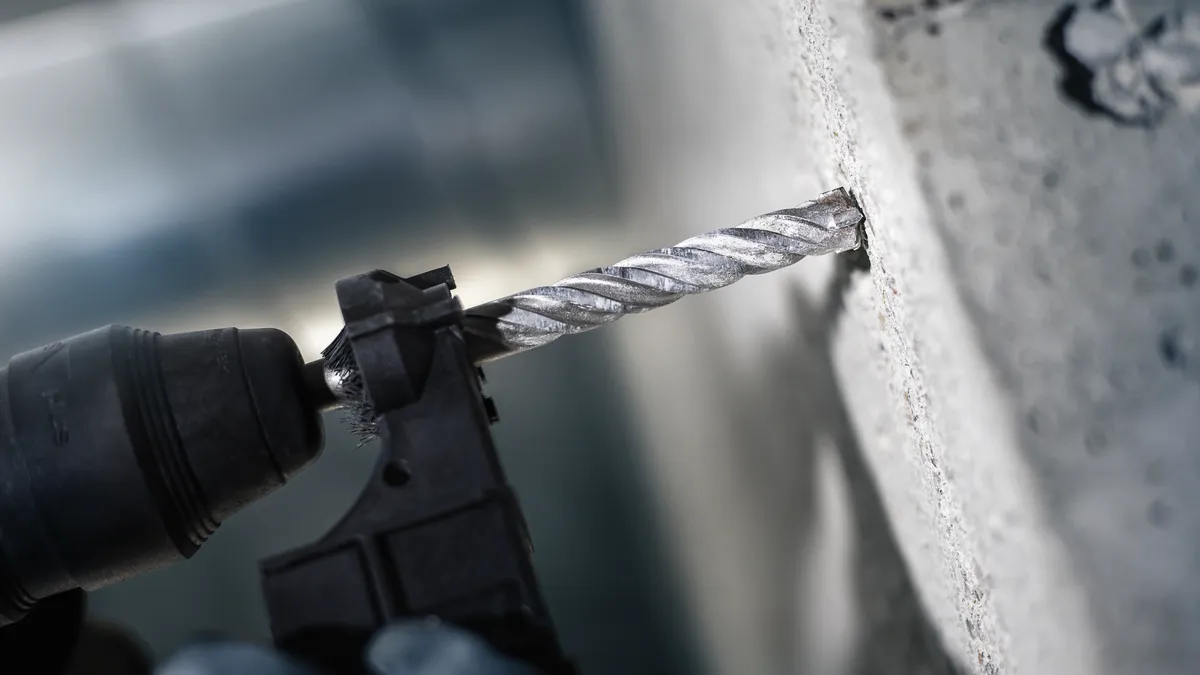

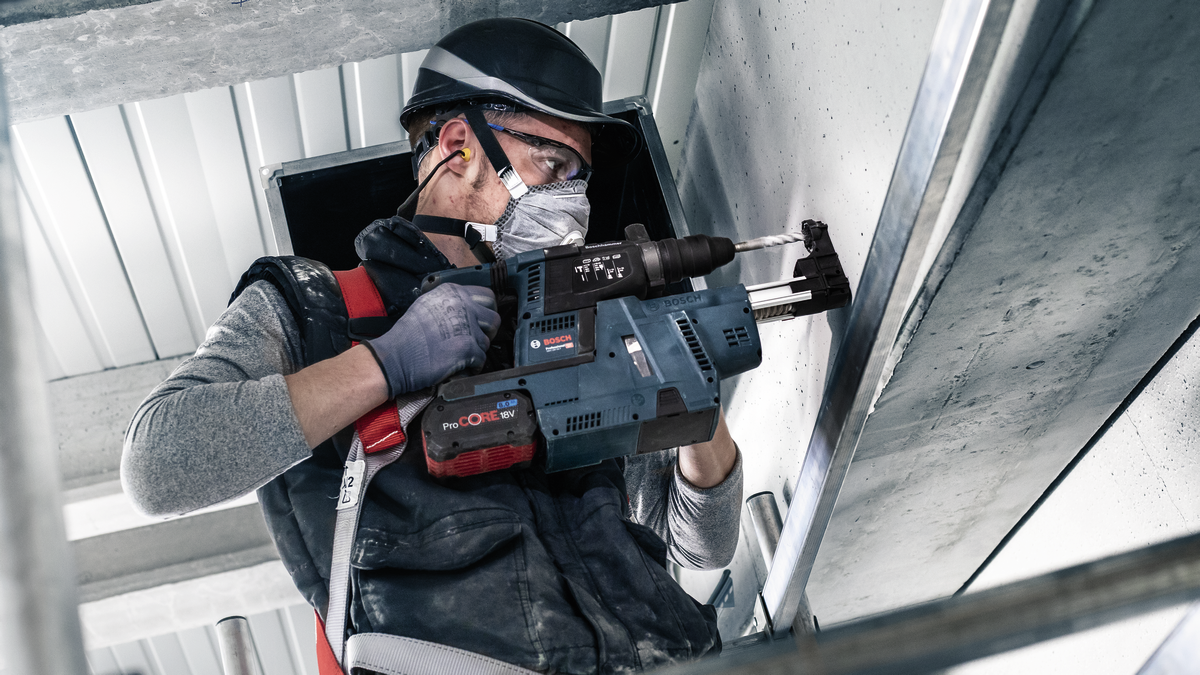

Reinforced concrete is a common material in infrastructure, commercial and domestic construction, and workers such as electricians, plumbers or HVAC installers often need to drill into it. PRO SDS plus-5X Hammer Drill Bits are designed for this tough task, with a hardy 4-cutter design that doesn't jam or break when you hit rebar.

View more

Product Options

Available product options: 119

Part number Diameter (D) mm Working length mm Total length mm Pack quantity
2 608 706 861 4.00 50 110 1 Pcs Find a local dealer
2 608 706 862 4.00 100 160 1 Pcs Find a local dealer
2 608 706 863 5.00 50 110 1 Pcs Find a local dealer
2 608 706 864 5.00 100 160 1 Pcs Find a local dealer
2 608 706 865 5.00 150 210 1 Pcs Find a local dealer
2 608 706 866 5.00 200 260 1 Pcs Find a local dealer
2 608 706 867 5.00 250 310 1 Pcs Find a local dealer
2 608 706 868 5.00 400 460 1 Pcs Find a local dealer
2 608 706 869 5.50 50 110 1 Pcs Find a local dealer
2 608 706 870 5.50 100 160 1 Pcs Find a local dealer
2 608 706 871 5.50 150 210 1 Pcs Find a local dealer
2 608 706 872 5.50 200 260 1 Pcs Find a local dealer
2 608 706 873 5.50 250 310 1 Pcs Find a local dealer
2 608 706 874 5.50 400 460 1 Pcs Find a local dealer
2 608 706 875 6.00 50 110 1 Pcs Find a local dealer
2 608 706 876 6.00 100 160 1 Pcs Find a local dealer
2 608 706 877 6.00 150 210 1 Pcs Find a local dealer
2 608 706 878 6.00 200 260 1 Pcs Find a local dealer
2 608 706 879 6.00 250 310 1 Pcs Find a local dealer
2 608 706 880 6.00 400 460 1 Pcs Find a local dealer
2 608 706 881 6.50 50 110 1 Pcs Find a local dealer
2 608 706 882 6.50 100 160 1 Pcs Find a local dealer
2 608 706 883 6.50 150 210 1 Pcs Find a local dealer
2 608 706 884 6.50 200 260 1 Pcs Find a local dealer
2 608 706 885 6.50 250 310 1 Pcs Find a local dealer
2 608 706 886 7.00 50 110 1 Pcs Find a local dealer
2 608 706 887 7.00 100 160 1 Pcs Find a local dealer
2 608 706 888 7.00 150 210 1 Pcs Find a local dealer
2 608 706 889 7.00 200 260 1 Pcs Find a local dealer
2 608 706 890 8.00 50 110 1 Pcs Find a local dealer
2 608 706 891 8.00 100 160 1 Pcs Find a local dealer
2 608 706 892 8.00 150 210 1 Pcs Find a local dealer
2 608 706 893 8.00 200 260 1 Pcs Find a local dealer
2 608 706 894 8.00 250 310 1 Pcs Find a local dealer
2 608 706 895 8.00 300 360 1 Pcs Find a local dealer
2 608 706 896 8.00 400 460 1 Pcs Find a local dealer
2 608 706 897 8.00 550 610 1 Pcs Find a local dealer
2 608 706 898 9.00 100 160 1 Pcs Find a local dealer
2 608 706 899 9.00 150 210 1 Pcs Find a local dealer
2 608 706 900 9.50 100 160 1 Pcs Find a local dealer
2 608 706 901 10.00 50 110 1 Pcs Find a local dealer
2 608 706 902 10.00 100 160 1 Pcs Find a local dealer
2 608 706 903 10.00 150 210 1 Pcs Find a local dealer
2 608 706 904 10.00 200 260 1 Pcs Find a local dealer
2 608 706 905 10.00 250 310 1 Pcs Find a local dealer
2 608 706 906 10.00 300 360 1 Pcs Find a local dealer
2 608 706 907 10.00 400 460 1 Pcs Find a local dealer
2 608 706 908 10.00 550 610 1 Pcs Find a local dealer
2 608 706 909 11.00 100 160 1 Pcs Find a local dealer
2 608 706 910 11.00 150 210 1 Pcs Find a local dealer
2 608 706 911 11.00 200 260 1 Pcs Find a local dealer
2 608 706 912 12.00 100 160 1 Pcs Find a local dealer
2 608 706 913 12.00 150 210 1 Pcs Find a local dealer
2 608 706 914 12.00 200 260 1 Pcs Find a local dealer
2 608 706 915 12.00 250 310 1 Pcs Find a local dealer
2 608 706 916 12.00 300 360 1 Pcs Find a local dealer
2 608 706 917 12.00 400 460 1 Pcs Find a local dealer
2 608 706 918 12.00 550 610 1 Pcs Find a local dealer
2 608 706 919 12.70 100 160 1 Pcs Find a local dealer
2 608 706 920 13.00 100 160 1 Pcs Find a local dealer
2 608 706 921 13.00 150 210 1 Pcs Find a local dealer
2 608 706 922 13.00 200 260 1 Pcs Find a local dealer
2 608 706 923 14.00 100 160 1 Pcs Find a local dealer
2 608 706 924 14.00 150 210 1 Pcs Find a local dealer
2 608 706 925 14.00 200 260 1 Pcs Find a local dealer
2 608 706 926 14.00 250 310 1 Pcs Find a local dealer
2 608 706 927 14.00 300 360 1 Pcs Find a local dealer
2 608 706 928 14.00 400 460 1 Pcs Find a local dealer
2 608 706 929 14.00 550 610 1 Pcs Find a local dealer
2 608 706 930 14.30 100 160 1 Pcs Find a local dealer
2 608 706 931 15.00 100 160 1 Pcs Find a local dealer
2 608 706 932 15.00 200 260 1 Pcs Find a local dealer
2 608 706 933 15.00 400 460 1 Pcs Find a local dealer
2 608 706 934 16.00 150 210 1 Pcs Find a local dealer
2 608 706 935 16.00 200 260 1 Pcs Find a local dealer
2 608 706 936 16.00 250 310 1 Pcs Find a local dealer
2 608 706 937 16.00 300 360 1 Pcs Find a local dealer
2 608 706 938 16.00 400 460 1 Pcs Find a local dealer
2 608 706 939 16.00 550 610 1 Pcs Find a local dealer
2 608 706 940 17.00 150 210 1 Pcs Find a local dealer
2 608 706 941 17.00 250 310 1 Pcs Find a local dealer
2 608 706 942 17.50 100 160 1 Pcs Find a local dealer
2 608 706 943 18.00 150 200 1 Pcs Find a local dealer
2 608 706 944 18.00 250 300 1 Pcs Find a local dealer
2 608 706 945 18.00 400 450 1 Pcs Find a local dealer
2 608 706 946 18.00 550 600 1 Pcs Find a local dealer
2 608 706 947 19.00 150 200 1 Pcs Find a local dealer
2 608 706 948 19.00 250 300 1 Pcs Find a local dealer
2 608 706 949 19.00 400 450 1 Pcs Find a local dealer
2 608 706 950 20.00 150 200 1 Pcs Find a local dealer
2 608 706 951 20.00 250 300 1 Pcs Find a local dealer
2 608 706 952 20.00 400 450 1 Pcs Find a local dealer
2 608 706 953 20.00 550 600 1 Pcs Find a local dealer
2 608 706 954 22.00 200 250 1 Pcs Find a local dealer
2 608 706 955 22.00 400 450 1 Pcs Find a local dealer
2 608 706 956 22.00 550 600 1 Pcs Find a local dealer
2 608 706 957 24.00 200 250 1 Pcs Find a local dealer
2 608 706 958 24.00 400 450 1 Pcs Find a local dealer
2 608 706 959 25.00 200 250 1 Pcs Find a local dealer
2 608 706 960 25.00 400 450 1 Pcs Find a local dealer
2 608 706 961 26.00 200 250 1 Pcs Find a local dealer
2 608 706 962 26.00 400 450 1 Pcs Find a local dealer

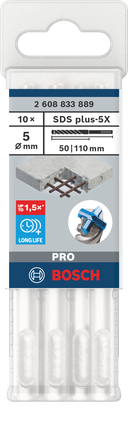

2 608 833 889 5.00 50 110 10 Pcs Find a local dealer
2 608 833 890 5.00 100 160 10 Pcs Find a local dealer

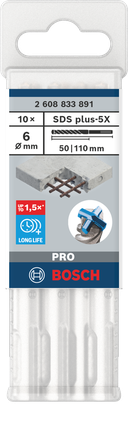

2 608 833 891 6.00 50 110 10 Pcs Find a local dealer
2 608 833 892 6.00 100 160 10 Pcs Find a local dealer
2 608 833 893 6.00 150 210 10 Pcs Find a local dealer

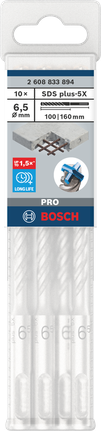

2 608 833 894 6.50 100 160 10 Pcs Find a local dealer
2 608 833 895 6.50 150 210 10 Pcs Find a local dealer

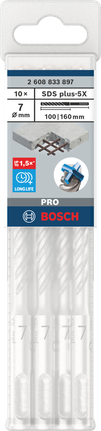

2 608 833 897 7.00 100 160 10 Pcs Find a local dealer

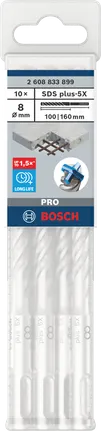

2 608 833 899 8.00 100 160 10 Pcs Find a local dealer
2 608 833 900 8.00 150 210 10 Pcs Find a local dealer
2 608 833 901 8.00 200 260 10 Pcs Find a local dealer

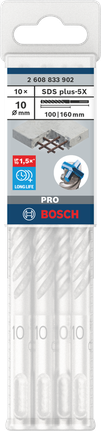

2 608 833 902 10.00 100 160 10 Pcs Find a local dealer
2 608 833 903 10.00 150 210 10 Pcs Find a local dealer
2 608 833 904 10.00 200 260 10 Pcs Find a local dealer
2 608 833 905 12.00 100 160 10 Pcs Find a local dealer
2 608 833 906 12.00 150 210 10 Pcs Find a local dealer
2 608 833 907 12.00 200 260 10 Pcs Find a local dealer
