Technical data
| Additional data | |
|---|---|
| Battery voltage | 18 V |
| Max. impact energy | 2 J |
| Weight excl. battery | 2.3 kg |
| Impact rate at rated speed | 0 – 5,100 bpm |
| Rated speed | 0 – 1,800 rpm |
| Tool holder | SDS plus |
| Drilling range | |
|---|---|
| Drilling dia. in concrete with hammer drill bits | 4 - 20 mm |
| Opt. app. range in concrete with hammer drill bits | 6 - 10 mm |
| Max. drilling diameter in metal | 13 mm |
| Max. drilling diameter in wood | 30 mm |
| Total vibration values (Hammer drilling in concrete) | |
|---|---|
| Vibration emission value ah | 10 m/s² |
| Uncertainty K | 1.5 m/s² |
Advantages
Powerful cordless rotary hammer within reach – brushless motor for a lasting performance
- Powerful impact system with 2.0 J, 3 mode hammer for versatile usage
- Reduced maintenance due to brushless motor and increased runtime per battery charge
- No sparks and less heat generation during use thanks to brushless motor
Functions

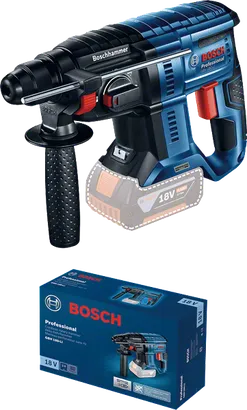

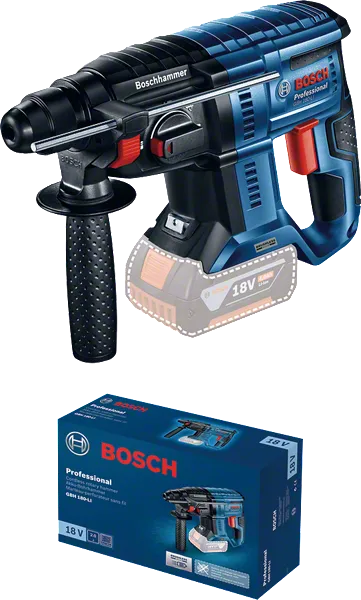

What’s Included in this Package *
in cardboard box with Depth stop (1 613 001 003)
Order number:
0 611 911 120
- Auxiliary handle 1 602 025 08X
- Machine cloth (spare part number: 1 619 200 413)
- Depth stop 1 613 001 003
- Cardboard box
156.00 EUR
Recommended retail price excluding VAT.
* Battery and charger not included
