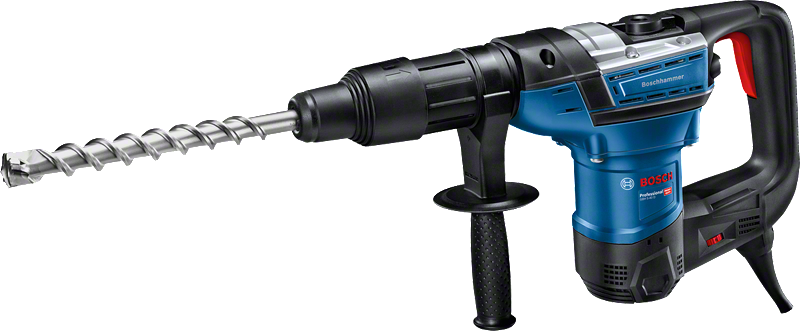

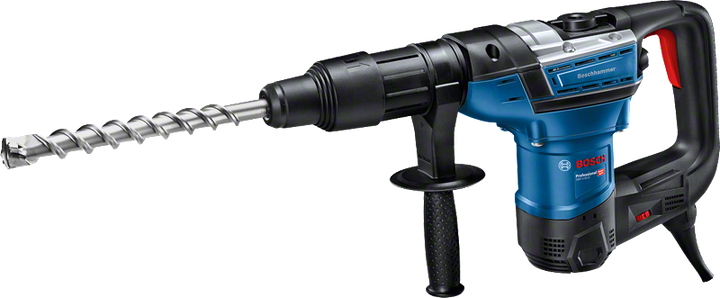

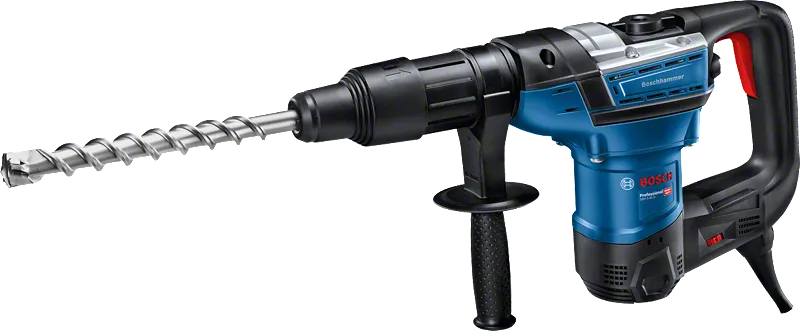

Rotary Hammer with SDS max GBH 5-40 D Professional

The simple and efficient solution for basic SDS max applications

355.00 EUR Recommended retail price excluding VAT.

Technical data
Additional data
Rated input power* 1,100   W
Impact energy* 8.5   J
Impact rate at rated speed 1,500 – 2,900   bpm
Rated speed 170 – 340   rpm
Weight 6.8   kg
Tool holder SDS max
Drilling range
Drilling dia. concrete, hammer drill bits* 12 – 40   mm
Drilling dia. concrete, breakthrough drill bits 45 – 55   mm
Drilling diameter in concrete with core cutters 40 – 90   mm
Max. drilling diameter masonry, core cutters 90   mm
Max. drilling diameter concrete 40   mm
Opt. appl. range concrete, hammer drill bits 18 – 32   mm
Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 14   m/s²
Uncertainty K 1.5   m/s²
Total vibration values (Chiselling)
Vibration emission value ah 11.5   m/s²
Uncertainty K 1.5   m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 93.5 dB(A); Sound power level 104.5 dB(A). Uncertainty K= 3 dB.

Advantages

The simple and efficient solution for basic SDS max applications

  • Lightweight and compact – ideal for hard-to-reach places
  • Powerful – high power and impact energy for a fast drilling progress and high removal rate
  • Robust and durable – optimised impact mechanism and lubrication system

Functions

Construction The professional power tools for construction from Bosch.
What’s Included in this Package
in carrying case with accessory set
in carrying case with accessory set
Order number: 0 611 269 000
  • Auxiliary handle
  • Carrying case
  • Cleaning cloth
  • Grease tube
  • Strap
355.00 EUR Recommended retail price excluding VAT.

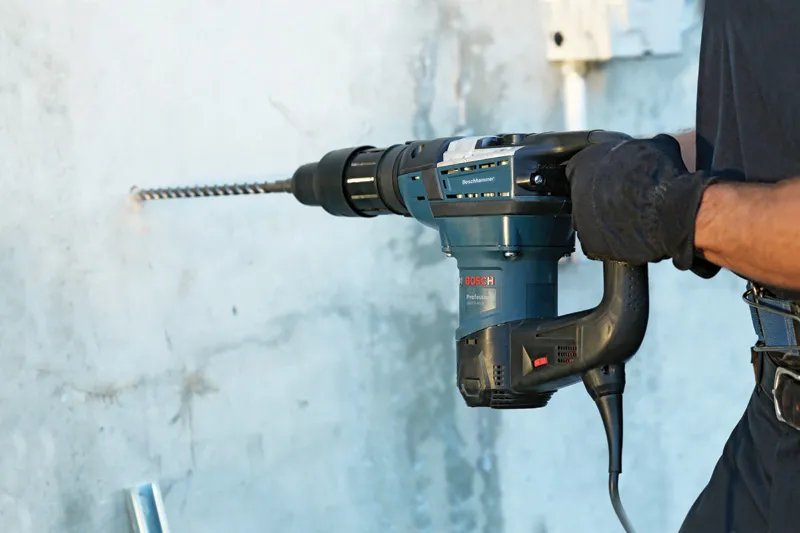

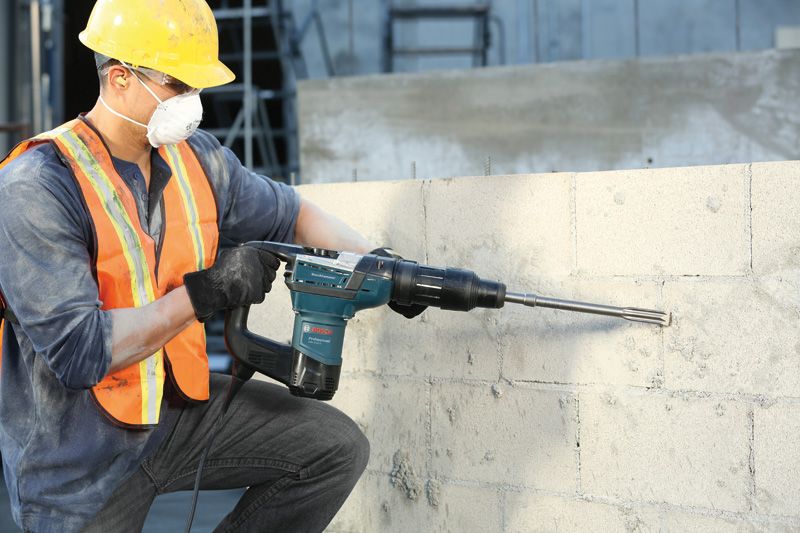

The GBH 5-40 D in action!
