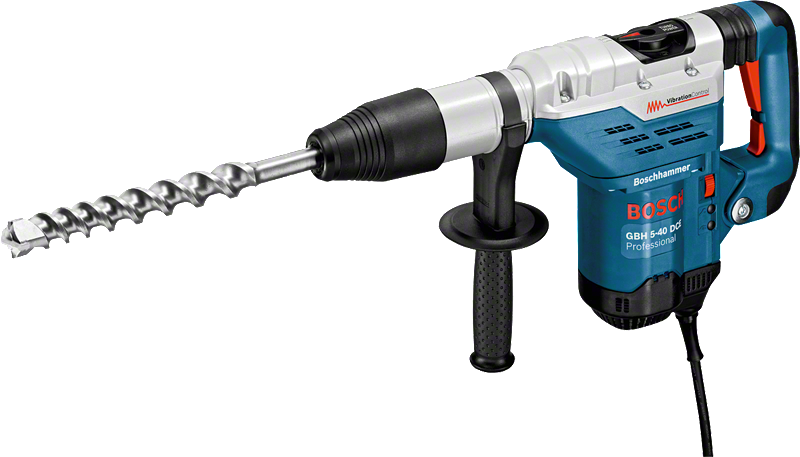

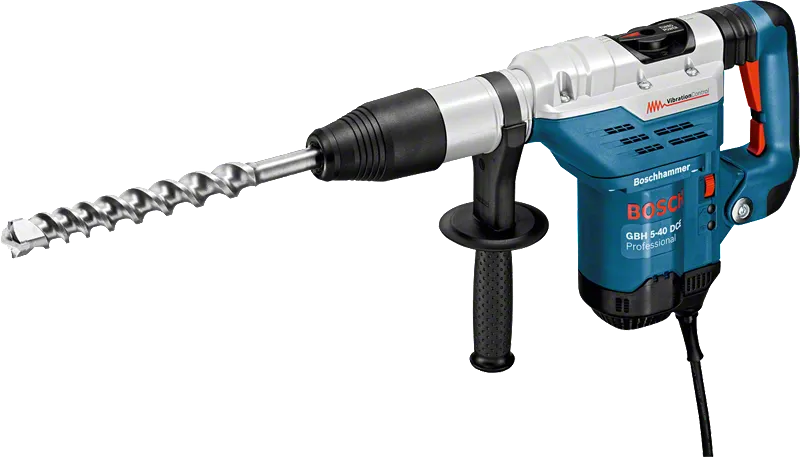

Rotary Hammer with SDS max GBH 5-40 DCE Professional

The fast all-rounder with Vibration Control

from  712.00 EUR Recommended retail price excluding VAT

Technical data
Additional data
Rated input power 1,150   W
Impact energy 8.8   J
Impact rate at rated speed 1,500 – 3,050   bpm
Rated speed 170 – 340   rpm
Weight 6.8   kg

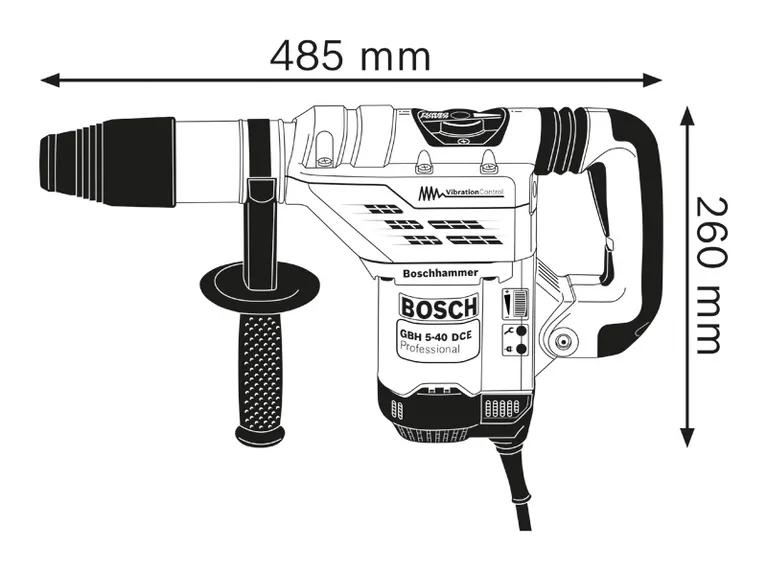

Tool dimensions (length) 485   mm
Tool dimensions (height) 260   mm
Tool holder SDS max
Drilling range
Drilling dia. concrete, hammer drill bits 12 – 40   mm
Opt. appl. range concrete, hammer drill bits 18 – 32   mm
Drilling dia. concrete, breakthrough drill bits 45 – 55   mm
Drilling diameter in concrete with core cutters 40 – 90   mm
Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 10.5   m/s²
Uncertainty K 1.5   m/s²
Total vibration values (Chiselling)
Vibration emission value ah 7.5   m/s²
Uncertainty K 1.5   m/s²

Advantages

The fast all-rounder with Vibration Control

  • Fastest drilling rate in its class due to 1150 W motor and powerful hammer mechanism
  • SDS max comfort for easy and fast tool changes with one hand
  • Vibration Control (10 m/s² for drilling, 8 m/s² for chiselling) ensures convenient working, even in time-intensive applications

Functions

Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Comfortable working thanks to low vibration by adding rubber mounting/foam padding to the handles
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Convenient adjustment of the chisel position enabling you to adapt it to each work situation
What’s Included in this Package

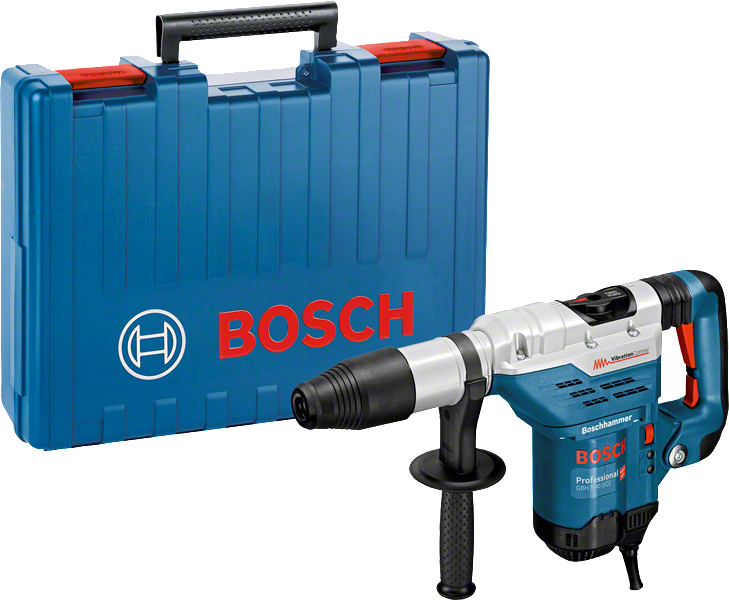

in carrying case with auxiliary handle, Accessory
in carrying case with auxiliary handle, Accessory
Order number: 0 611 264 060
  • Auxiliary handle 2 602 025 117
  • Carrying case (spare part number 1 615 438 460)
  • Grease tube (spare part number 1 615 430 010)
  • Machine cloth
  • Voltage 110 V
712.00 EUR Recommended retail price excluding VAT
Product variations (2)

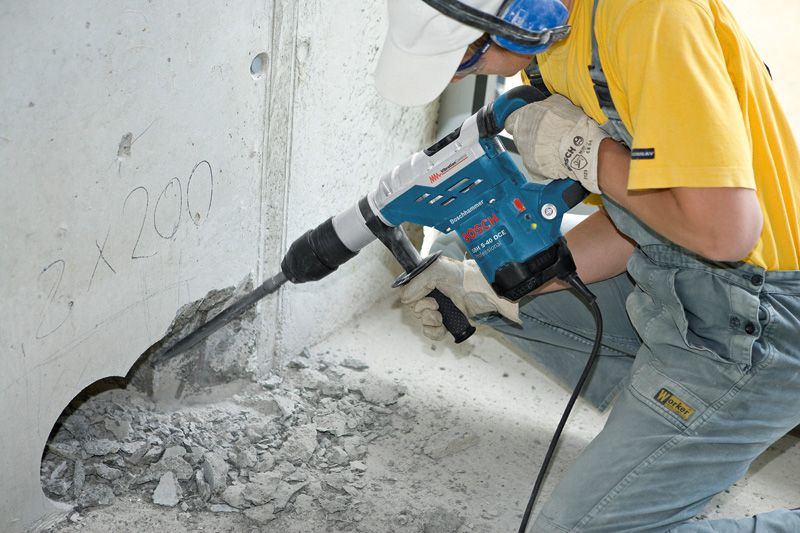

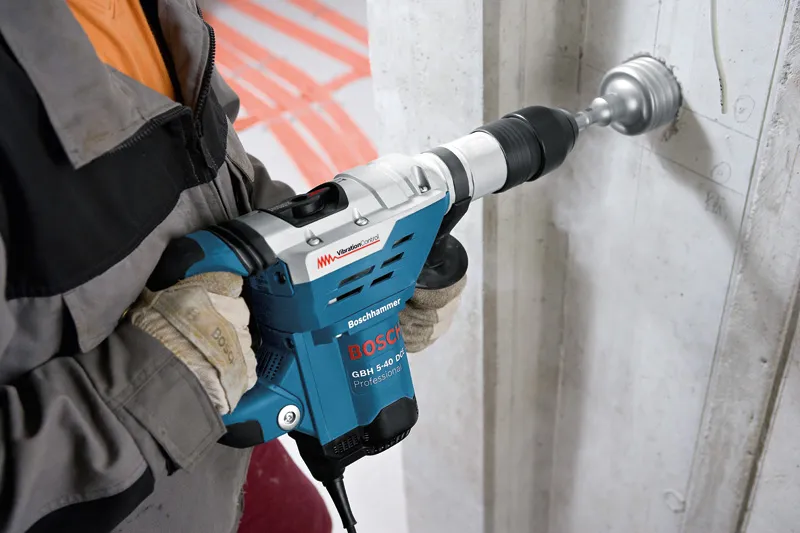

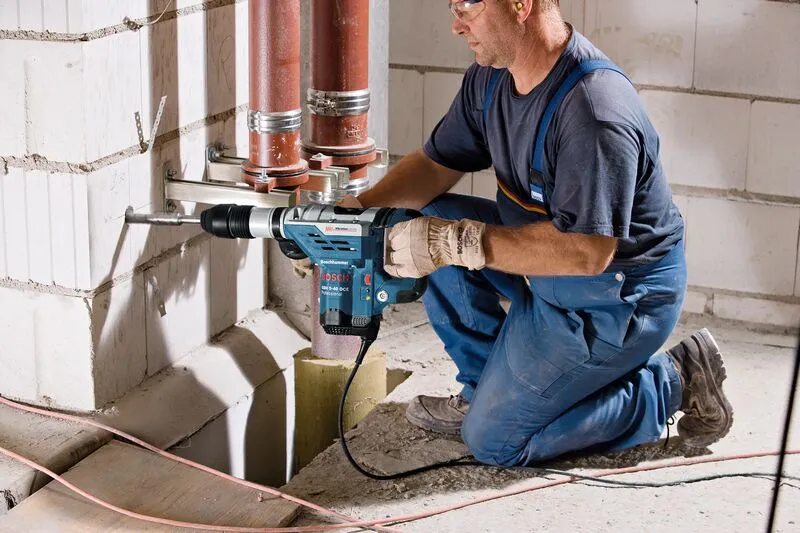

The GBH 5-40 DCE in action!
