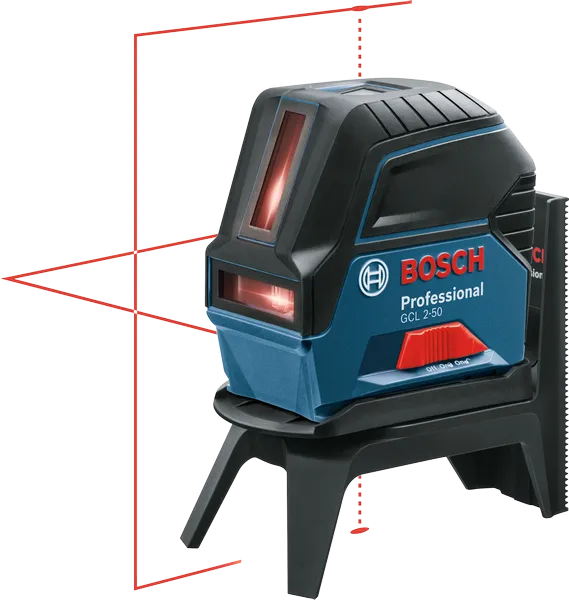

Combi Laser GCL 2-50 Professional

Compact and versatile for all levelling applications up to 50 metres

248.00 EUR Recommended retail price excluding VAT.

Technical data
Additional data
Working range* 15   m
Working range with receiver* 50 m
Accuracy* ± 0.3 mm/m
Laser diode 630 – 650 nm
Operating temperature, from -10   °C
Operating temperature, up to 50   °C
Operating temperature -10 – 50   °C
Storage temperature, from -20   °C
Storage temperature, up to 70   °C
Storage temperature -20 – 70   °C
Laser class 2
Working range with receiver, value 50   m
Working range of laser points, max. 10 m (top), 10 m (bottom)
Self-levelling range ± 4°
Levelling time 4   s
Dust and splash protection IP 54
Power supply 3 x 1.5 V LR6 (AA)
Operating time (max.) 6 h in cross line and point mode, 8 h in cross line mode, 12 h in line and point mode, 16 h in line mode, 22 h in point mode
Tripod thread 1/4", 5/8"
Weight, approx. 0.49   kg
Colour of laser line red
Projection 2 lines / 2 points
Plumb point accuracy ± 0.7 mm/m

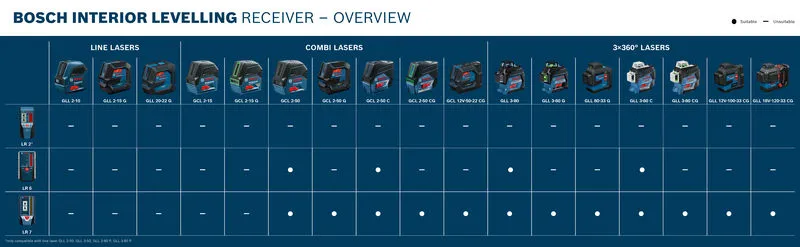

Compatible laser receivers LR 6 + 7

* Highlighted Data

Advantages

Compact and versatile for all levelling applications up to 50 metres

  • Horizontal and vertical laser lines and two centred plumb points with optimal visibility

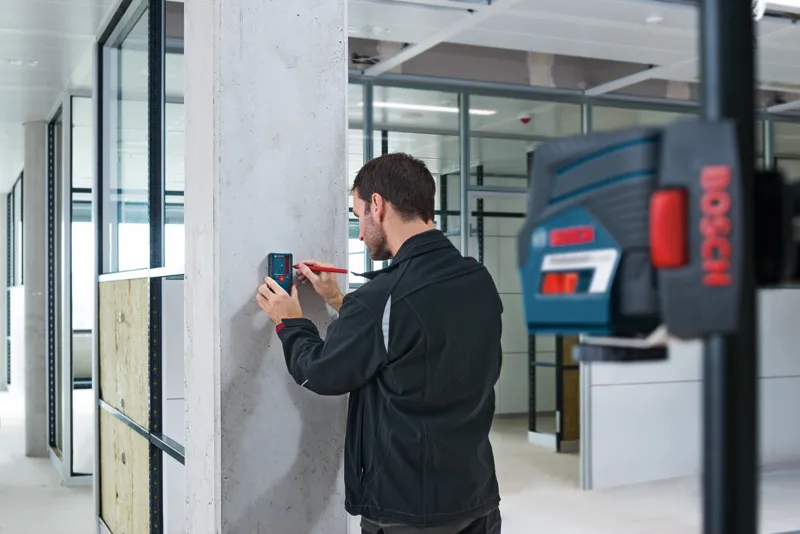

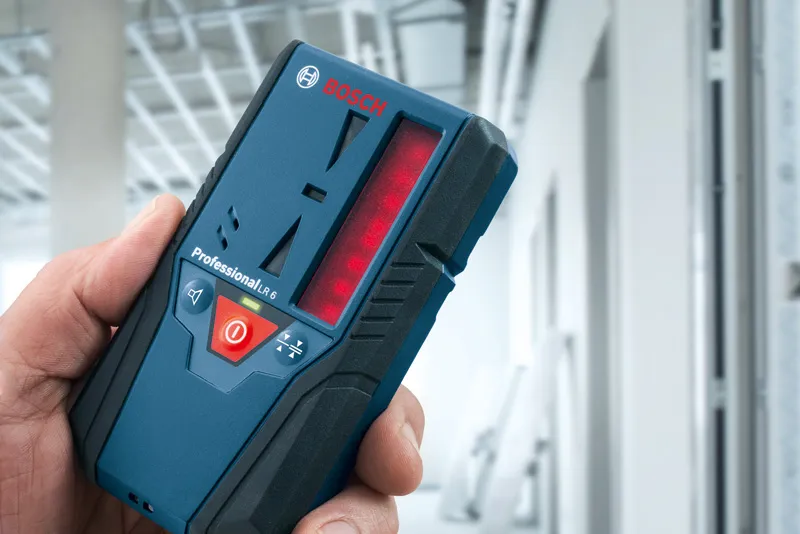

  • Receiver mode that allows you to work with the Bosch laser receiver LR 6 and LR 7 for a working range up to 50 metres

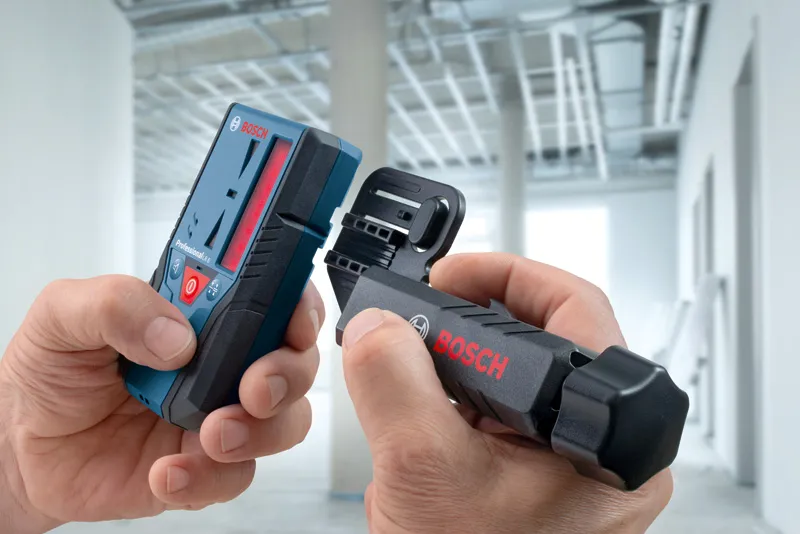

  • Flexible to use with rotating RM 1 Professional multifunctional mount for aligning the laser lines and for versatile mounting of the tool

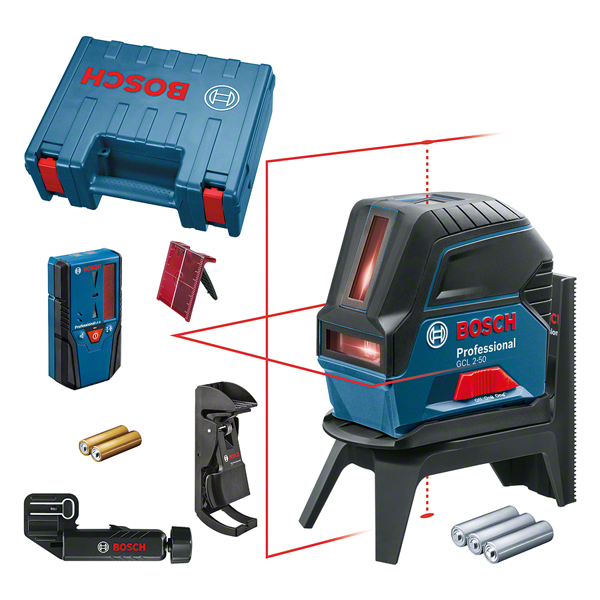

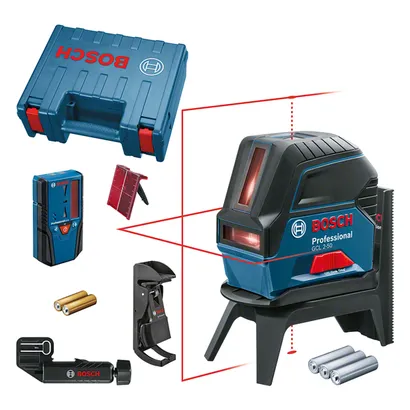

What’s Included in this Package
GCL 2-50 Professional
GCL 2-50 Professional
Order number: 0 601 066 F01
248.00 EUR Recommended retail price excluding VAT.

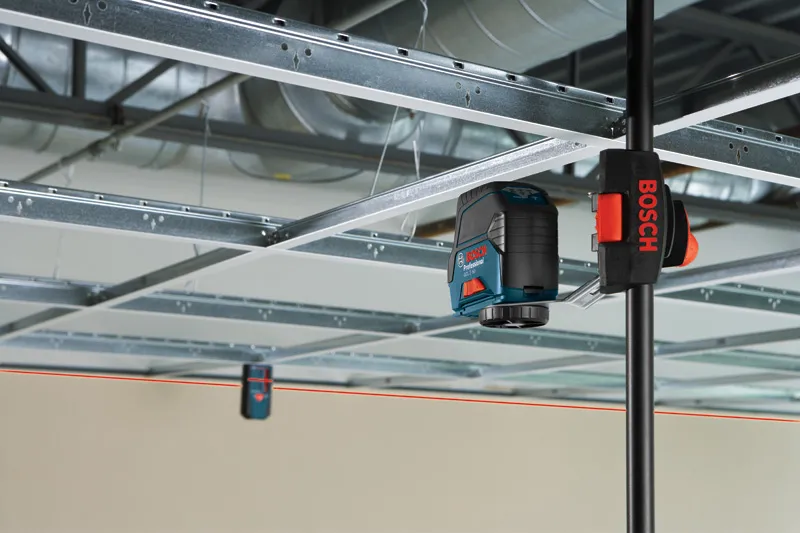

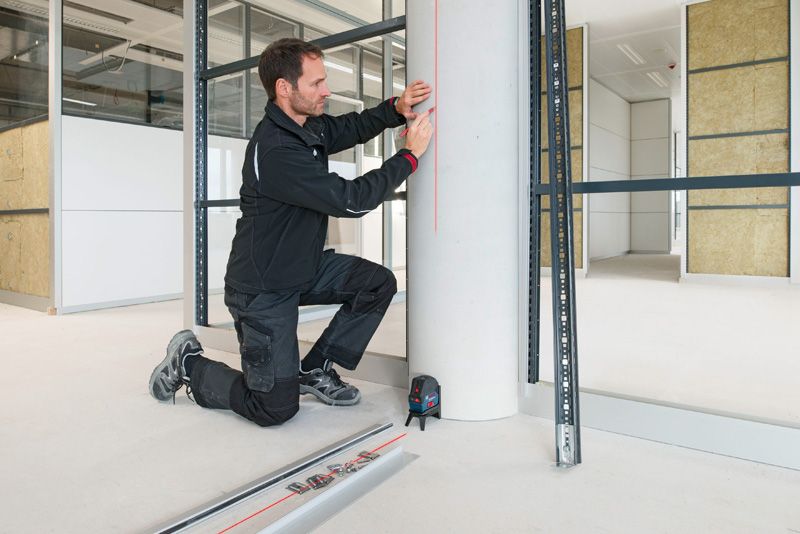

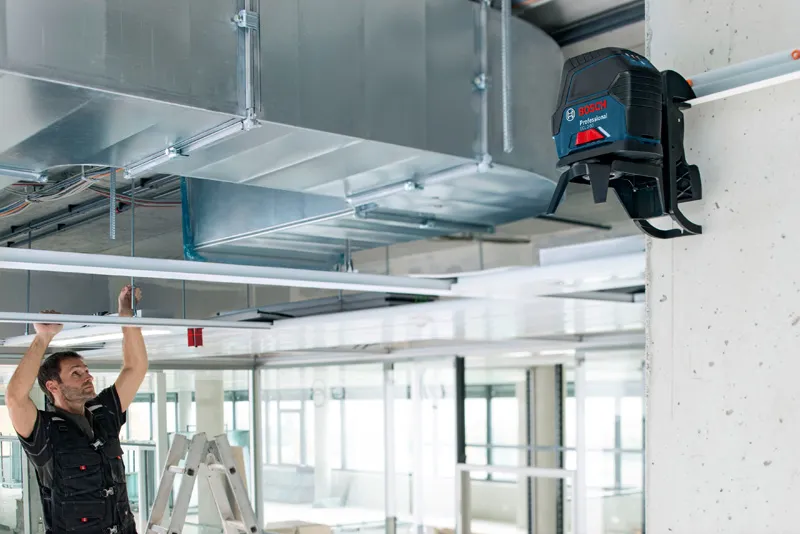

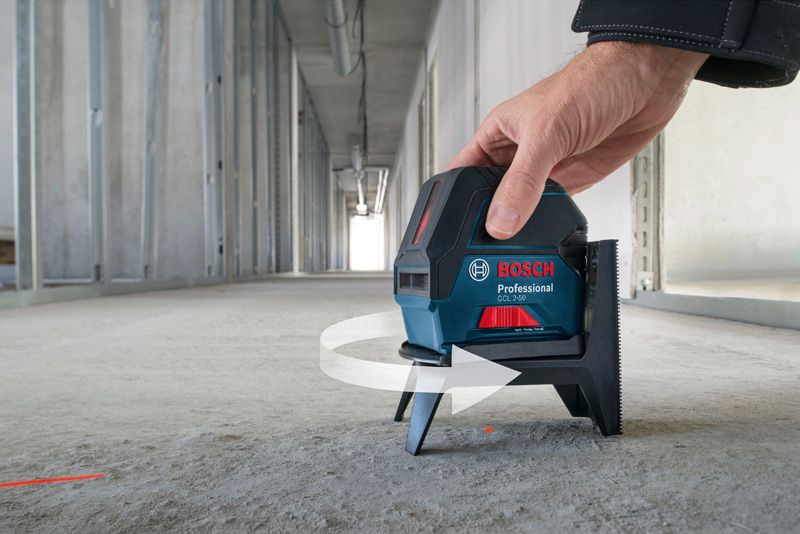

The GCL 2-50 in action!
