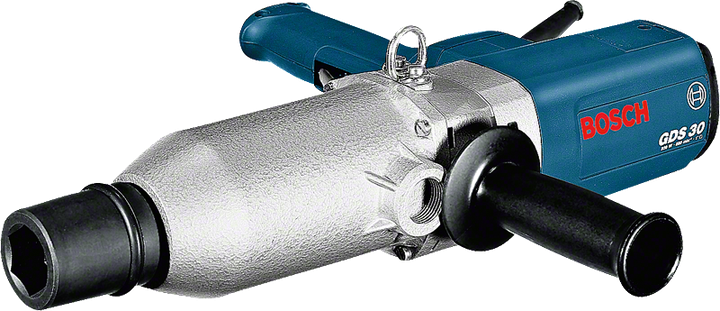

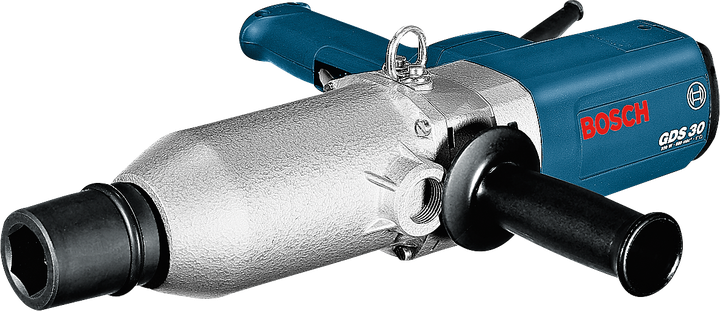

Impact Wrench GDS 30 Professional
The powerful tool for large screwdriving applications
from
1,223.00 EUR
Recommended retail price excluding VAT.
Technical data
| Additional data | |
|---|---|
| Rated input power* | 920 W |
| Torque, max. (hard screwdriving applications)* | 1,000 Nm |
| Torque, max. (soft screwdriving applications) | 500 Nm |

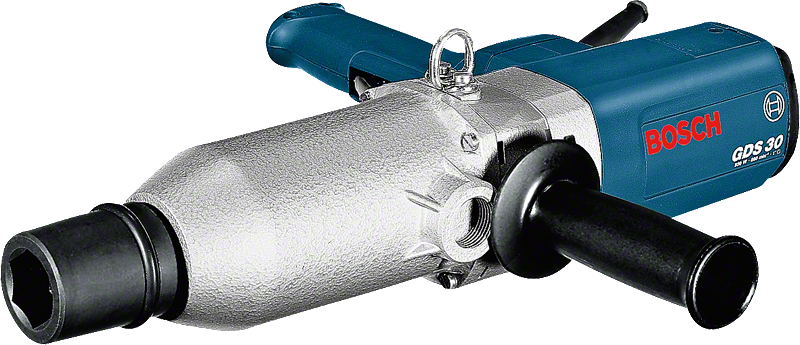

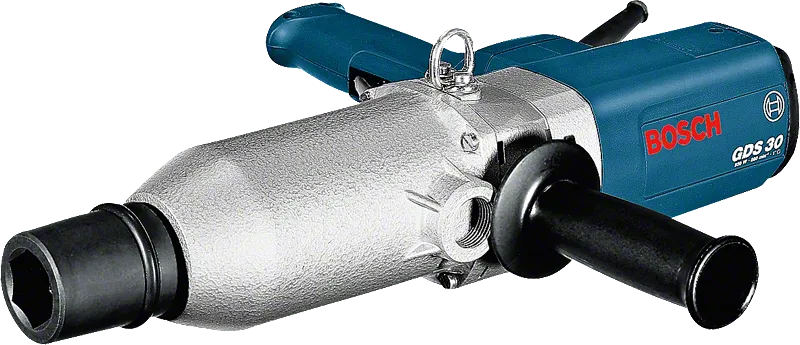

| Bit holder | 1" external square |
| Rated speed | 860 rpm |
| Weight | 7.3 kg |

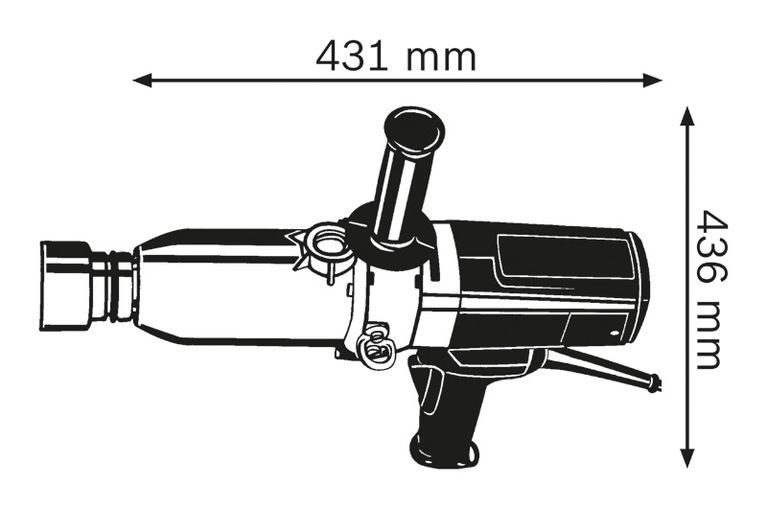

| Tool dimensions (length) | 431 mm |
| Tool dimensions (height) | 436 mm |
| Screwdriving | |
|---|---|
| Screw diameter* | max. M 30 |
| Total vibration values (Tightening screws and nuts of maximum permitted size) | |
|---|---|
| Vibration emission value ah | 4 m/s² |
| Uncertainty K | 0.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
Advantages
The powerful tool for large screwdriving applications
- For heavy screw joints on trucks, construction machinery, in commercial vehicle construction, in the petrochemical and other heavy industries
- Auxiliary handle with backing pad that can be fitted in two positions for better handling
- Hanging hook for attaching to a balancer
Functions
What’s Included in this Package

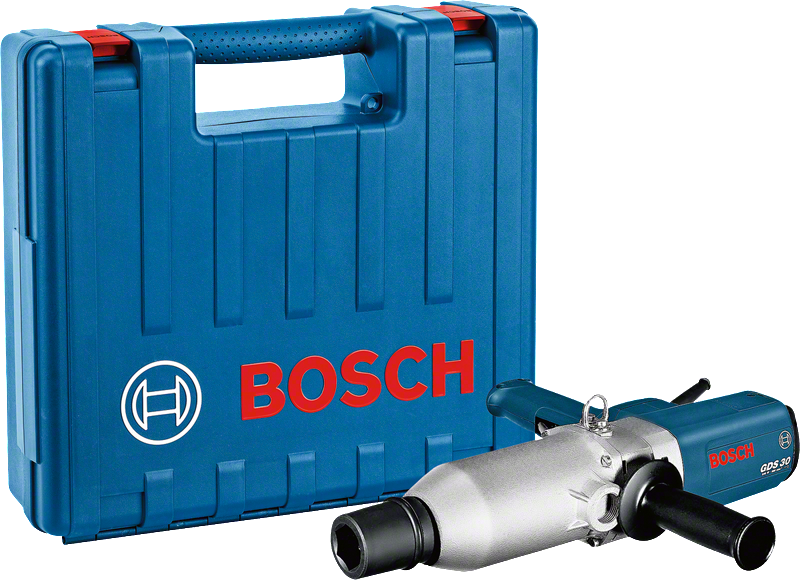

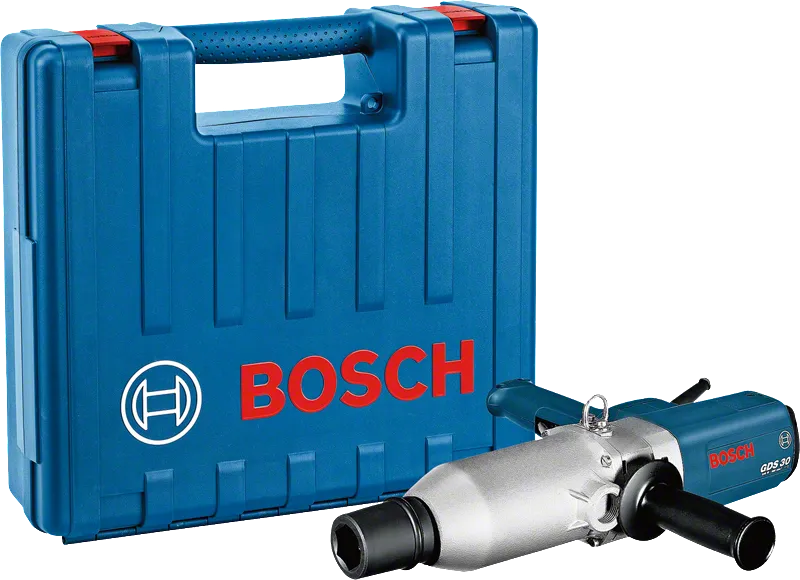

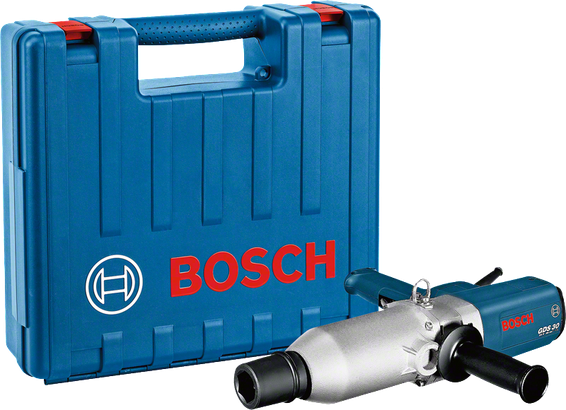

in carrying case with auxiliary handle
Order number:
0 601 435 103
- Carrying case (spare part number 1 605 438 1BZ)
- Auxiliary handle 2 602 025 075
- Hanging loop (spare part number 3 601 310 013)
1,223.00 EUR
Recommended retail price excluding VAT.
