Technical data
| Additional data | |
|---|---|
| Rated input power | 1,700 W |
| Saw blade diameter | 235 mm |
| No-load speed | 5,000 rpm |
| Weight | 7.5 kg |
| Saw blade bore diameter | 30 mm |
| Guide rail compatible | no |
| Cutting depth | |
|---|---|
| Max. cutting capacity in wood (90°) | 85 mm |
| Max. cutting capacity in wood (45°) | 65 mm |
| Total vibration values (Wood sawing) | |
|---|---|
| Vibration emission value ah | 3.5 m/s² |
| Uncertainty K | 1.5 m/s² |
Advantages

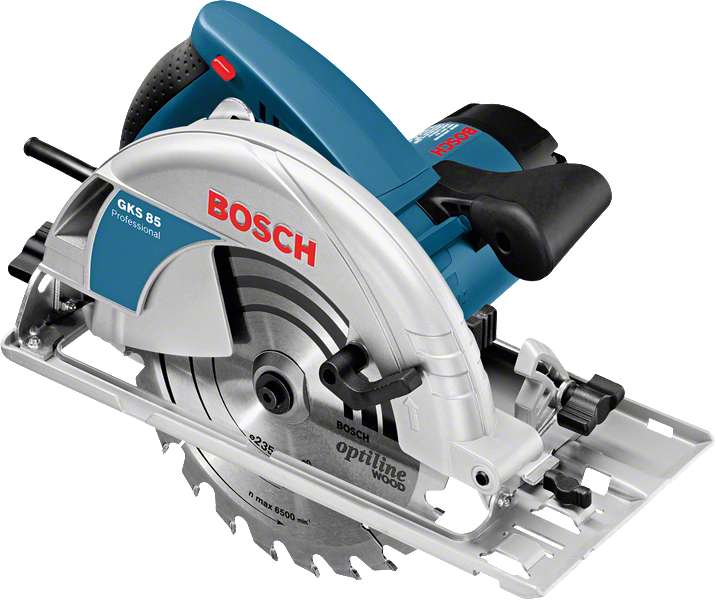

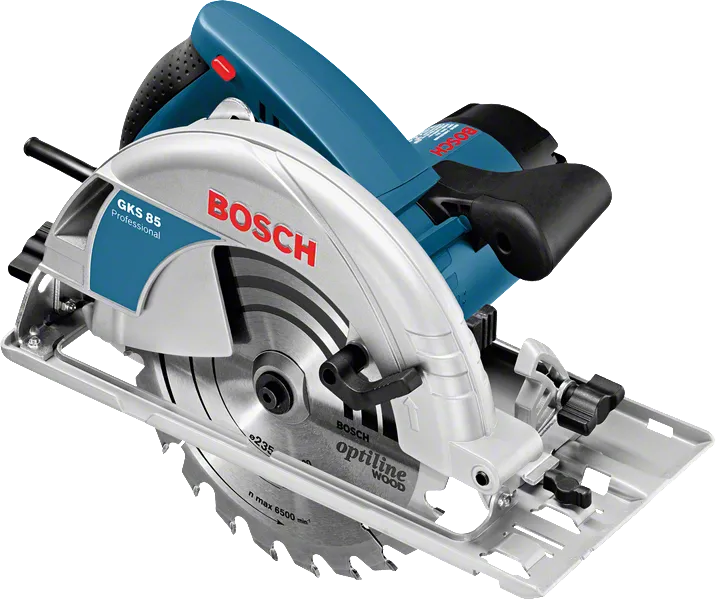

The high-torque circular saw
- Extremely resilient 2200-watt (1700-watt for 110 V version) motor for high torque in solid wood beams of any moisture content up to 85 mm cutting depth
- Punched metal base plate and closed pendulum guard made of die-cast aluminium, can withstand even hard impacts
- Optimised chip deflector and turbo blower for a clear view of the score line and precise cut guidance
Functions
What’s Included in this Package
with hex key, Accessory
Order number:
0 601 57A 060
- Hex key WAF 5 (spare part number 1 907 950 006)
- Dust extraction adapter (spare part number 1 619 P01 627)
- Parallel guide 1 608 190 007
- 1 x circular saw blade, Optiline Wood, 235 x 30/25 x 2.8 mm, 24 2 608 640 725
- Voltage 110 V
224.00 EUR
Recommended retail price excluding VAT
