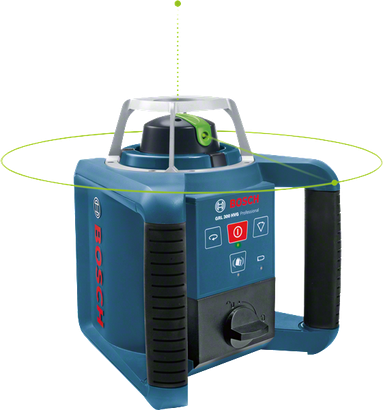

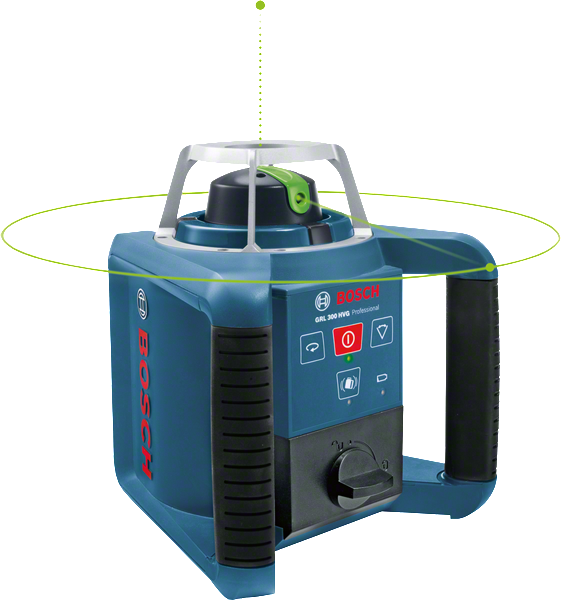

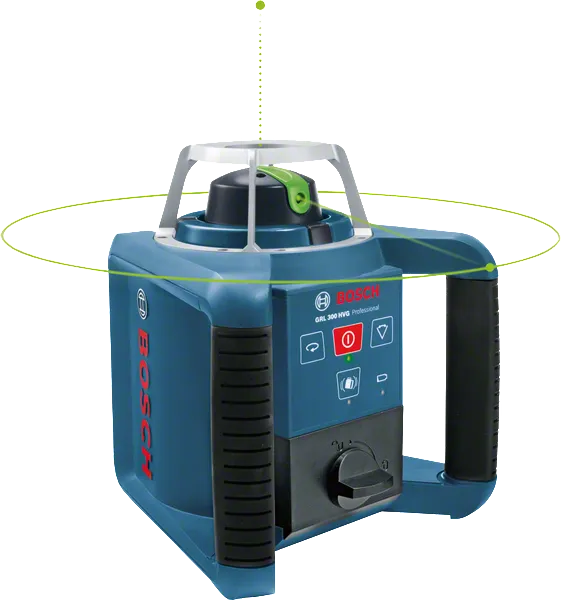

GRL 300 HVG Professional

Rotation Laser

GRL 300 HVG

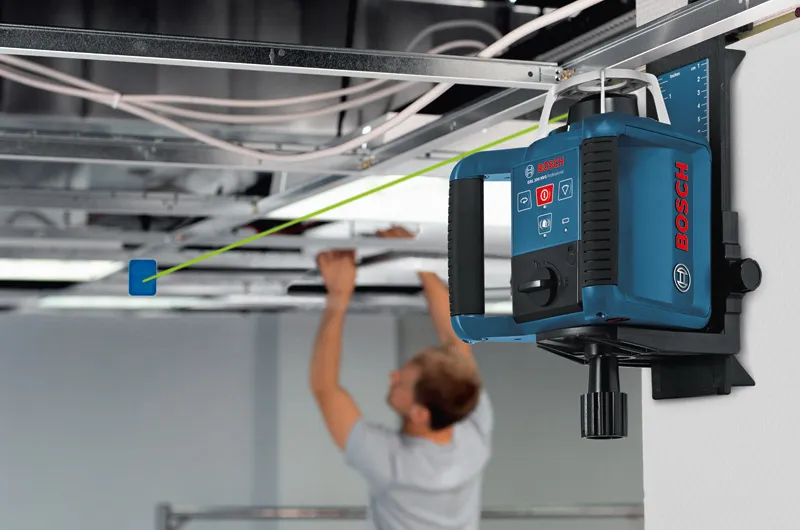

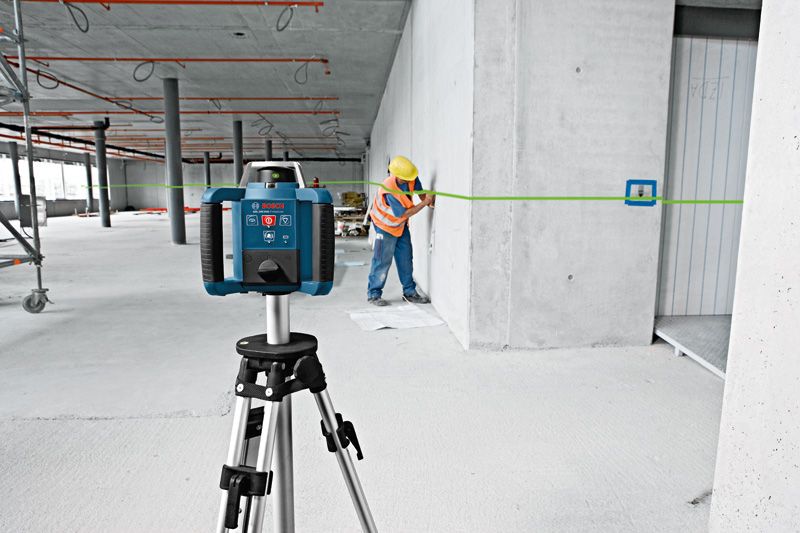

Outstanding visibility for indoor applications

  • Green laser line: up to four times better visibility than a red line
  • Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
  • The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks or vibrations

Functions & key features

 Shock warning function gives an alarm if tool is moved
Variable rotation speed higher speed for working with receiver, lower speed for better visibility
Sweep mode for better visibility
Working range up to 100 m

Your Selection

  • in carrying case with 1 x 9 V block battery, receiver
Show variant
999.00 EUR
Recommended retail price excluding VAT
Find a local dealer

in carrying case with 1 x 9 V block battery, receiver 0 601 061 701
999.00 EUR
Recommended retail price excluding VAT

GRL 300 HVG Professional

Your Selection

GRL 300 HVG
in carrying case with 1 x 9 V block battery, receiver

Order number: 0 601 061 701

999.00 EUR
Recommended retail price excluding VAT
Find a local dealer

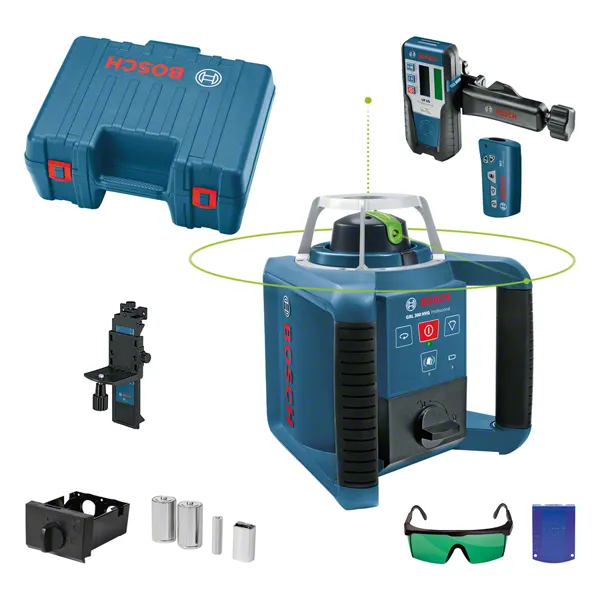

Included in this variant

  • Battery compartment (spare part number 1 608 M00 05D)

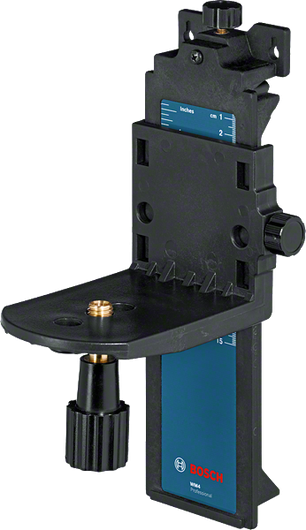

  • Universal mount WM 4 Professional
    Order number: 0 601 092 400
  • Laser target (blue) (spare part number 1 608 M00 05K)
  • Carrying case (spare part number 1 608 M00 05F)
  • 1 x 1.5 V LR6 battery (AA)
  • Holder also available separately as an accessory (spare part number 1 608 M00 05A)

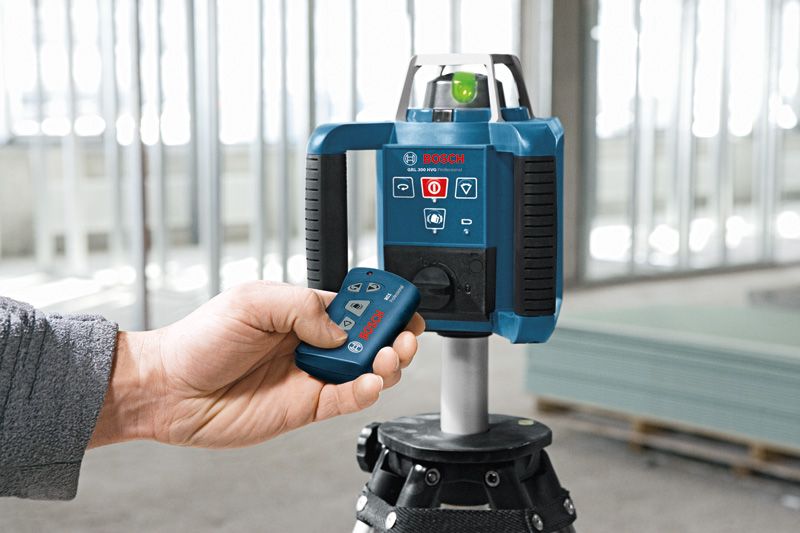

  • Remote control RC1 Professional
    Order number: 0 601 069 900
  • 2 x 1.5 V LR20 battery (D)

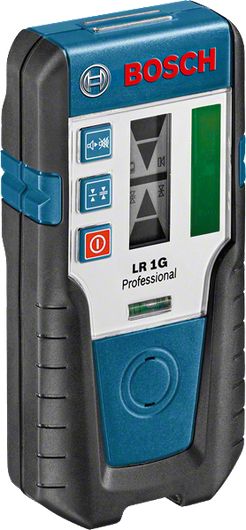

  • Laser receiver LR 1G Professional
    Order number: 0 601 069 700
  • Laser viewing glasses (green) (spare part number 1 608 M00 05J)
  • 1 x 9 V block battery (6LR61)

Technical data

Additional data

Working range with receiver, valuenull 300 m
Dust and splash protectionnull IP 54
Working range, valuenull 100 m
Laser diodenull 532 nm, < 5 mW
Operating temperaturenull 0 – 40 °C
Storage temperaturenull -20 – 70 °C
Laser classnull 3R
Working rangenull 100 m
Working range with receivernull 300 m (Diameter)
Working range without receivernull 100 m (Diameter)
Accuracynull ± 3.0 mm at 30 m* (*plus use-dependent deviation)
Self-levelling rangenull ± 5° (8%)
Levelling timenull 15 s
Rotation speednull 150, 300, 600 rpm
Power supplynull 2 x 1.5 V LR20 (D)
Tripod threadnull 5/8"
Weight, approx.null 1.8 kg
Colour of laser linenull green
Compatible laser receiversnull LR 1G
Slope functionnull no
GRL 300 HVG
