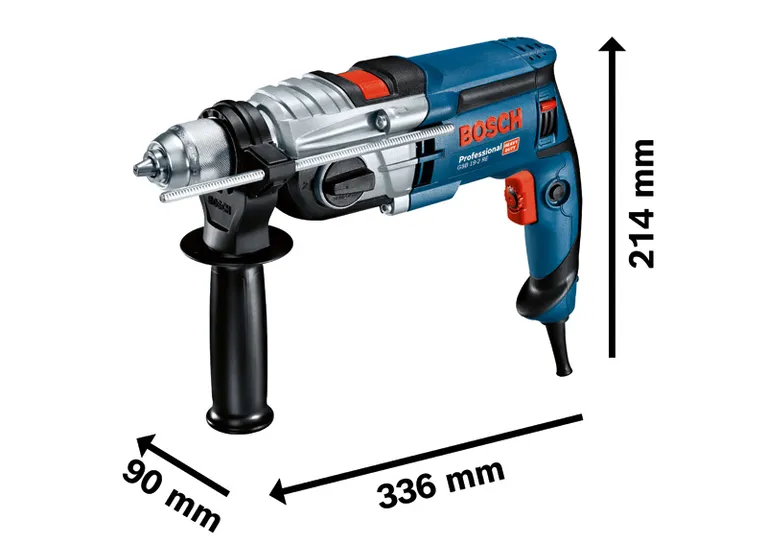

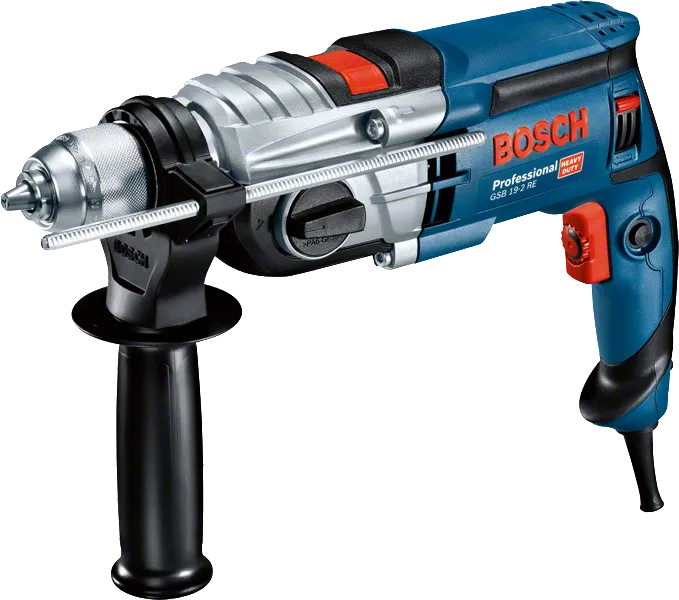

Impact Drill GSB 19-2 RE Professional

The fastest and most versatile tool in its class

from  164.00 EUR Recommended retail price excluding VAT

Technical data
Additional data
Rated input power 850   W
Weight 2.6   kg
No-load speed, 1st gear 0 – 1,000   rpm
No-load speed, 2nd gear 3,000   rpm
Power output 430   W
Rated speed 800 / 2,060   rpm
Rated torque 5.2 / 2.0   Nm
Drill spindle connecting thread 1/2" – 20 UNF
Chuck capacity, min./max. 1.5 – 13   mm
Impact rate at no-load speed 0 – 17,000 / 51,000   bpm
Max. torque 36.0 / 15.5   Nm
Drilling range
Drilling diameter in wood 40 / 25   mm
Drilling diameter in steel 13 / 8   mm
Drilling dia. in stone 20 / 15   mm
Drilling diameter in masonry 20 / 15   mm
Total vibration values (Drilling in metal)
Vibration emission value ah 3   m/s²
Uncertainty K 1.5   m/s²
Total vibration values (Impact drilling in concrete)
Vibration emission value ah 15   m/s²
Uncertainty K 2   m/s²
Total vibration values (Screwdriving)
Vibration emission value ah 2.5   m/s²
Uncertainty K 1.5   m/s²

Advantages

The fastest and most versatile tool in its class

  • Powerful 2-speed impact drill (850 W) for the fastest work progress
  • Sturdy metal gear housing for a long lifetime
  • Antirotation mechanical overload clutch for a high level of work safety

Functions

Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Convenient change of accessories Keyless chuck opens and closes easily
Optimized torque for screwdriving and speed for drilling thanks to 2-speed planetary gearbox
What’s Included in this Package

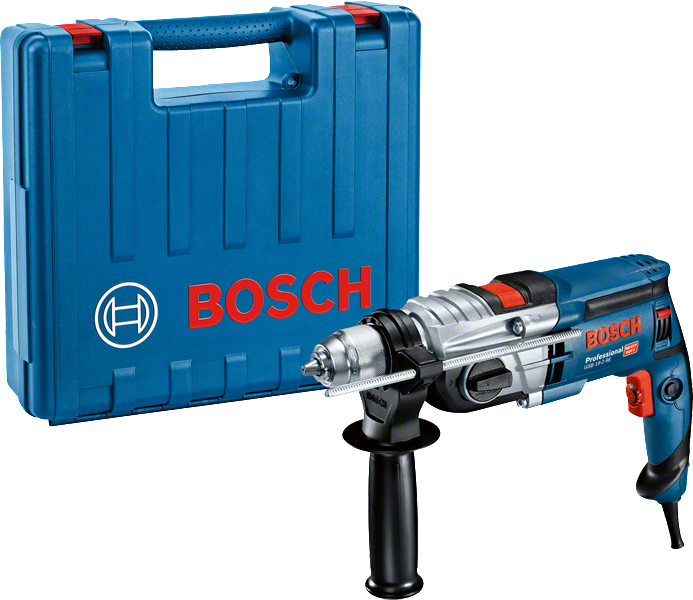

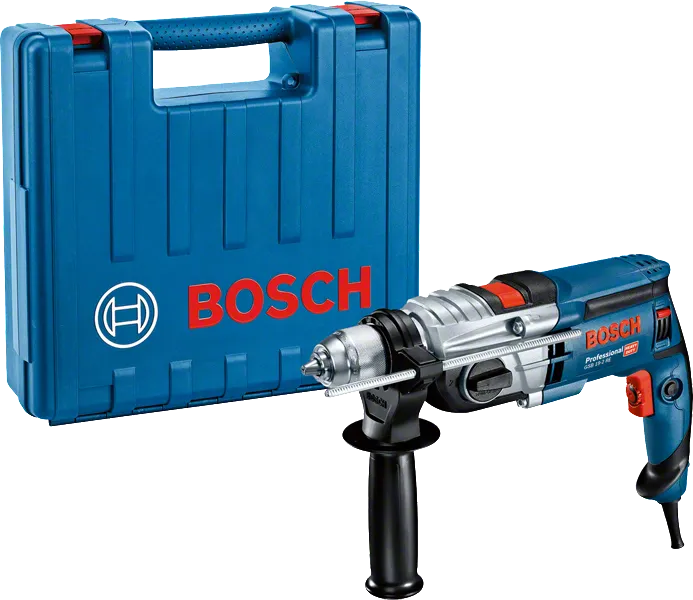

in carrying case with auxiliary handle, Accessory
in carrying case with auxiliary handle, Accessory
Order number: 0 601 17B 560
  • Auxiliary handle 2 605 025 190
  • Carrying case 2 605 438 524
  • Depth stop 210 mm 1 613 001 010
  • Keyless chuck 13 mm 2 608 572 149
  • Voltage 110 V
164.00 EUR Recommended retail price excluding VAT
Product variations (3)

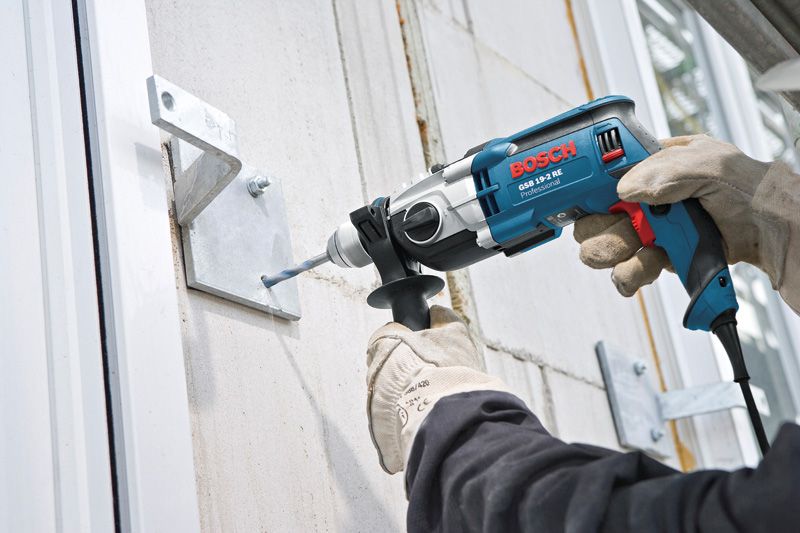

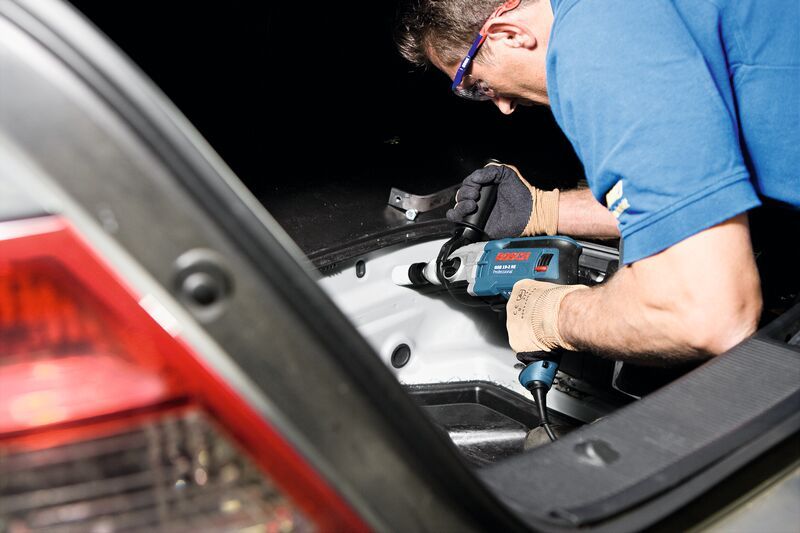

The GSB 19-2 RE in action!
