Impact Drill GSB 20-2 Professional

All-round performing 2-gear corded impact drill with KickBack Control

189.00 EUR Recommended retail price excluding VAT.

Technical data
Additional data
Rated input power* 850   W
Weight 2.6   kg
No-load speed 0 – 1,000 / 3,000   rpm
Power output 430   W
Rated speed 800 / 2,060   rpm
Rated torque 5.2 / 2.0   Nm
Drill spindle connecting thread 1/2" – 20 UNF
Chuck capacity, min./max. 1.5 – 13   mm
Tool dimensions (width) 90   mm
Tool dimensions (length) 336   mm
Tool dimensions (height) 214   mm
Impact rate at no-load speed 0 – 17,000 / 51,000   bpm
Max. torque 36.0 / 15.5   Nm
Drilling range
Drilling diameter in concrete 18 / 13   mm
Drilling diameter in wood* 40 / 25   mm
Drilling diameter in steel 13 / 8   mm
Drilling dia. in stone 20 / 15   mm
Drilling diameter in masonry* 20   mm
Total vibration values (Drilling in metal)
Vibration emission value ah 3   m/s²
Uncertainty K 1.5   m/s²
Total vibration values (Impact drilling in concrete)
Vibration emission value ah 15   m/s²
Uncertainty K 2   m/s²
Total vibration values (Screwdriving)
Vibration emission value ah 2.5   m/s²
Uncertainty K 1.5   m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 95 dB(A); Sound power level 106 dB(A). Uncertainty K= 3 dB.

Advantages

All-round performing 2-gear corded impact drill with KickBack Control

  • Powerful 850 W motor for fast work progress
  • KickBack Control increases user protection
  • Sturdy metal gear housing for a long tool lifetime

Functions

Reduces the hazard of sudden tool reactions in binding conditions thanks to automatic shut-down of the tool
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Metal chuck 1.5 - 13.0 mm
Forward / reverse rotation for inserting and removing screws
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Optimized torque for screwdriving and speed for drilling thanks to 2-speed planetary gearbox

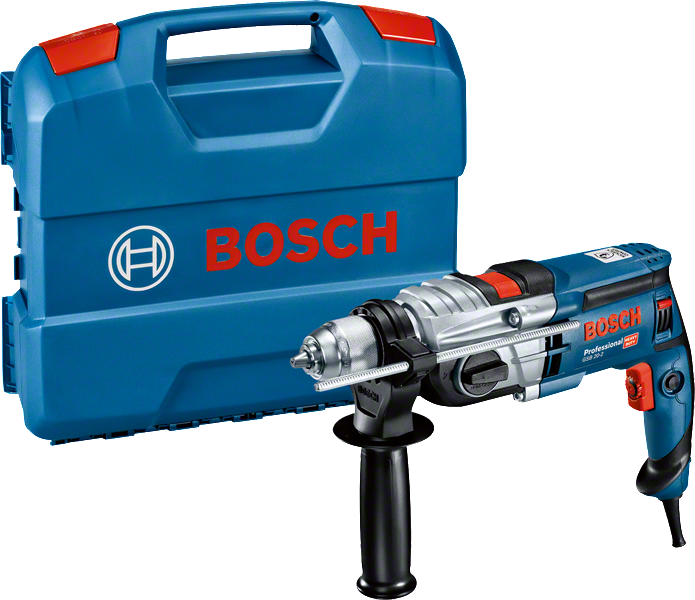

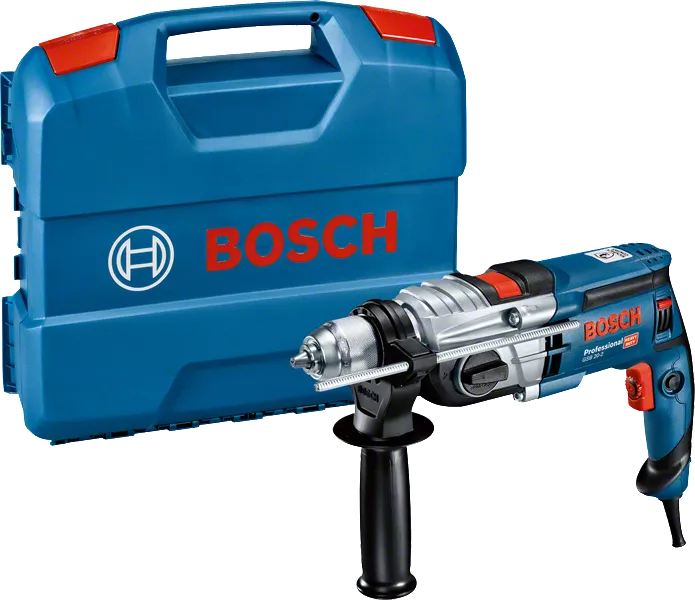

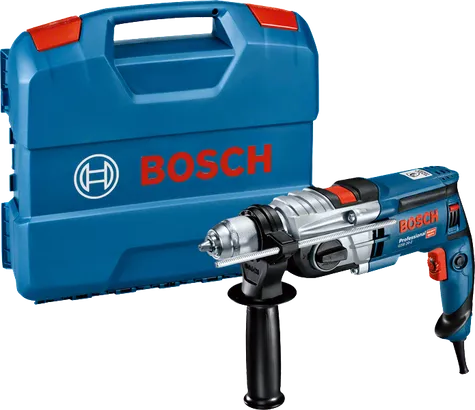

What’s Included in this Package
with chuck
with chuck
Order number: 0 601 17B 400
  • Keyless chuck 13 mm 2 608 572 149
  • Auxiliary handle 2 605 025 190
  • Depth stop 210 mm 1 613 001 010
  • L-CASE
189.00 EUR Recommended retail price excluding VAT.
The GSB 20-2 in action!
