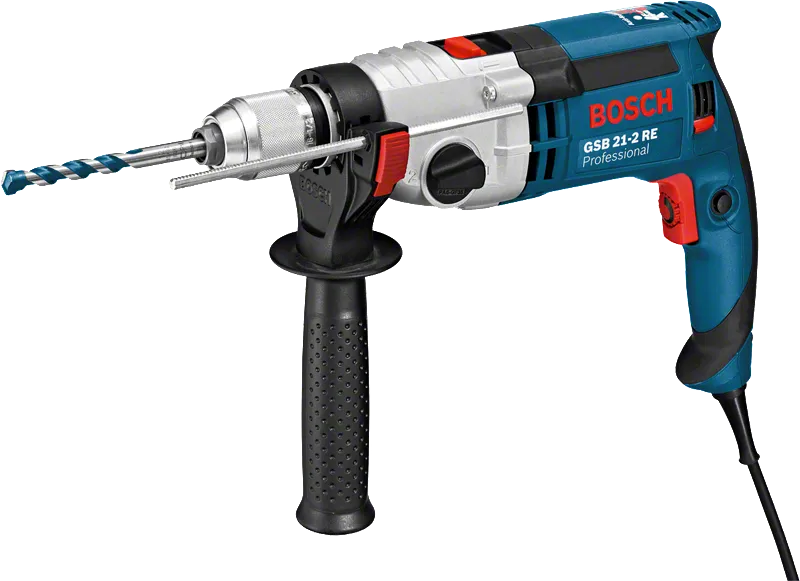

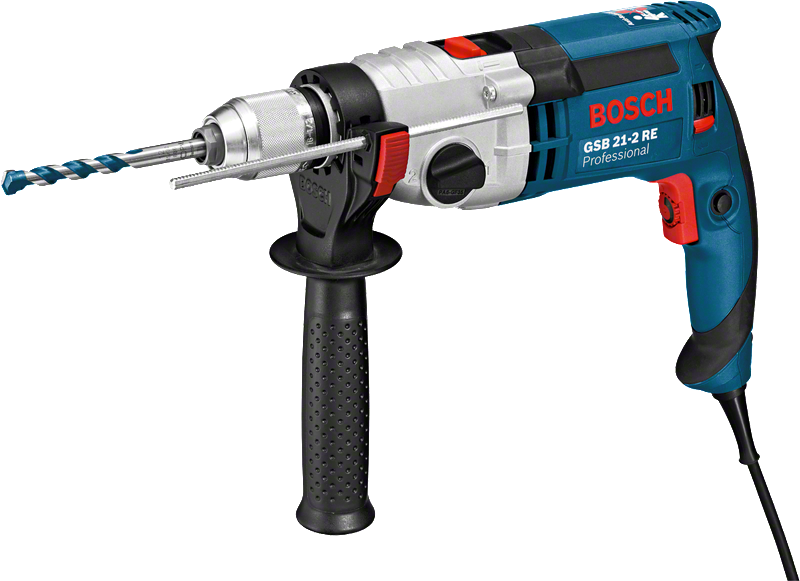

Impact Drill GSB 21-2 RE Professional

The most powerful tool in its class – for the toughest applications

226.00 EUR Recommended retail price excluding VAT.

Technical data
Additional data
Rated input power 1,100   W
Weight 2.85   kg

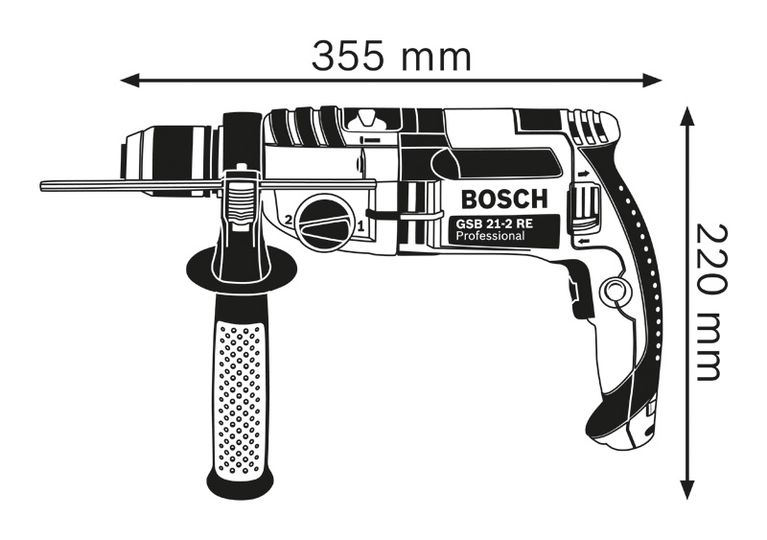

Tool dimensions (width) 81   mm
Tool dimensions (length) 363   mm
Tool dimensions (height) 220   mm
Rated speed 580 / 1,900   rpm
Rated torque 9.6 / 3.2   Nm
Chuck capacity, min./max. 1.5 – 13   mm
Max. torque 40.0 / 14.5   Nm
No-load speed, 1st gear 0 – 900   rpm
No-load speed, 2nd gear 3,000   rpm
Power output 630   W
Drill spindle connecting thread 1/2" – 20 UNF
Impact rate at no-load speed 0 – 15,300 / 51,000   bpm
Drilling range
Drilling diameter in masonry 24 / 16   mm
Drilling diameter in concrete 22 / 13   mm
Drilling diameter in wood 40 / 25   mm
Drilling diameter in steel 16 / 8   mm
Total vibration values (Drilling in metal)
Vibration emission value ah 5.6   m/s²
Uncertainty K 1.5   m/s²
Total vibration values (Impact drilling in concrete)
Vibration emission value ah 14.6   m/s²
Uncertainty K 1.8   m/s²
Total vibration values (Screwdriving)
Vibration emission value ah 2.5   m/s²
Uncertainty K 1.5   m/s²

Advantages

The most powerful tool in its class – for the toughest applications

  • Bosch high-performance motor (1100 W) with high torque for the most heavy-duty applications with large diameters (drilling, working with core cutters and holesaws), screwdriving and stirring
  • Sturdy metal gear housing for a long lifetime
  • Antirotation mechanical overload clutch for a high level of work safety, even in the toughest applications

Functions

Metal chuck 1.5 - 13.0 mm
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Forward / reverse rotation for inserting and removing screws
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Convenient change of accessories Keyless chuck opens and closes easily
Optimized torque for screwdriving and speed for drilling thanks to 2-speed planetary gearbox
Comfortable handling of the tool thanks to softgrip
Woodworking The professional power tools for woodworking from Bosch.

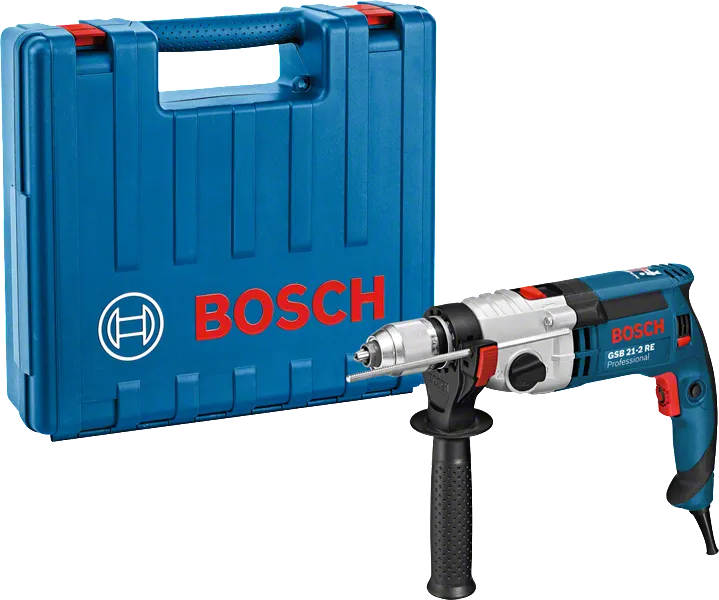

What’s Included in this Package
in carrying case with auxiliary handle, Accessory
in carrying case with auxiliary handle, Accessory
Order number: 0 601 19C 560
  • Auxiliary handle 2 602 025 193
  • Carrying case 2 605 438 524
  • Depth stop 210 mm 1 613 001 010
  • Keyless chuck 13 mm 2 608 572 150
  • Voltage 110 V
226.00 EUR Recommended retail price excluding VAT.
The GSB 21-2 RE in action!
