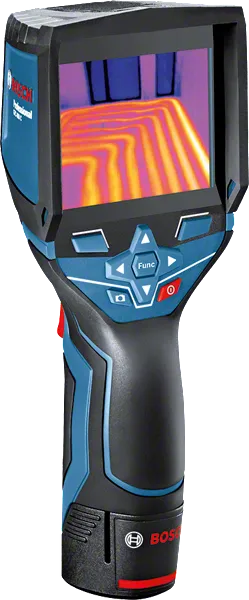

Thermo Camera GTC 400 C Professional

Immediate visualisation of temperature differences with smart documentation

999.00 EUR Recommended retail price excluding VAT

Technical data
Additional data
Measuring application Thermal image
Battery voltage 12   V
Measurement range -10 °C to +400 °C
Measuring accuracy of IR ± 3.0 °C* (*plus use-dependent deviation)
Data transfer MicroUSB, Wi-Fi
Thermal sensitivity (NETD) <50 mK
Resolution 0.1   °C
Size of IR sensor 160x120   px
Number of measuring points 19,200
Field of view (FOV) 53x43   °
Power supply and runtime 4 x 1.5 V LR6 (AA) 1 x GBA 12V 1 x GBA 10.8V
Frame buffer (number of images) 500
Memory type Internal memory
File format of image .jpg
Dust and splash protection IP 53
Weight 0.54   kg
Supported Android devices Smartphone with Android 6.0 or higher
Supported iOS devices iPhone with iOS 11 or higher
Size of display 3,5"
Operating temperature -10 – 45   °C
Storage temperature -20 – 70   °C
Focus distance, minimum 0.3   m

Advantages

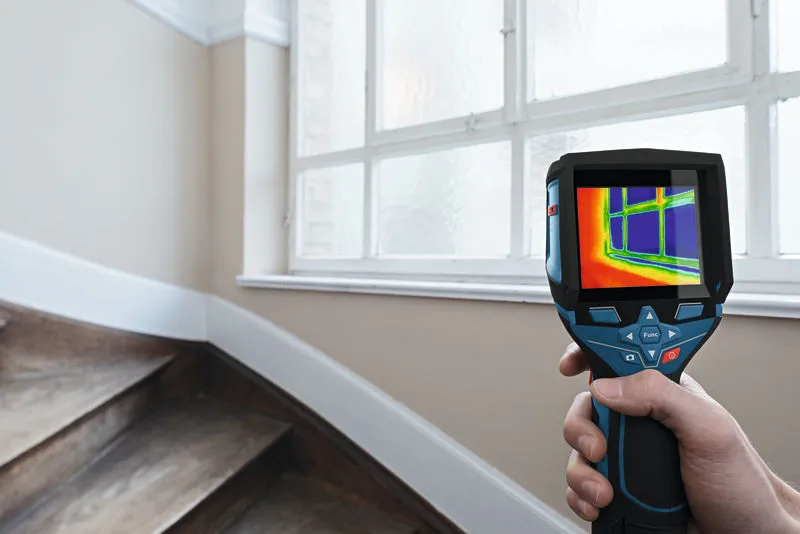

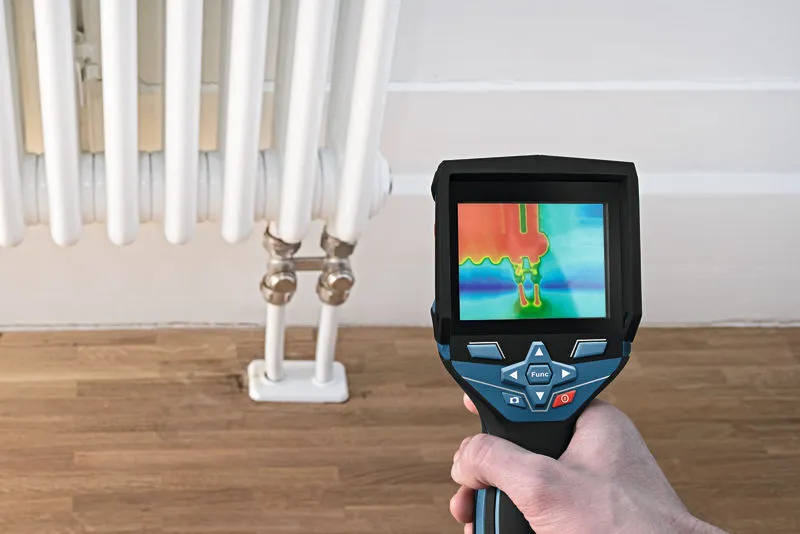

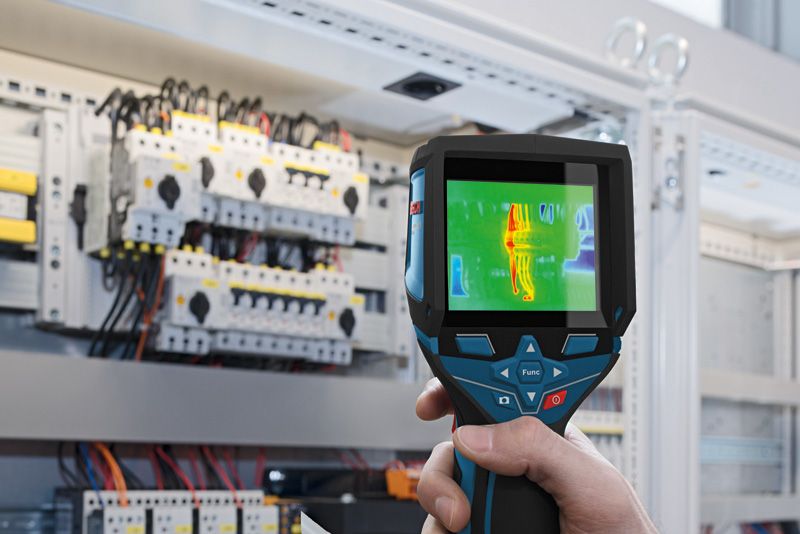

Immediate visualisation of temperature differences with smart documentation

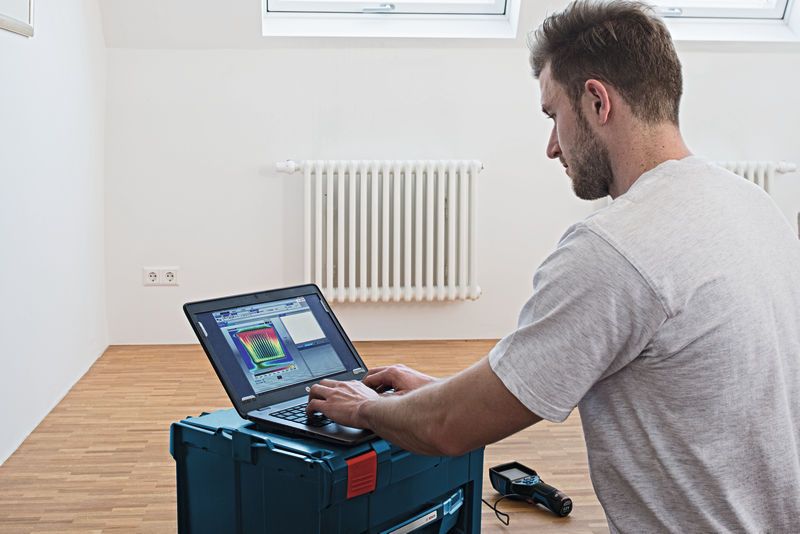

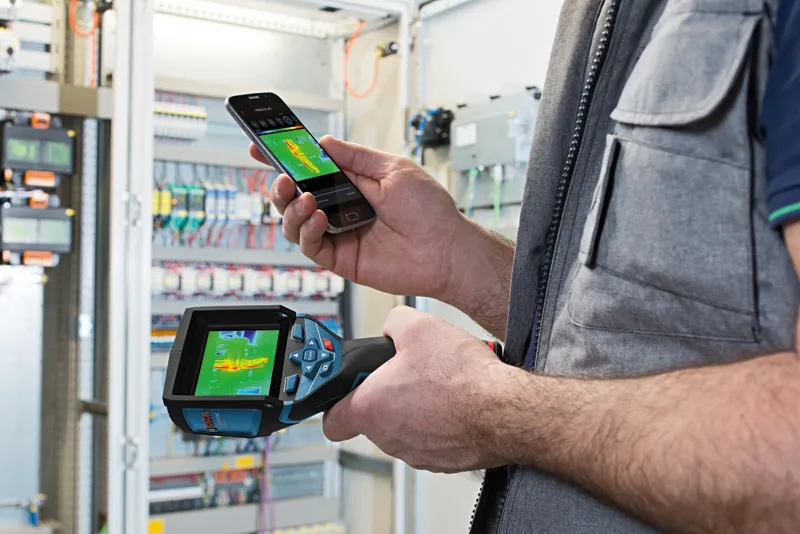

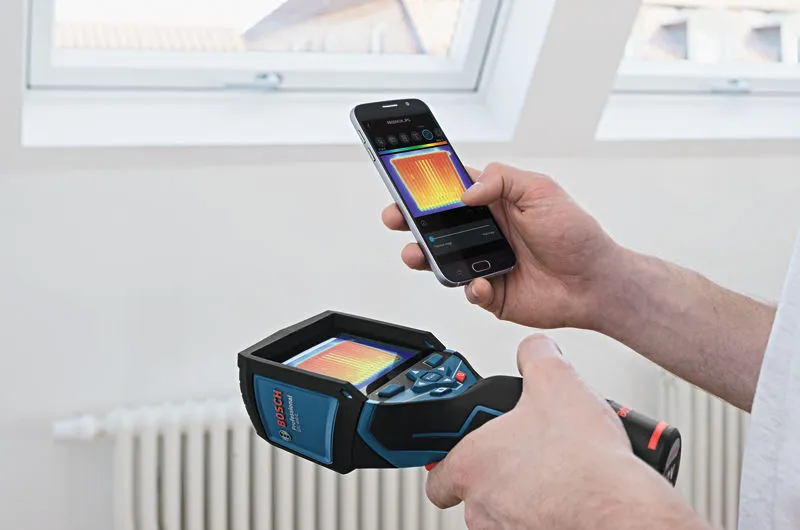

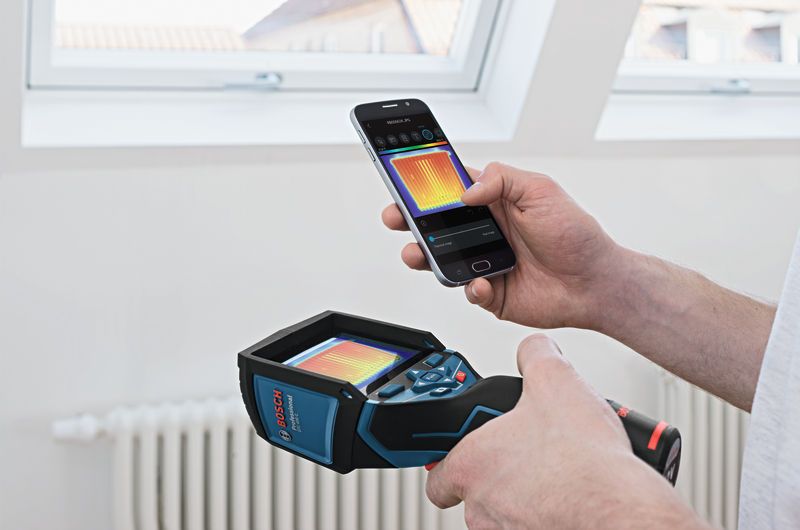

  • Fast exchange of data and easy documentation of thermal images with the Bosch Thermal App
  • Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement
  • Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries

Functions

 Compatible since 2005: all of our batteries are compatible with new and existing Bosch Professional tools in the same voltage class.
Icon
Icon
Icon
Icon
Icon
Dual power source
 All Bosch Professional 10.8V tools, batteries & chargers are 100% compatible with all Bosch Professional 12V tools, batteries & chargers
Icon
Icon

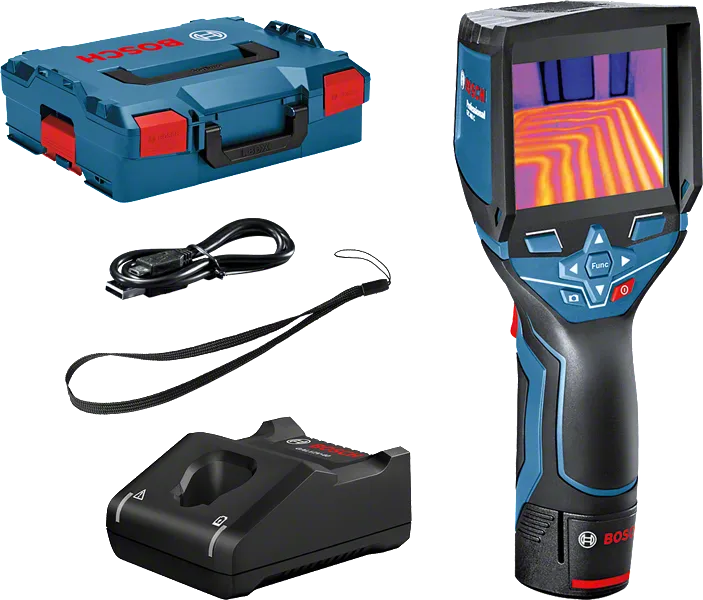

What’s Included in this Package
in L-BOXX 136 with Accessory, Hand strap
in L-BOXX 136 with Accessory, Hand strap
Order number: 0 601 083 171
  • 1 x battery GBA 12V 2.0Ah 1 600 Z00 02X
  • Quick charger GAL 12V-40 Professional 1 600 A01 9R4
  • L-BOXX 136 1 600 A01 2G0
  • Hand strap
  • L-BOXX inlay for tool
  • L-BOXX inlay accessories
  • Micro USB cable 2 609 120 670
999.00 EUR Recommended retail price excluding VAT

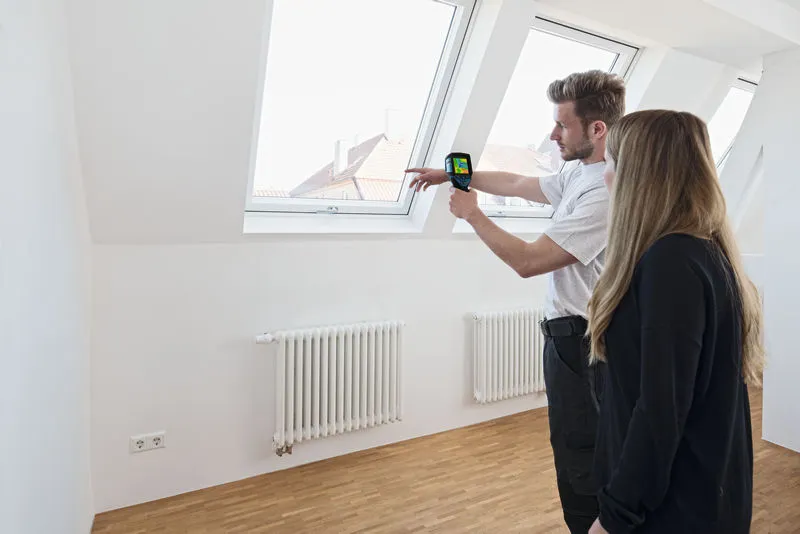

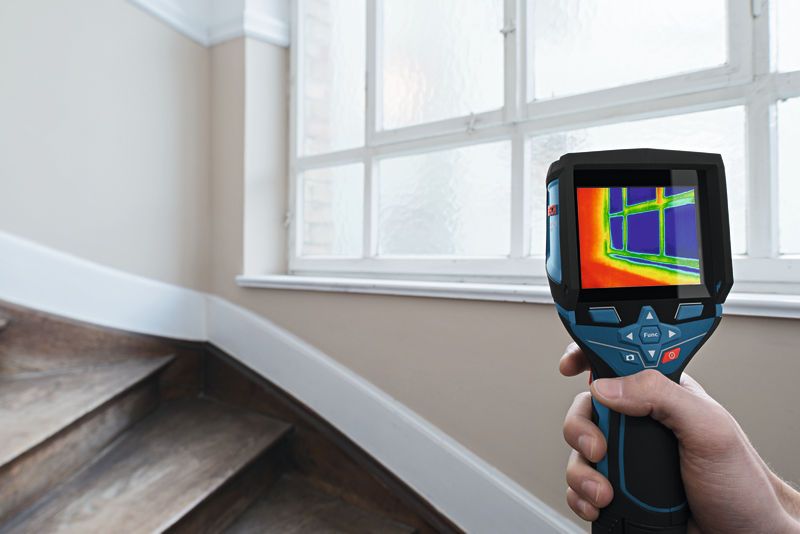

The GTC 400 C in action!
