Laser Receiver LR 6 Professional

Easy-to-operate laser receiver with a compact design

67.00 EUR Recommended retail price excluding VAT.

Technical data
Additional data
Range of 5 – 50   m
Power supply 2 x 1.5 V LR03 (AAA)
Dust and splash protection IP 54
Remote control -
Receiver -
Measuring accuracy (fine/rough) ± 1 mm/± 3 mm
Weight, approx. 120   g

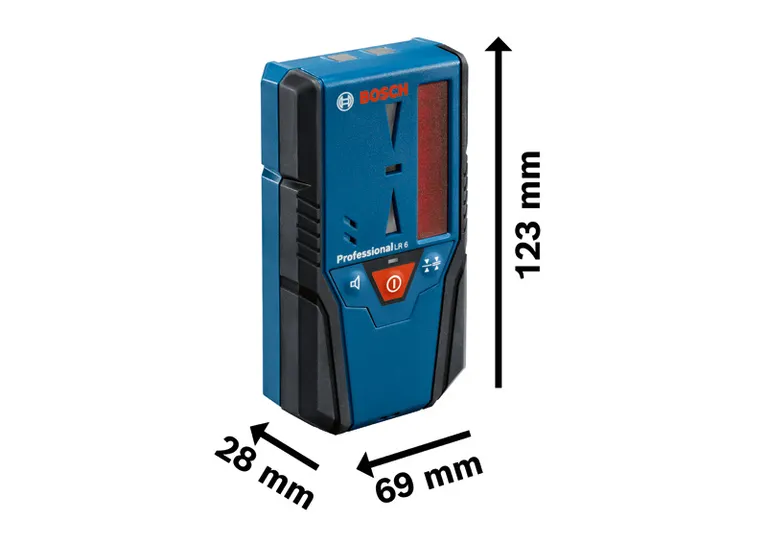

Tool dimensions (width) 69   mm
Tool dimensions (length) 123   mm
Tool dimensions (height) 28   mm

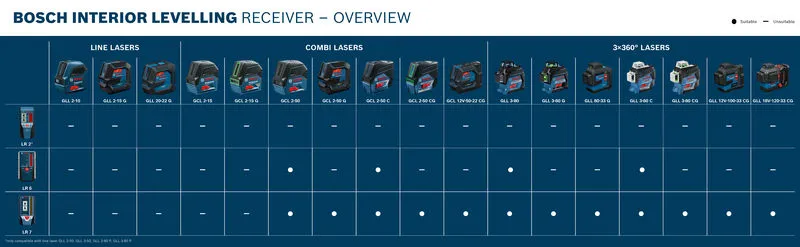

Type of receiver Combi- and line lasers

Advantages

Easy-to-operate laser receiver with a compact design

  • Handy receiver for ranges of up to 50 m
  • Alignment of the laser beam plane, visual and audible signals, for working in various lighting conditions

Functions

Red beam detection
Reception area 50 mm

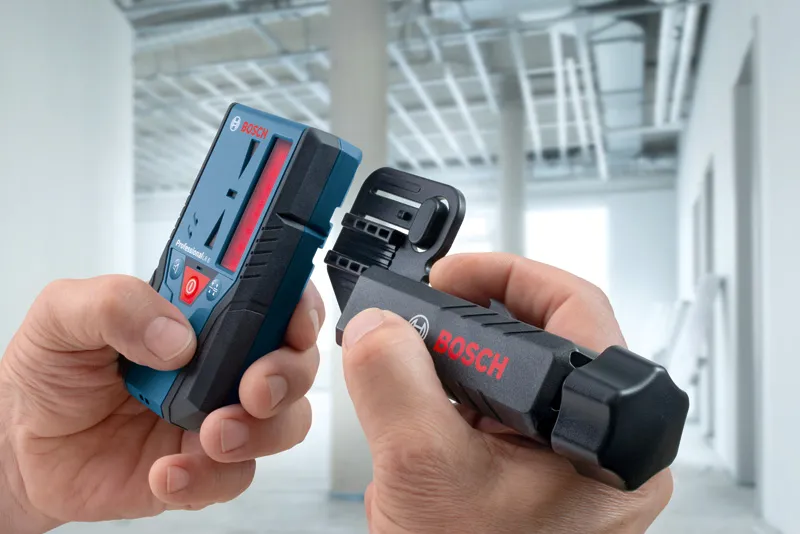

Easy attachment due to magnets on the top of the receiver
IP54 dust and splash water protection
What’s Included in this Package
with 2 x battery (AAA)
with 2 x battery (AAA)
Order number: 0 601 069 H00
  • 2 x 1.5 V LR03 battery (AAA)
67.00 EUR Recommended retail price excluding VAT.

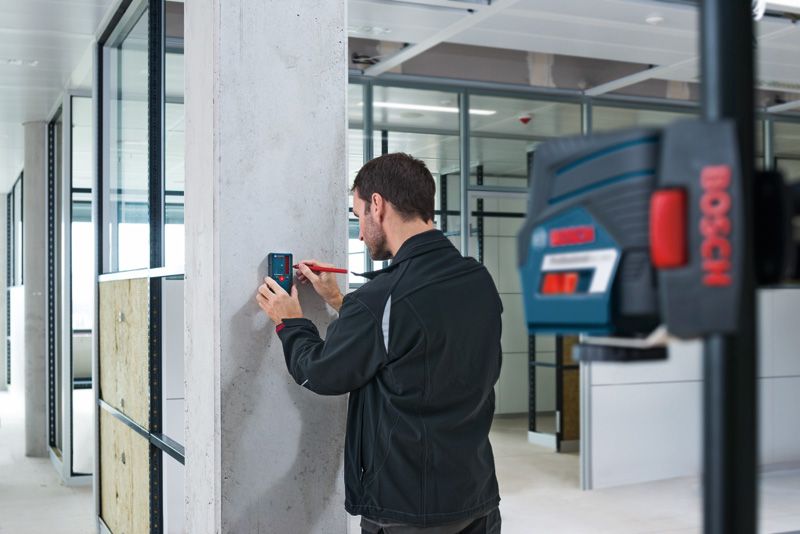

The LR 6 in action!
