CYL-1 Drill Bit

Your Selected Variant

Bosch drill bit for metal precise drilling.

Your Selected Variant

CYL-1 Drill Bit

Find a local dealer

For rotary drills/drivers, For impact drill/drivers

Fits tools of most brands

Drill bit being inserted into a power drill chuck.

Rotating drill chuck spinning a masonry bit for drilling applications.

A drill chuck holds a spiral drill bit with a blue tip.

Cylindrical shank compatible with three-jaw drill chucks

Optimised for Drilling in Masonry

CYL-1 Drill Bit is optimised for drilling in masonry

Standard carbide tip makes the bit more wear-resistant

Product Options

Available product options: 16

Part number	Diameter (D) mm	Working length mm	Total length mm	Pack quantity	Availability
2 608 590 071	5.00	50	85	1 Pcs	Find a local dealer
2 608 590 078	8.00	80	120	1 Pcs	Find a local dealer
2 608 590 081	10.00	80	120	1 Pcs	Find a local dealer
2 608 590 083	11.00	85	150	1 Pcs	Find a local dealer
2 608 590 087	13.00	85	150	1 Pcs	Find a local dealer
2 608 590 088	14.00	85	150	1 Pcs	Find a local dealer
2 608 590 089	16.00	85	150	1 Pcs	Find a local dealer
2 608 590 126	15.00	85	150	1 Pcs	Find a local dealer
2 608 590 202	4.00	40	75	10 Pcs	Find a local dealer
2 608 590 205	5.00	50	85	10 Pcs	Find a local dealer

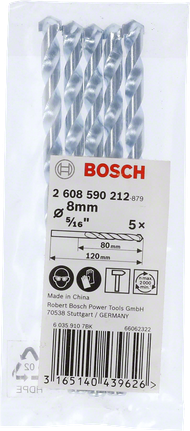

2 608 590 212	8.00	80	120	5 Pcs	Find a local dealer

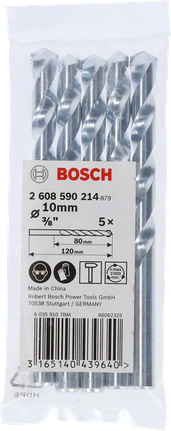

2 608 590 214	10.00	80	120	5 Pcs	Find a local dealer

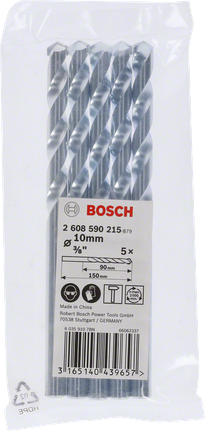

2 608 590 215	10.00	85	150	5 Pcs	Find a local dealer
2 608 590 216	11.00	85	150	5 Pcs	Find a local dealer
2 608 590 219	13.00	85	150	5 Pcs	Find a local dealer
2 608 590 221	16.00	85	150	5 Pcs	Find a local dealer

out of products

Frequently asked questions

Interface

Which shank type should I use, cylindrical (CYL) or hexagonal (HEX)?

The HEX shank has several benefits over the CYL shank. While both shank types fit into three-jaw chucks of a standard drill, the HEX shank offers a more secure connection: due to its geometry it won’t slip in the chuck. The HEX shank ensures maximum power transfer from your machine to the drill bit. The HEX shank also gives you more flexibility when choosing your tool: you can use it with standard drills with three-jaw chucks as well as impact drivers with ¼” internal hexagon tool holders. The 3-wing shank of our CYL-5 drill bits only fits three-jaw chucks, but otherwise it offers benefits similar to those of the HEX shank: it fits in the chuck securely, it doesn’t slip and ensures maximum power transfer from your machine to the drill bit.

Material

Which Impact and Rotary drill bits should I use to drill into concrete, brick, stone and various materials?

CYL-1: Suitable for brick and limestone. CYL-3: Suitable for concrete, soft stone, brick and limestone. CYL-5 / HEX-5: Suitable for concrete, soft stone, brick and limestone. The 3-wing shank of CYL-5 drill bits only fits three-jaw chucks, but otherwise it offers benefits of the HEX shank: it ensures a strong connection and maximum torque transmission from your machine to the drill bit. The HEX shank is also versatile: it fits into standard drills with three-jaw chucks and impact drivers with ¼"" internal hex tool holders. CYL-9 / HEX-9 Multi Construction: Suitable for various materials, including concrete, brick, soft ceramic tiles, wood, plastics, sheet metals, aluminium and multi-layered (sandwich) materials. The HEX shank ensures a strong connection and maximum torque transmission from your machine to the drill bit. It’s also versatile: it fits into standard drills with three-jaw chucks and impact drivers with ¼"" internal hex tool holders. Impact and Rotary drill bits come in diameters of up to (and including) 16 mm and total lengths of up to (and including) 400 mm. For larger diameters and lengths use SDS plus and SDS max drill bits for concrete and stone applications.

Technique

What speed and gear should I use when drilling in concrete, brick, stone and various materials with my impact and rotary drill bits?

Choose gear 2 for the fastest results in all materials except for ceramic tiles. If your power tool doesn’t have gear settings, keep the speed at a high rpm, using the trigger. When drilling in ceramic tiles, the power tool should be set to gear 1 to prevent the drill bit from overheating. If you’re using a corded tool, in addition to setting it to gear 1, you also need to control the speed by pushing the trigger halfway only in order not to go over 500 rpm (as, otherwise, it will go up to 1000 rpm). If you’re using a cordless tool, you don’t need to control the speed through the trigger once the tool is set to gear 1, due to cordless tools’ lower rpm limit. If your tool doesn’t have gears, keep the speed at low rpm (max. 500 rpm), using the trigger.

Which drilling mode should I use when drilling in concrete, brick and stone?

Use the impact mode when drilling in concrete, stone and full brick. Apply the rotary mode when drilling in brittle materials, such as hollow brick.

Do I need to apply cooling when drilling with Bosch impact and rotary HEX and CYL drill bits?

Cooling can help extend the lifetime of your drill bit if applied in the right way, but you don’t need to apply it. When drilling in hard stone, we recommend letting the drill bit cool down each time you drilled a hole.
