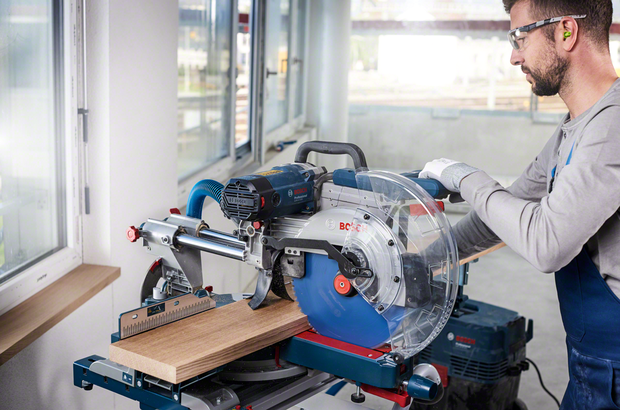

For mitre saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 6 options
Number of teeth 4 options
Width of cut (b1) mm 2.4
Choose a pack size 1 Pcs
Expert for Wood Circular Saw Blade offers a long lifetime with high cutting performance in wood
Available product options: 7
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
|
|---|---|---|---|---|---|---|---|
| 2 608 642 496 | 210 | 30 | 2.4/1.8 | 48 | 1 Pcs | Find a local dealer | |
| 2 608 642 497 | 216 | 30 | 2.4/1.8 | 48 | 1 Pcs | Find a local dealer | |
| 2 608 642 498 | 250 | 30 | 2.4/1.8 | 60 | 1 Pcs | Find a local dealer | |
| 2 608 642 499 | 300 | 30 | 2.4/1.8 | 72 | 1 Pcs | Find a local dealer | |
| 2 608 642 530 | 254 | 30 | 2.4/1.8 | 60 | 1 Pcs | Find a local dealer | |
| 2 608 642 531 | 305 | 30 | 2.4/1.8 | 72 | 1 Pcs | Find a local dealer | |
| 2 608 644 079 | 216 | 30 | 2.4/1.8 | 40 | 1 Pcs | Find a local dealer |
out of products
| Part number 2608642496 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 210 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 9000 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Part number 2608642497 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 216 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8800 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Part number 2608642498 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 250 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
| Number of teeth | 60 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 7600 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 / 2/9.5/46.5 / 2/9/46 / 2/10/60 |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Part number 2608642499 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 300 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
| Number of teeth | 72 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 6300 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 4/12/64 / 2/9/55 |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Part number 2608642530 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 254 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
| Number of teeth | 60 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 7500 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 / 2/9.5/46.5 / 2/9/46 / 2/10/60 |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Part number 2608642531 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 305 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
| Number of teeth | 72 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 6200 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 / 2/9.5/46.5 / 2/9/46 / 2/10/60 |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Part number 2608644079 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 216 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8800 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
