HSS-AlTiN Step Drill Bit, 3-flat Shank, Set
For rotary drills/drivers
Order number 2 608 588 069
- HSS-AlTiN Step Drill Bit performs smooth drilling in several diameters with one drill bit
- Pre-punching is not necessary as the split-point tip allows for an easy start
- CNC ground spiral flute enables optimised chip removal and less vibration for even drilling
- Highest cutting smoothness due to axial and radial relief grinding
- AlTiN coating for maximum lifetime, laser-markings for hole diameters, 3-flat shank for high-torque transmission
Materials
3-piece HSS-AlTiN step drill bit set 4-12/4-20/6-30
2 608 588 069
Product Options
Available product options: 1
Expand
|
Part number
|
Version
|
Step diameter (range) mm
|
Shank diameter mm
|
تعيين وصف
|
Pack quantity
|
Availability
|
|---|---|---|---|---|---|---|---|
| 2 608 588 069 | HSS-AlTiN | 4-12; 4-20; 6-30 | 6.0; 8.0; 10.0 | HSS-AlTiN step drill bit: 4-12 mm step diameter; 6 mm shank diameter HSS-AlTiN step drill bit: 4-20 mm step diameter; 8 mm shank diameter HSS-AlTiN step drill bit: 6-30 mm step diameter; 10 mm shank diameter | 3 Pcs | Find a local dealer |
out of products

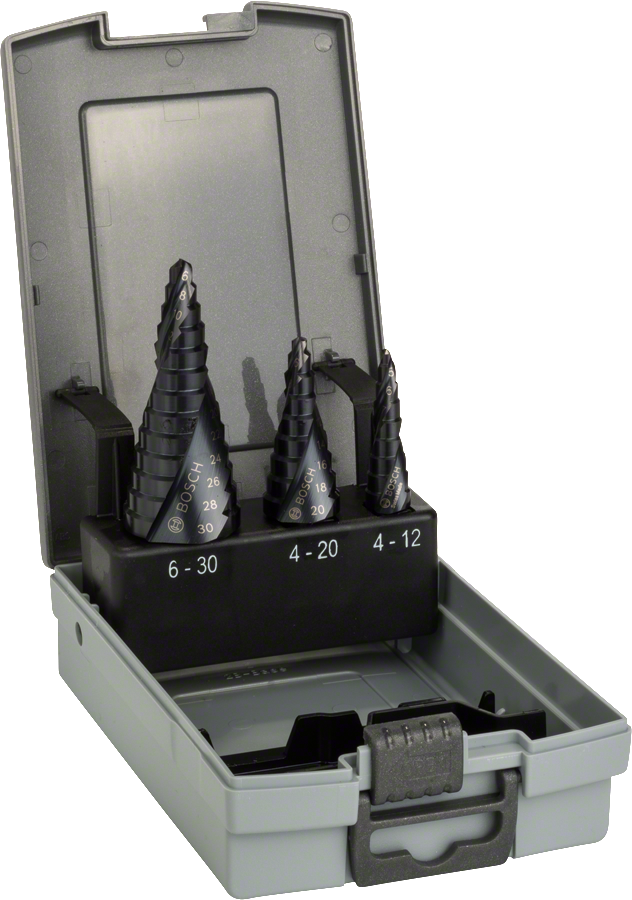

3-piece HSS-AlTiN step drill bit set 4-12/4-20/6-30
Part number 2608588069

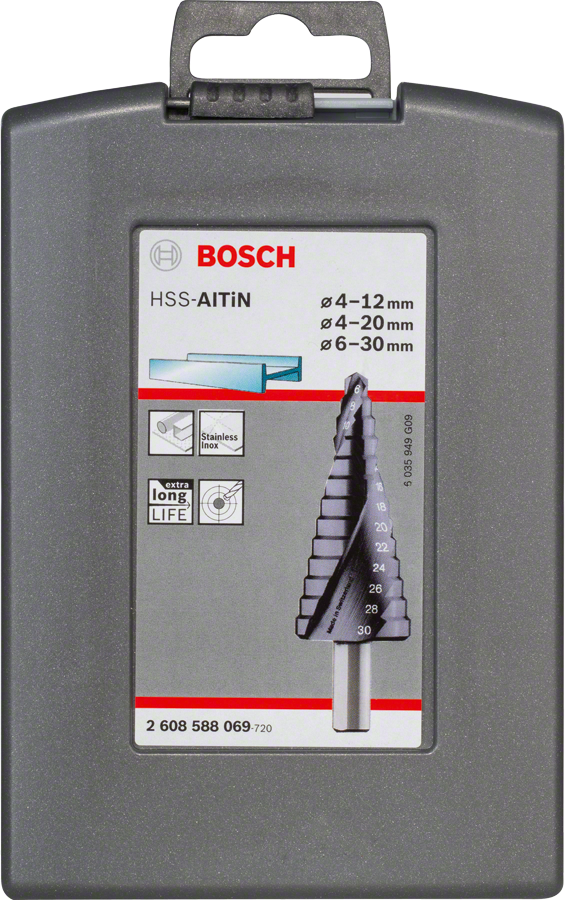

Packaging type
Plastic packaging, cassette, with Euro hole
Pack quantity
3 Pcs
Details
Version
HSS-AlTiN
Step diameter (range) mm
4-12 / 4-20 / 6-30
Shank diameter mm
6.0 / 8.0 / 10.0
تعيين وصف
HSS-AlTiN step drill bit: 4-12 mm step diameter; 6 mm shank diameter
HSS-AlTiN step drill bit: 4-20 mm step diameter; 8 mm shank diameter
HSS-AlTiN step drill bit: 6-30 mm step diameter; 10 mm shank diameter
Step height mm
4 / 4 / 4
Total length mm
66.5 / 70.5 / 93.5
