Metal Drill Bits

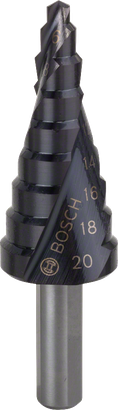

HSS AlTiN Step Drill Bit, 3-Flat Shank

For rotary drills/drivers

HSS AlTiN Step Drill Bit performs smooth drilling in several diameters with one drill bit

  • Pre-punching is not necessary as the split-point tip allows for an easy start
  • CNC ground spiral flute enables optimised chip removal and less vibration for even drilling
  • 3-flat shank prevents slipping in the chuck of rotary drills and drivers

Materials

Metal pipes and profiles
Non-ferrous metals
Aluminium
Plastics
Metal sandwich
Select options

Step diameter (range) mm 4-20

Step height mm 4

Shank diameter mm 8.0

Choose a pack size 1 Pcs

Available product options (5)
Recommended retail price excluding VAT
Find a local dealer

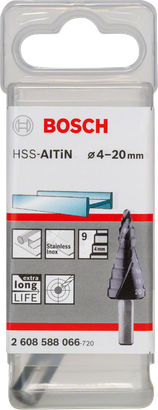

HSS-AlTiN step drill bits 2 608 588 066
Recommended retail price excluding VAT

Smooth Drilling in Several Diameters with One Drill Bit

HSS AlTiN Step Drill Bit performs smooth drilling in several diameters with one drill bit

  • CNC ground spiral flute enables optimised chip removal and less vibration for even drilling
  • Highest cutting smoothness due to axial and radial relief grinding
  • Made of HSS for a long lifetime. Laser-markings for hole diameters.
  • AlTiN coating for maximum lifetime, laser-markings for hole diameters, 3-flat shank for high-torque transmission
View more

Product Options

Available product options: 5

Part number Version Step diameter (range) mm Step height mm Shank diameter mm Pack quantity Price
2 608 588 064 HSS-AlTiN 4-12 4 6.0 1 Pcs Find a local dealer
2 608 588 065 HSS-AlTiN 4-12 4 6.0 1 Pcs Find a local dealer
2 608 588 066 HSS-AlTiN 4-20 4 8.0 1 Pcs Find a local dealer
2 608 588 067 HSS-AlTiN 6-30 4 10.0 1 Pcs Find a local dealer
2 608 588 068 HSS-AlTiN 6-39 4 10.0 1 Pcs Find a local dealer
