HSS AlTiN Step Drill Bit, 3-Flat Shank
For rotary drills/drivers

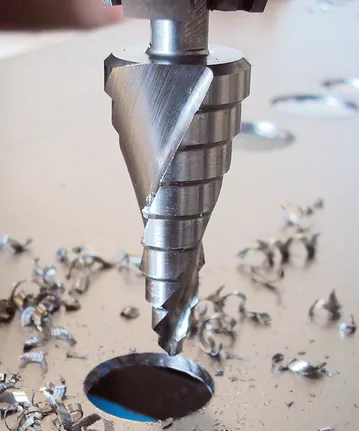

- HSS AlTiN Step Drill Bit performs smooth drilling in several diameters with one drill bit
- Pre-punching is not necessary as the split-point tip allows for an easy start
- CNC ground spiral flute enables optimised chip removal and less vibration for even drilling
- Highest cutting smoothness due to axial and radial relief grinding
- Made of HSS for a long lifetime. Laser-markings for hole diameters.
- AlTiN coating for maximum lifetime, laser-markings for hole diameters, 3-flat shank for high-torque transmission
- 3-flat shank prevents slipping in the chuck of rotary drills and drivers
Materials
Select options
Step diameter (range) mm
Step height mm
Shank diameter mm
Choose a pack size
HSS AlTiN Step Drill Bit, 3-Flat Shank
Product Options
Available product options: 2
Expand
|
Part number
|
Version
|
Step diameter (range) mm
|
Step height mm
|
Shank diameter mm
|
Pack quantity
|
Availability
|
|---|---|---|---|---|---|---|---|
| 2 608 588 071 | HSS-AlTiN | M10-M40 | 6/4 | 10.0 | 1 Pcs | Find a local dealer | |
| 2 608 588 072 | HSS-AlTiN | 6-37 | 4 | 10.0 | 1 Pcs | Find a local dealer |
out of products
HSS-AlTiN step drill bits

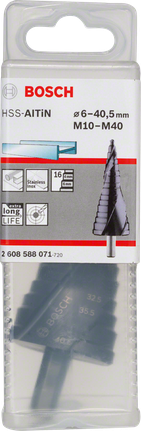

Part number 2608588071
Packaging type
Plastic packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Version
HSS-AlTiN
Step diameter (range) mm
M10-M40
Step height mm
6/4
Shank diameter mm
10.0
Total length mm
125.5
HSS-AlTiN step drill bits

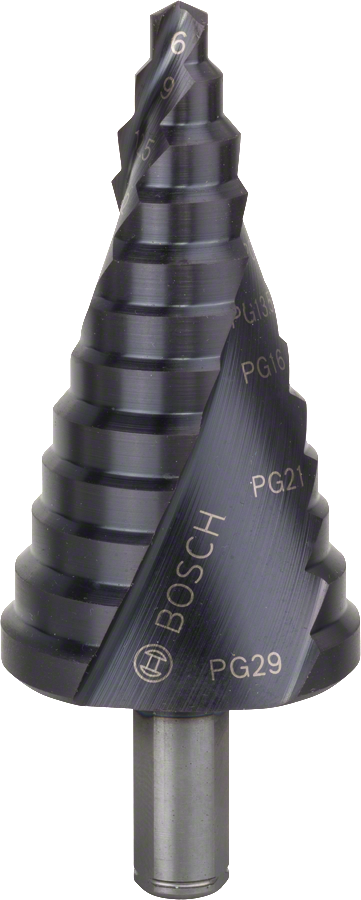

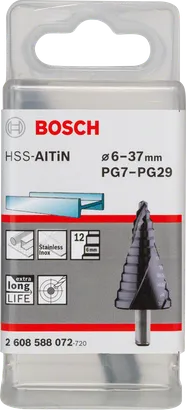

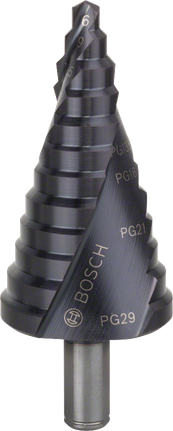

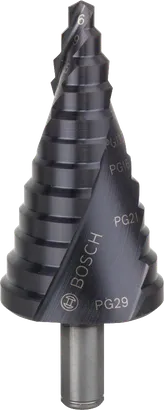

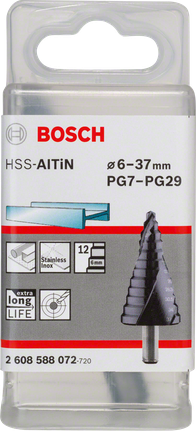

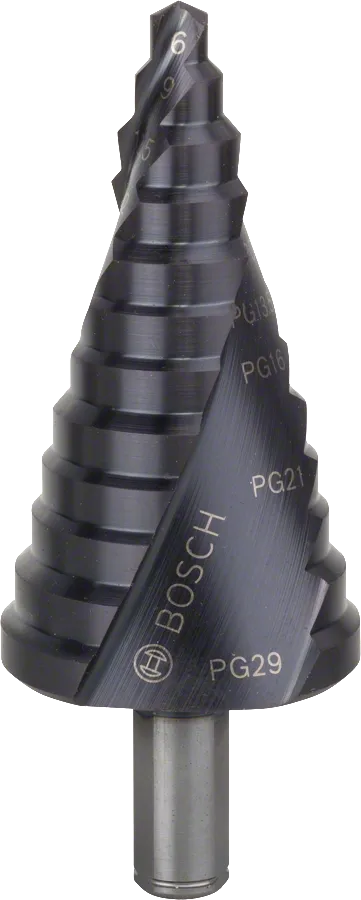

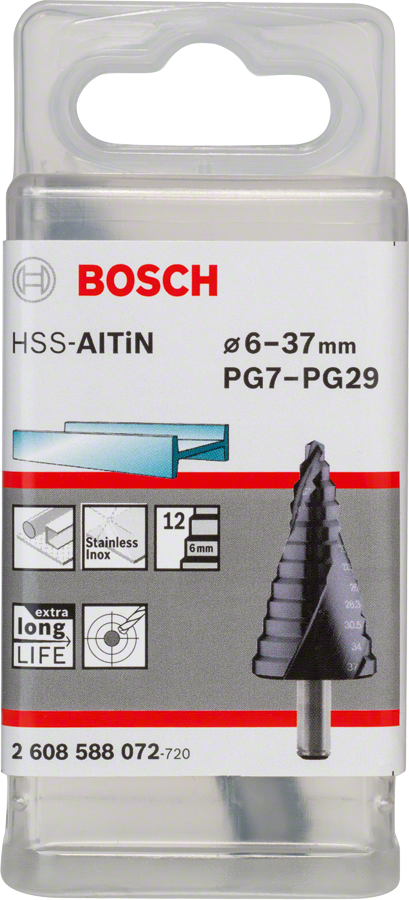

Part number 2608588072
Packaging type
Plastic packaging, box, with Euro hole
Pack quantity
1 Pcs
Details
Version
HSS-AlTiN
Step diameter (range) mm
6-37
Step height mm
4
Shank diameter mm
10.0
Total length mm
93.0
