1/8

HSS Twist Drill Bit PointTeQ with hex shank

For rotary drills/drivers, For impact drill/drivers

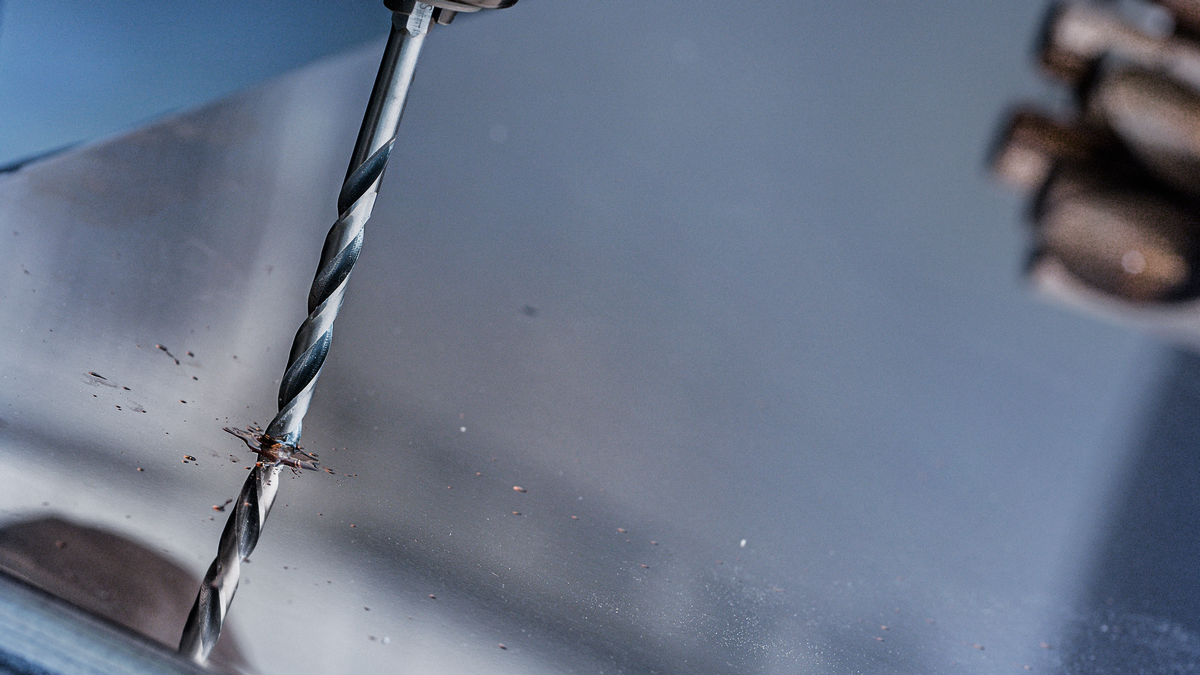

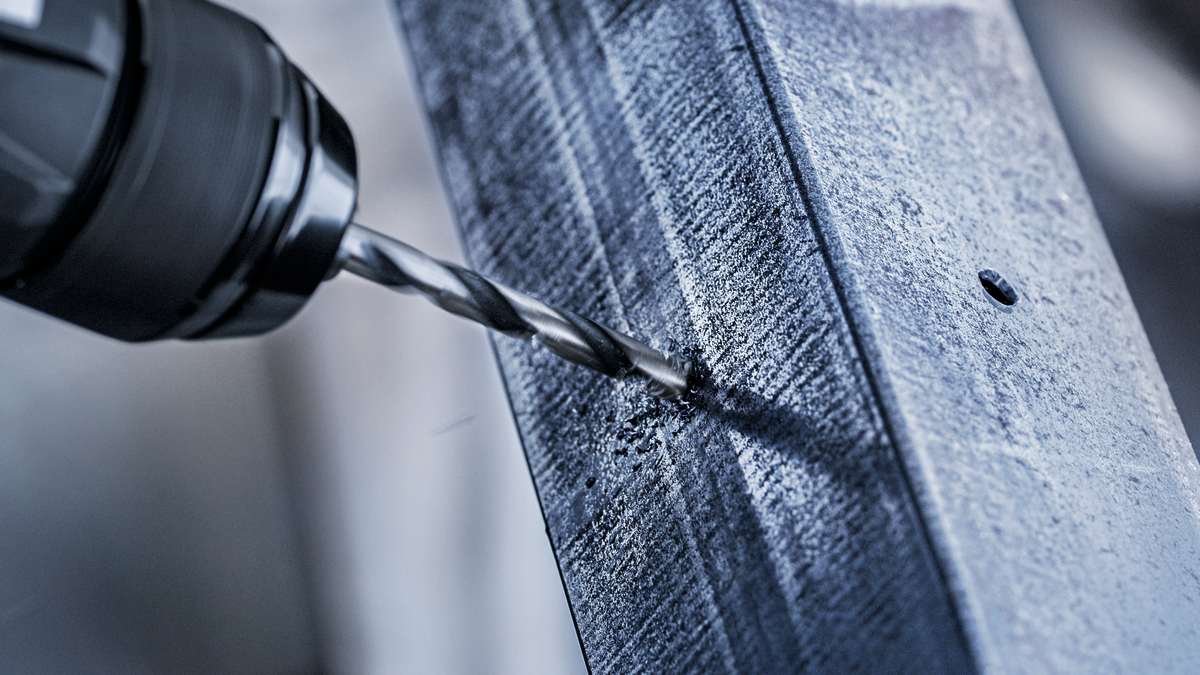

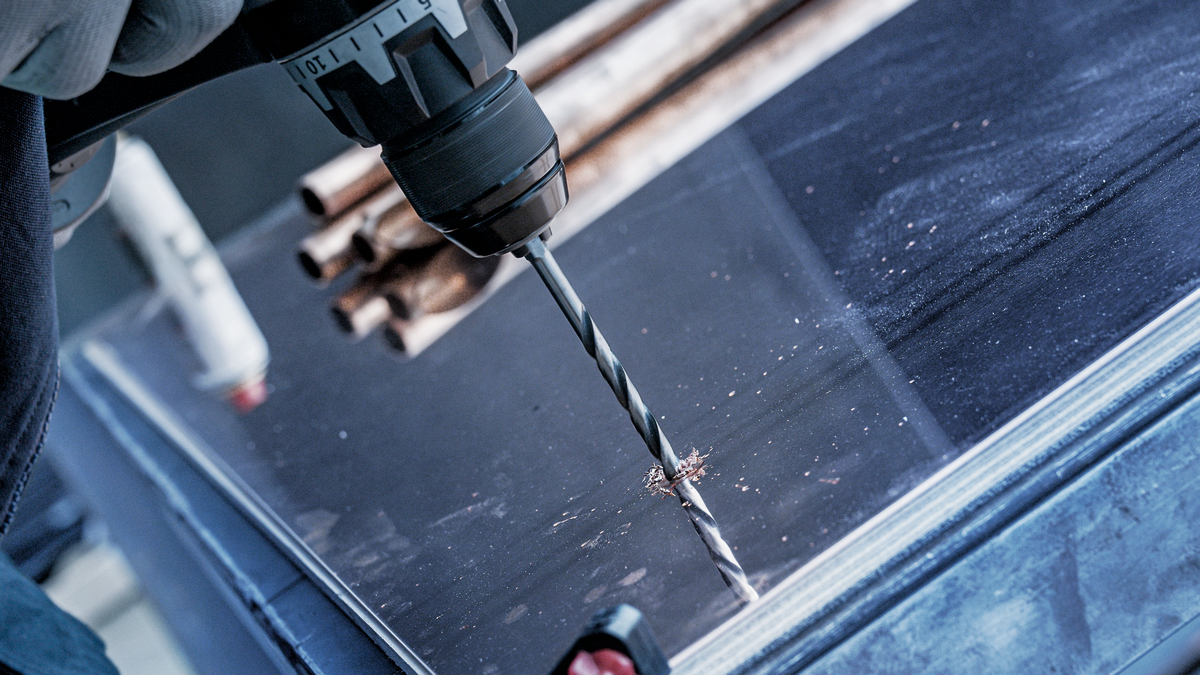

HSS Twist Drill Bit PointTeQ with hex shank is ideal for fast results when drilling in metal

  • High-speed drilling rates reduce heat generation and bit wear; PointTeQ tip ensures continual sharpness and durability

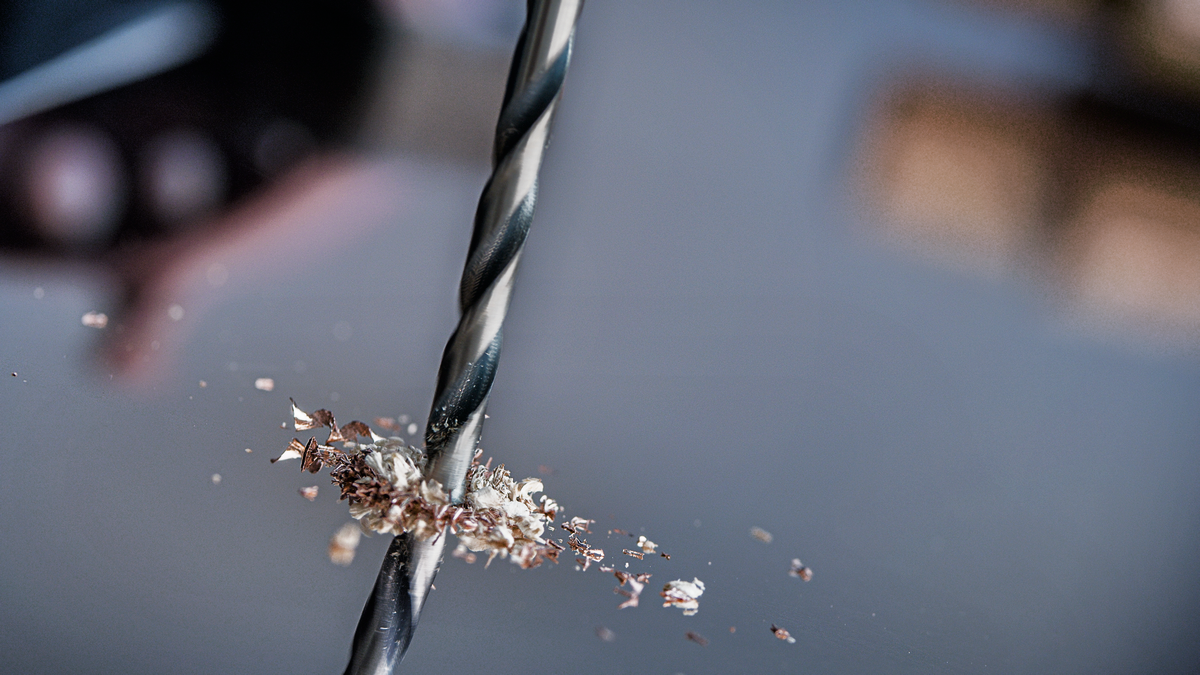

  • Self-centring tip prevents wandering for quick drilling starts; black-oxide-coated flute provides fast chip removal
  • Hex shank for a strong connection and maximum torque transmission in three-jaw chucks and ¼" internal hex tool holders

Materials

Steel
Cast iron

Select options

Diameter (D) mm
Working length mm
Total length mm
Choose a pack size
Select options

Diameter (D) mm 21 options

Working length mm 16 options

Total length mm 16 options

Choose a pack size 3 options

Available product options (31)
Find a local dealer
HSS Twist Drill Bit PointTeQ with hex shank
Find a local dealer
For rotary drills/drivers, For impact drill/drivers

Fits tools of most brands

imageAlt
imageAlt
imageAlt

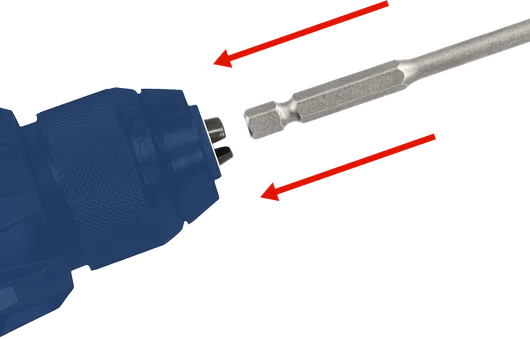

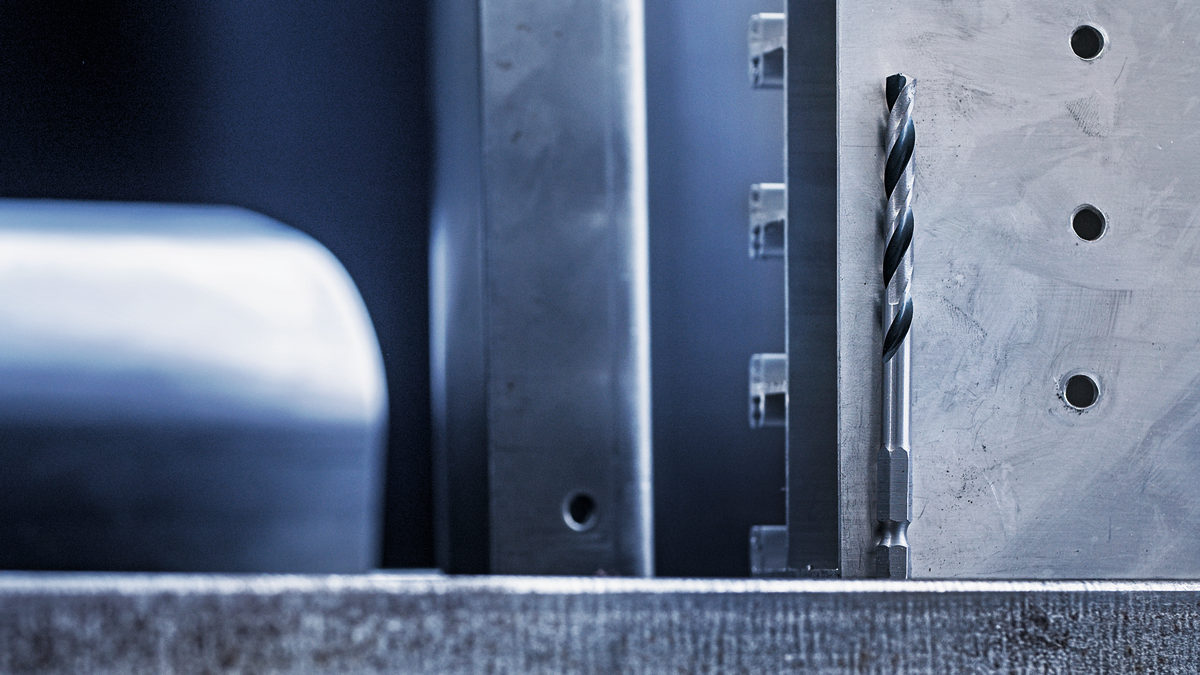

Hex shank for a strong connection and maximum torque transmission in three-jaw chucks and ¼" internal hex tool holders

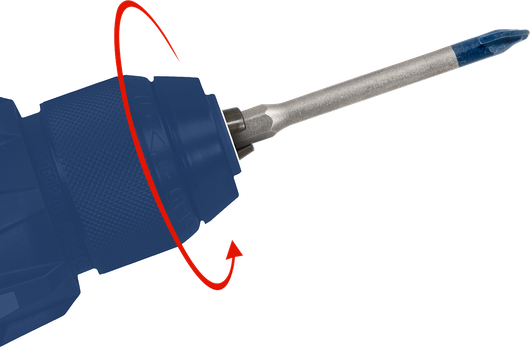

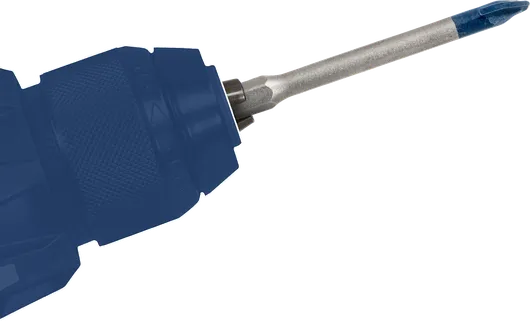

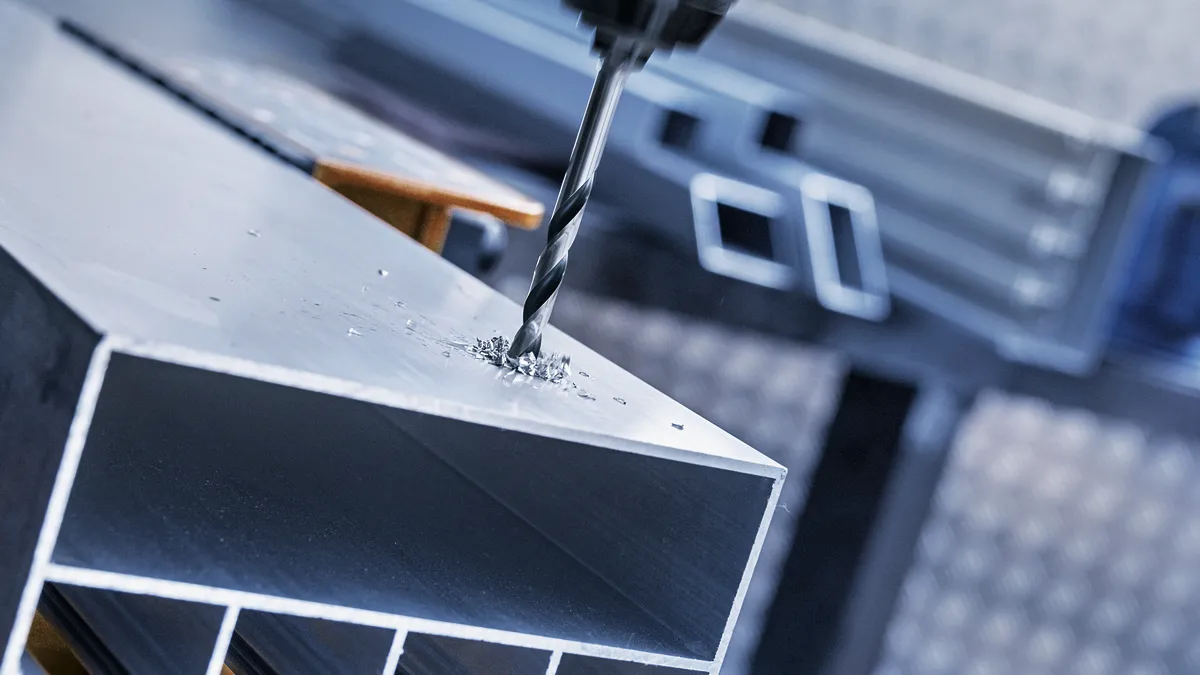

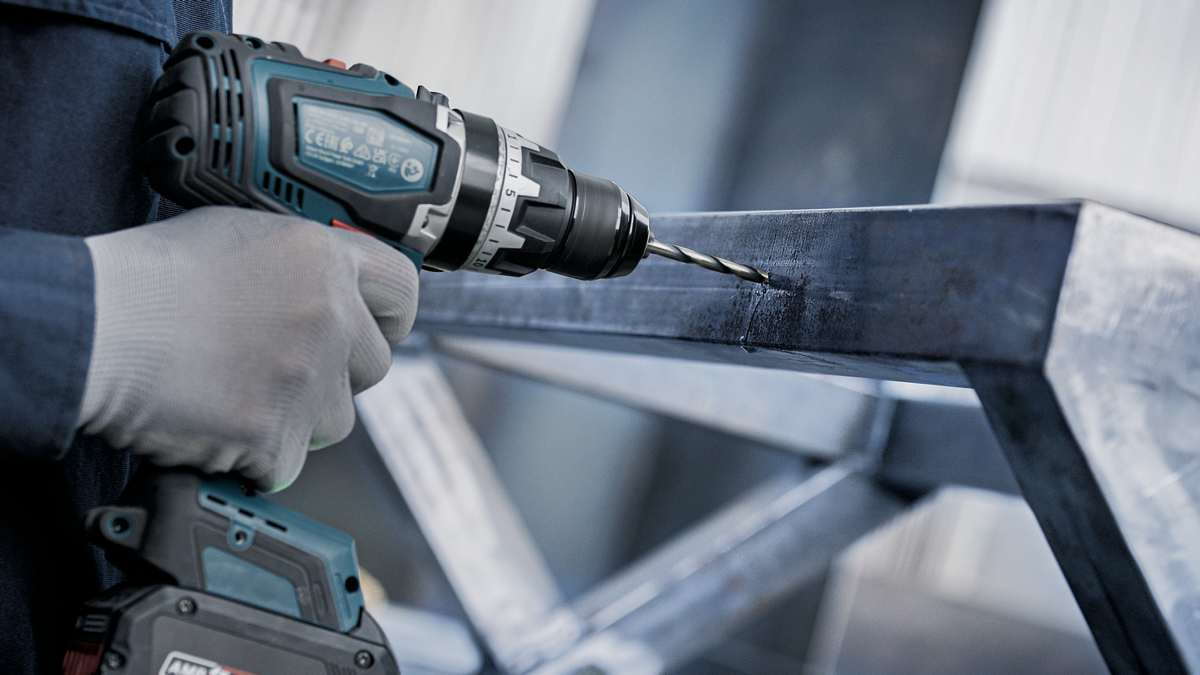

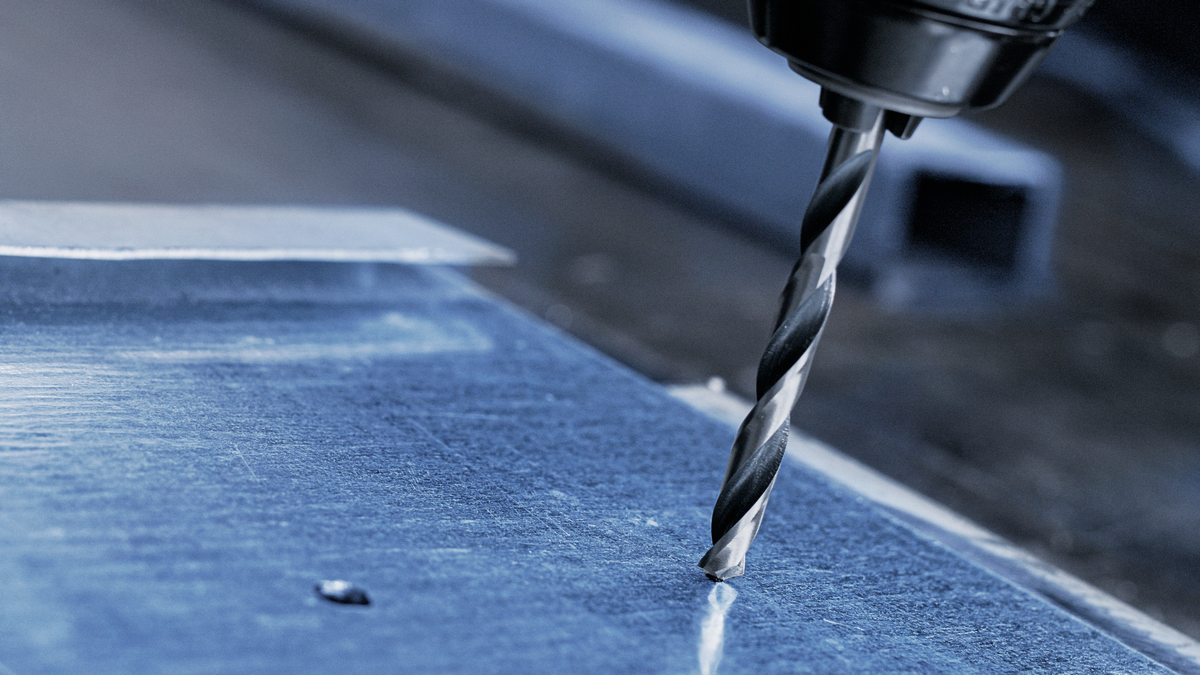

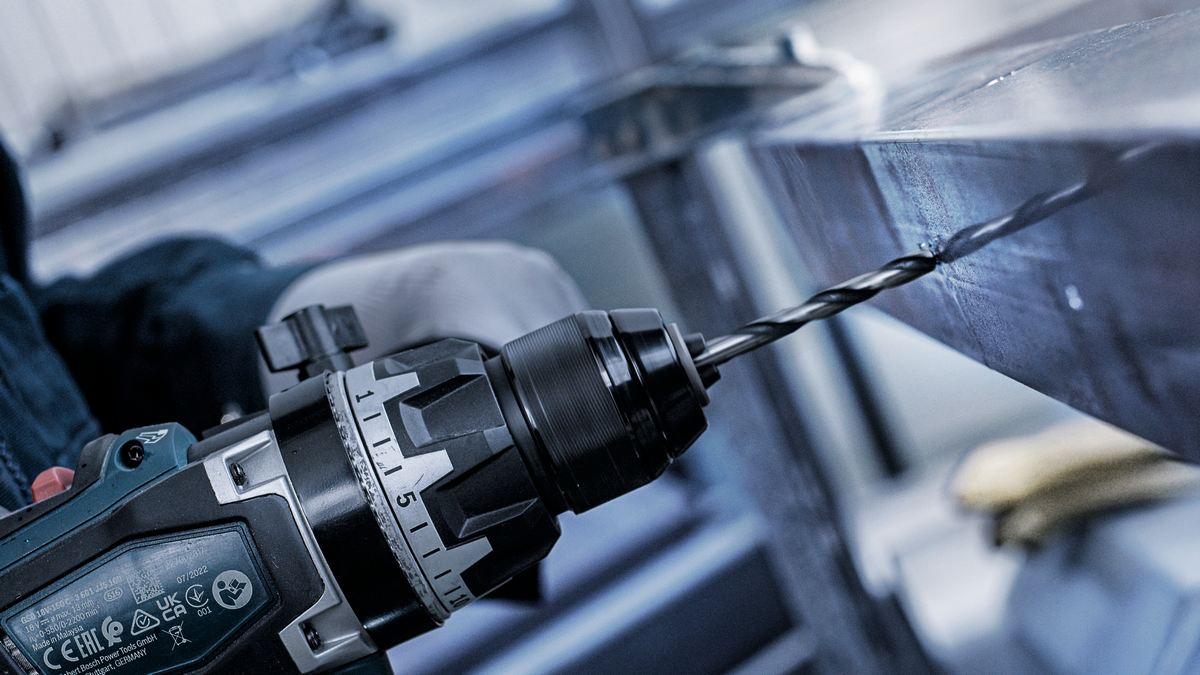

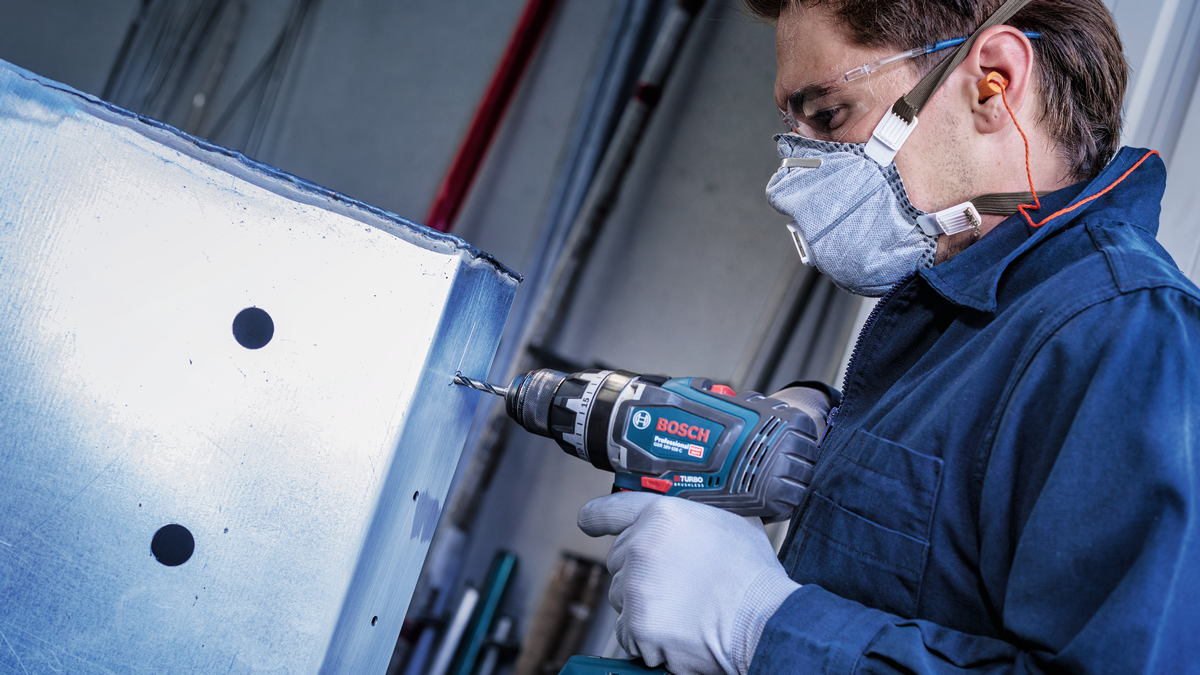

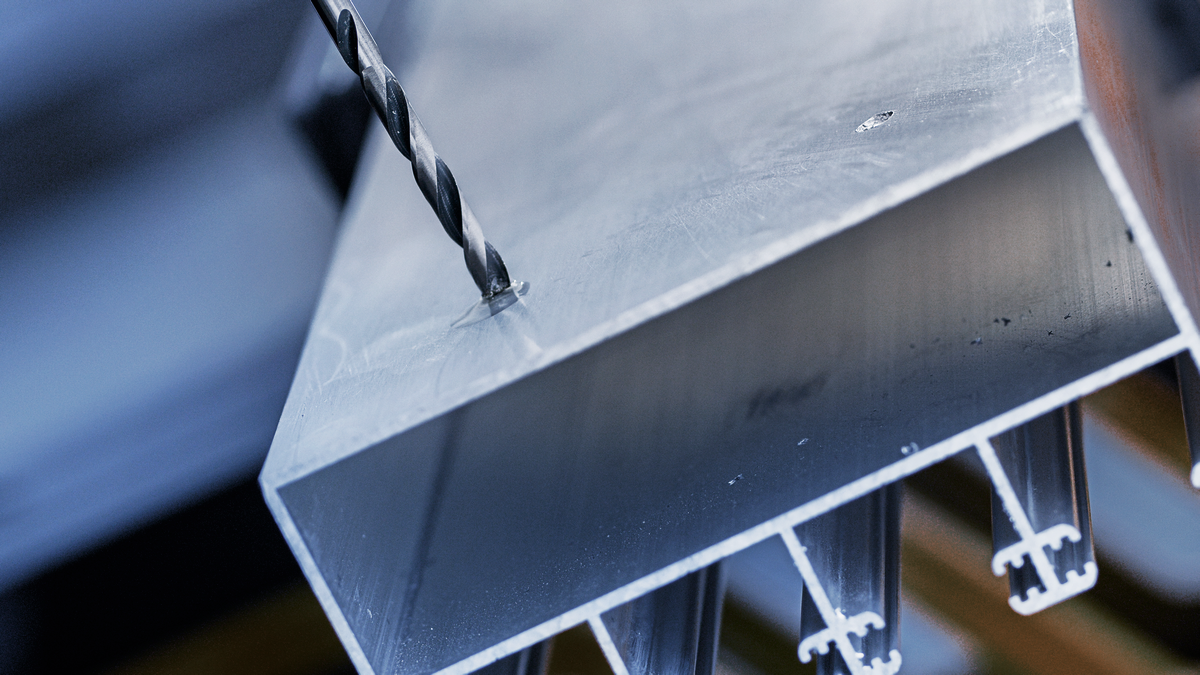

Fast Drilling in Metal

HSS Twist Drill Bit PointTeQ with hex shank is ideal for fast results when drilling in metal

  • Self-centring tip prevents wandering for quick drilling starts; black-oxide-coated flute provides fast chip removal
  • Hex shank ensures a firm connection between bit and drill, and strengthens bit´s body for reduced risk of breakage
  • Split-point tip for active cutting and perfect centring; Type N (flute angle) with 135° tip, DIN 338
View more

Product Options

Available product options: 31

Part number Diameter (D) mm Working length mm Total length mm Pack quantity
2 608 577 517 2.00 24 60 1 Pcs Find a local dealer
2 608 577 518 2.50 30 69 1 Pcs Find a local dealer
2 608 577 519 3.00 33 72 1 Pcs Find a local dealer
2 608 577 520 3.20 36 75 1 Pcs Find a local dealer
2 608 577 522 3.50 39 79 1 Pcs Find a local dealer
2 608 577 523 4.00 43 83 1 Pcs Find a local dealer
2 608 577 524 4.20 43 83 1 Pcs Find a local dealer
2 608 577 525 4.50 47 87 1 Pcs Find a local dealer
2 608 577 526 5.00 52 91 1 Pcs Find a local dealer
2 608 577 527 5.50 57 98 1 Pcs Find a local dealer

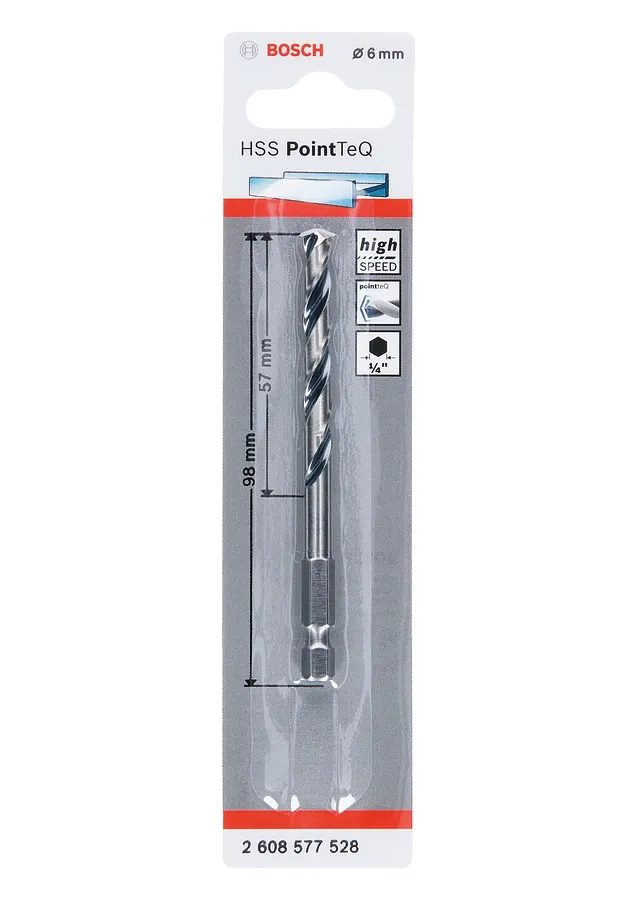

2 608 577 528 6.00 57 98 1 Pcs Find a local dealer
2 608 577 529 6.50 63 107 1 Pcs Find a local dealer
2 608 577 531 7.00 69 109 1 Pcs Find a local dealer
2 608 577 532 7.50 69 109 1 Pcs Find a local dealer
2 608 577 533 8.00 75 117 1 Pcs Find a local dealer
2 608 577 534 8.50 75 117 1 Pcs Find a local dealer
2 608 577 535 9.00 81 125 1 Pcs Find a local dealer
2 608 577 536 9.50 81 125 1 Pcs Find a local dealer
2 608 577 537 10.00 87 133 1 Pcs Find a local dealer
2 608 577 538 11.00 94 142 1 Pcs Find a local dealer
2 608 577 539 12.00 101 151 1 Pcs Find a local dealer
2 608 577 540 2.00 24 60 10 Pcs Find a local dealer

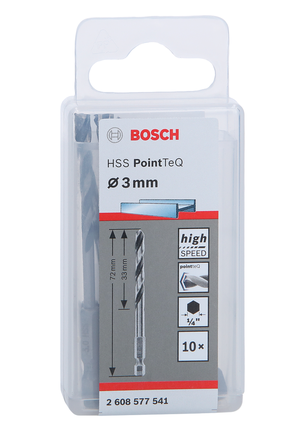

2 608 577 541 3.00 33 72 10 Pcs Find a local dealer

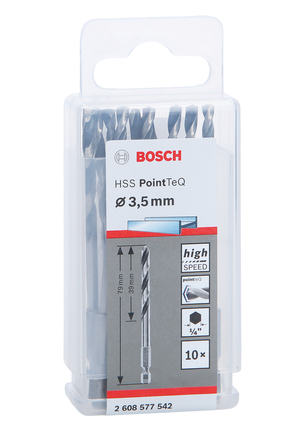

2 608 577 542 3.50 39 79 10 Pcs Find a local dealer

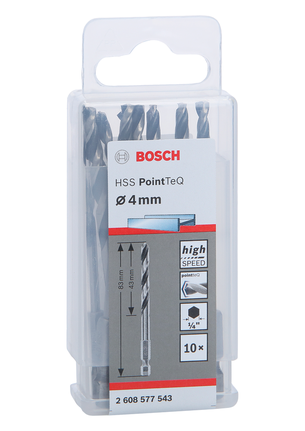

2 608 577 543 4.00 43 83 10 Pcs Find a local dealer
2 608 577 544 4.20 43 83 10 Pcs Find a local dealer
2 608 577 545 5.00 52 91 10 Pcs Find a local dealer

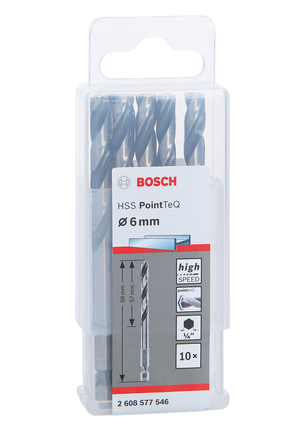

2 608 577 546 6.00 57 98 10 Pcs Find a local dealer
2 608 577 547 8.00 75 117 5 Pcs Find a local dealer
2 608 577 548 10.00 87 133 5 Pcs Find a local dealer

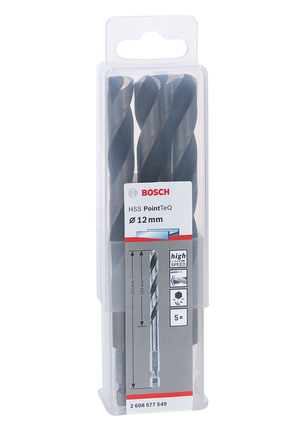

2 608 577 549 12.00 101 151 5 Pcs Find a local dealer
