PRO
PRO Router Bit Mixed Set, 30 pcs
For hand-held routers, For trim routers
Order number 2 607 017 475
- Precision routing wood
- High-quality carbide cutters deliver clean and precise cuts
- Laser markings showing technical details and the minimum insertion depth for easier router bit installation
- Improved geometry of the cutting edge prevents kickback
Materials
Select options
PRO Router Bit Mixed Set, Shank 8 mm, 30 pcs
2 607 017 475
PRO Router Bit Set for Precision routing wood
When you work on routing tasks every day, a comprehensive set of sharp and long-lasting router bits is essential to get the job done. The PRO Router Bit Mixed Set, 30 pcs, includes router bits for a variety of grooving, trimming, profiling, and jointing applications. We made it for cabinet makers, joiners, carpenters, and all professionals working with routers who want to get precise, clean cuts in softwood, hardwood, and wood composites with ease – time and again.

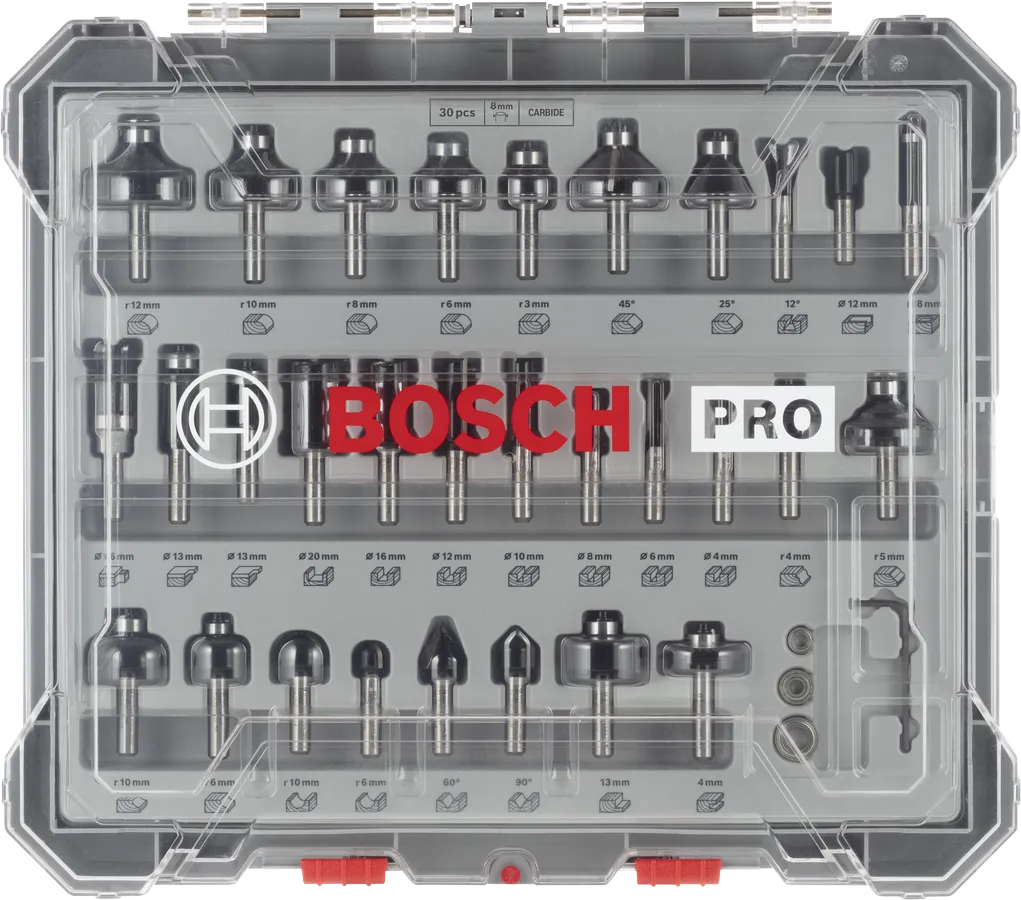

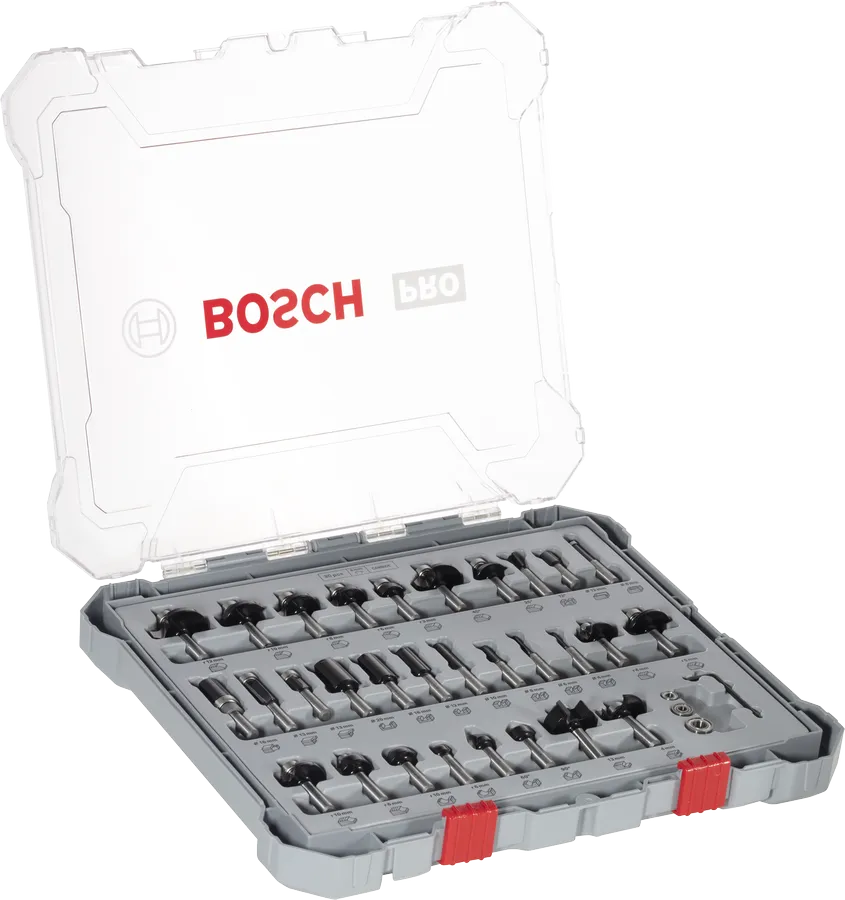

The router bits included in the PRO Router Bit Mixed Set, 30 pcs, have cutters made from high-quality carbide brazed to the steel body for strength, durability, and precision. Straight router bits have an additional cutter at the tip for smooth plunge cuts. The router bit with an extended 30-mm cutting edge allows you to cut extra deep grooves. All router bits have laser markings with safety and technical details to make sure you can find them easily whenever you need. The set comes in a strong plastic case designed to help you remove the bits easier and safer. It includes a hex key and 3 ball bearings – in case you need to replace a worn-out bearing.
Product Options
Available product options: 3
Expand
|
Part number
|
Shank mm
|
Diameter (D) mm
|
Working length (G) mm
|
تعيين وصف
|
Pack quantity
|
Availability
|
|---|---|---|---|---|---|---|---|
| 2 607 017 474 | 6 | 4; 6; 8; 10; 12; 16; 20; 19; 25; 29; 32; 38; 13; 13; 16; 8; 32; 32; 35; 25; 16; 16; 13; 27; 12; 20; 22; 29; 32; 12 | 15; 20; 20; 30; 30; 30; 30; 10; 13; 13; 16; 19; 25; 13; 25; 19; 4; 13; 16; 13; 18; 16; 12; 12; 10; 13; 12; 12; 14; 13 | Included set contents: Router bit types: Straight bit 1 cutter; 3 x Straight bit 2 cutter; 3 x Straight bit 3-cutter; 5 x Rounding over bit; 3 x Flush pattern bit; Pilot panel bit; Slotting cutter; Rebating bit; 2 x Chamfer bit; 2 x V-groove bit; Dovetail bit; Roman ogee bit; 3 x Cove bit; Classical moulding bit; Hinge mortising bit Total length (mm): 50; 54; 50; 60; 60; 60; 60; 51; 55; 55; 58; 60; 65; 52; 65; 60; 50; 54; 56; 54; 50; 48; 49; 52; 43; 45; 54; 54; 54; 42 Working length (mm): 15; 20; 20; 30; 30; 30; 30; 10; 13; 13; 16; 19; 25; 13; 25; 19; 4; 13; 16; 13; 18; 16; 12; 12; 10; 13; 12; 12; 14; 13 Diameter (mm): 4; 6; 8; 10; 12; 16; 20; 19; 25; 29; 32; 38; 13; 13; 16; 8; 32; 32; 35; 25; 16; 16; 13; 27; 12; 20; 22; 29; 32; 12 | 30 Pcs | Find a local dealer | |
| 2 607 017 475 | 8 | 4; 6; 8; 10; 12; 16; 20; 19; 25; 29; 32; 38; 13; 13; 16; 8; 32; 32; 35; 25; 16; 16; 13; 27; 12; 20; 22; 29; 32; 12 | 15; 20; 20; 30; 30; 30; 30; 10; 13; 14; 16; 19; 25; 13; 25; 19; 4; 13; 16; 13; 18; 16; 12; 12; 10; 13; 12; 12; 14; 13 | Included set contents: Router bit types: Straight bit 1 cutter; 3 x Straight bit 2 cutter; 3 x Straight bit 3-cutter; 5 x Rounding over bit; 3 x Flush pattern bit; Pilot panel bit; Slotting cutter; Rebating bit; 2 x Chamfer bit; 2 x V-groove bit; Dovetail bit; Roman ogee bit; 3 x Cove bit; Classical moulding bit; Hinge mortising bit Total length (mm): 50; 54; 50; 60; 60; 60; 60; 51; 55; 55; 58; 60; 65; 52; 65; 60; 50; 54; 56; 54; 50; 48; 49; 52; 43; 45; 54; 54; 54; 42 Working length (mm): 15; 20; 20; 30; 30; 30; 30; 10; 13; 14; 16; 19; 25; 13; 25; 19; 4; 13; 16; 13; 18; 16; 12; 12; 10; 13; 12; 12; 14; 13 Diameter (mm): 4; 6; 8; 10; 12; 16; 20; 19; 25; 29; 32; 38; 13; 13; 16; 8; 32; 32; 35; 25; 16; 16; 13; 27; 12; 20; 22; 29; 32; 12 | 30 Pcs | Find a local dealer | |
| 2 607 017 476 | - | - | - | Included set contents: Router bit types: Straight bit 1 cutter; 3 x Straight bit 2 cutter; 3 x Straight bit 3-cutter; 5 x Rounding over bit; 3 x Flush pattern bit; Pilot panel bit; Slotting cutter; Rebating bit; 2 x Chamfer bit; 2 x V-groove bit; Dovetail bit; Roman ogee bit; 3 x Cove bit; Classical moulding bit; Hinge mortising bit Total length (inches): 1 31/32; 2 1/8; 1 31/32; 2 11/64; 2 23/64; 2 23/64; 2 23/64; 2 1/64; 2 11/64; 2 11/64; 2 9/32; 2 23/64; 2 9/16; 2 3/64; 2 9/16; 2 23/64; 1 31/32; 2 1/8; 2 13/64; 2 1/8; 1 31/32; 1 57/64; 1 59/64; 2 3/64; 1 11/16; 1 49/64; 2 1/8; 2 1/8; 2 1/8; 1 21/32 Working length (inches): 19/32; 25/32; 25/32; 1; 1 3/16; 1 3/16; 1 3/16; 3/8; 1/2; 9/16; 5/8; 3/4; 1; 1/2; 1; 3/4; 5/32; 1/2; 5/8; 1/2; 11/16; 5/8; 1/2; 1/2; 3/8; 1/2; 1/2; 1/2; 9/16; 1/2 Diameter (inches); 5/32; 1/4; 5/16; 3/8; 1/2; 5/8; 3/4; 3/4; 1; 1 1/8; 1 1/4; 1 1/2; 1/2; 1/2; 5/8; 5/16; 1 1/4; 1 1/4; 1 3/8; 1; 5/8; 5/8; 9/16; 1 1/16; 1/2; 3/4; 7/8; 1 1/8; 1 1/4; 1/2 | 30 Pcs | Find a local dealer |
out of products
PRO Router Bit Mixed Set, Shank 6 mm, 30 pcs
Part number 2607017474
Packaging type
Plastic packaging, cassette, with Euro hole
Pack quantity
30 Pcs
Details
Shank mm
6
Diameter (D) mm
4 / 6 / 8 / 10 / 12 / 16 / 20 / 19 / 25 / 29 / 32 / 38 / 13 / 13 / 16 / 8 / 32 / 32 / 35 / 25 / 16 / 16 / 13 / 27 / 12 / 20 / 22 / 29 / 32 / 12
Working length (G) mm
15 / 20 / 20 / 30 / 30 / 30 / 30 / 10 / 13 / 13 / 16 / 19 / 25 / 13 / 25 / 19 / 4 / 13 / 16 / 13 / 18 / 16 / 12 / 12 / 10 / 13 / 12 / 12 / 14 / 13
تعيين وصف
Included set contents:

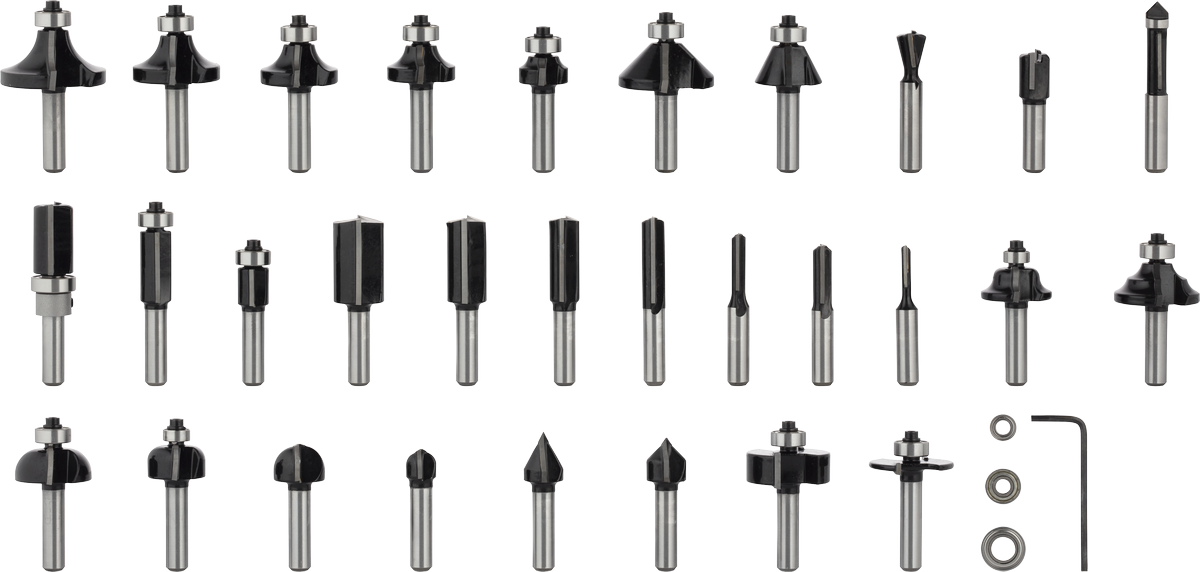

Router bit types: Straight bit 1 cutter; 3 x Straight bit 2 cutter; 3 x Straight bit 3-cutter; 5 x Rounding over bit; 3 x Flush pattern bit; Pilot panel bit; Slotting cutter; Rebating bit; 2 x Chamfer bit; 2 x V-groove bit; Dovetail bit; Roman ogee bit; 3 x Cove bit; Classical moulding bit; Hinge mortising bit
Total length (mm): 50; 54; 50; 60; 60; 60; 60; 51; 55; 55; 58; 60; 65; 52; 65; 60; 50; 54; 56; 54; 50; 48; 49; 52; 43; 45; 54; 54; 54; 42
Working length (mm): 15; 20; 20; 30; 30; 30; 30; 10; 13; 13; 16; 19; 25; 13; 25; 19; 4; 13; 16; 13; 18; 16; 12; 12; 10; 13; 12; 12; 14; 13
Diameter (mm): 4; 6; 8; 10; 12; 16; 20; 19; 25; 29; 32; 38; 13; 13; 16; 8; 32; 32; 35; 25; 16; 16; 13; 27; 12; 20; 22; 29; 32; 12
Type, router bit
Straight bit 1 cutter / Straight bit 2 cutter / Straight bit 2 cutter / Straight bit 2 cutter / Straight bit 3 cutter / Straight bit 3 cutter / Straight bit 3 cutter / Rounding over bit / Rounding over bit / Rounding over bit / Rounding over bit / Rounding over bit / Flush trim bit / Flush trim bit / Flush pattern bit / Pilot panel bit / Slotting cutter / Rebating bit / Chamfer bit / Chamfer bit / V-groove bit / V-groove bit / Dovetail bit / Roman ogee bit / Core box bit / Core box bit / Cove bit / Cove bit / Classical moulding bit / Hinge mortising bit
Total length (G) mm
50 / 54 / 50 / 60 / 60 / 60 / 60 / 51 / 55 / 55 / 58 / 60 / 65 / 52 / 65 / 60 / 50 / 54 / 56 / 54 / 50 / 48 / 49 / 52 / 43 / 45 / 54 / 54 / 54 / 42
Radius (R1) mm
3 / 6 / 8 / 10 / 12 / 4 / 6 / 10 / 6 / 10 / 5
Angle degrees
45 / 25 / 60 / 90 / 12
PRO Router Bit Mixed Set, Shank 8 mm, 30 pcs
Part number 2607017475
Packaging type
Plastic packaging, cassette, with Euro hole
Pack quantity
30 Pcs
Details
Shank mm
8
Diameter (D) mm
4 / 6 / 8 / 10 / 12 / 16 / 20 / 19 / 25 / 29 / 32 / 38 / 13 / 13 / 16 / 8 / 32 / 32 / 35 / 25 / 16 / 16 / 13 / 27 / 12 / 20 / 22 / 29 / 32 / 12
Working length (G) mm
15 / 20 / 20 / 30 / 30 / 30 / 30 / 10 / 13 / 14 / 16 / 19 / 25 / 13 / 25 / 19 / 4 / 13 / 16 / 13 / 18 / 16 / 12 / 12 / 10 / 13 / 12 / 12 / 14 / 13
تعيين وصف
Included set contents:
Router bit types: Straight bit 1 cutter; 3 x Straight bit 2 cutter; 3 x Straight bit 3-cutter; 5 x Rounding over bit; 3 x Flush pattern bit; Pilot panel bit; Slotting cutter; Rebating bit; 2 x Chamfer bit; 2 x V-groove bit; Dovetail bit; Roman ogee bit; 3 x Cove bit; Classical moulding bit; Hinge mortising bit
Total length (mm): 50; 54; 50; 60; 60; 60; 60; 51; 55; 55; 58; 60; 65; 52; 65; 60; 50; 54; 56; 54; 50; 48; 49; 52; 43; 45; 54; 54; 54; 42
Working length (mm): 15; 20; 20; 30; 30; 30; 30; 10; 13; 14; 16; 19; 25; 13; 25; 19; 4; 13; 16; 13; 18; 16; 12; 12; 10; 13; 12; 12; 14; 13
Diameter (mm): 4; 6; 8; 10; 12; 16; 20; 19; 25; 29; 32; 38; 13; 13; 16; 8; 32; 32; 35; 25; 16; 16; 13; 27; 12; 20; 22; 29; 32; 12
Type, router bit
Straight bit 1 cutter / Straight bit 2 cutter / Straight bit 2 cutter / Straight bit 2 cutter / Straight bit 3 cutter / Straight bit 3 cutter / Straight bit 3 cutter / Rounding over bit / Rounding over bit / Rounding over bit / Rounding over bit / Rounding over bit / Flush trim bit / Flush trim bit / Flush pattern bit / Pilot panel bit / Slotting cutter / Rebating bit / Chamfer bit / Chamfer bit / V-groove bit / V-groove bit / Dovetail bit / Roman ogee bit / Core box bit / Core box bit / Cove bit / Cove bit / Classical moulding bit / Hinge mortising bit
Total length (G) mm
50 / 54 / 50 / 60 / 60 / 60 / 60 / 51 / 55 / 55 / 58 / 60 / 65 / 52 / 65 / 60 / 50 / 54 / 56 / 54 / 50 / 48 / 49 / 52 / 43 / 45 / 54 / 54 / 54 / 42
Radius (R1) mm
3 / 6 / 8 / 10 / 12 / 4 / 6 / 10 / 6 / 10 / 5
Angle degrees
45 / 25 / 60 / 90 / 12
PRO Router Bit Mixed Set, Shank 1/4″, 30 pcs
Part number 2607017476
Packaging type
Plastic packaging, cassette, with Euro hole
Pack quantity
30 Pcs
Details
Shank mm
-
Diameter (D) mm
-
Working length (G) mm
-
تعيين وصف
Included set contents:
Router bit types: Straight bit 1 cutter; 3 x Straight bit 2 cutter; 3 x Straight bit 3-cutter; 5 x Rounding over bit; 3 x Flush pattern bit; Pilot panel bit; Slotting cutter; Rebating bit; 2 x Chamfer bit; 2 x V-groove bit; Dovetail bit; Roman ogee bit; 3 x Cove bit; Classical moulding bit; Hinge mortising bit
Total length (inches): 1 31/32; 2 1/8; 1 31/32; 2 11/64; 2 23/64; 2 23/64; 2 23/64; 2 1/64; 2 11/64; 2 11/64; 2 9/32; 2 23/64; 2 9/16; 2 3/64; 2 9/16; 2 23/64; 1 31/32; 2 1/8; 2 13/64; 2 1/8; 1 31/32; 1 57/64; 1 59/64; 2 3/64; 1 11/16; 1 49/64; 2 1/8; 2 1/8; 2 1/8; 1 21/32
Working length (inches): 19/32; 25/32; 25/32; 1; 1 3/16; 1 3/16; 1 3/16; 3/8; 1/2; 9/16; 5/8; 3/4; 1; 1/2; 1; 3/4; 5/32; 1/2; 5/8; 1/2; 11/16; 5/8; 1/2; 1/2; 3/8; 1/2; 1/2; 1/2; 9/16; 1/2
Diameter (inches); 5/32; 1/4; 5/16; 3/8; 1/2; 5/8; 3/4; 3/4; 1; 1 1/8; 1 1/4; 1 1/2; 1/2; 1/2; 5/8; 5/16; 1 1/4; 1 1/4; 1 3/8; 1; 5/8; 5/8; 9/16; 1 1/16; 1/2; 3/4; 7/8; 1 1/8; 1 1/4; 1/2
Type, router bit
Straight bit 1 cutter / Straight bit 2 cutter / Straight bit 2 cutter / Straight bit 2 cutter / Straight bit 3 cutter / Straight bit 3 cutter / Straight bit 3 cutter / Rounding over bit / Rounding over bit / Rounding over bit / Rounding over bit / Rounding over bit / Flush trim bit / Flush trim bit / Flush pattern bit / Pilot panel bit / Slotting cutter / Rebating bit / Chamfer bit / Chamfer bit / V-groove bit / V-groove bit / Dovetail bit / Roman ogee bit / Core box bit / Core box bit / Cove bit / Cove bit / Classical moulding bit / Hinge mortising bit
Angle degrees
45 / 25 / 60 / 90 / 12
Shank Inch
1/4
Diameter (D) Inch
5/32 / 1/4 / 5/16 / 3/8 / 1/2 / 5/8 / 3/4 / 3/4 / 1 / 1 1/8 / 1 1/4 / 1 1/2 / 1/2 / 1/2 / 5/8 / 5/16 / 1 1/4 / 1 1/4 / 1 3/8 / 1 / 5/8 / 5/8 / 9/16 / 1 1/16 / 1/2 / 3/4 / 7/8 / 1 1/8 / 1 1/4 / 1/2
Working length (G) Inch
19/32 / 25/32 / 25/32 / 1 / 1 3/16 / 1 3/16 / 1 3/16 / 3/8 / 1/2 / 9/16 / 5/8 / 3/4 / 1 / 1/2 / 1 / 3/4 / 5/32 / 1/2 / 5/8 / 1/2 / 11/16 / 5/8 / 1/2 / 1/2 / 3/8 / 1/2 / 1/2 / 1/2 / 9/16 / 1/2
Total length (G) Inch
1 31/32 / 2 1/8 / 1 31/32 / 2 11/64 / 2 23/64 / 2 23/64 / 2 23/64 / 2 1/64 / 2 11/64 / 2 11/64 / 2 9/32 / 2 23/64 / 2 9/16 / 2 3/64 / 2 9/16 / 2 23/64 / 1 31/32 / 2 1/8 / 2 13/64 / 2 1/8 / 1 31/32 / 1 57/64 / 1 59/64 / 2 3/64 / 1 11/16 / 1 49/64 / 2 1/8 / 2 1/8 / 2 1/8 / 1 21/32
Radius (R1) Inch
1/8 / 1/4 / 5/16 / 3/8 / 1/2 / 5/32 / 1/4 / 3/8 / 1/4 / 3/8 / 3/16
