Shears
![GSC 2,8]( "GSC 2,8")

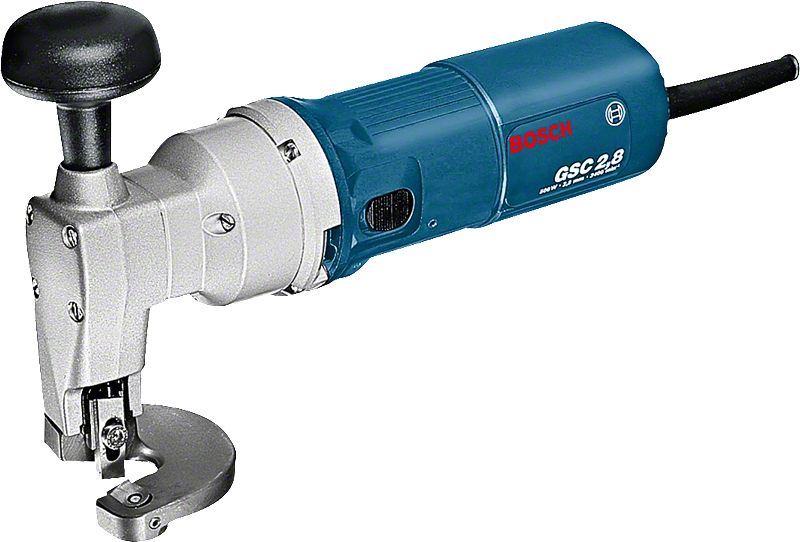

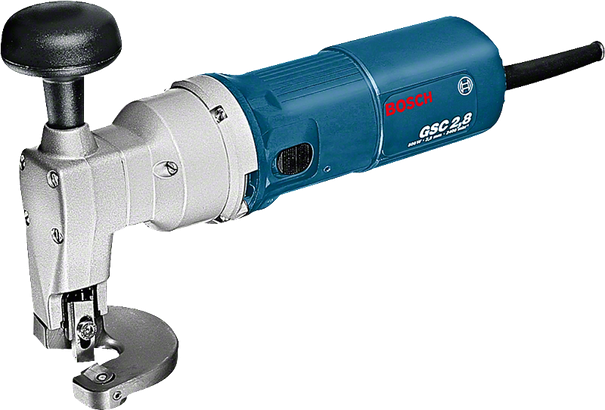

GSC 2,8 Professional
Shear
The slim tool with reversible blade
- Slim design with planetary gears
- Reversible blade for particularly high economic efficiency
- Knob grip for comfortable and safe guidance
Functions & key features
with accessory set, Accessory
0 601 506 142
Select a variant
Your Selection
with accessory set, Accessory
Order number: 0 601 506 142
Find a local dealerIncluded in all variants
-
1 x blade set for metal shearOrder number: 2 607 010 025
-
Hex key WAF 5 (spare part number 1 907 950 006)
-
Hex key WAF 2.5 (spare part number 1 907 950 003)
-
Alignment gauge (spare part number 2 607 970 001)
Additional in this variant
-
Voltage 240 V
Your Selection
with accessory set
Order number: 0 601 506 103
Find a local dealerIncluded in all variants
-
1 x blade set for metal shearOrder number: 2 607 010 025
-
Hex key WAF 5 (spare part number 1 907 950 006)
-
Hex key WAF 2.5 (spare part number 1 907 950 003)
-
Alignment gauge (spare part number 2 607 970 001)
Technical data
Additional data |
|
|---|---|
| Cutting capacity in steel (400 N/mm²), max. | 2.8 mm |
| No-load stroke rate | 2,400 spm |
| Voltage | 240 V |
| Material that can be processed | Steel up to 400 N/mm² at 2.8 mm |
| Smallest radius | 38 mm |
| Stroke rate under load | 1,500 spm |
| Weight | 2.7 kg |
| Cutting capacity in steel (600 N/mm²), max. | 2.2 mm |
| Cutting capacity in steel (800 N/mm²), max. | 1.9 mm |
| Cutting capacity in aluminium (200 N/mm²), max. | 3.5 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 79 dB(A); Sound power level 90 dB(A). Uncertainty K= 3 dB.
