Standard for Universal Diamond Dry Core Cutter Set

For diamond drills

Order number 2 608 587 007

Reliable Drilling in Masonry

Standard for Universal Diamond Dry Core Cutter delivers reliable drilling in masonry
Segments are laser-welded to ensure durability
Fits 1/2-inch threaded diamond drills

Materials

Select options

Diameter mm

Working length mm

Choose a pack size

Selected variant

Find a local dealer

Available product options(1)

Your Selected Variant

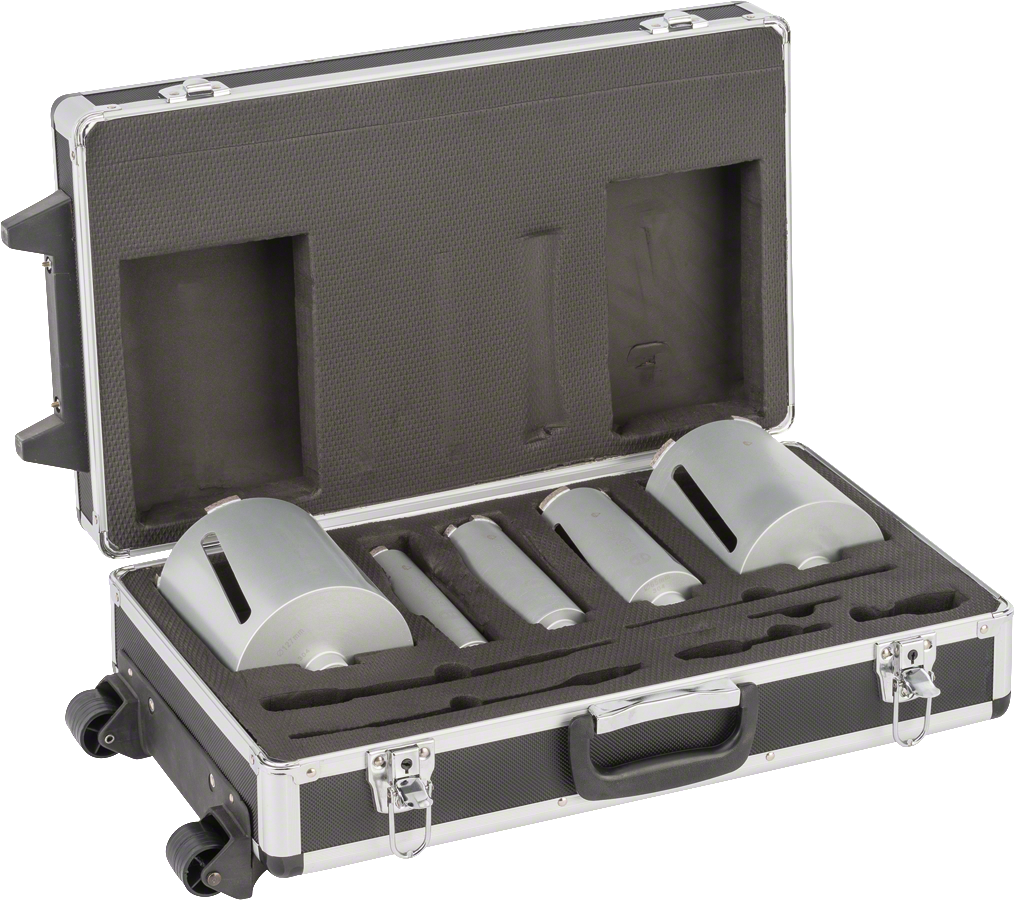

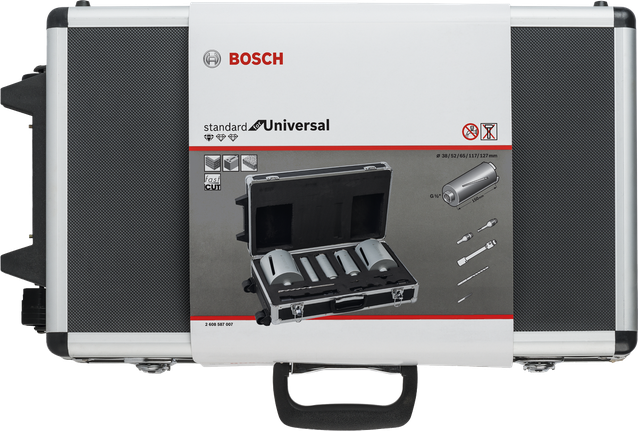

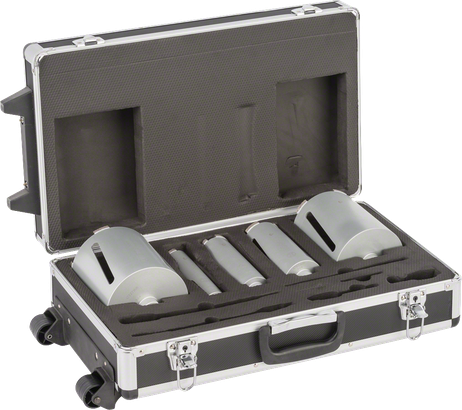

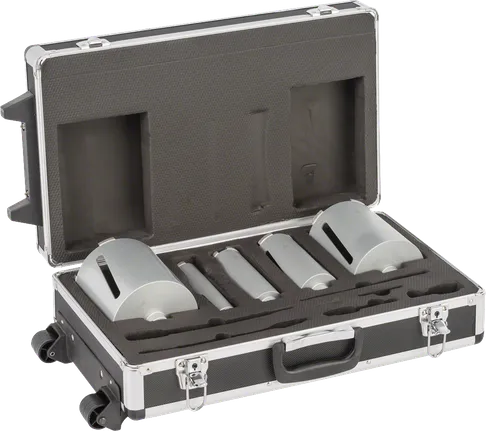

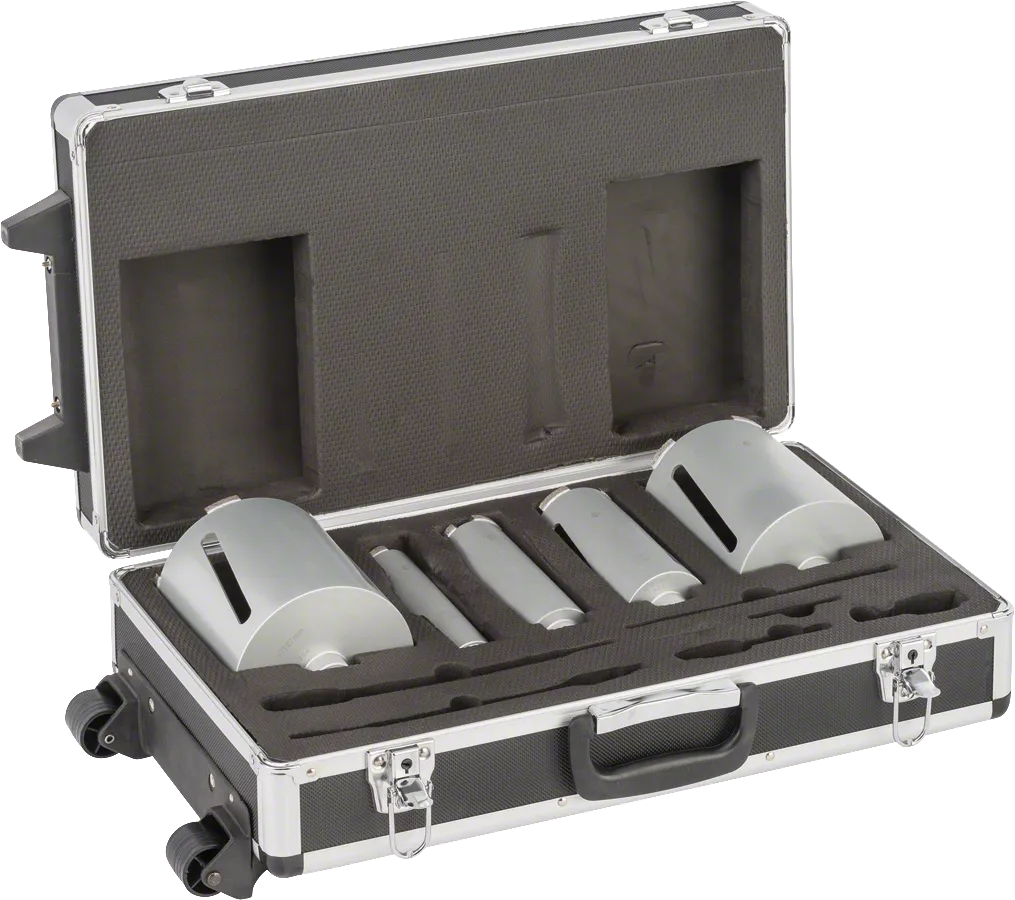

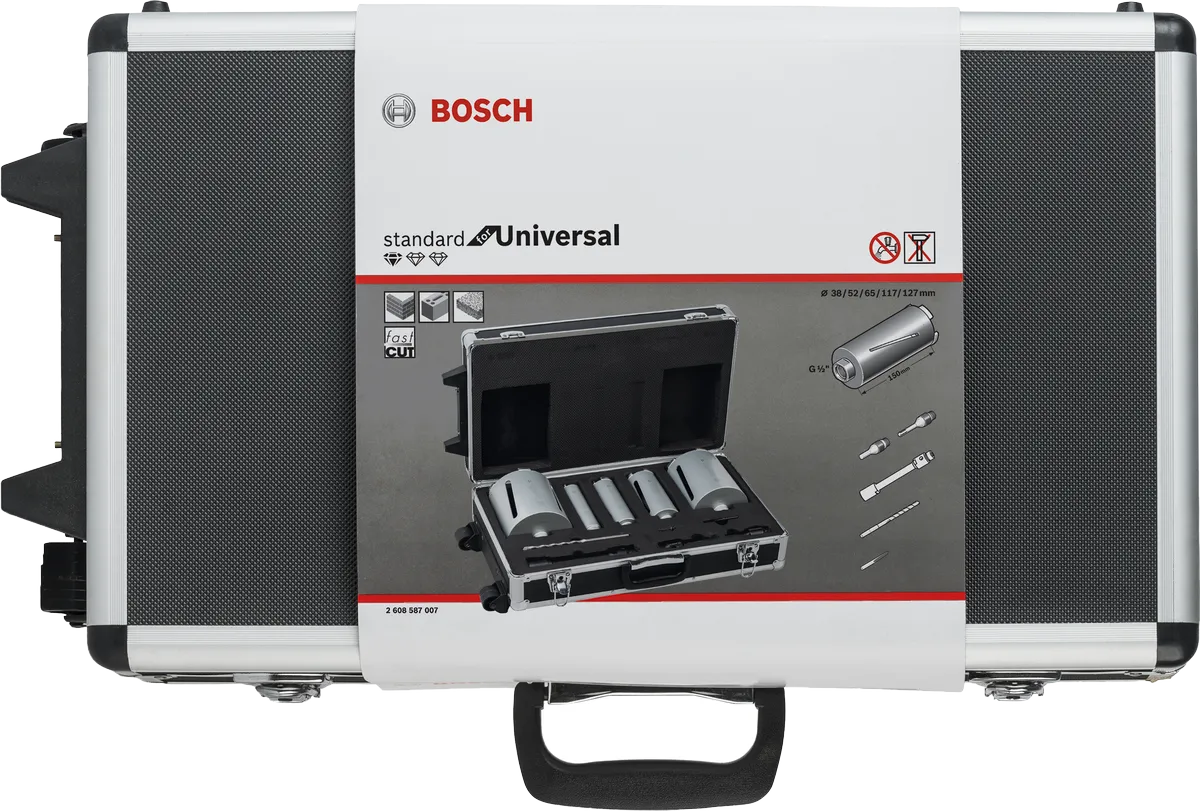

Bosch 5-piece diamond dry core cutter set in case.

Your Selected Variant

5-piece diamond dry core cutter set G 1/2" 38 - 127 mm 2 608 587 007

Find a local dealer

Product Options

Available product options: 1

Expand	Part number	Diameter mm	Working length mm	Number of segments	Segment height mm	Pack quantity	Availability
	2 608 587 007	38; 52; 65; 117; 127	150	4	7.0	5 Pcs	Find a local dealer

out of products

Frequently asked questions

Interface

Which power tool works best with a diamond core cutter?

We recommend any hammer and drilling machine with a power of 1300W or more.

Are there any SDS plus adapters for diamond socket core cutters?

Yes, Bosch adapters for SDS plus are available in long and short versions.

What is the inner thread measurement of a socket core cutter?

Our socket core cutters have a M16 inner thread.

Material

Is the core cutter also suitable for reinforced concrete?

No, traditional diamond core cutters are not suitable for reinforced concrete. We recommend our specialist diamond core cutters (NAME) that can even drill through reinforced concrete and have a higher performance.

Which RPM leads to the best working results for core cutters?

We generally recommend the highest RPM, it's not usually necessary to adjust it.

Technique

Should I use my drill’s impact/hammering mode with diamond core cutters?

No. Never use diamond accessories when in hammering or impact mode, as this will damage the segments and can break the accessory.
