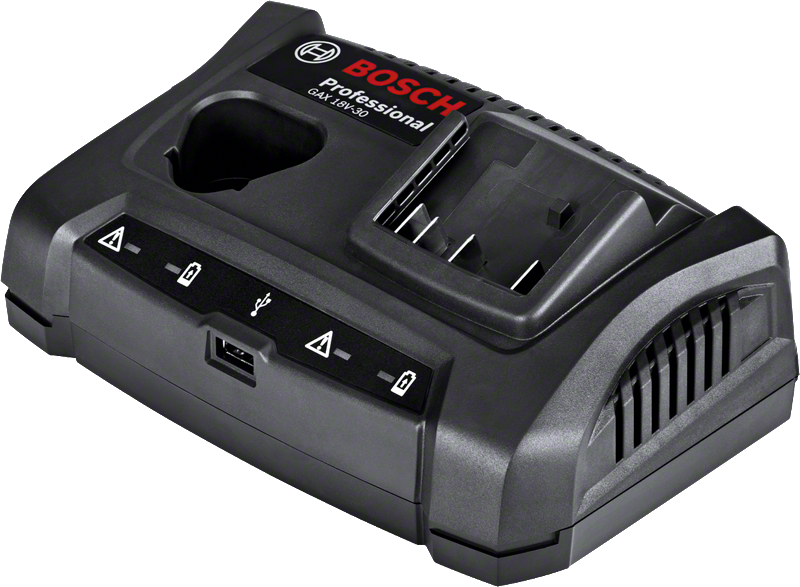

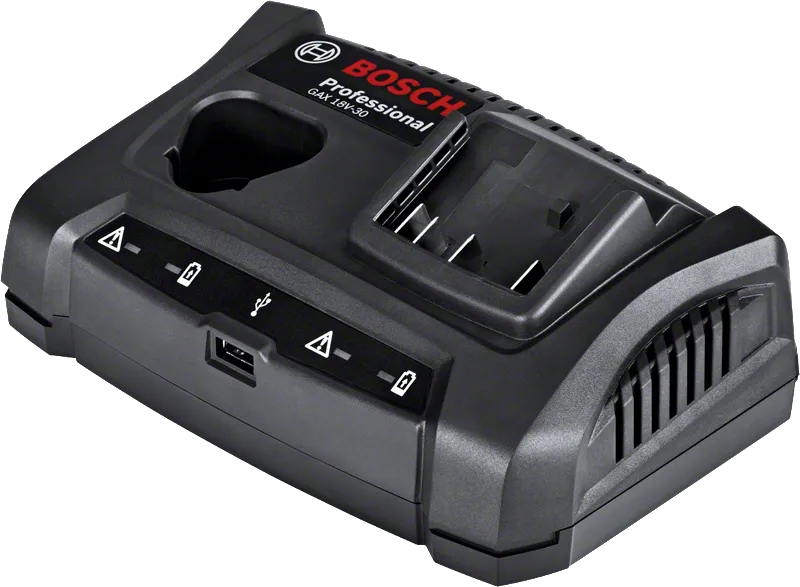

Bosch GAX 18V-30 dual bay charger with USB port.

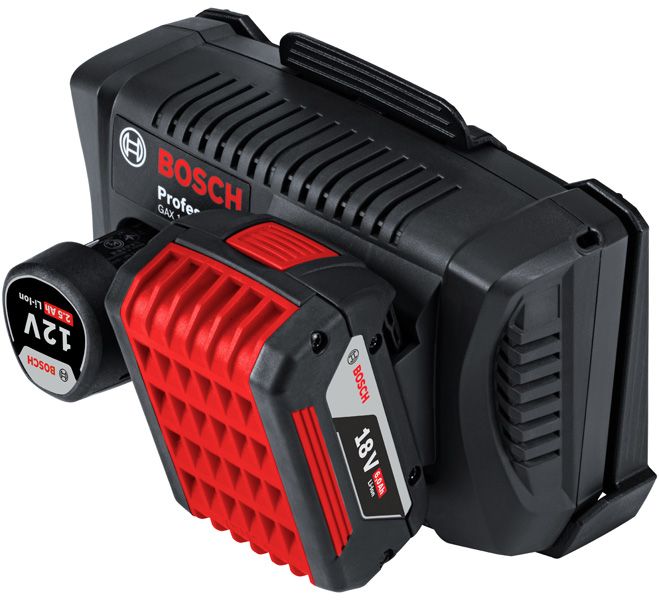

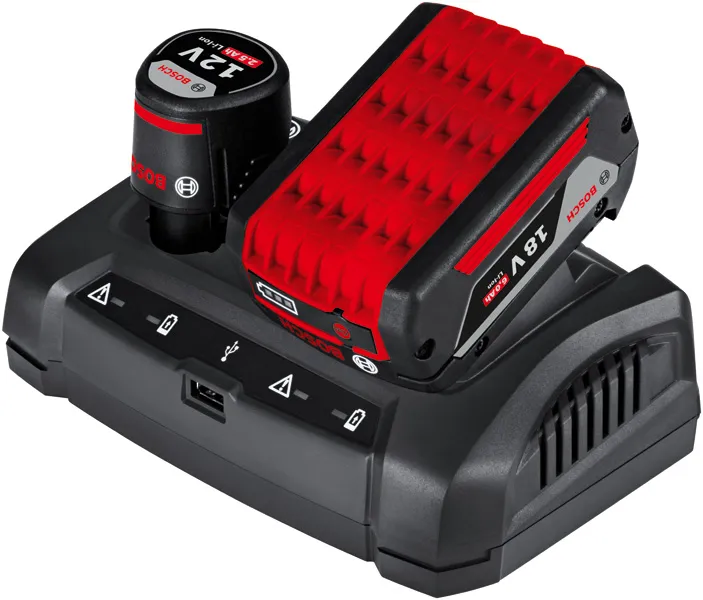

Bosch GAX 18V-30 charger with 18V and 12V batteries.

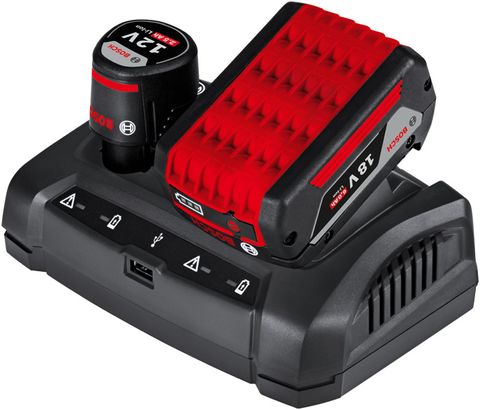

Bosch GAX 18V-30 charger for 12V and 18V batteries.

GAX 18V-30 Professional

Name: GAX 18V-30
Brand: Bosch power tools
SKU: 1600A011A9

Charger

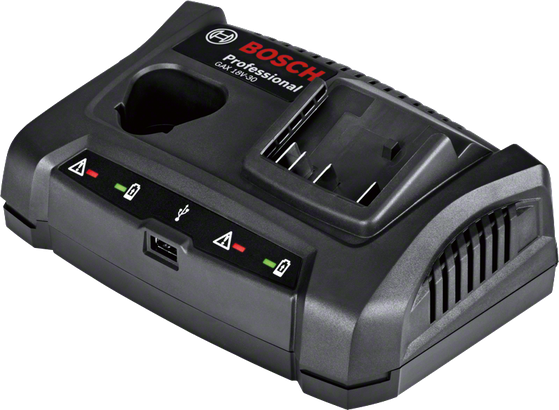

Dual-bay, multi-voltage and USB all-in-one charger

Dual-bay charger with 3 A charging current: One for 10.8/12 V and another one for 14.4/18 V
Additional USB charger integrated: Fast charges your smartphone or tablet with 2.1 A charging current
Sequential charger for all Bosch Professional 12 V and 18 V batteries

Functions & key features

Your Selection

in cardboard box with Wall mount

Change variant

Check availability on location

Find a local dealer

Your Selected Variant

in cardboard box with Wall mount 1 600 A01 1A9

Find a local dealer

Select a variant

Your Selection

in cardboard box with Wall mount

Order number: 1 600 A01 1A9

Find a local dealer

Included in all variants

Cardboard box
Wall mount

Additional in this variant

Charger GAX 18V-30

Order number: 1 600 A01 1A9

Your selection

Your Selection

in cardboard box with Wall mount

Order number: 1 600 A01 1AA

Find a local dealer

Included in all variants

Cardboard box
Wall mount

Additional in this variant

Charger GAX 18V-30

Order number: 1 600 A01 1AA

Select Variant

Technical data

Additional data

Battery voltage

18.0 V

Battery charging voltage

10=8 – 18 V

Charge current

3 A

Weight

0.8 kg

Interfaces

USB port: 5 V, max. 2.1 A

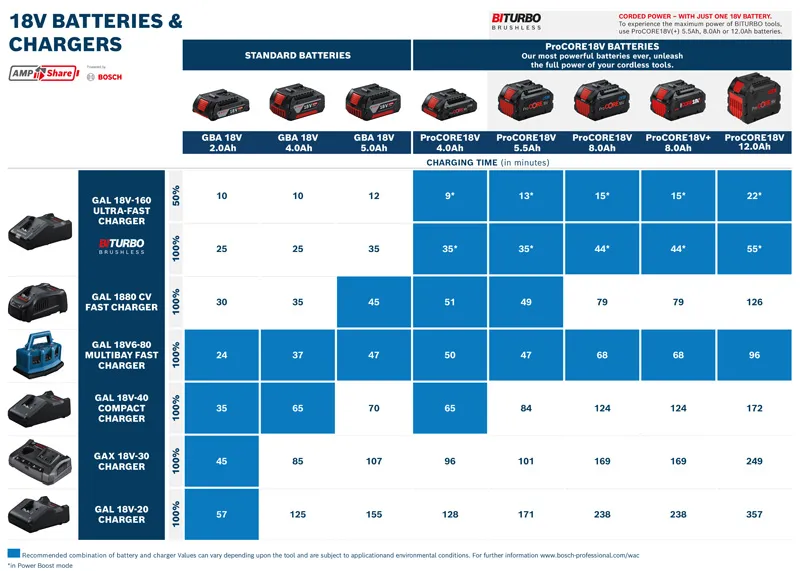

Charg. time at bat. cap. 2.0 Ah (80%/100%) approx.

35/45 min

Charg. time at bat. cap. 2.5 Ah (80%/100%) approx.

40/65 min

Charg. time at bat. cap. 3.0 Ah (80%/100%) approx.

53/68 min

Charg. time at bat. cap. 4.0 Ah (80%/100%) approx.

65/85 min

Charg. time at bat. cap. 5.0 Ah (80%/100%) approx.

82/107 min

Charg. time at bat. cap. 6.0 Ah (80%/100%) approx.

100/130 min

Charg. time at bat. cap. 6.3 Ah (80%/100%) approx.

109/181 min

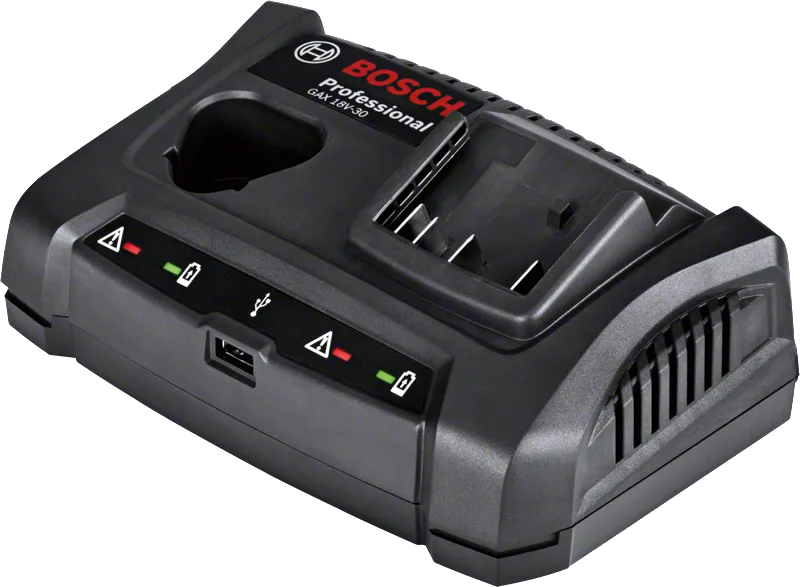

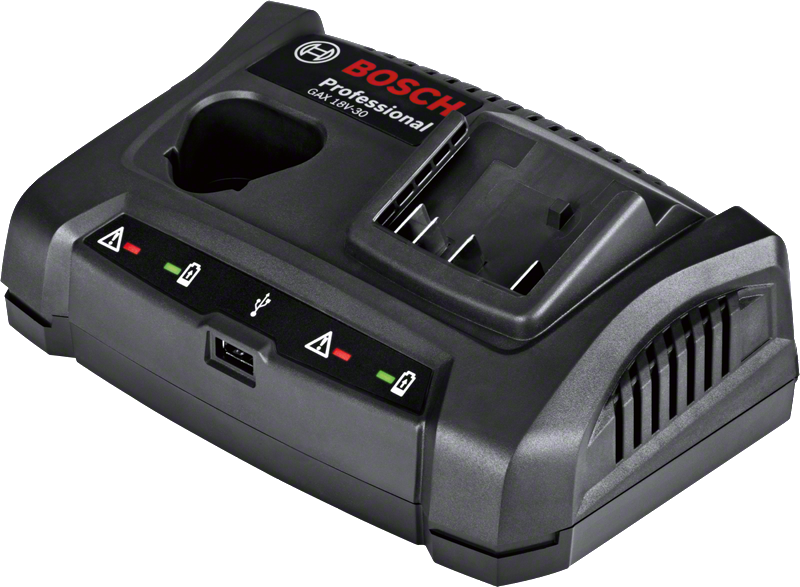

Bosch GAX 18V-30 charger with USB port and LED indicators.

* You can find more information about the deviations in the following link: Technical features of products

GAX 18V-30 Professional: Further information

Product Highlights

The GAX 18V-30 is a dual-bay, multi-voltage and USB all-in-one charger. It offers one bay for 10.8/12 V batteries and another one for 14.4/18 V. The batteries are charged with a charging current of 3 A. Additionally, a USB charger for fast charging of your smartphone or tablet with a charging current of 2.1 A is integrated. This sequential charger fits all Bosch Professional 12 V and 18 V batteries.

Additional Information

Additionally the GAX 18V-30 is equipped with a wall-mounting option.
